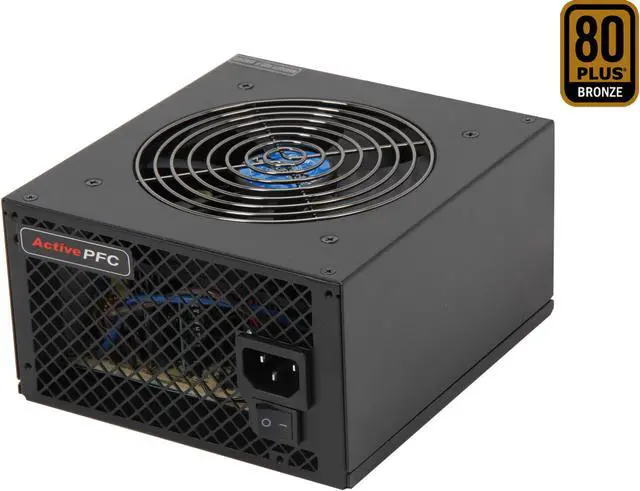

TOPOWER Nano Series TOP-800WB 800 W ATX12V v2.3 SLI Ready CrossFire Ready 80 PLUS BRONZE Certified Modular Active PFC Power Supply

🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available

Specs

Reviews (6)

Any questions? Our AI beta will help you find out quickly.

Try me now

Details
Type	ATX12V v2.3
Maximum Power	800 W

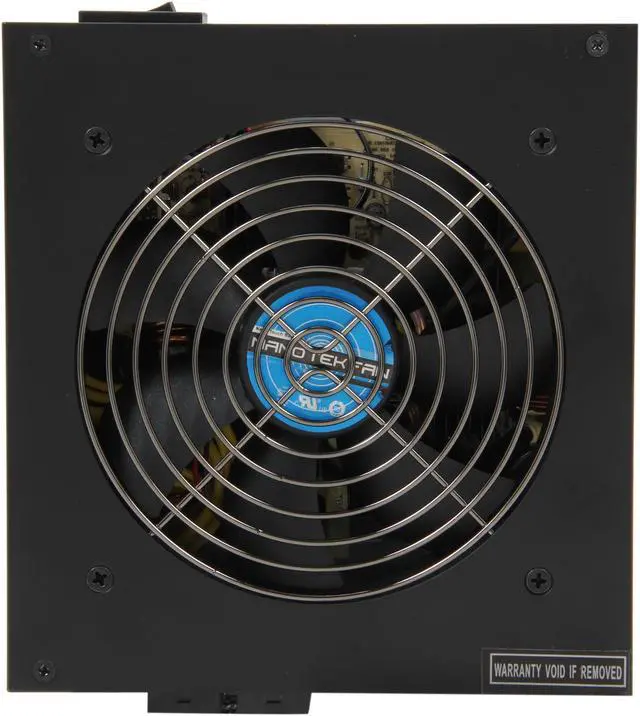

Fans	1 x 120mm
PFC	Active
Main Connector	20+4Pin
+12V Rails	2
PCI-Express Connector	2 x 6-Pin, 2 x 6+2-Pin
SATA Power Connector	8
SLI	SLI Ready
CrossFire	CrossFire Ready
Modular	Modular
Efficiency	> 80%
Energy-Efficient	80 PLUS BRONZE Certified
Over Voltage Protection	Yes
Overload Protection	Yes
Input Voltage	115 / 230 V
Input Frequency Range	50/60 Hz
Input Current	12A - 6A

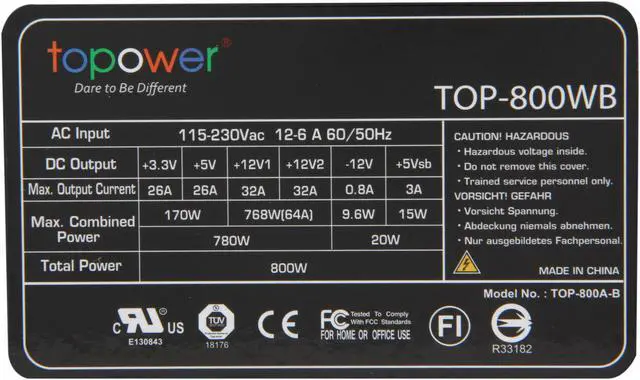

Output	+3.3V@26A, +5V@26A, +12V1@32A, +12V2@32A, [email protected], [email protected]
MTBF	>100,000 Hours
Approvals	UL, TUV, CB, CE, FCC, RoHs

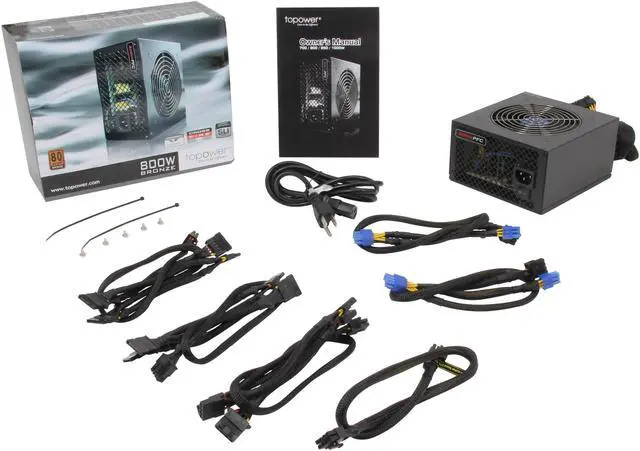

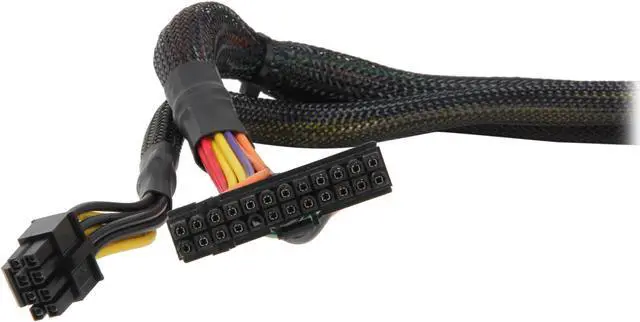

Connectors	1 x Main connector (20+4Pin) 1 x 4+4 Pin ATX12V/EPS12V 4 x Peripheral 8 x SATA 1 x Floppy 2 x PCI-E 6Pin 2 x PCI-E 6+2Pin

Features
Features	Modular Cable Management 120mm Long Life Nano Bearing Cooling Fan Active PFC Auto AC switch Low Ripple and noise Output over voltage protection Short circuit protection on all outputs Approved by UL, TUV, CB, CE, FCC, RoHs Compliant

Dimension & Weight
Dimensions	6" x 3.38" x 6.25" (L x H x W)
Weight	7 lbs.

Additional Information
First Listed on Newegg	March 22, 2012
