Input Voltage: 90 - 240V Performance 1300W EPS12V/ATX12V Power Supply Support 6 GPU For Gaming Mining and Server System 135MM Cooling Fan +12V: 108A +5V: 20A + 3.3V: 20A -12V: 0.5A +5Vsb: 3.0A
Learn more about the TOPOWER TOP-1300W
General
Brand
TOPOWER
Model
TOP-1300W
Details
Type
ATX12V / EPS12V
Maximum Power
1300 W
Fans
1
PFC
Active
Main Connector
24+8Pin
+12V Rails
Single
PCI-Express Connector
12 x 6+2-Pin
SATA Power Connector
8
SLI
SLI Ready
CrossFire
CrossFire Ready
Modular
No
Efficiency
> 85%
Over Voltage Protection
Yes
Overload Protection
Yes

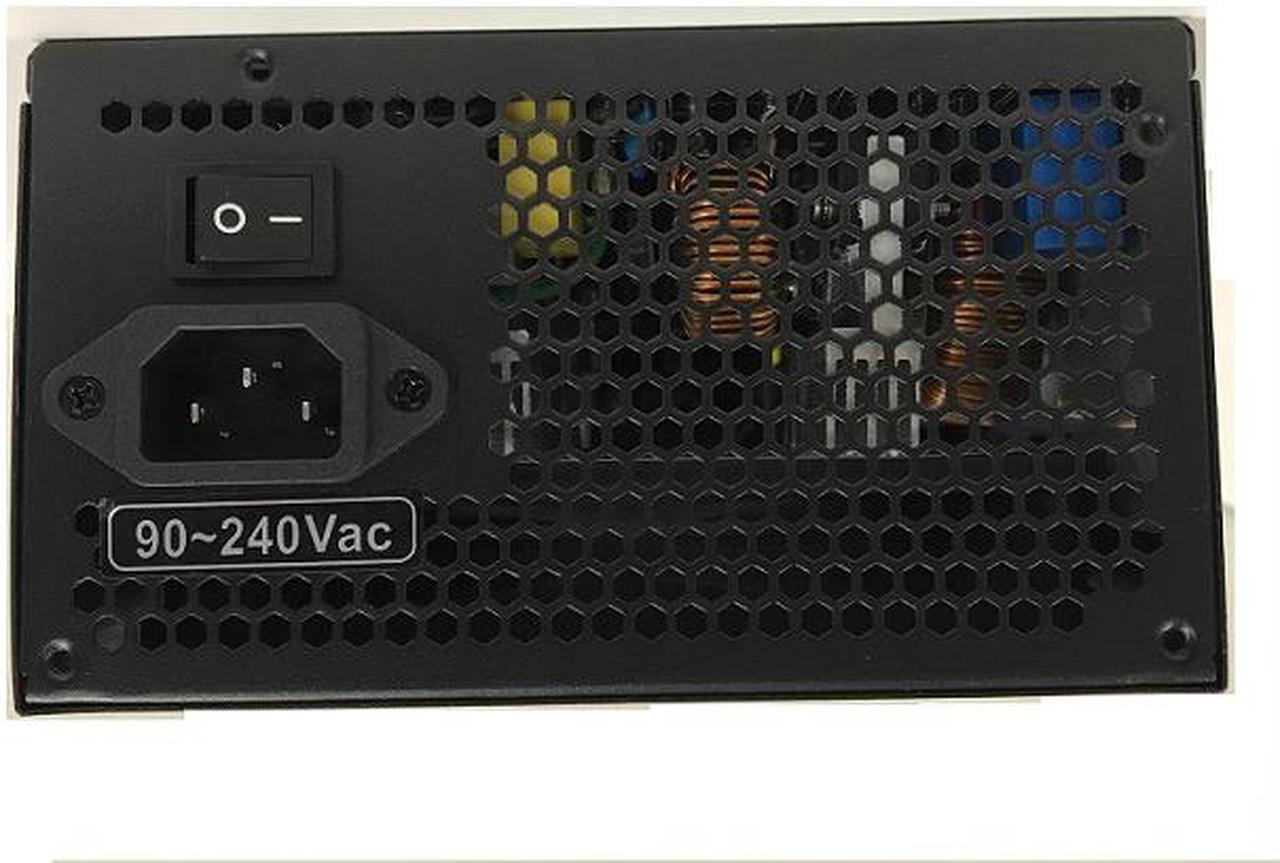

Input Voltage
100 - 240 V
Input Frequency Range
47 - 63 Hz
Type
ATX 12V / EPS 12V
Power Rating
1300W
PFC
Active
+12V Rails
Single
SLI
Ready
CrossFire
Ready
Modular
No
Efficiency
> 85%

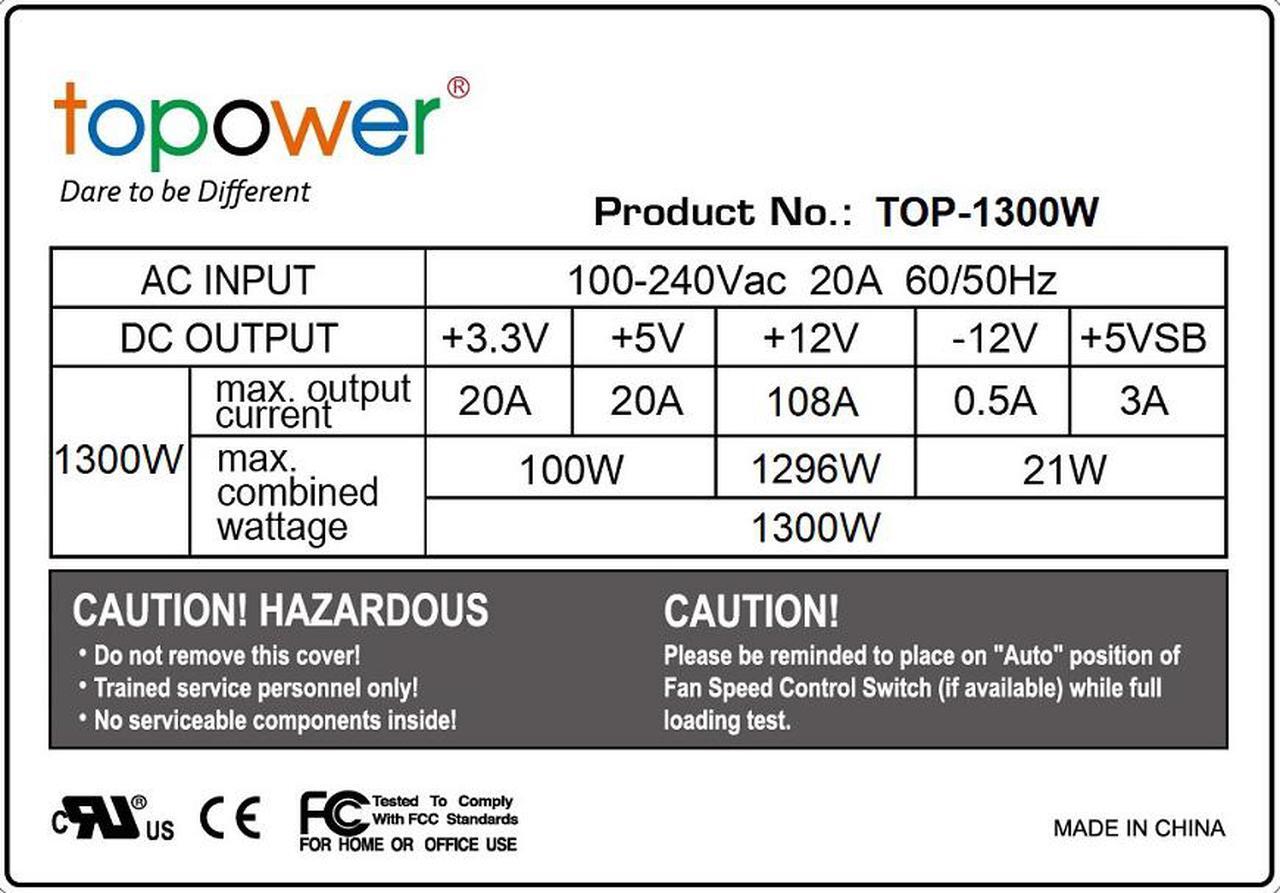

Output
+3.3V Max. Current
20A
+5V Max. Current
20A
+12V1 Max. Current
108A
-12V Max. Current
0.5A
+5VSB Max. Current
3A

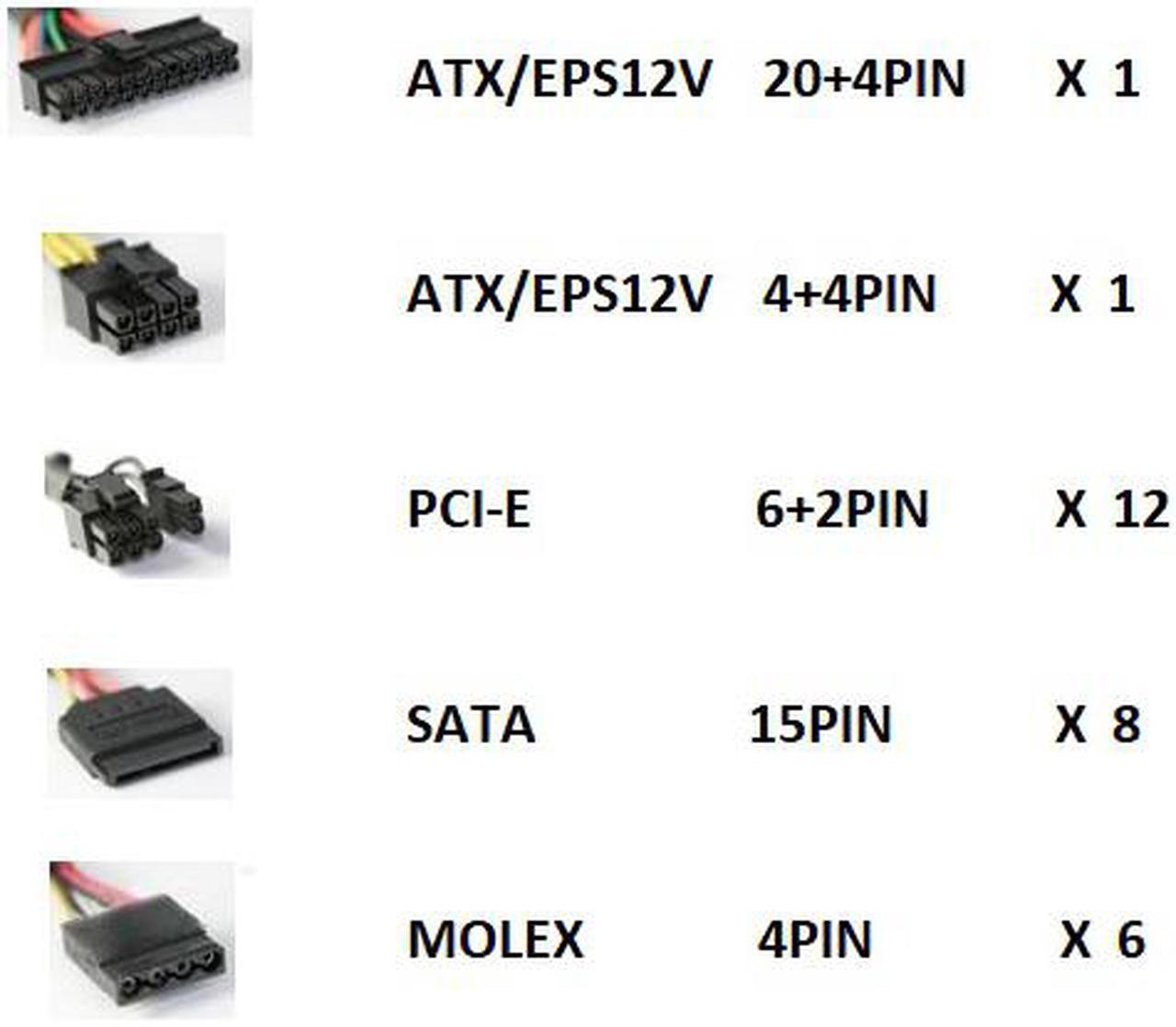

Connectors
Main Connector
20+4 Pin
12V Power Connector
1 x 4+4 Pin ATX/EPS 12V
SATA Power Connector
8
Peripheral Connector
6

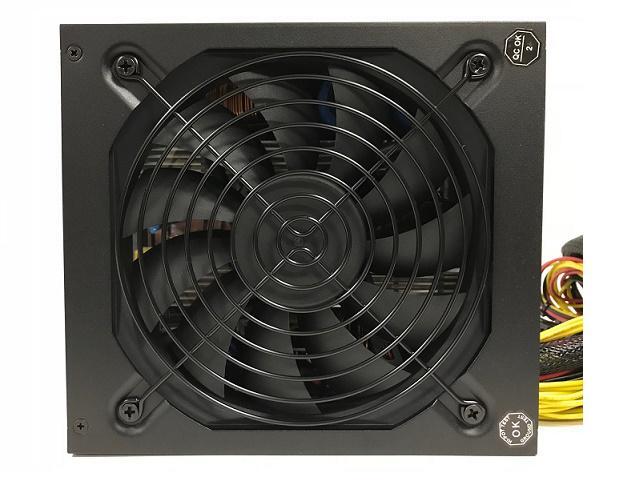

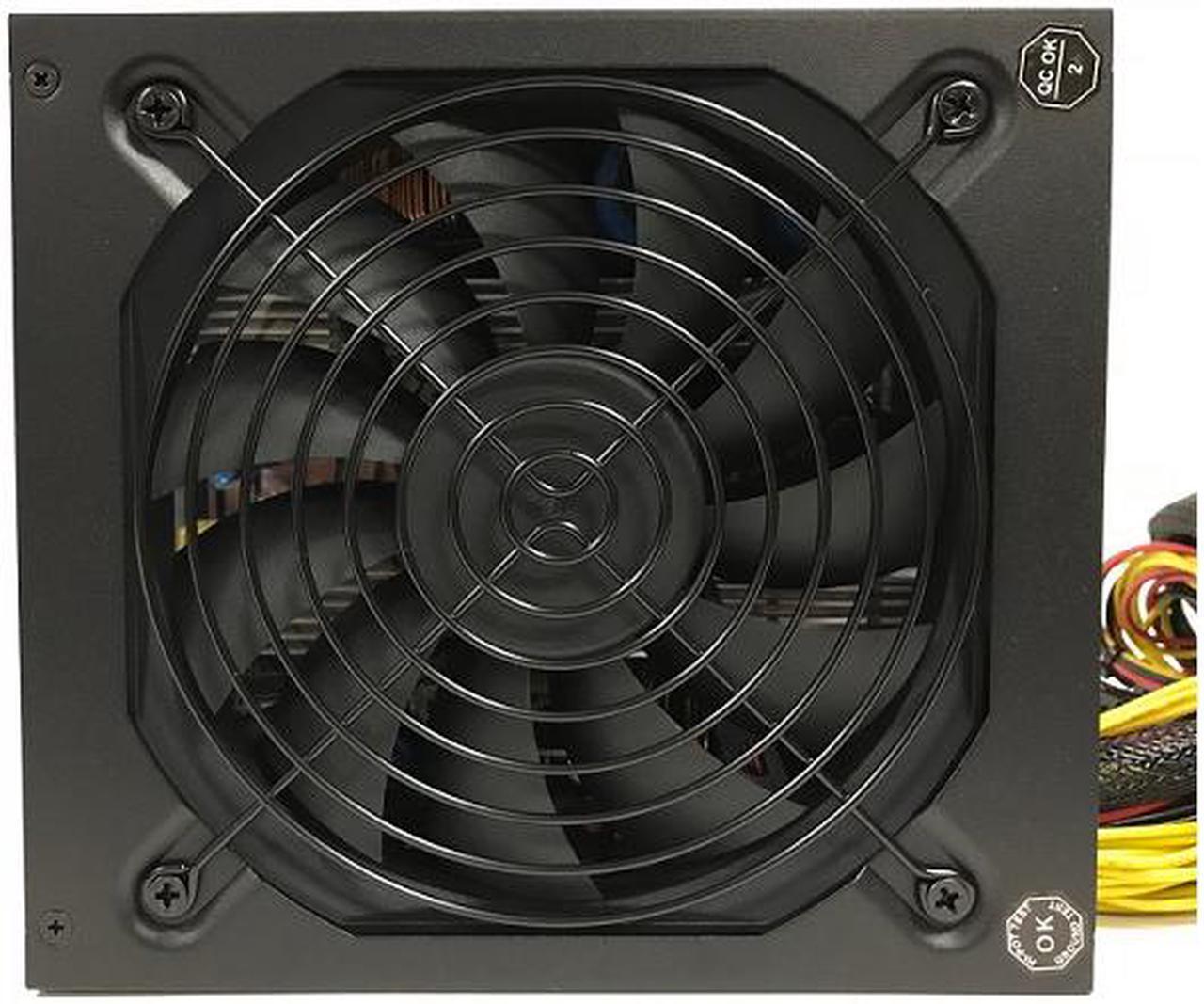

Fans
Fans Total Quantity
1
Top Fans Size
135mm
Additional Information
Date First Available
February 19, 2019
