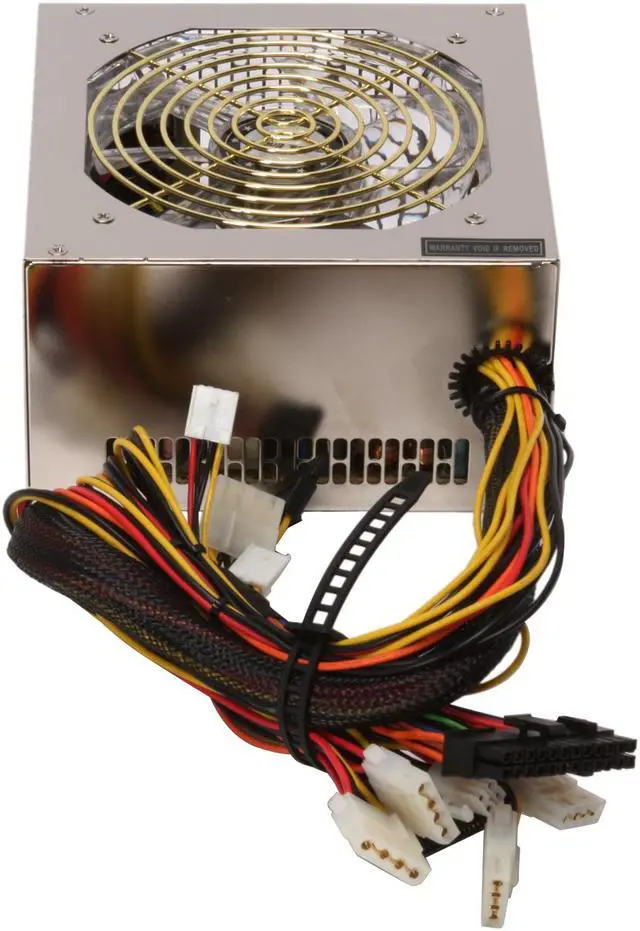

TOPOWER TOP-550PCM 550 W ATX / BTX Power Supply - OEM
- ATX / BTX
- 115 / 230 V 50/60 Hz
- +3.3V@28A,+5V@54A,+12V1@20A,+12V2@20A,-12V@1A,+5VSB@2.5A
Specs
Reviews (51)
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the TOPOWER TOP-550PCM
| Brand | TOPOWER |
|---|---|
| Model | TOP-550PCM |
| Type | ATX / BTX |
|---|---|
| Maximum Power | 550 W |
| Fans | 1 x 120mm Blue LED Fan |
| Main Connector | 20+4Pin |
| +12V Rails | 2 |
| PCI-Express Connector | 1 x 6-Pin |
| SATA Power Connector | 2 |
| SLI | No |
| CrossFire | No |
| Input Voltage | 115 / 230 V |
| Input Frequency Range | 50/60 Hz |
| Input Current | 10A @ 115V, 6A @ 230V |

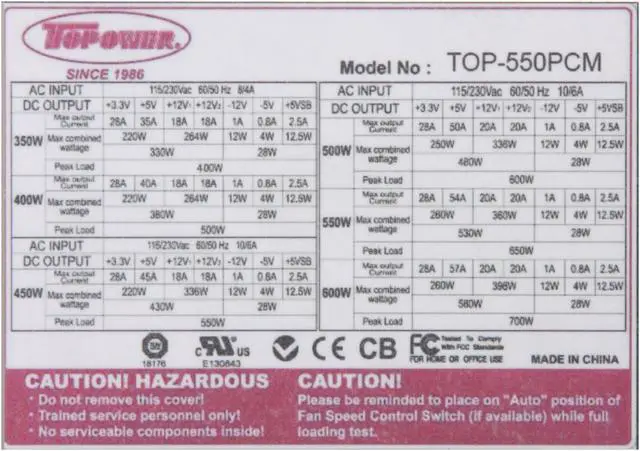

| Output | +3.3V@28A,+5V@54A,+12V1@20A,+12V2@20A,-12V@1A,+5VSB@2.5A |
| Approvals | UL, TUV, CB CE, and FCC |

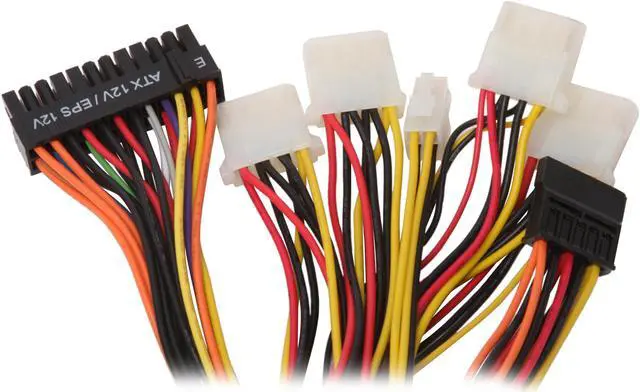

| Connectors | 1 x Main connector (20+4Pin) 1 x 12V(P4) 4 x Peripheral 2 x SATA 2 x Floppy 1 x PCI-E |
| Features | ATX 12V Power Supply, BTX, Dual Core and PCI-E board ready Flex Main Connector Turbo Fan button 1 pc Case control lead 3 pc Low ripple and noise Output over voltage protection Short circuit protection on all outputs Reset table power shut down 100% Hi-Pot Tested |
|---|
| First Listed on Newegg | August 28, 2008 |
|---|
