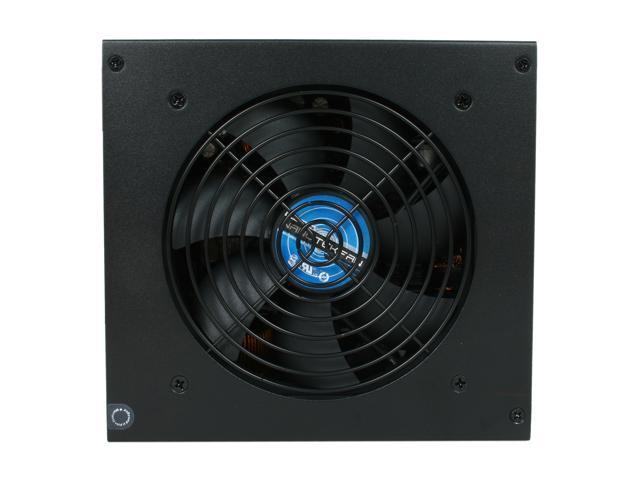

TOPOWER TOP - 800WS 800 W ATX12V / EPS12V SLI Ready CrossFire Ready 80 PLUS SILVER Certified Active PFC Power Supply

OUT OF STOCK.
  • ATX12V / EPS12V
  • 80 PLUS SILVER Certified
  • 115 / 230 V 50/60 Hz
  • +3.3V@26A, +5V@26A, +12V1@32A, +12V2@32A, -12V@0.8A, +5VSB@3.0A
Specs
Reviews

Learn more about the TOPOWER TOP - 800WS

General
Brand TOPOWER
Model TOP - 800WS
Details
Type ATX12V / EPS12V
Maximum Power 800 W
Fans 1 x 120mm long life Nano bearing fan
PFC Active
Main Connector 20+4Pin
+12V Rails 2
PCI-Express Connector 2 x 6-Pin, 2 x 6+2-Pin
SATA Power Connector 8
SLI SLI Ready
CrossFire CrossFire Ready
Energy-Efficient 80 PLUS SILVER Certified
Input Voltage 115 / 230 V
Input Frequency Range 50/60 Hz
Input Current 12A @ 115V, 6A @ 230V
Output +3.3V@26A, +5V@26A, +12V1@32A, +12V2@32A, -12V@0.8A, +5VSB@3.0A
Approvals UL, TUV, CB CE, FCC, RoHs
Connectors 1 x Main connector (20+4Pin)
1 x 4+4 Pin ATX 12V/EPS 12V
1 x 8 Pin EPS 12V
4 x Peripheral
8 x SATA
1 x Floppy
4 x PCI-E
Features
Features Active PFC, Auto AC switch

Short circuit protection on all outputs

Approved by UL, TUV, CB CE, FCC, RoHs Compliant

100% Hi - Pot Tested
Dimension & Weight
Dimensions 6" x 3.38" x 6.25"
Weight 7 lbs.
Additional Information
Date First Available January 19, 2011

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

  • Limited Warranty period (parts): 1 year
  • Limited Warranty period (labor): 1 year
