Main image of SP530E WiFi Alexa Bluetooth LED Controller Support PWM Monochrome CCT RGB RGBW RGBCCT or SPI TTL IC Chip LED Strip/Matrix WS2811 WS2812B WS2813 WS2814 WS2815 SK6812 etc DC5V DC12V DC24V

Alt view image 2 of 3 - SP530E WiFi Alexa Bluetooth LED Controller Support PWM Monochrome CCT RGB RGBW RGBCCT or SPI TTL IC Chip LED Strip/Matrix WS2811 WS2812B WS2813 WS2814 WS2815 SK6812 etc DC5V DC12V DC24V

Alt view image 3 of 3 - SP530E WiFi Alexa Bluetooth LED Controller Support PWM Monochrome CCT RGB RGBW RGBCCT or SPI TTL IC Chip LED Strip/Matrix WS2811 WS2812B WS2813 WS2814 WS2815 SK6812 etc DC5V DC12V DC24V

Shop All Generic Brand Products | Visit HalongzhiUKshop Store

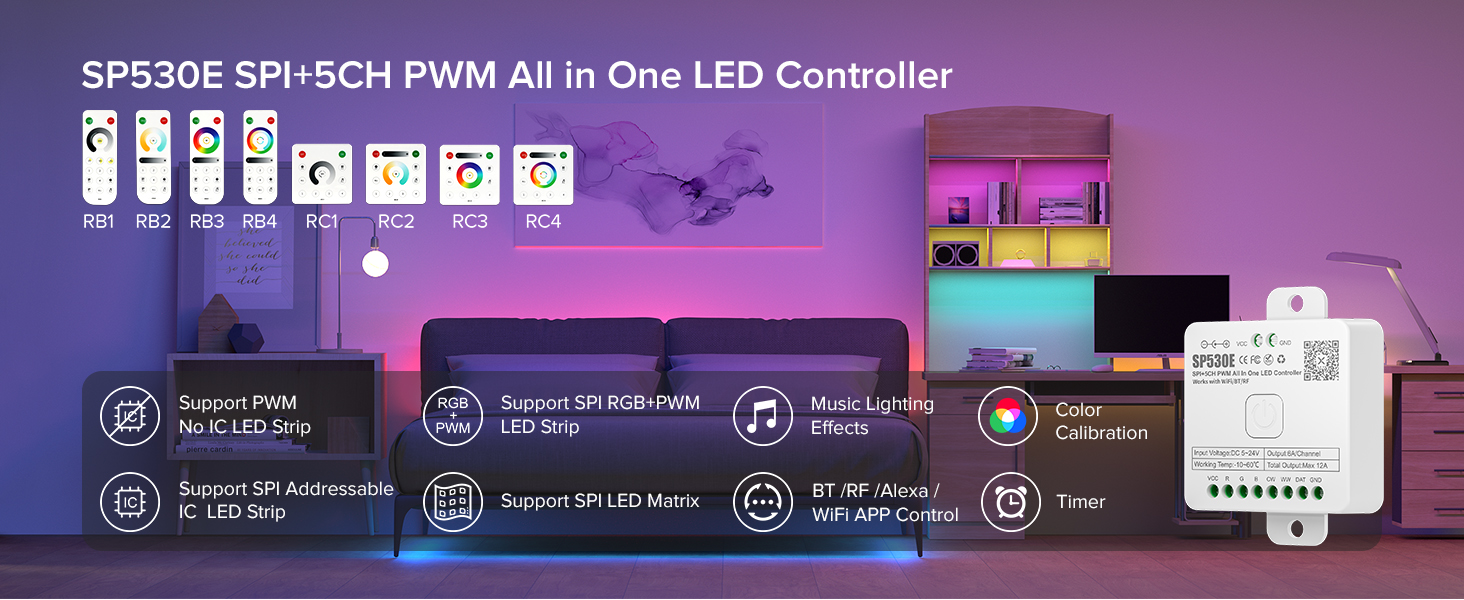

SP530E WiFi Alexa Bluetooth LED Controller Support PWM Monochrome CCT RGB RGBW RGBCCT or SPI TTL IC Chip LED Strip/Matrix WS2811 WS2812B WS2813 WS2814 WS2815 SK6812 etc DC5V DC12V DC24V

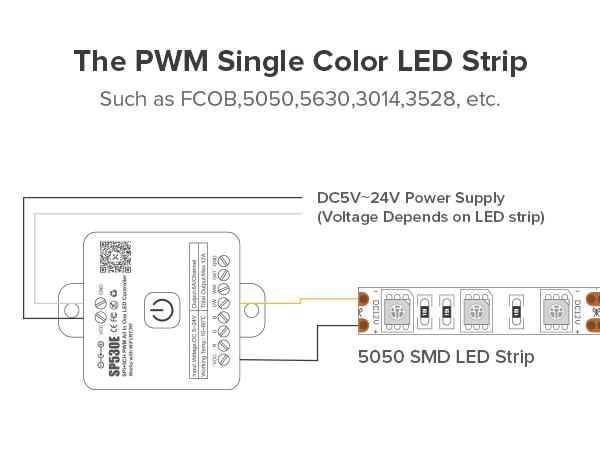

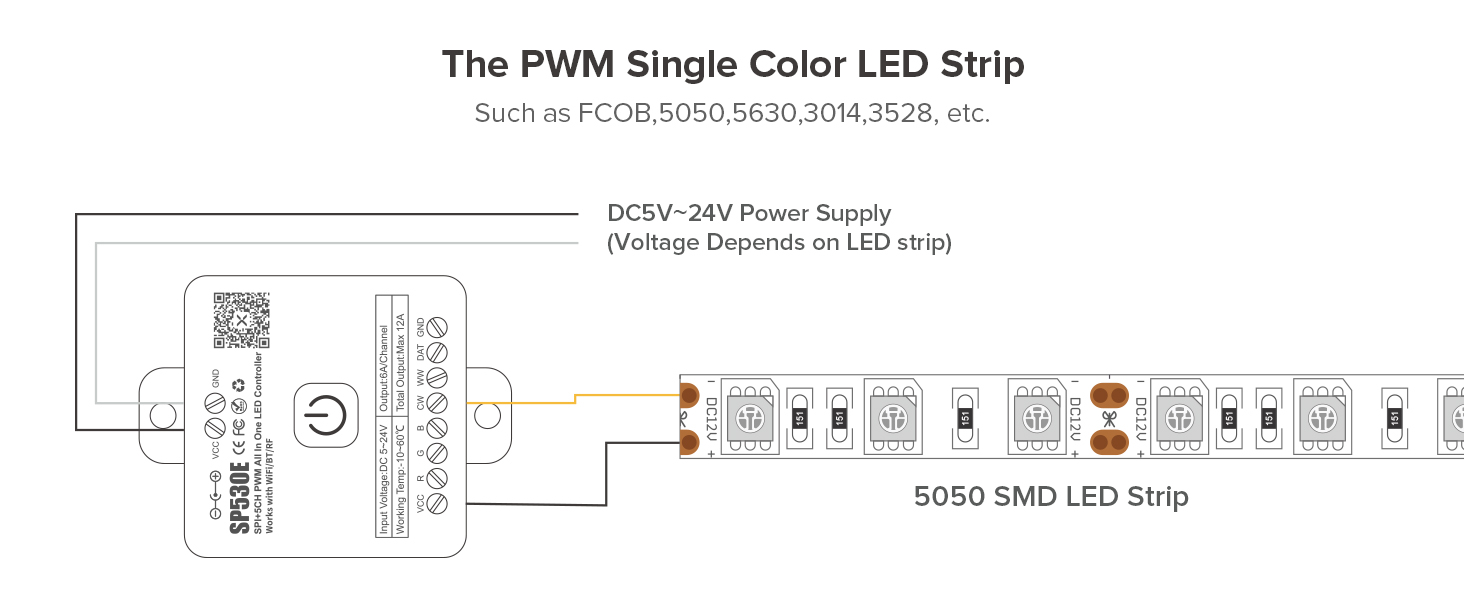

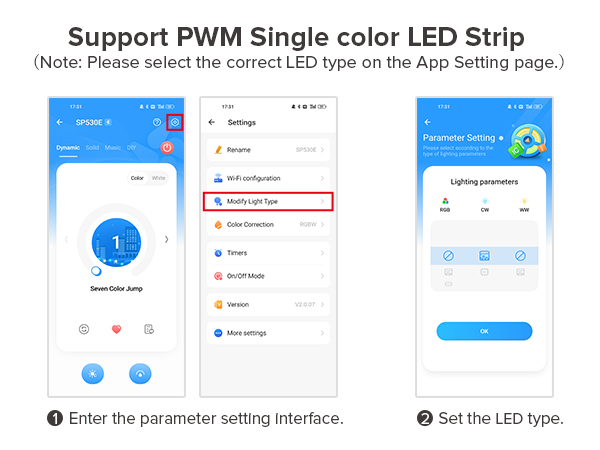

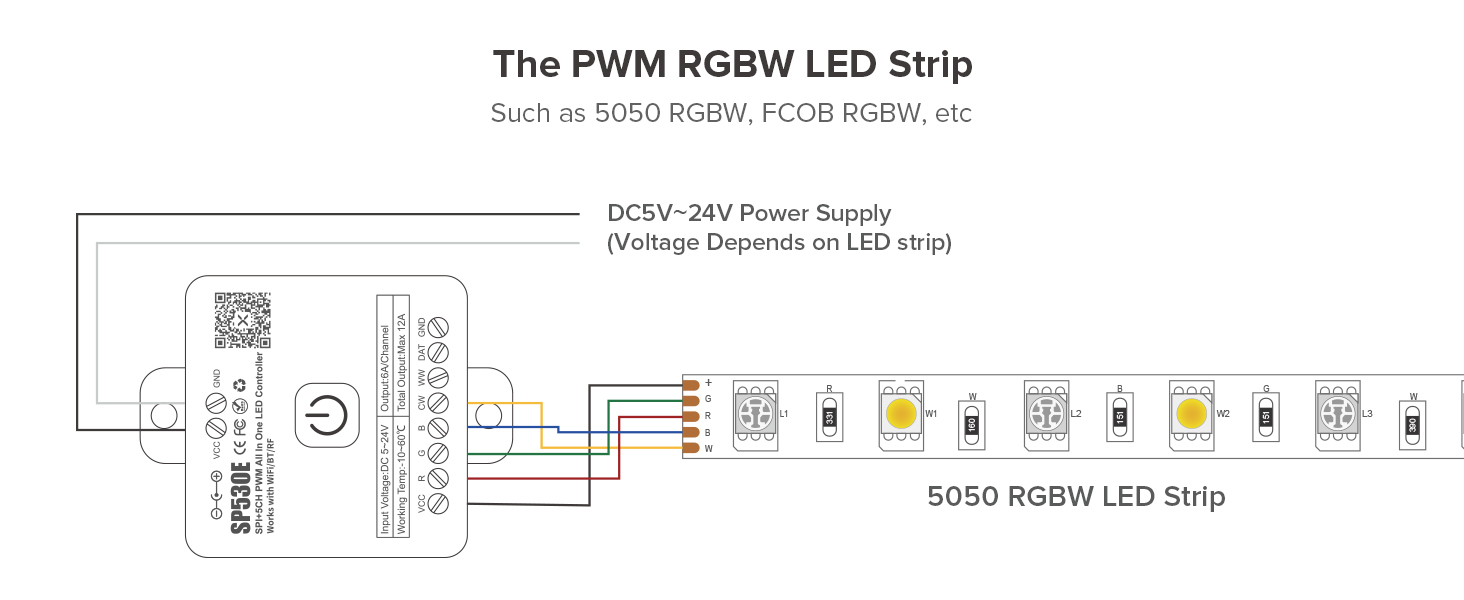

Support PWM LED Strip. PWM LED strip which has no IC chip,for example FCOB 5630 5730 5050 2835 3528 2pin(V+ V-) 3pin CCT(V+ CW WW) 4pin RGB(V+ R G B) 5pin RGBW(V+ R G B W) 6pin RGBCCT(V+ R G B CW WW).Monochrome Light and CCT light have no function of DIY light effect.

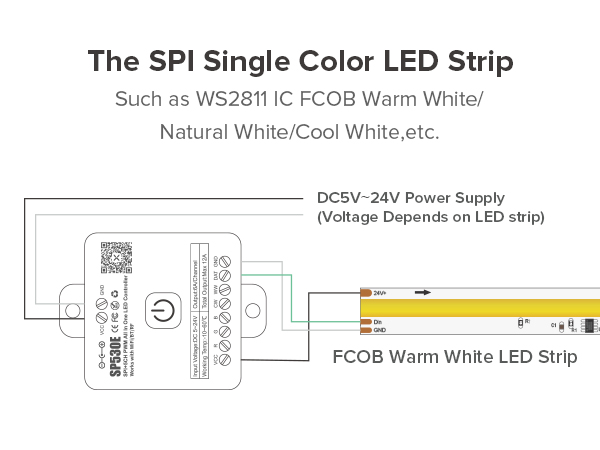

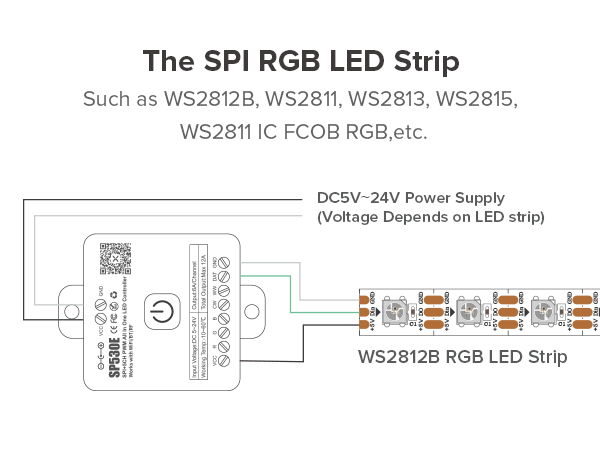

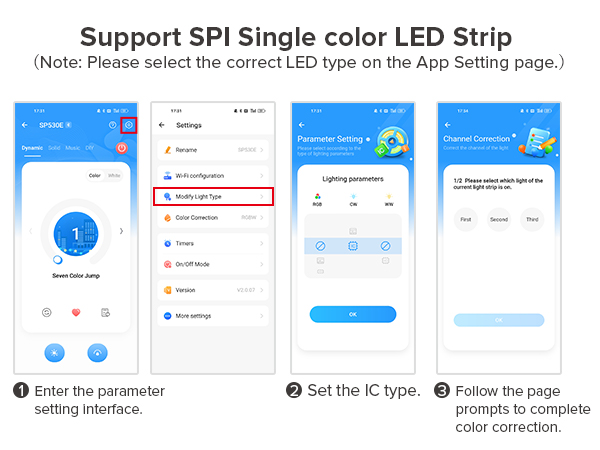

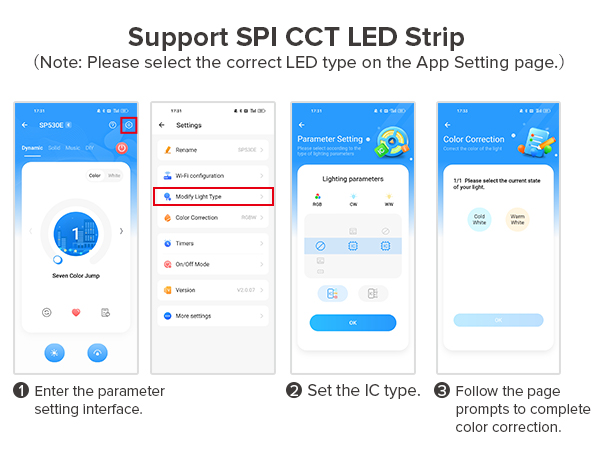

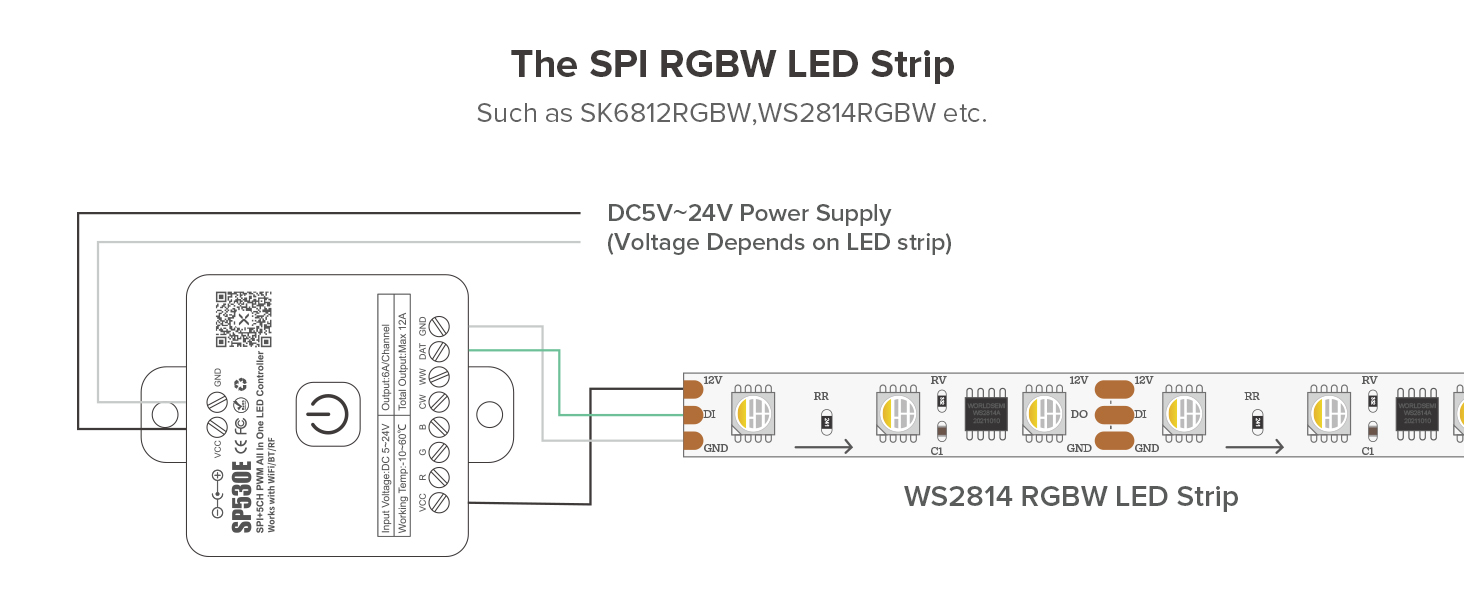

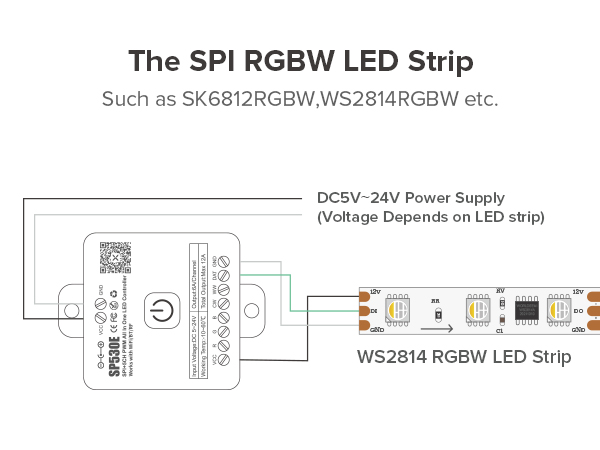

Support Addressable IC Chip LED Strip and Matrix.SPI TTL IC Chip LED strip and Matrix.WS2812B LED Matrix, 8X8, 8x16, 8x32, 16x16, 32x32 etc, MAX1200pixel. 3pin(V+ Data GND) or 4pin(V+ Data Backup GND). For example WS2811 WS2812B WS2813 WS2814 WS2815 SK6812 LB1934 IC chip etc single color ,CCT ,RGB ,RGBW,RGBCCT addressable LED strip.Can not support SK9822 WS2801 etc Data+Clock LED strip.Monochrome Light and CCT light have no function of DIY light effect .
The SP530E controller's SPI interface supports a maximum of 1,800 ICs for single-color LED strips, 600 ICs for CCT (dual-color-temperature) LED strips, 1,200 ICs for RGB LED strips, 900 ICs for RGBW LED strips, and 600 ICs for RGBCCT LED strips, with all values representing the upper control limits under optimal operating conditions.

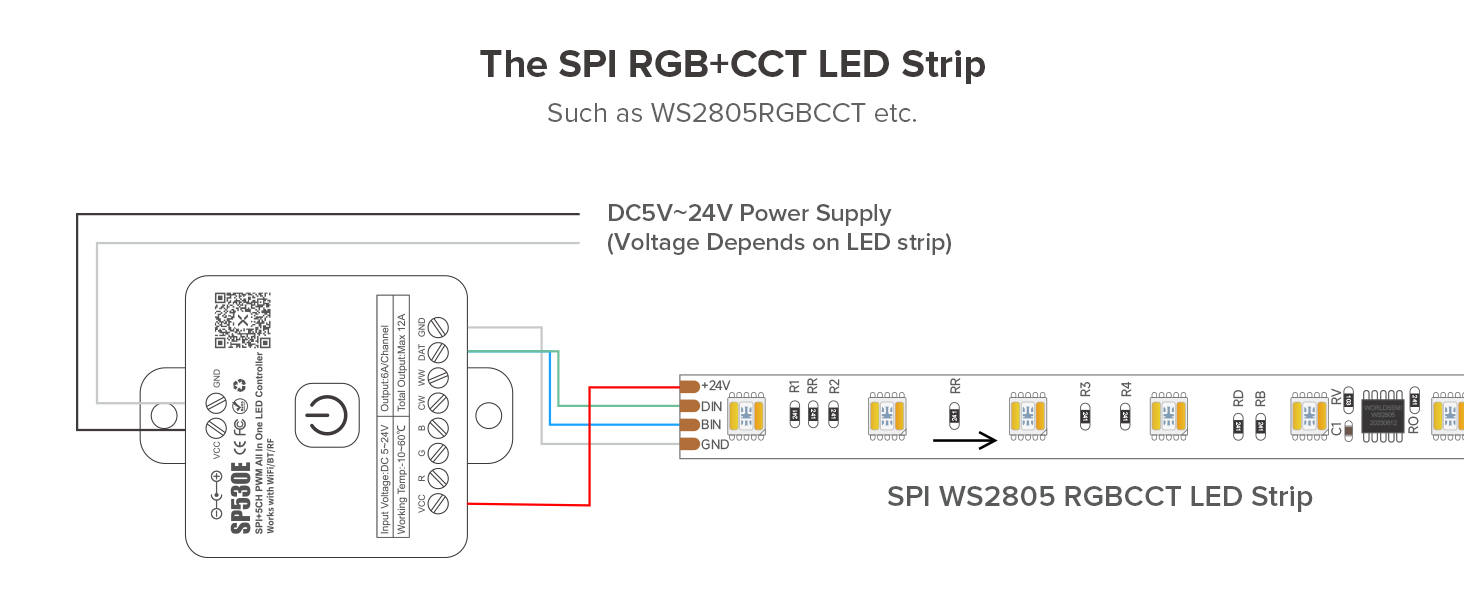

Support SPI+PWM LED Strip at the same time.For example you can controller WS2812B IC RGB LED strip + FCOB 3000K single color no IC strip or WS2812B IC RGB LED strip + FCOB CCT no IC strip .

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

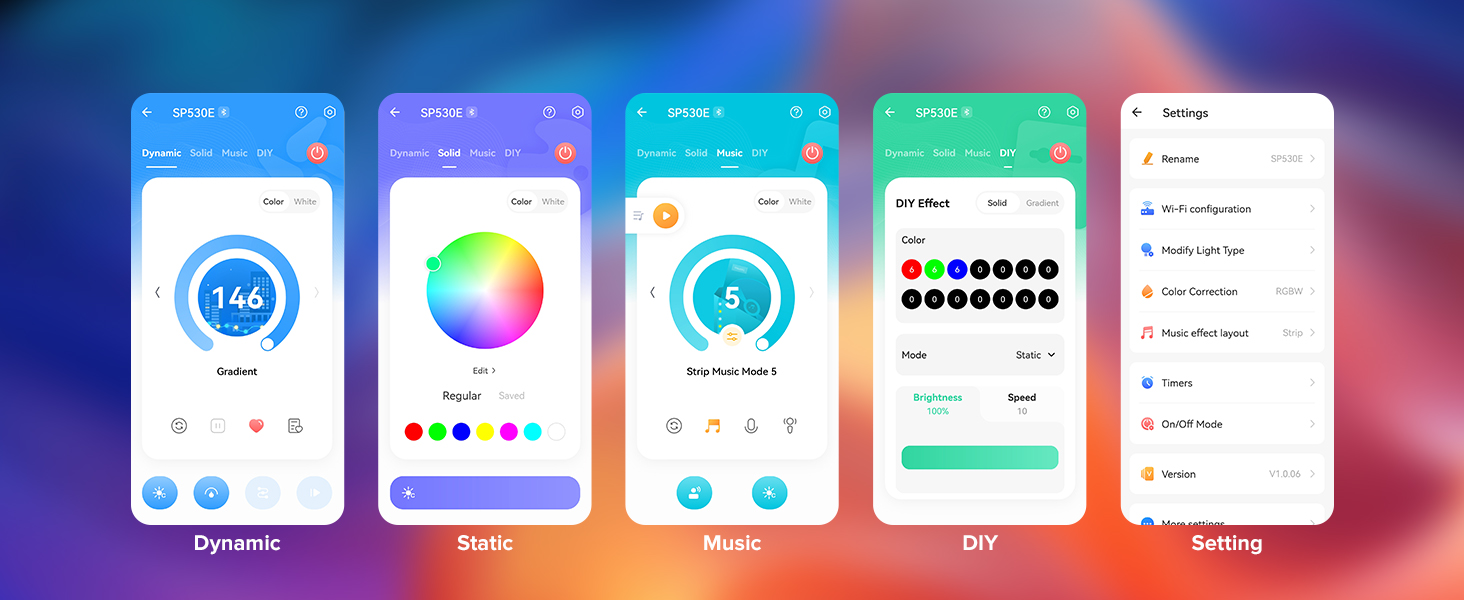

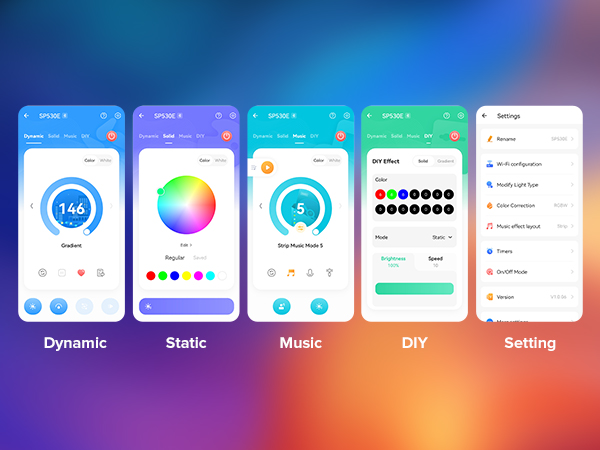

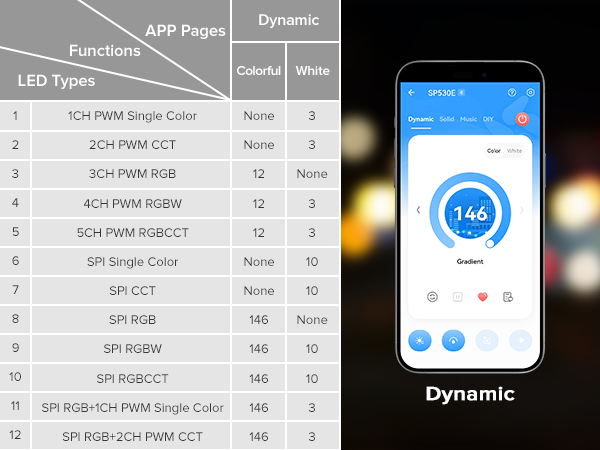

Work with RF remote and smart panel & 5 major control pages in the APP

Parameter Table

LED Type	SPI IC chip LED strip/PWM LED strip/SPI LED Matrix.
Input Voltage	DC5V-DC24V Controller voltage depends on LED strip.
Current	PWM Single Channel Maximun Output Current: 6A.Total Maximun : 12A.
Waterproof level	IP30 Non-waterproof
Operation temperature	-4?~140?(-20?~+60? )

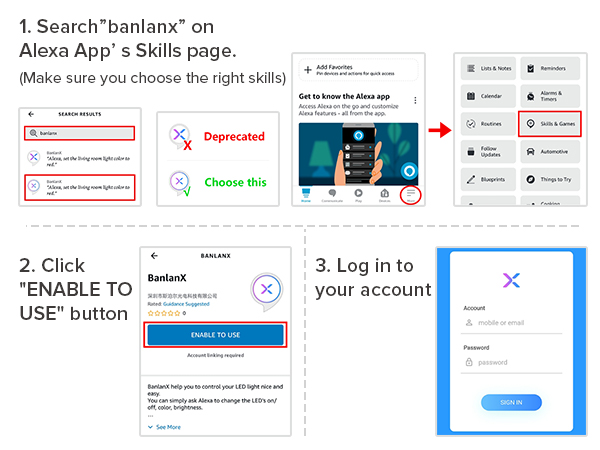

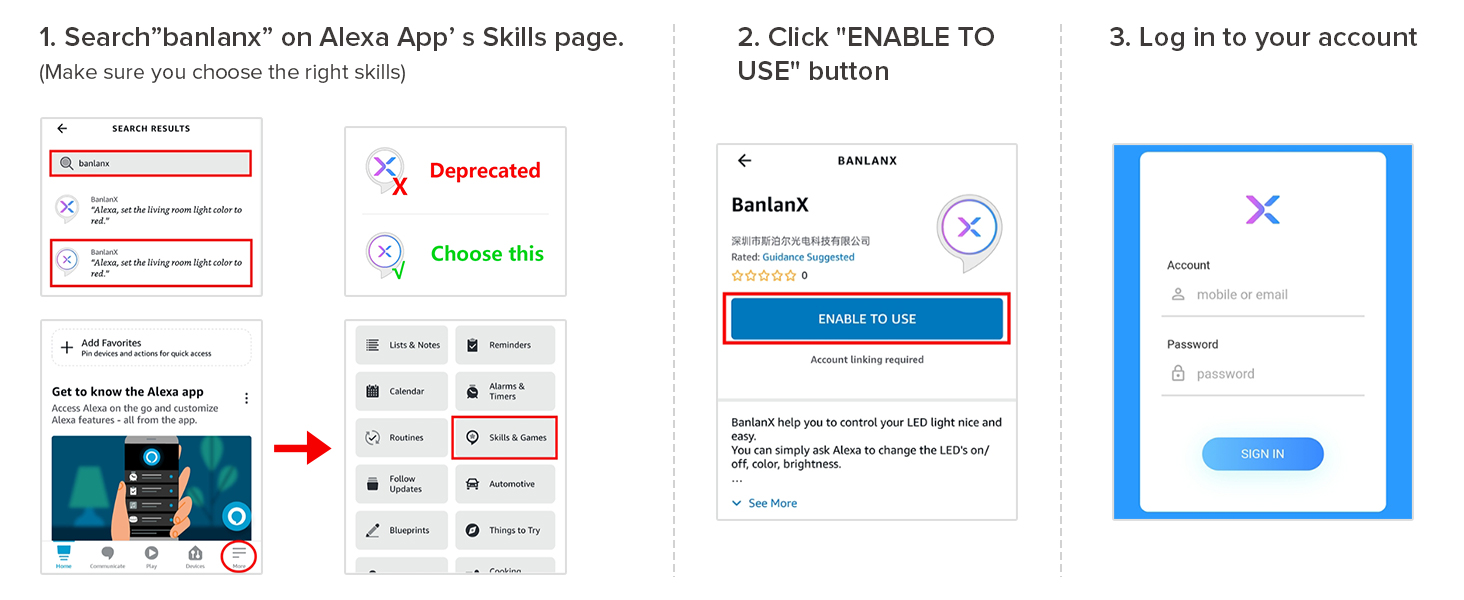

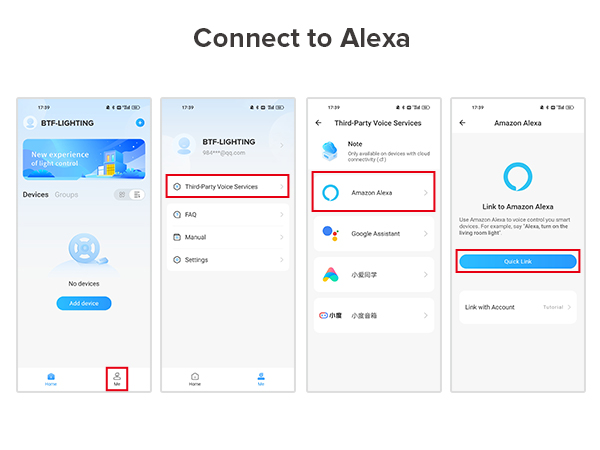

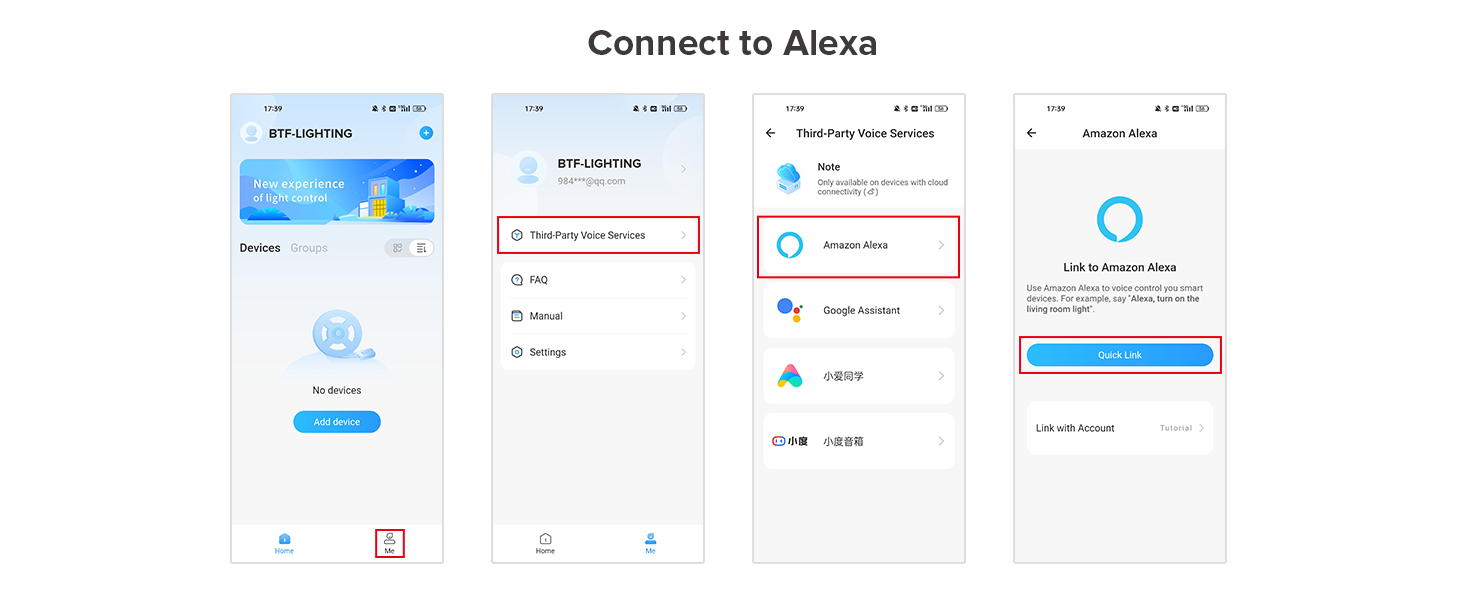

Ways of working	Match with RF remote , Bluetooth APP BalanX , WiFi Alexa.
On/off animations	Set on/off animations and the default power-on state.

APP Name	BanlanX

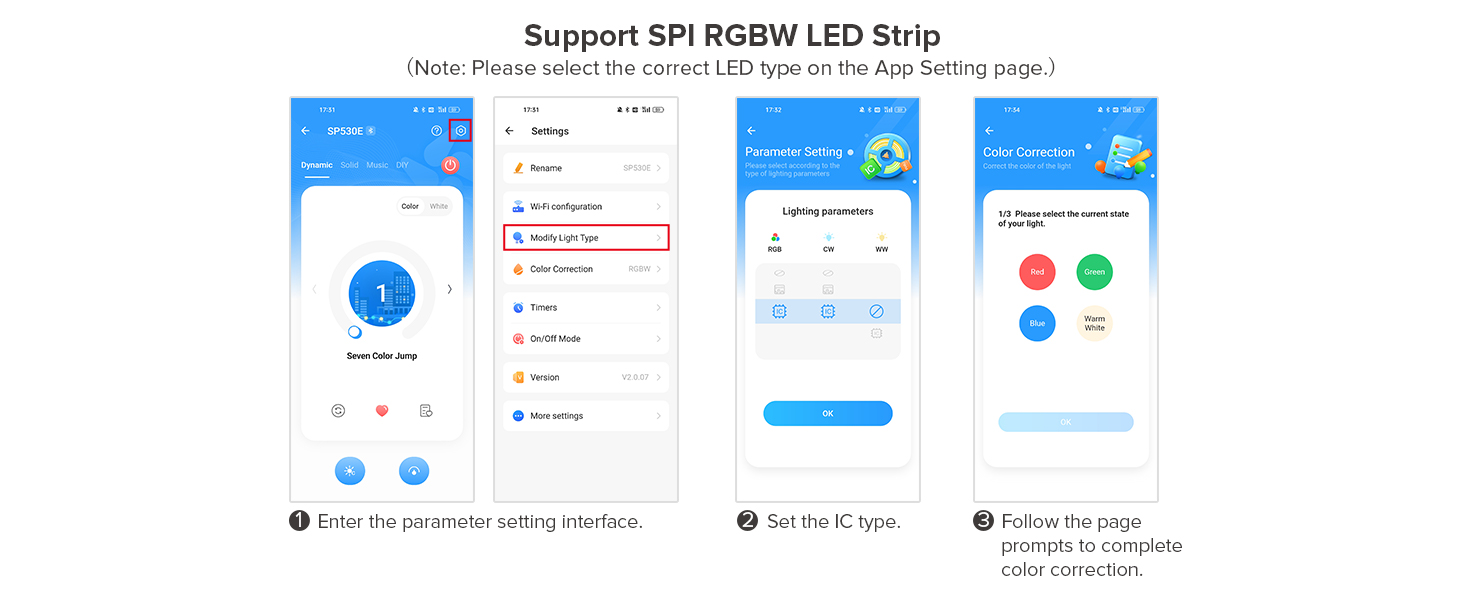

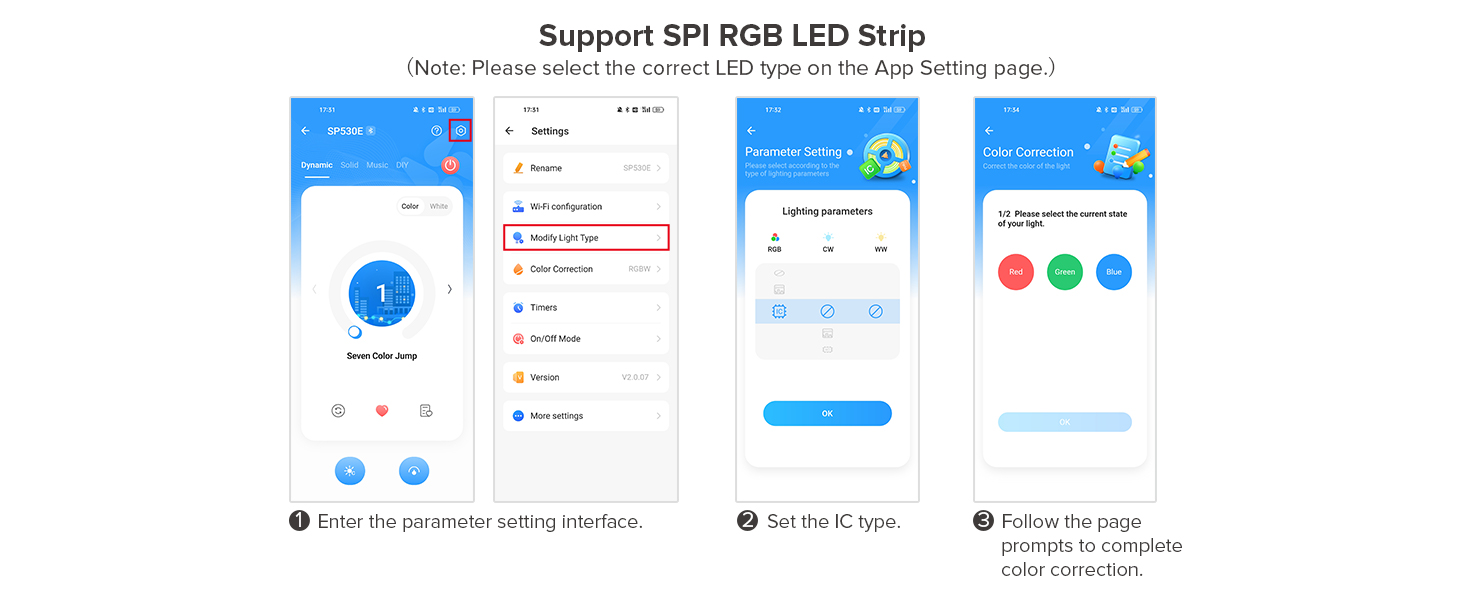

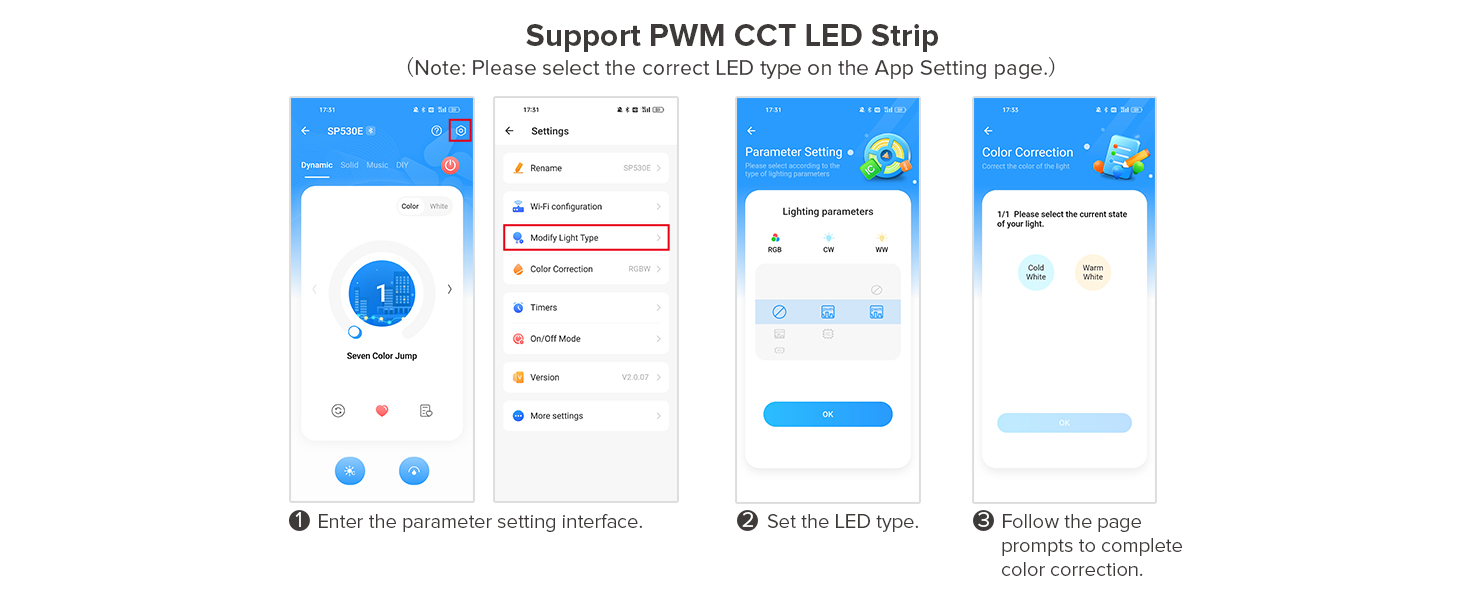

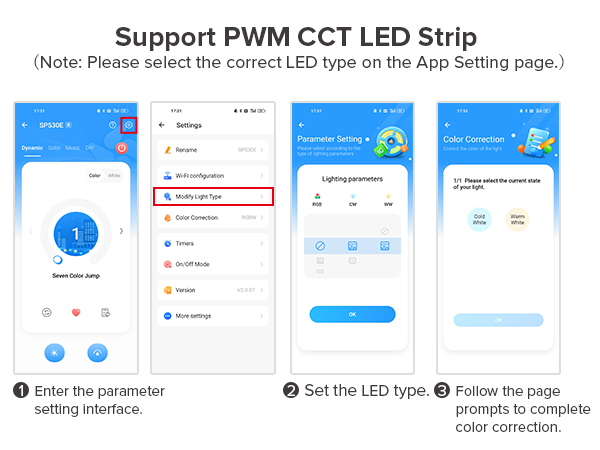

Modify	Device name, color order correction .

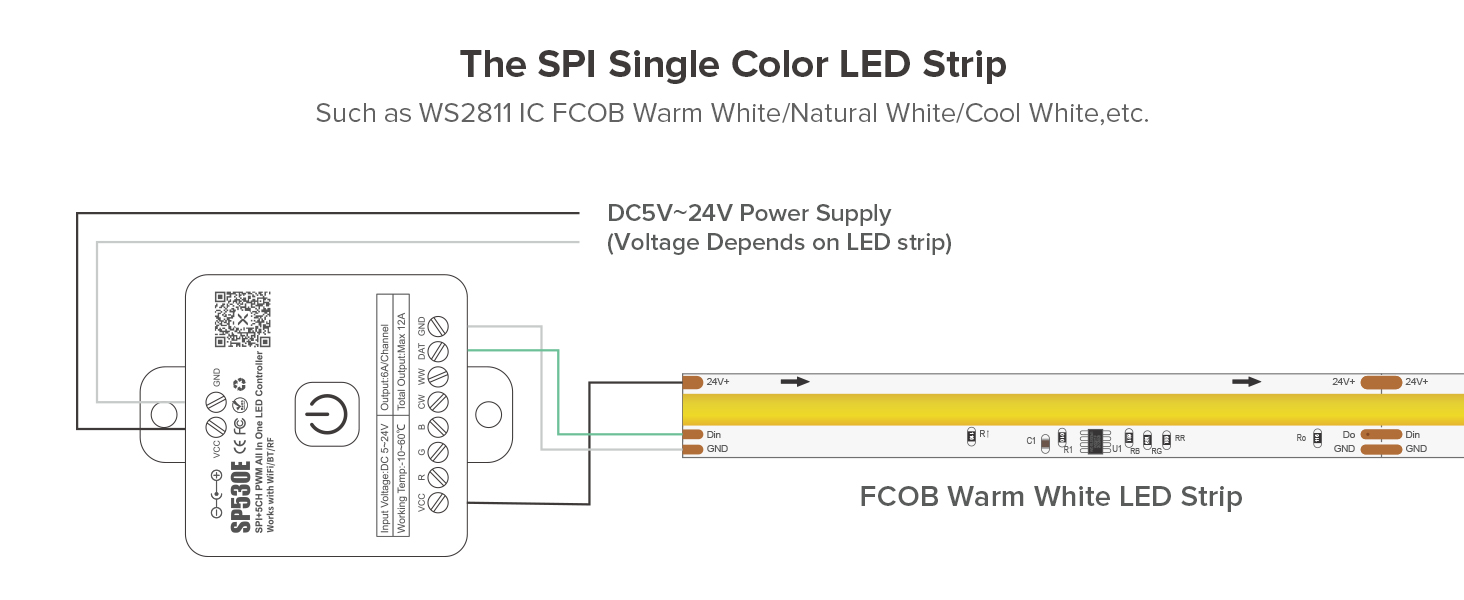

Support IC QTY	Single color IC : 1800 IC max. CCT IC : 600 IC max . RGB IC : 1200 IC max . RGBW IC : 900 IC max . RGBCCT IC : 600 IC max.

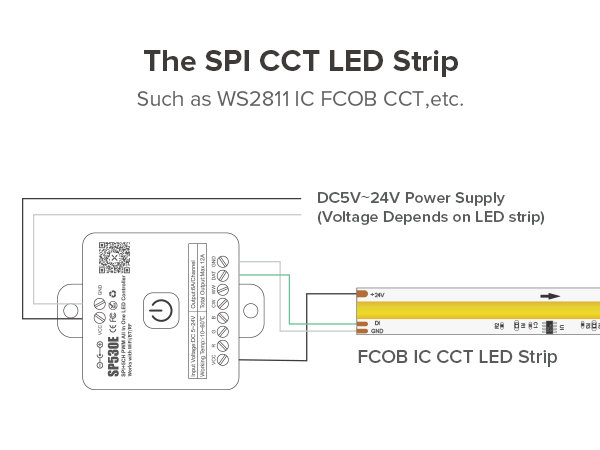

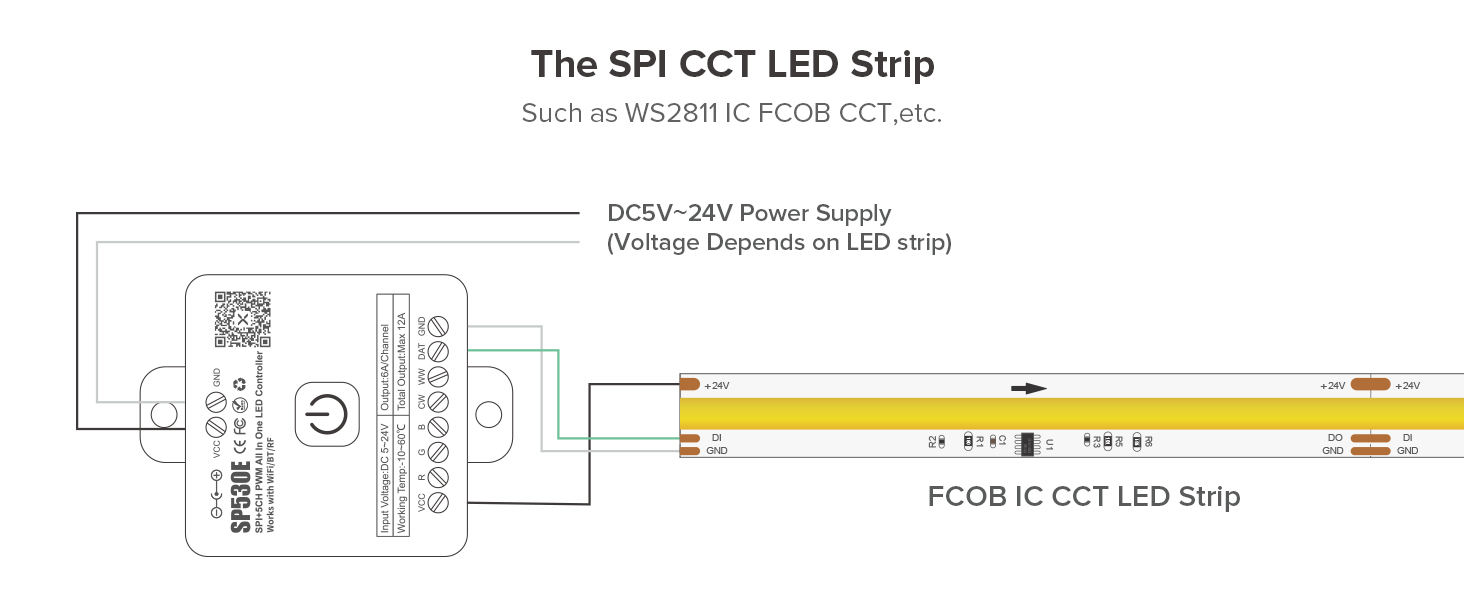

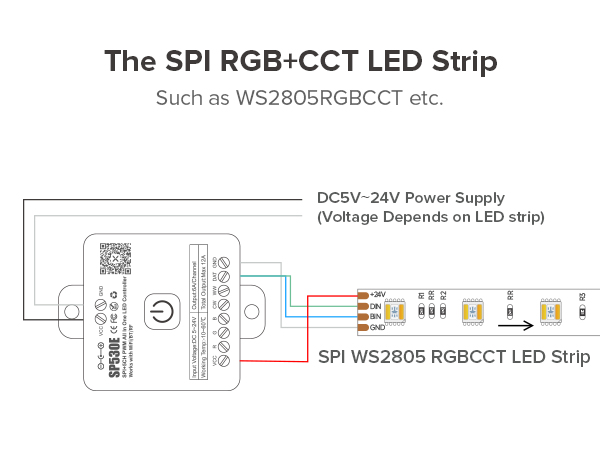

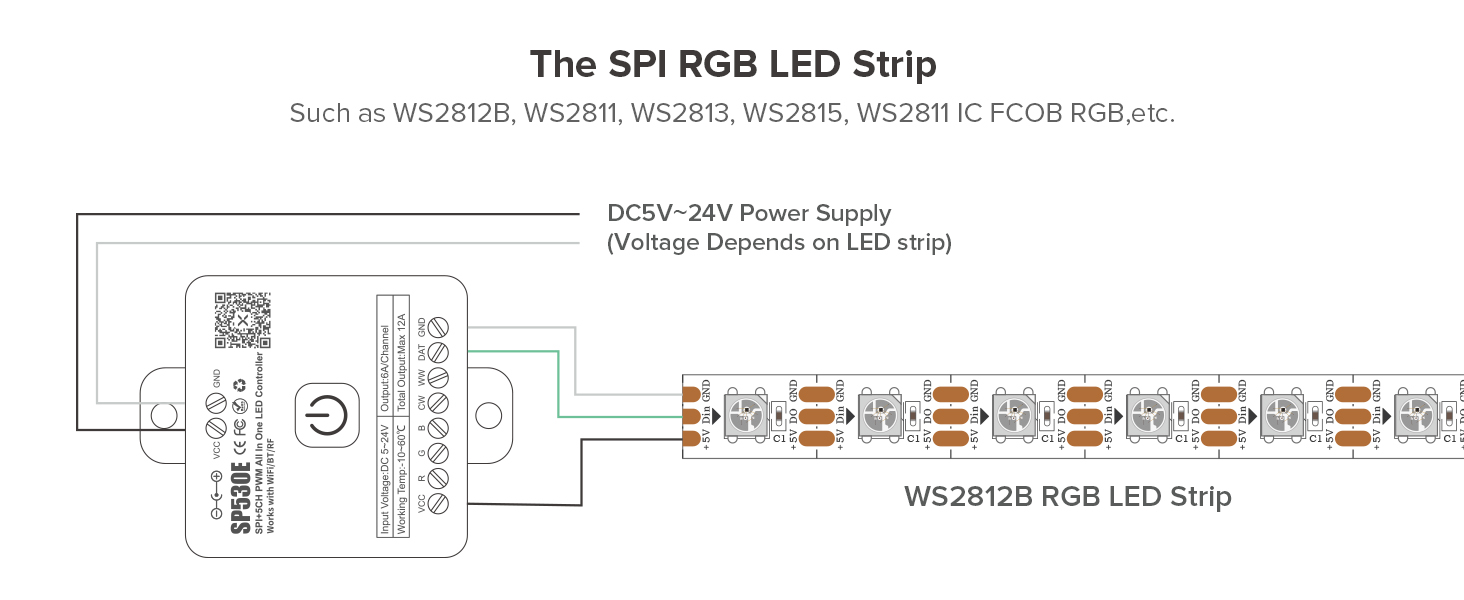

Support IC chip(SPI)	WS2811,WS2812,WS2813,WS2814,WS2815, WS2805,SK6812,TM1804,TM1812,UCS1903,UCS1909,UCS1912, UCS2903,UCS2909,UCS2912,TM1829,TM1914A,GW6205,GS8206,GS8208 etc

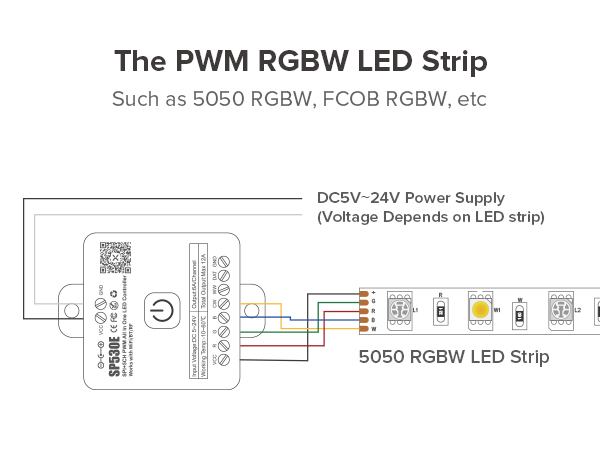

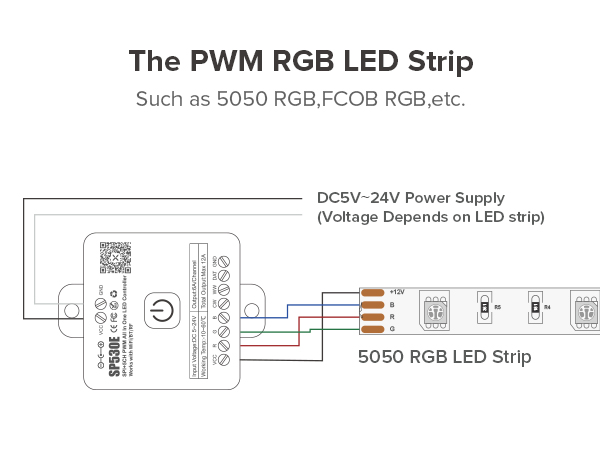

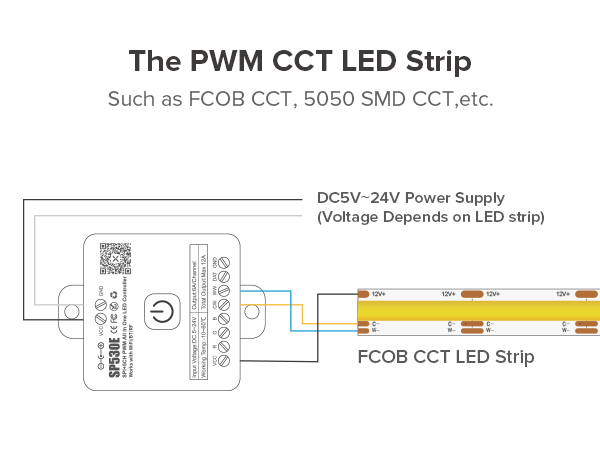

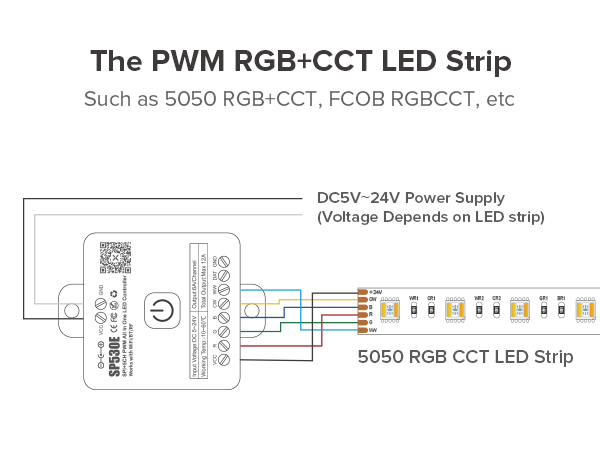

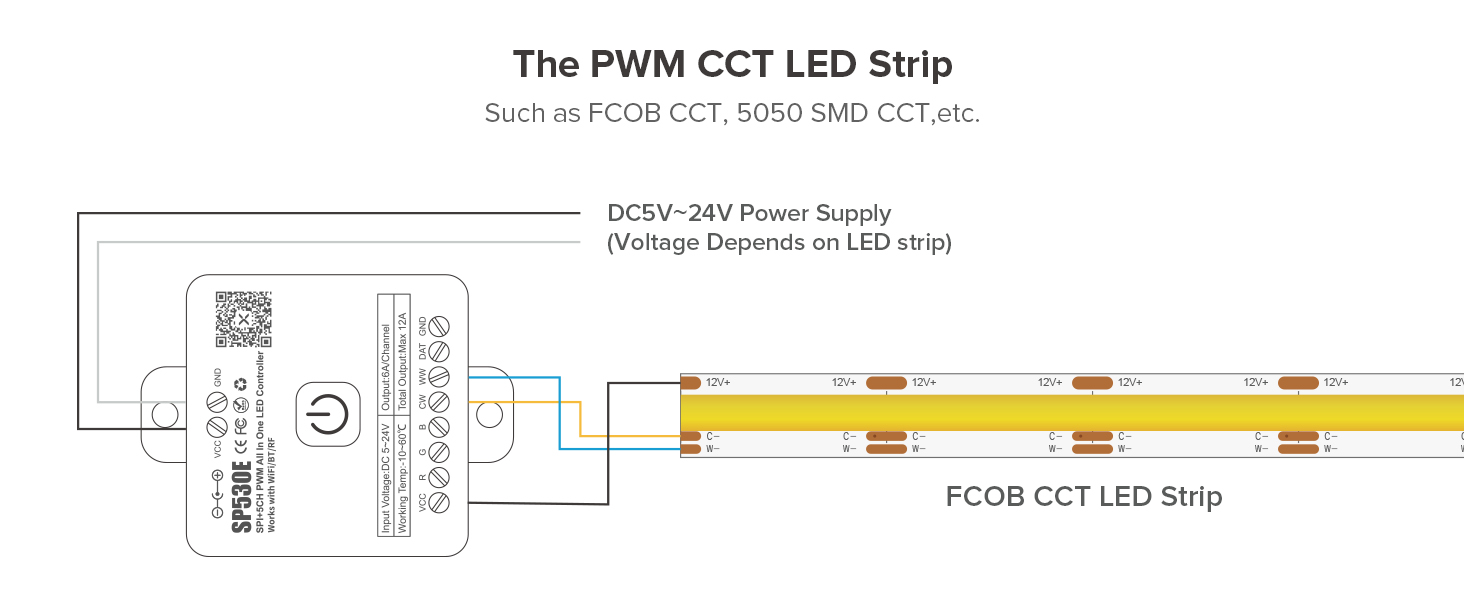

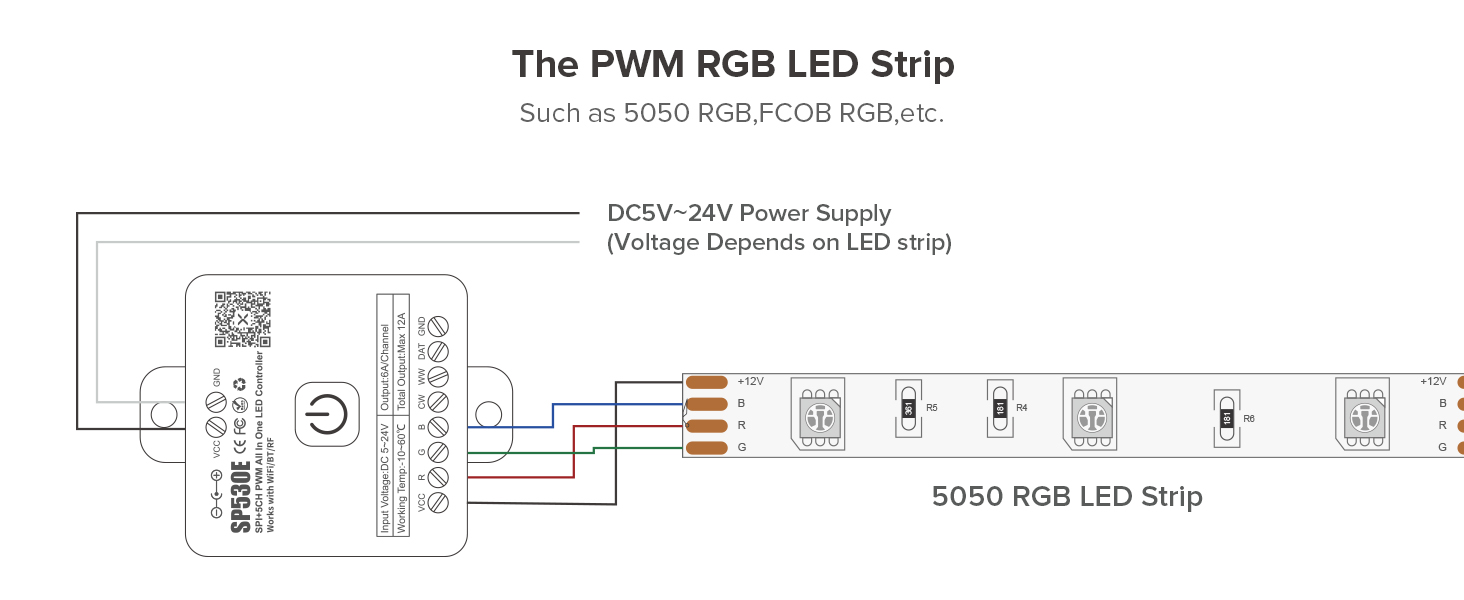

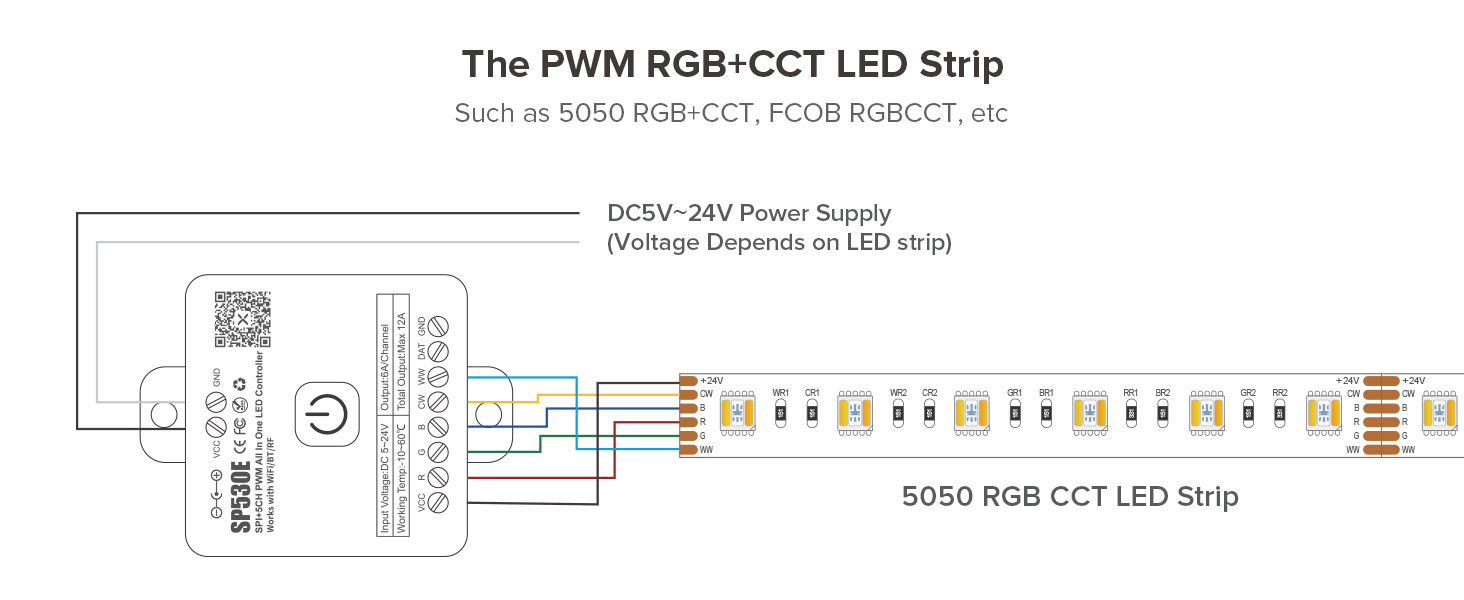

Support PWM chip No IC	FCOB ,SMD5050,3014,3528,5730,5630 etc 2pin(V+ V-) 3pin CCT(V+ CW WW) 4pin RGB(V+ R G B) 5pin RGBW(V+ R G B W) 6pin RGBCCT(V+ R G B CW WW).
Support SPI LED Matrix	WS2812B LED Matrix, 8X8, 8x16, 8x32, 11x44, 16x16, 32x32 etc, Max 1200 pixels.

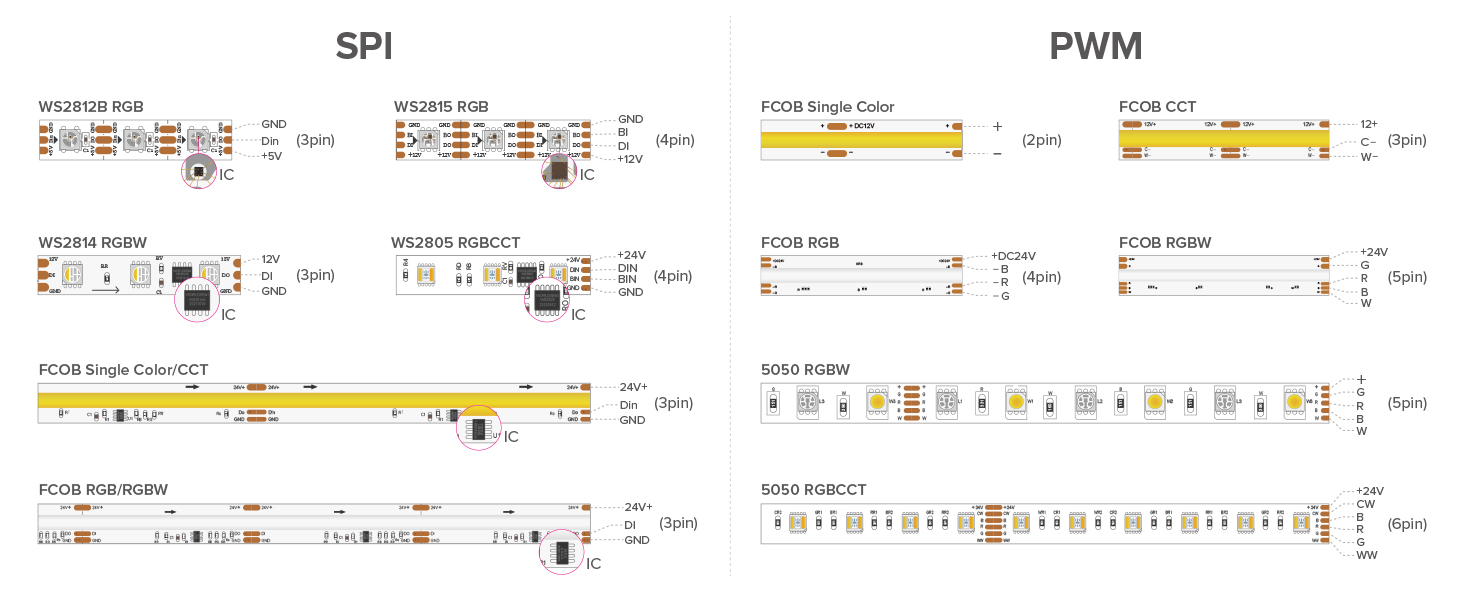

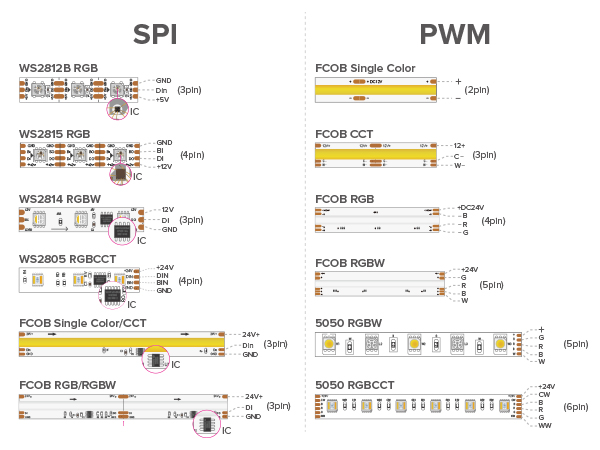

Difference between SPI (with IC) strips and PWM (without IC) strips

Features of SPI and PWM

IC : SPI--- With IC;PWM---Without IC
PIN : SPI---3PIN/4PIN (with DATA wire) ;PWM---2PIN/3PIN/4PIN/5PIN/6PIN( Similar to +,R,G,B,W)
Controller : SPI---DR03W,DR04W,DR05W,WT-SPI,ESP8622,Rasp Pi,Arduino,SP611E,SP105E,SP107E,SP108 etc;PWM---WIFI WB5,Zigbee LM052,Bluetooth LM053

2PIN ~ 6PIN LED Controller

2.4GHZ WiFi / Bluetooth Mesh/ ZigBee 3.0 Controller

Working Voltage: DC5V/ DC12V/ DC24V

Only Indoor Use

BTF US Official Store
BTF-LIGHTING US is the exclusive distributor of the BTF-LIGHTING brand on the . The shop mainly deals inLED Controllers,Accessories,Dream Color LED strips, FCOB LED strips,LED matrix, power supplies. Committed to building a smart home, through different combinations to make the light strip suitable for a variety of use scenarios, and provide customers with better choices.
Dream Color LED Controller
Sngle Color Controller(NO IC)
CCT Controller(No IC)
RGB Controller(No IC)
RGBW Controller(No IC)
RGB CCT Controller(No IC)
2.4GHz RF Remote
PWM Monochrome Controller Set
CCT Controller Set(NO IC)
RGB Controller Set(NO IC)
RGBW Controller Set(NO IC)
RGBCCT Controller Set(NO IC)

Work with RF remote and smart panel & 5 major control pages in the APP

Parameter Table

LED Type	SPI IC chip LED strip/PWM LED strip/SPI LED Matrix.
Input Voltage	DC5V-DC24V Controller voltage depends on LED strip.
Current	PWM Single Channel Maximun Output Current: 6A.Total Maximun : 12A.
Waterproof level	IP30 Non-waterproof
Operation temperature	-4?~140?(-20?~+60? )
Ways of working	Match with RF remote , Bluetooth APP BalanX , WiFi Alexa.
On/off animations	Set on/off animations and the default power-on state.
APP Name	BanlanX
Modify	Device name, color order correction .
Support IC QTY	Single color IC : 1800 IC max. CCT IC : 600 IC max . RGB IC : 1200 IC max . RGBW IC : 900 IC max . RGBCCT IC : 600 IC max.
Support IC chip(SPI)	WS2811,WS2812,WS2813,WS2814,WS2815, WS2805,SK6812,TM1804,TM1812,UCS1903,UCS1909,UCS1912, UCS2903,UCS2909,UCS2912,TM1829,TM1914A,GW6205,GS8206,GS8208 etc
Support PWM chip No IC	FCOB ,SMD5050,3014,3528,5730,5630 etc 2pin(V+ V-) 3pin CCT(V+ CW WW) 4pin RGB(V+ R G B) 5pin RGBW(V+ R G B W) 6pin RGBCCT(V+ R G B CW WW).
Support SPI LED Matrix	WS2812B LED Matrix, 8X8, 8x16, 8x32, 11x44, 16x16, 32x32 etc, Max 1200 pixels.

Difference between SPI (with IC) strips and PWM (without IC) strips

Features of SPI and PWM

IC : SPI--- With IC;PWM---Without IC
PIN : SPI---3PIN/4PIN (with DATA wire) ;PWM---2PIN/3PIN/4PIN/5PIN/6PIN( Similar to +,R,G,B,W)
Controller : SPI---DR03W,DR04W,DR05W,WT-SPI,ESP8622,Rasp Pi,Arduino,SP611E,SP105E,SP107E,SP108 etc;PWM---WIFI WB5,Zigbee LM052,Bluetooth LM053

2PIN ~ 6PIN LED Controller

2.4GHZ WiFi / Bluetooth Mesh/ ZigBee 3.0 Controller

Working Voltage: DC5V/ DC12V/ DC24V

Only Indoor Use

BTF US Official Store
BTF-LIGHTING US is the exclusive distributor of the BTF-LIGHTING brand on the . The shop mainly deals inLED Controllers,Accessories,Dream Color LED strips, FCOB LED strips,LED matrix, power supplies. Committed to building a smart home, through different combinations to make the light strip suitable for a variety of use scenarios, and provide customers with better choices.
Dream Color LED Controller
Sngle Color Controller(NO IC)
CCT Controller(No IC)
RGB Controller(No IC)
RGBW Controller(No IC)
RGB CCT Controller(No IC)
2.4GHz RF Remote
PWM Monochrome Controller Set
CCT Controller Set(NO IC)
RGB Controller Set(NO IC)
RGBW Controller Set(NO IC)
RGBCCT Controller Set(NO IC)

Product information

Color	White
Brand	BTF-LIGHTING
Indoor/Outdoor Usage	Indoor
Special Feature	2.4GHz WiFi, Bluetooth, PWM LED Strip, SPI LED Strip and Matrix
Light Source Type	LED
Power Source	DC
Light Color	Multicolor
Theme	Indoor Lighting
Occasion	Christmas
Style	SP530E WiFi Bluetooth Controller
Indoor Outdoor Usage	Indoor
Additional Features	2.4GHz WiFi, Bluetooth, PWM LED Strip, SPI LED Strip and Matrix
Controller Type	IFTTT, Voice Control
Wattage	72 watts
Control Method	Voice
Smart Home Compatibility	Smart Home Compatible
Wireless Communication Technology	Bluetooth, Wi-Fi
Water Resistance Level	Not Water Resistant
Connectivity Technology	Bluetooth, Wi-Fi
Connectivity Protocol	Bluetooth, Wi-Fi
Material Type	Polyvinyl Chloride
Product Style	SP530E WiFi Bluetooth Controller
Number of Light Sources	150
Item Weight	0.06 Kilograms
Number of Items	1
Brand Name	BTF-LIGHTING
Model Number	SP530E
Included Components	1 x SP530E Controller
Item Length	16.4 Feet
Manufacturer Part Number	SP530E
Manufacturer	BTF-LIGHTING Technology Co., Limited
Unit Count	1.0 Count

Additional Features

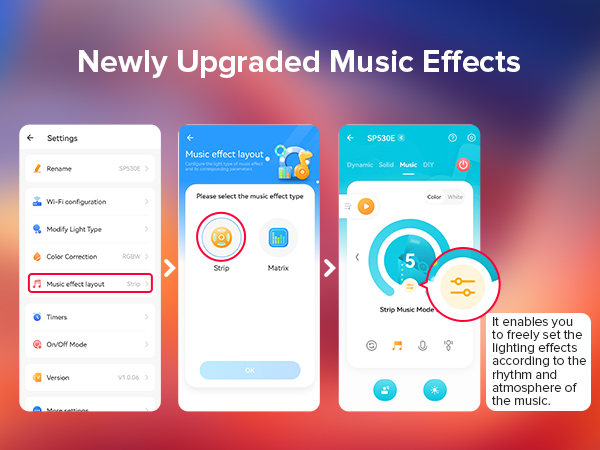

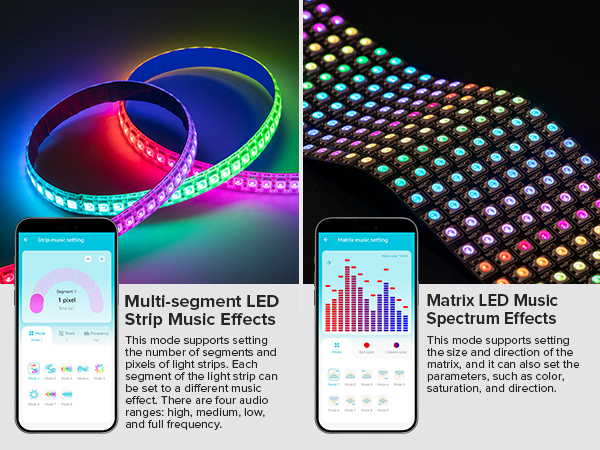

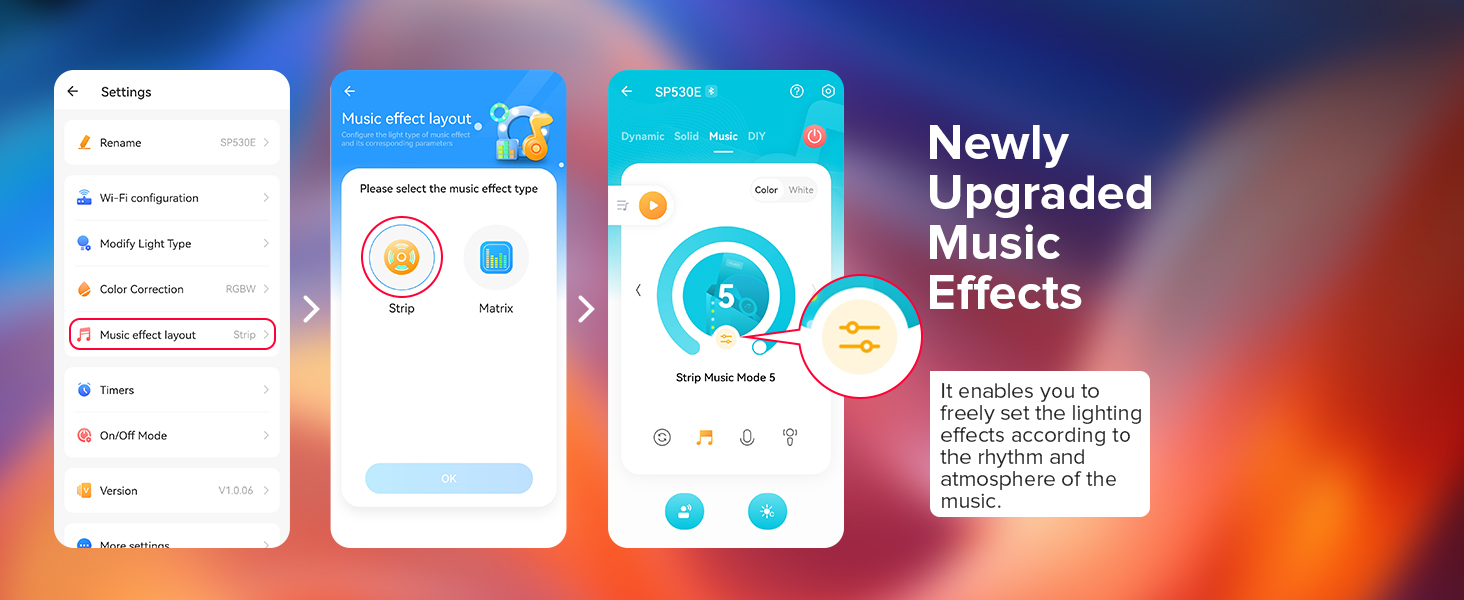

Newly Upgraded Music Effect Modes. Light strip music effect: You can configure multiple music effects on the same light strip according to their needs, and each section of the light bar can be selected with different music effects, different points, and can be set to correspond to the low, medium and high audio range.
LED Matrix spectrum effect. You can flexibly configure the size and alignment of the rectangular LED Matrix, and can set the music spectrum of the fall point and the parameters of the sound column, such as color, saturation and direction, etc., which can achieve a more unique music spectrum effect.
