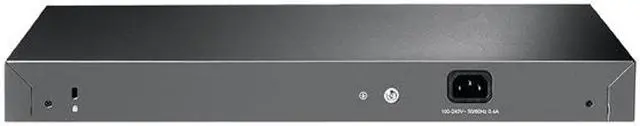

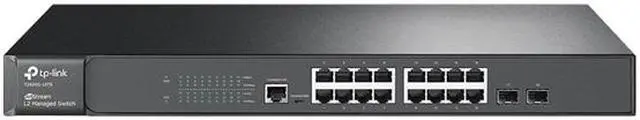

TP-Link T2600G-18TS (TL-SG3216) JetStream 16-Port Gigabit L2 Managed Switch with 2 SFP Slots

Be the first to review this product...

16 x Gigabit Ethernet Ports
2 x Gigabit SFP Slots
Fanless Design
36Gb/s Bandwidth
26.8 Mpps Packet Forwarding Rate
8K MAC Address Table
9216 Bytes Jumbo Frame

Overview

Specs

Reviews

MAIN OVERVIEW FEATURES: Total Number of
Network Ports: 16Uplink
Port:
NoModular: YesStack
Port: NoPort/Expansion
Slot Details: 16 x Gigabit Ethernet Network2 x Gigabit Ethernet Expansion SlotMedia
Type Supported: Optical
FiberTwisted PairEthernet Technology: Gigabit
EthernetNetwork Technology: 10/100/1000Base-T1000Base-X10Base-T100Base-TXNumber of Total
Expansion Slots: 2Expansion
Slot Type: SFP
Shared SFP Slot: NoNumber of
SFP Slots: 2Layer
Supported:
4Manageable: YesPower
Source: Power SupplyRedundant
Power Supply Supported: NoPower
Consumption: 11.47
WForm Factor:
Rack-mountableHeight: 1.7"W
idth: 17.3"D
epth: 8.7"W
eight (Approximate): 8.40 lb

Model
Brand	TP-Link
Model	T2600G-18TS

Format & Standards
Standards	IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1x, IEEE 802.1p

Ports & Interface
Primary Ports	16 x 10/100/1000 Mbps RJ45 Ports (Auto Negotiation / Auto MDI / MDIX) 2 x 100/1000 Mbps SFP Slots 1 x RJ45 Console Port 1 x Micro-USB Console Port

Data Transmission
MAC Address Table	8K
Jumbo Frames	9216 bytes

Details
Protocols	TCP/IP
SNMP	Yes
QoS	Yes
Port Mirroring	Yes
Power	Power Supply: 100~240V AC, 50/60 Hz Power Consumption: Maximum: 11.47W (220V / 50 Hz)

Features
Features	16 Gigabit RJ45 Ports and 2 Gigabit SFP Slots Selectable RJ45 or Micro-USB Console Port L2+ feature-Static Routing, helps route internal traffic for more efficient use of network resources IP-MAC-Port-VID Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X Authentication and Radius provide you with robust security strategies L2 / L3 / L4 QoS and IGMP snooping that optimize voice and video application DDM provides monitoring of all SFP Modules inserted to the switch IPv6 supported with dual IPv4 / IPv6 stack, MLD snooping, IPv6 neighbor discovery Web, CLI (Console Port, Telnet, SSH), SNMP, RMON and Dual Image bring abundant management policies

Dimensions & Weight
Dimensions	1.70" x 17.30" x 8.70"

Environmental
Temperature	Operating Temperature: 0 ~ 40 degree Celsius (32 ~ 104 degree Fahrenheit) Storage Temperature: -40 ~ 70 degree Celsius (-40 ~ 158 degree Fahrenheit)
Humidity	Operating Humidity: 10% ~ 90% non-condensing Storage Humidity: 5% ~ 90% non-condensing

Packaging
Package Contents	Switch Power Cord Quick Installation Guide Resource CD Rackmount Kit Rubber Feet

Additional Information
First Listed on Newegg	June 19, 2018
