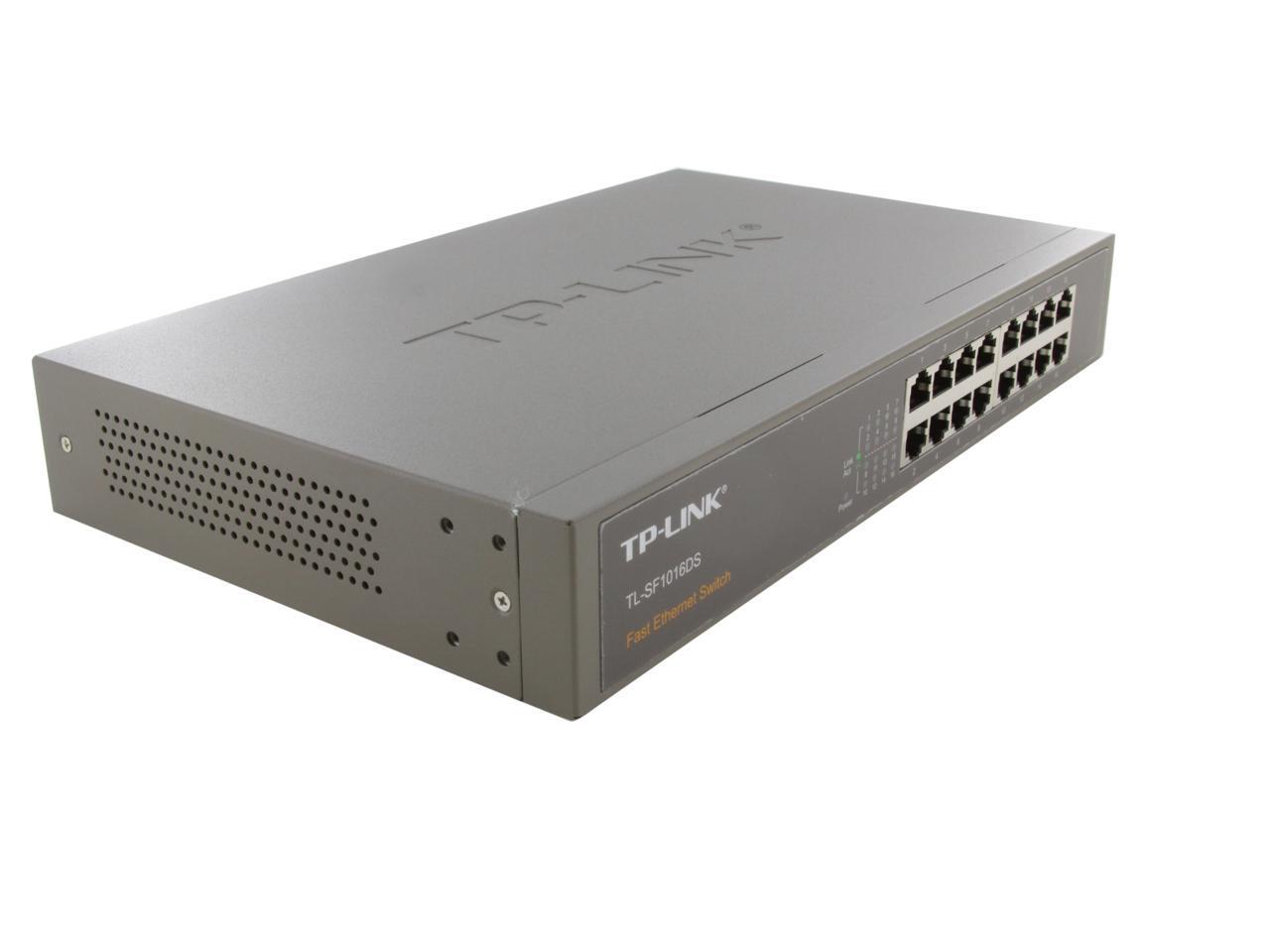

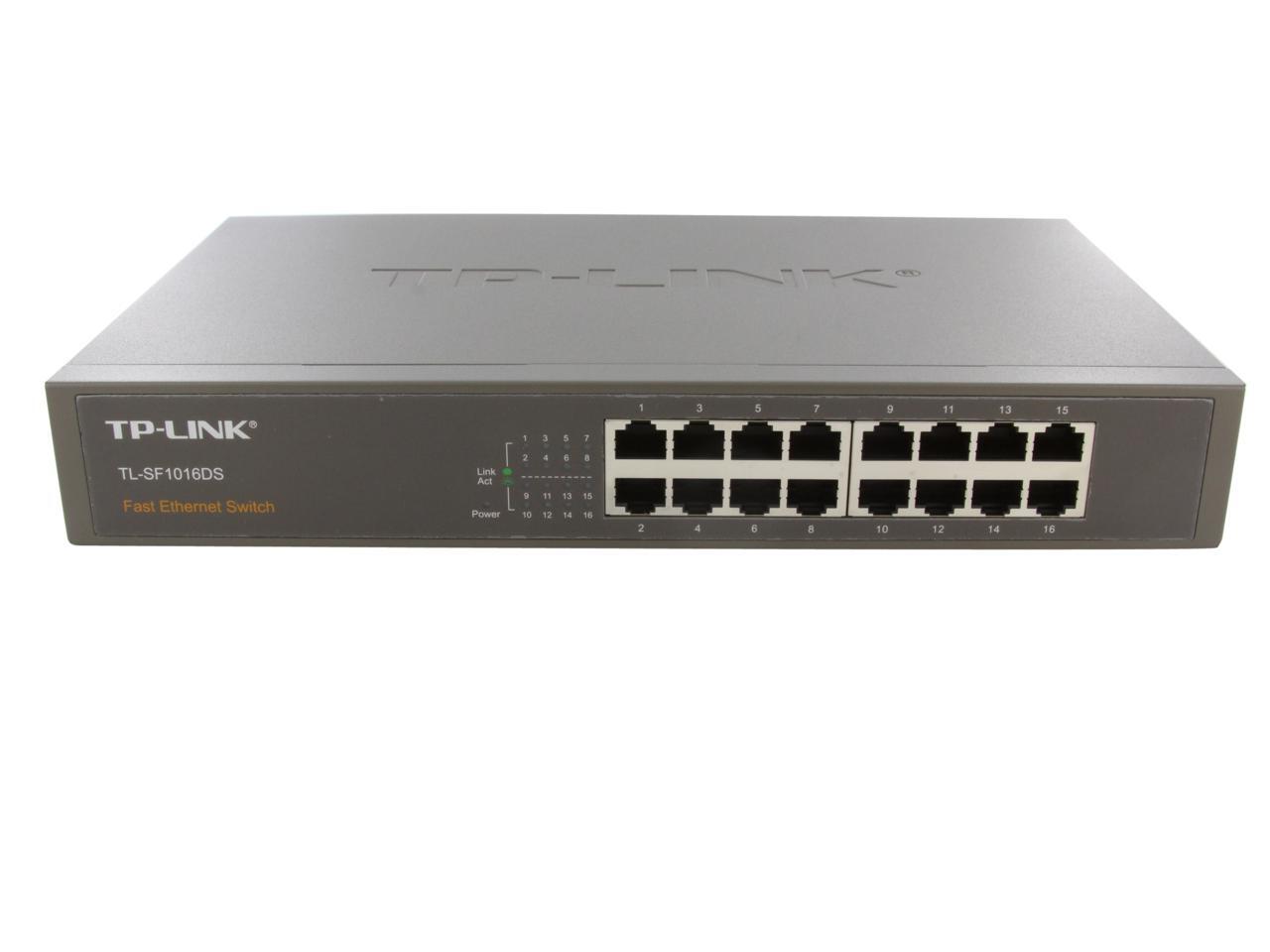

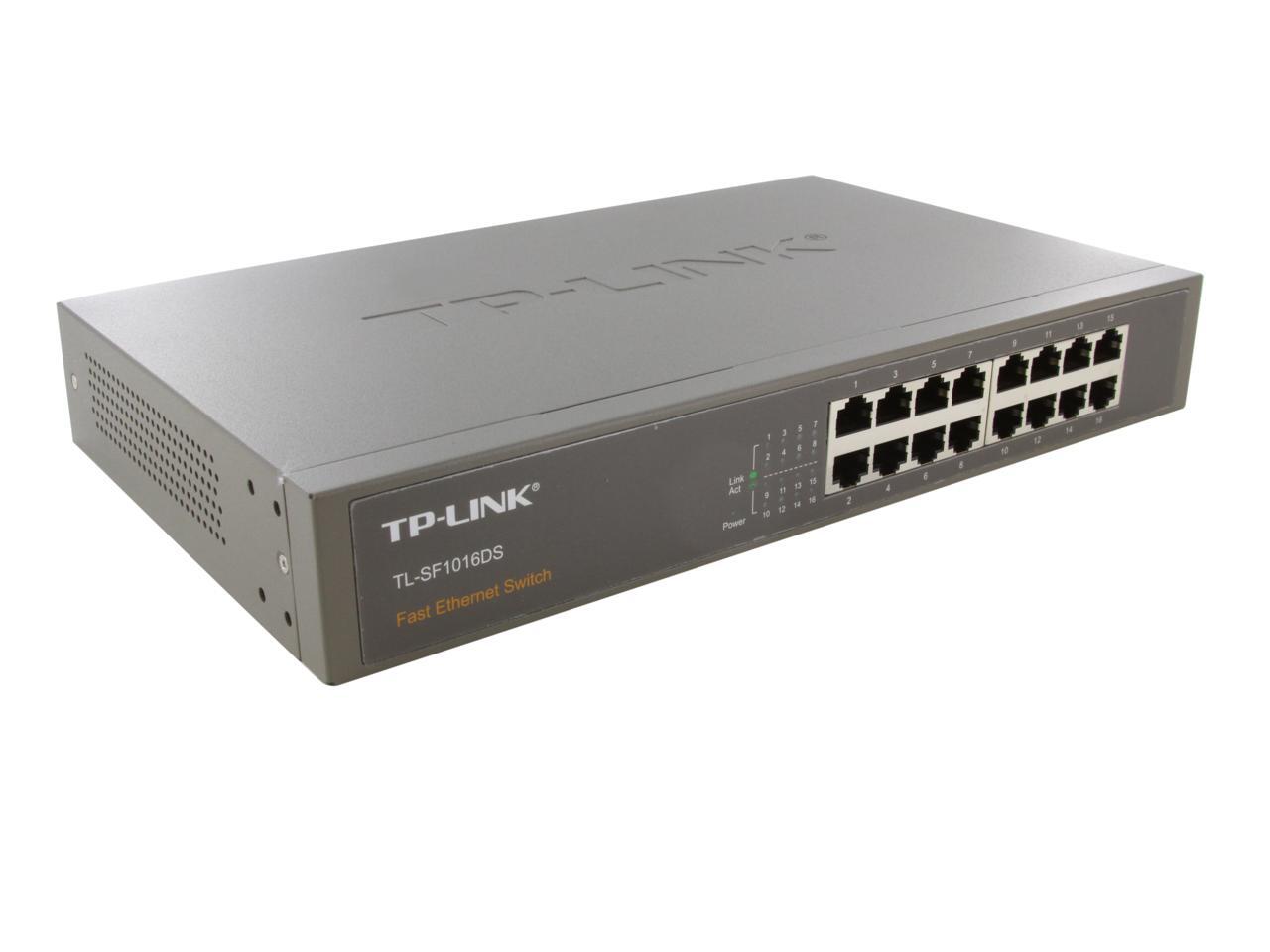

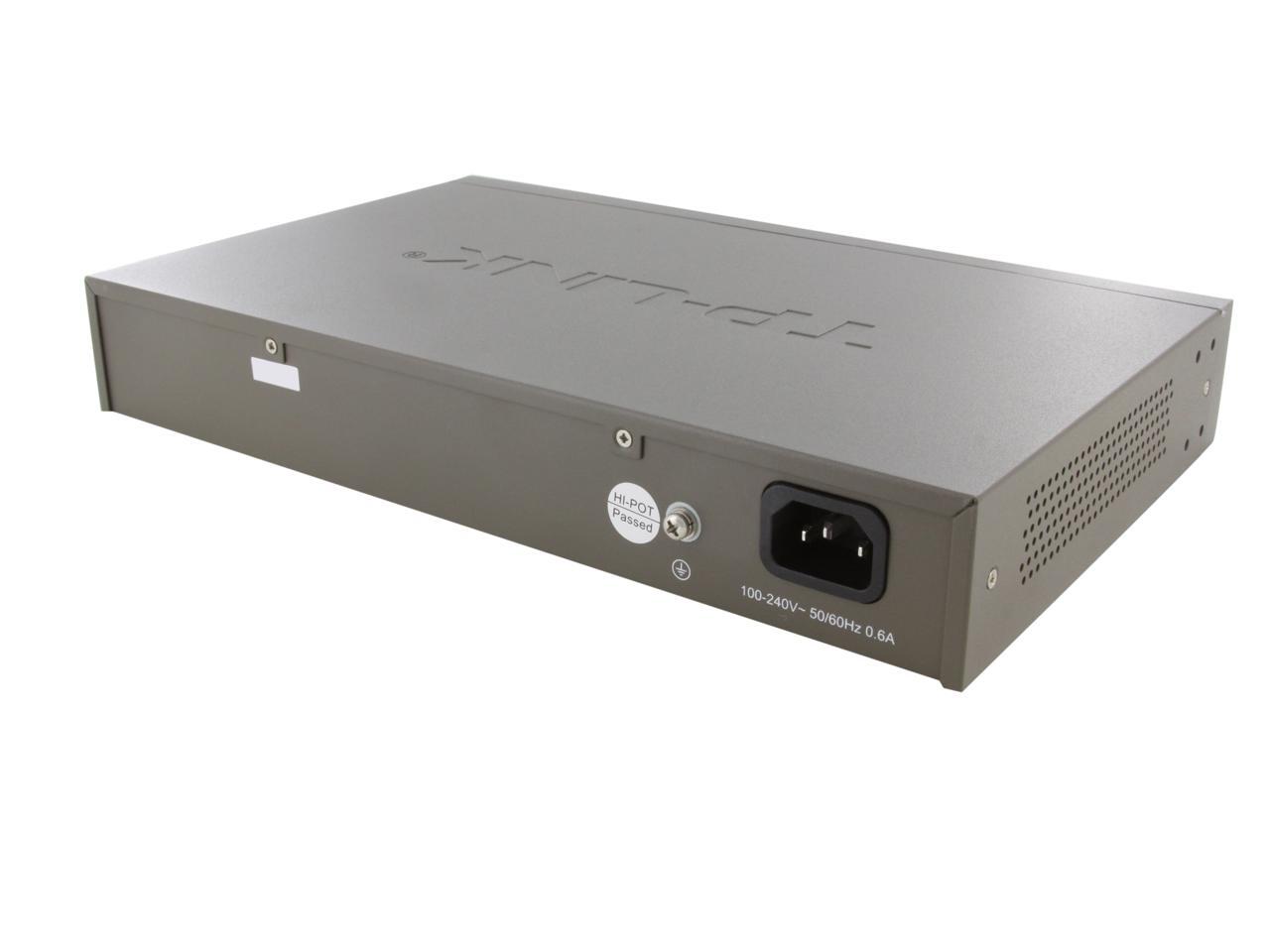

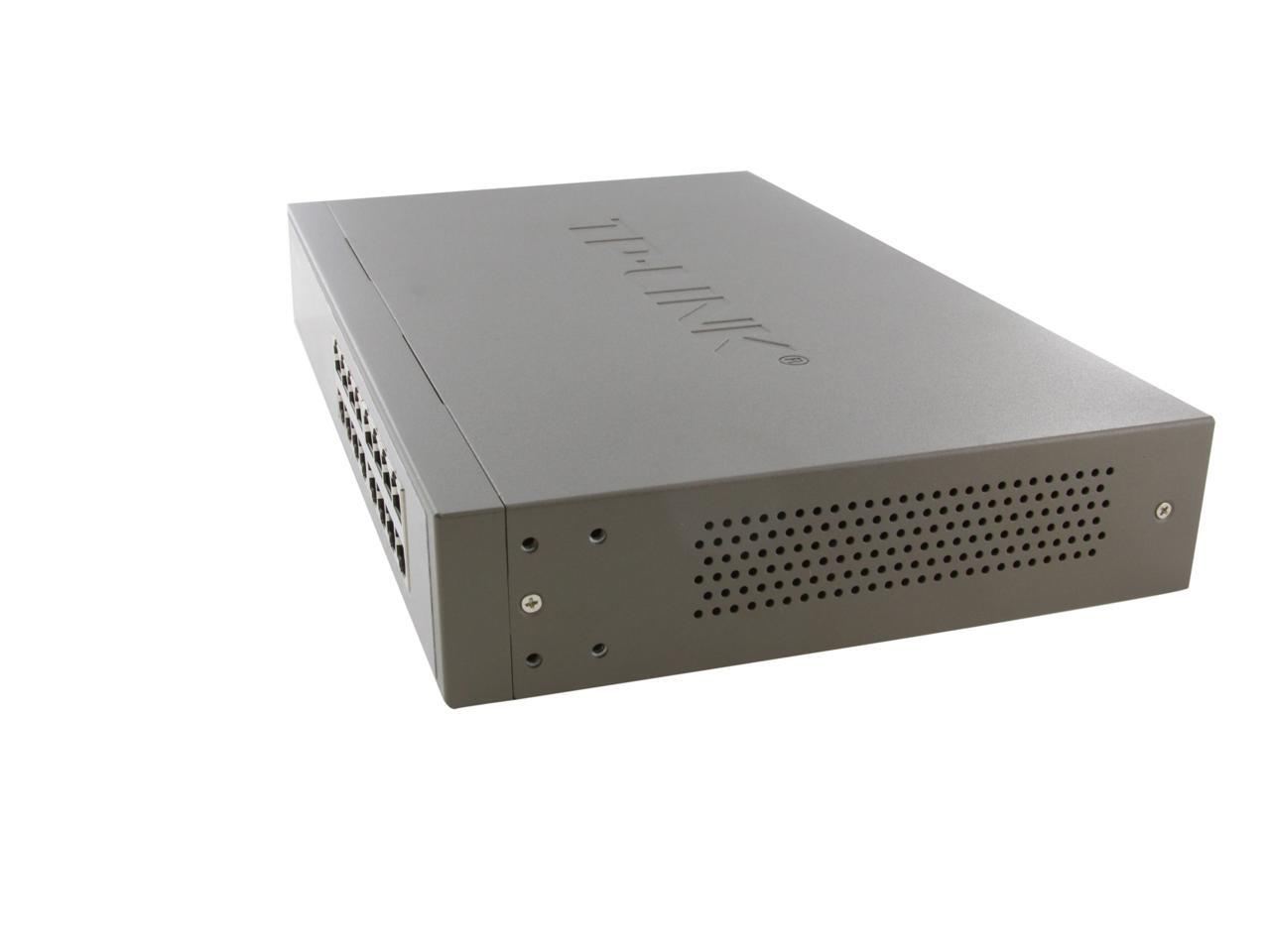

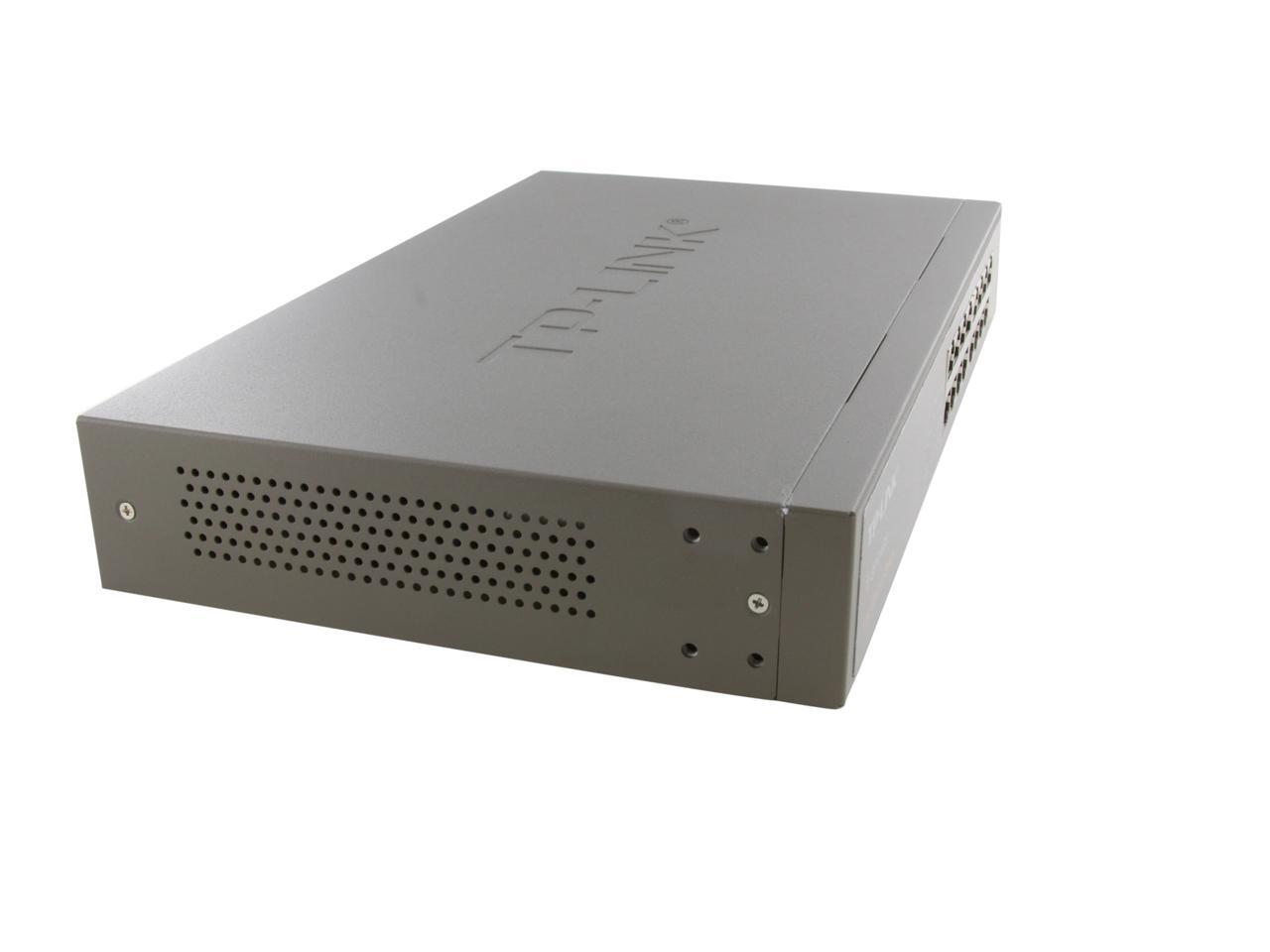

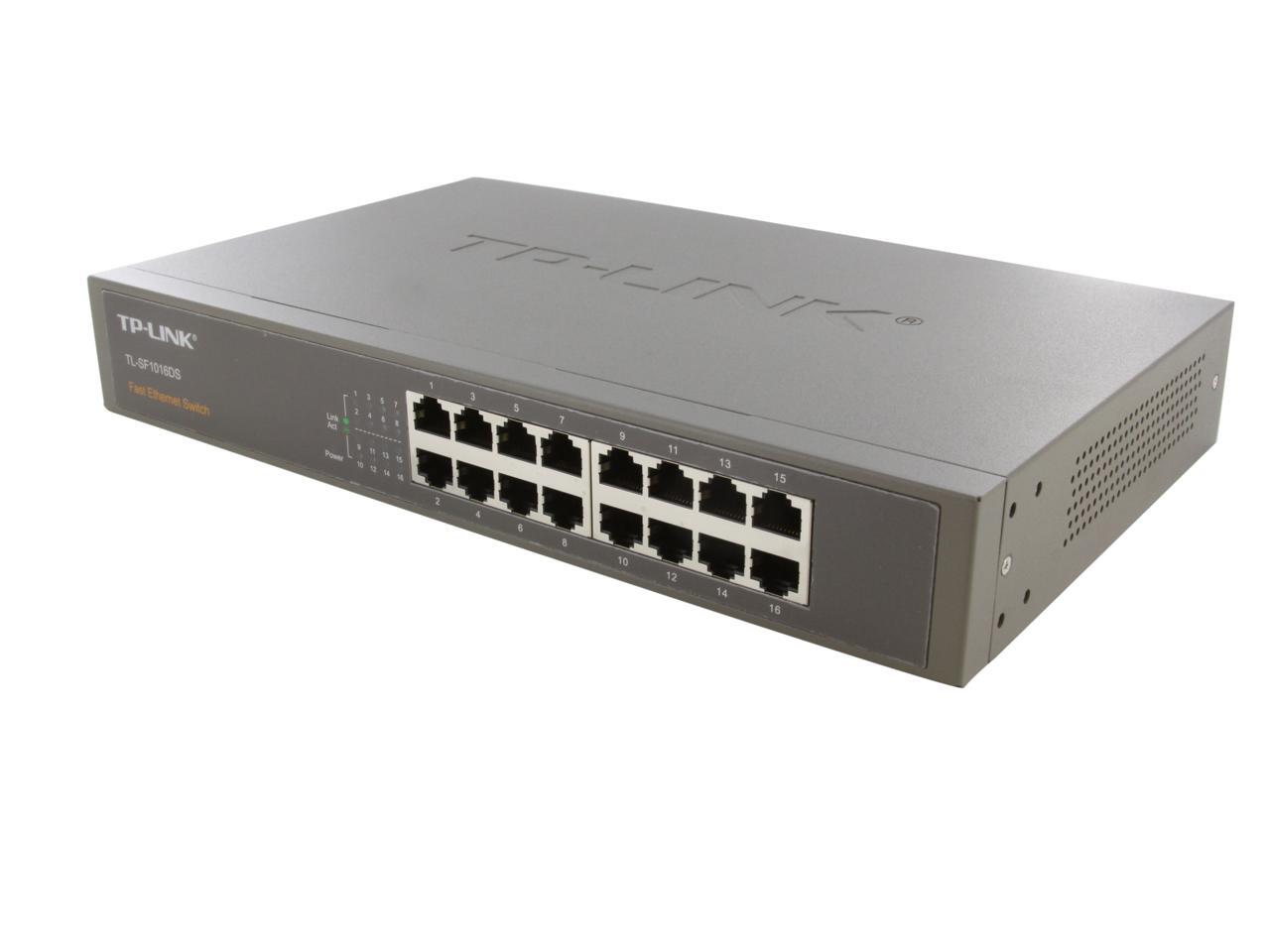

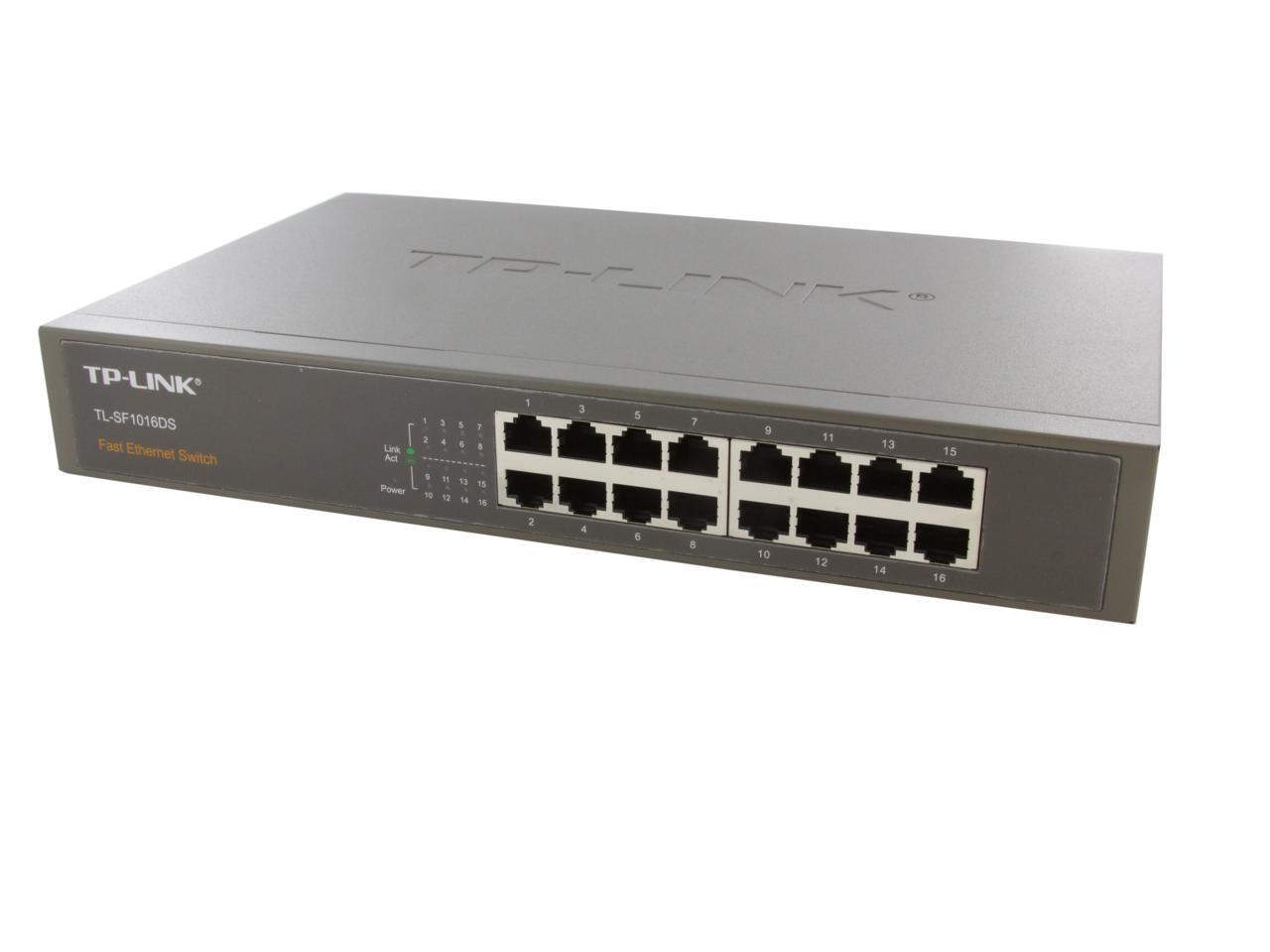

16 10/100M RJ45 ports. Supports MAC address self-learning and auto MDI/MDIX. Standard 13-inch steel case. Innovative energy-efficient technology saves power up to 25%. 3.2 Gbps Switching Capacity. Plug and Play design simplifies installation.
Learn more about the TP-Link TL-SF1016DS
Model
Brand
TP-Link
Model
TL-SF1016DS
Format & Standards
Format
External
Standards
IEEE802.3, IEEE802.3u, IEEE 802.3x
Network Management Type
Unmanaged
Ports & Interface
Primary Ports

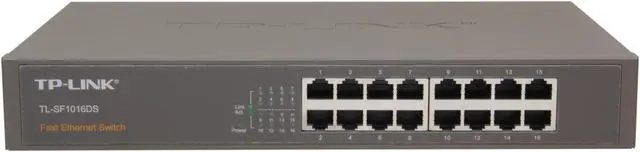

16 x RJ45
Primary Port Speed
10/100Mbps
Data Transmission
MAC Address Table
8K
Switching Method
Store and Forward
Details
Protocols
CSMA/CD, TCP/IP
LEDs
Power, Link/Act, 100Mbps
Power

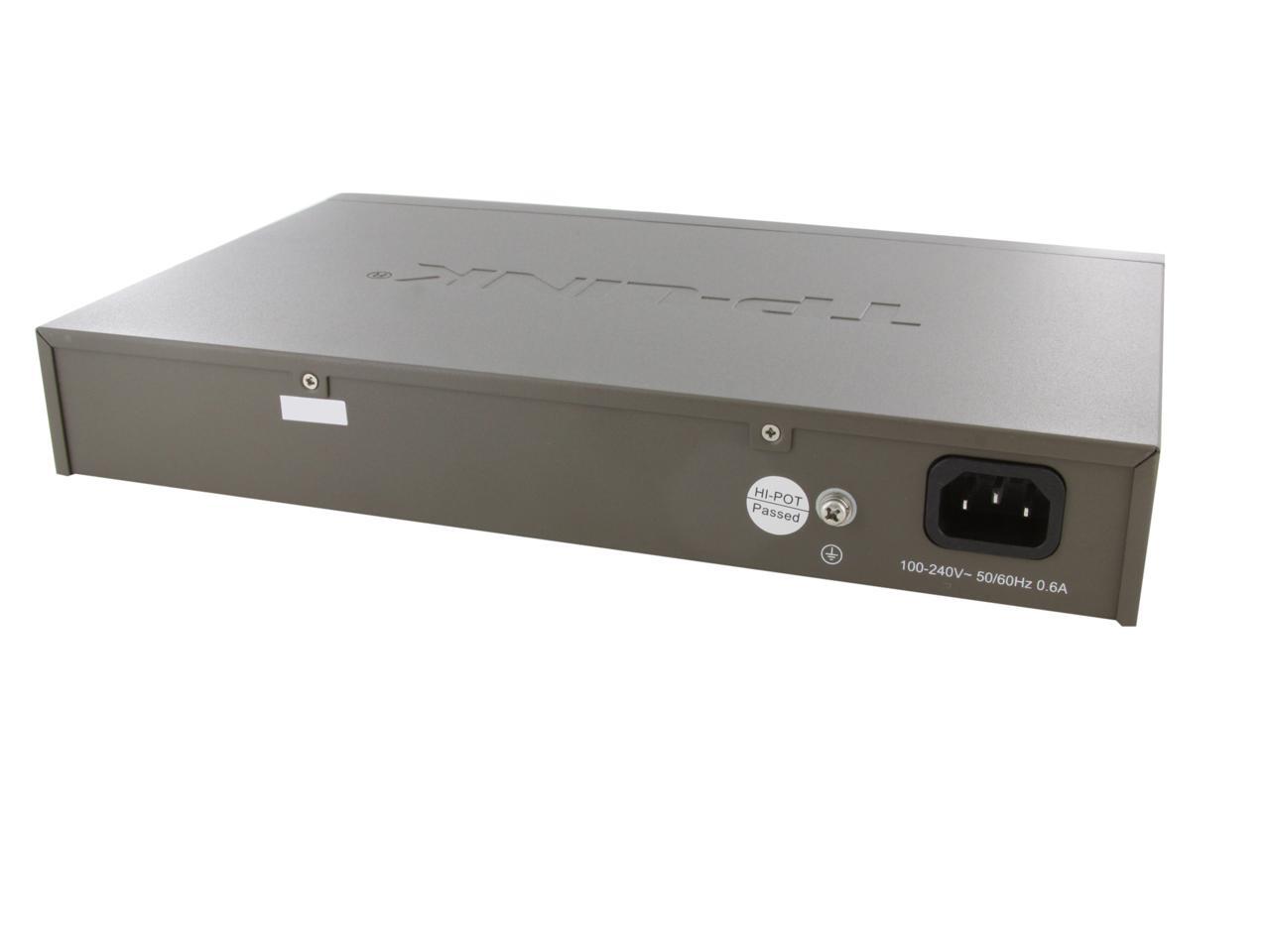

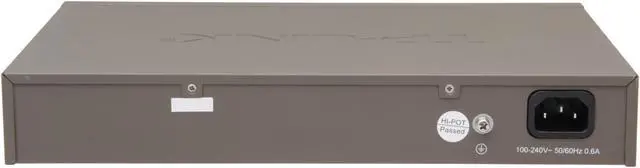

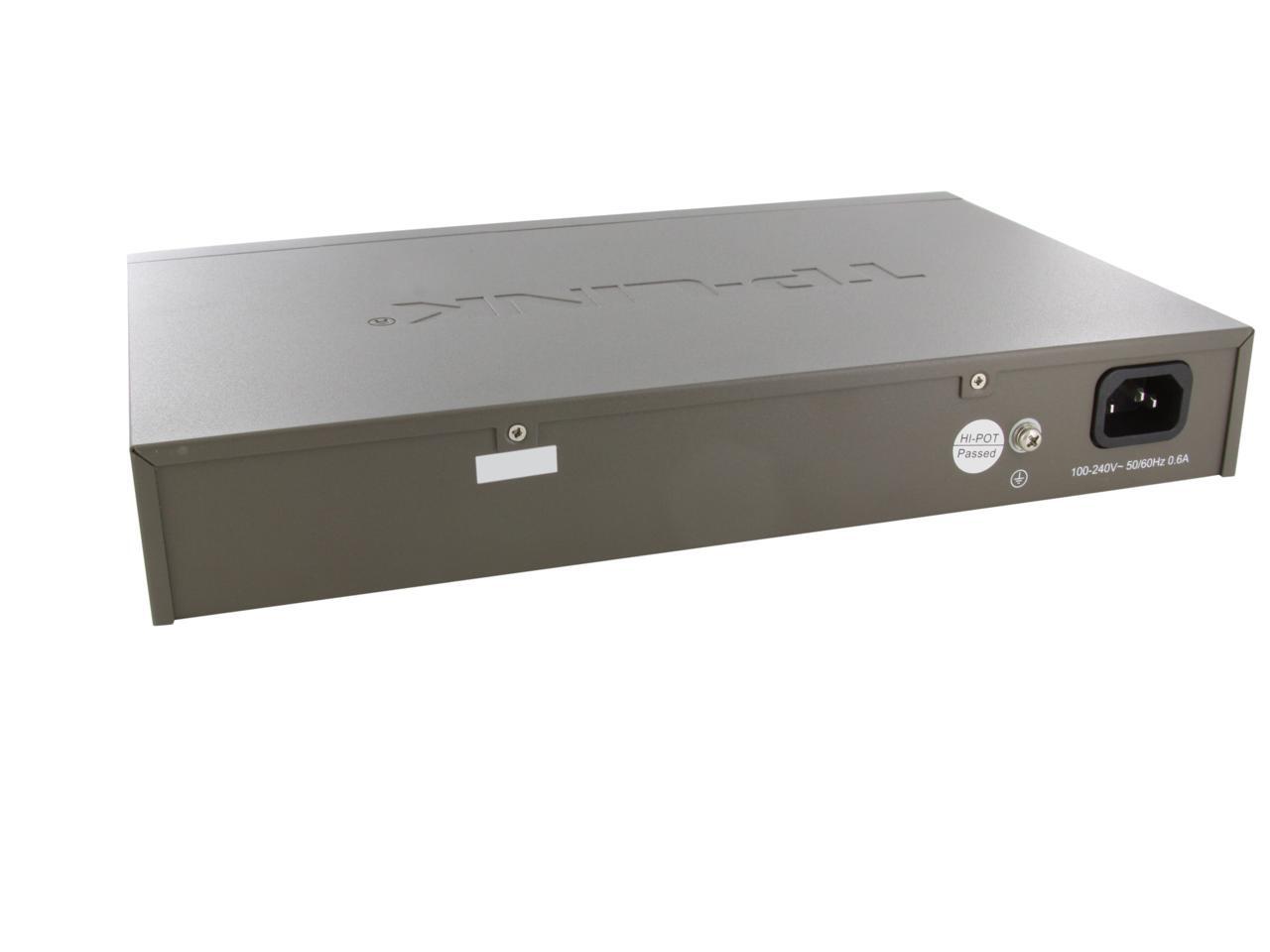

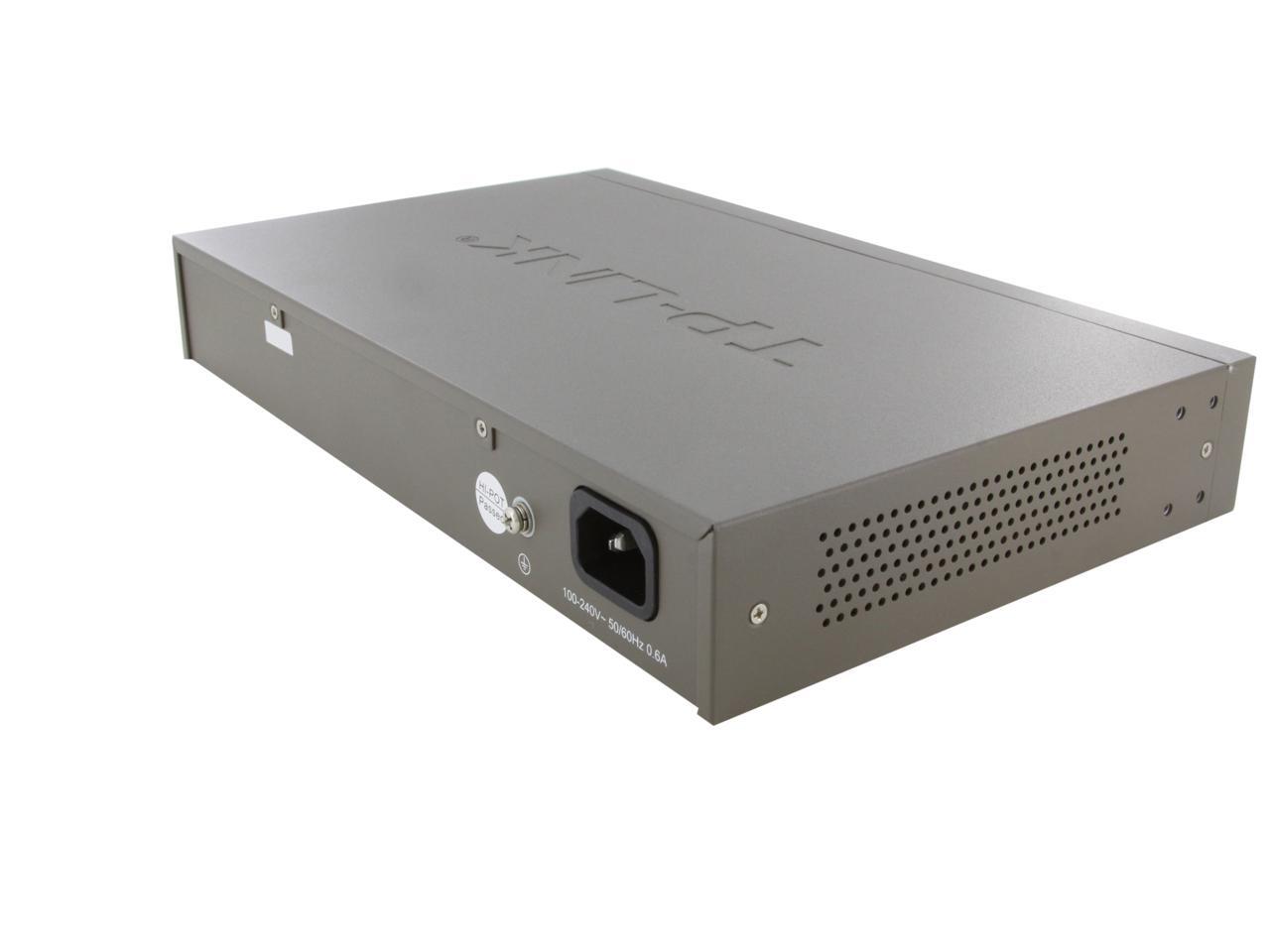

100~240VAC, 50/60Hz
Features
Features
Basic Function: Wire-speed Performance MAC Address Auto-Learning and Auto-aging IEEE802.3x flow control for Full-Duplex Mode and backpressure for Half-Duplex Mode
Port Forwarding: 10BASE-T: 14880pps/port 100BASE-TX: 148800pps/port
Backup Bandwidth: 3.2Gbps

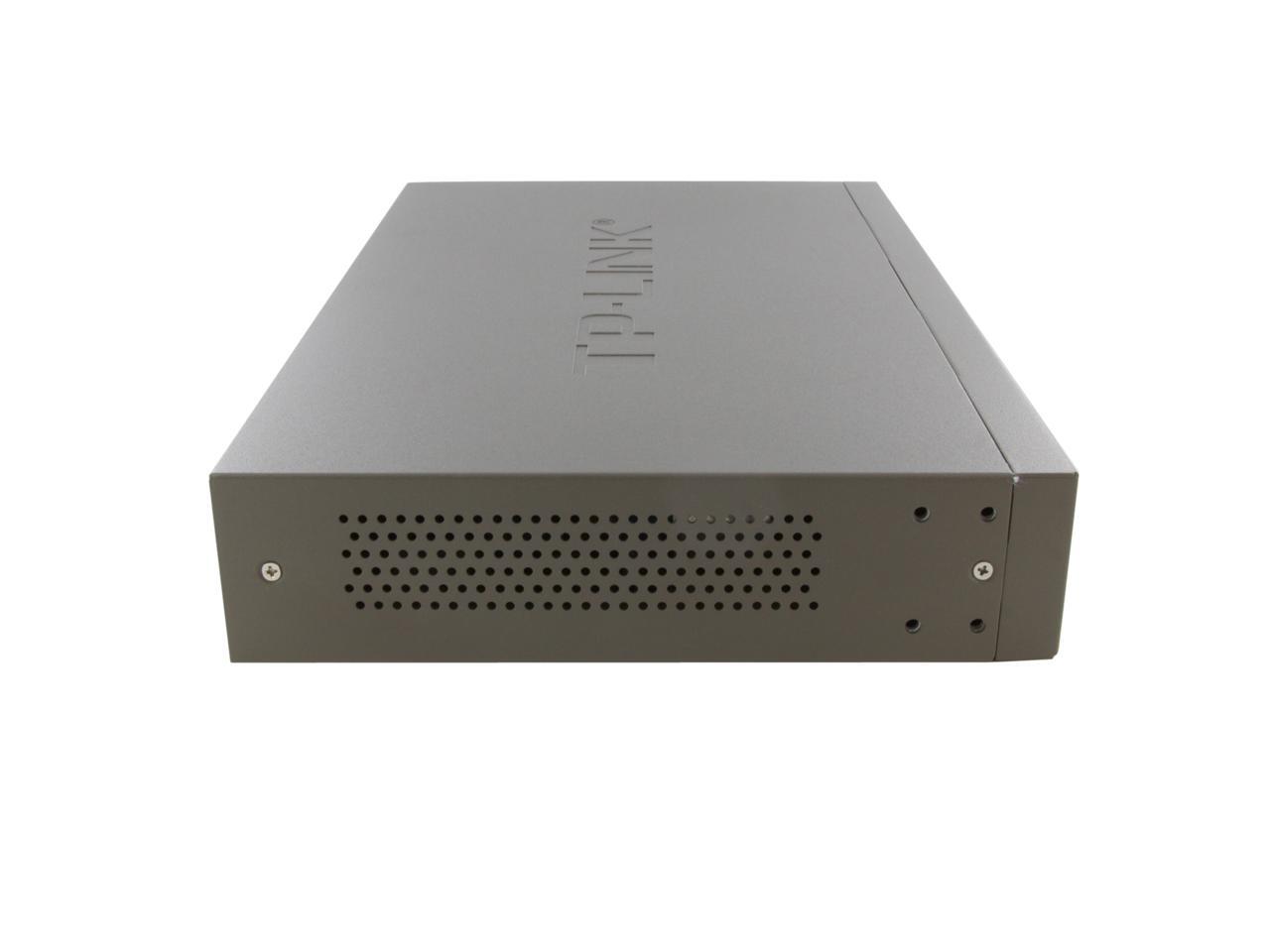

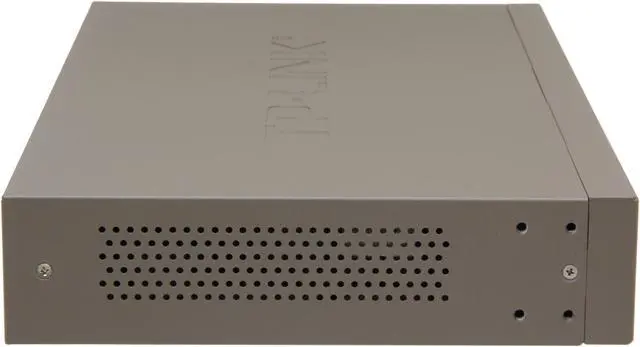

Standard 13-inch steel case.
Innovative energy-efficient technology saves power up to 25%
Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode
Non-blocking switching architecture that forwards and filters packets at full wire-speed for maximum throughput
Auto-MDI/MDIX eliminates the need for crossover cables
Supports MAC address auto-learning and auto-aging
Auto-negotiation ports provide smart integration between 10Mbps, 100Mbps hardware
Plug and Play design simplifies installation

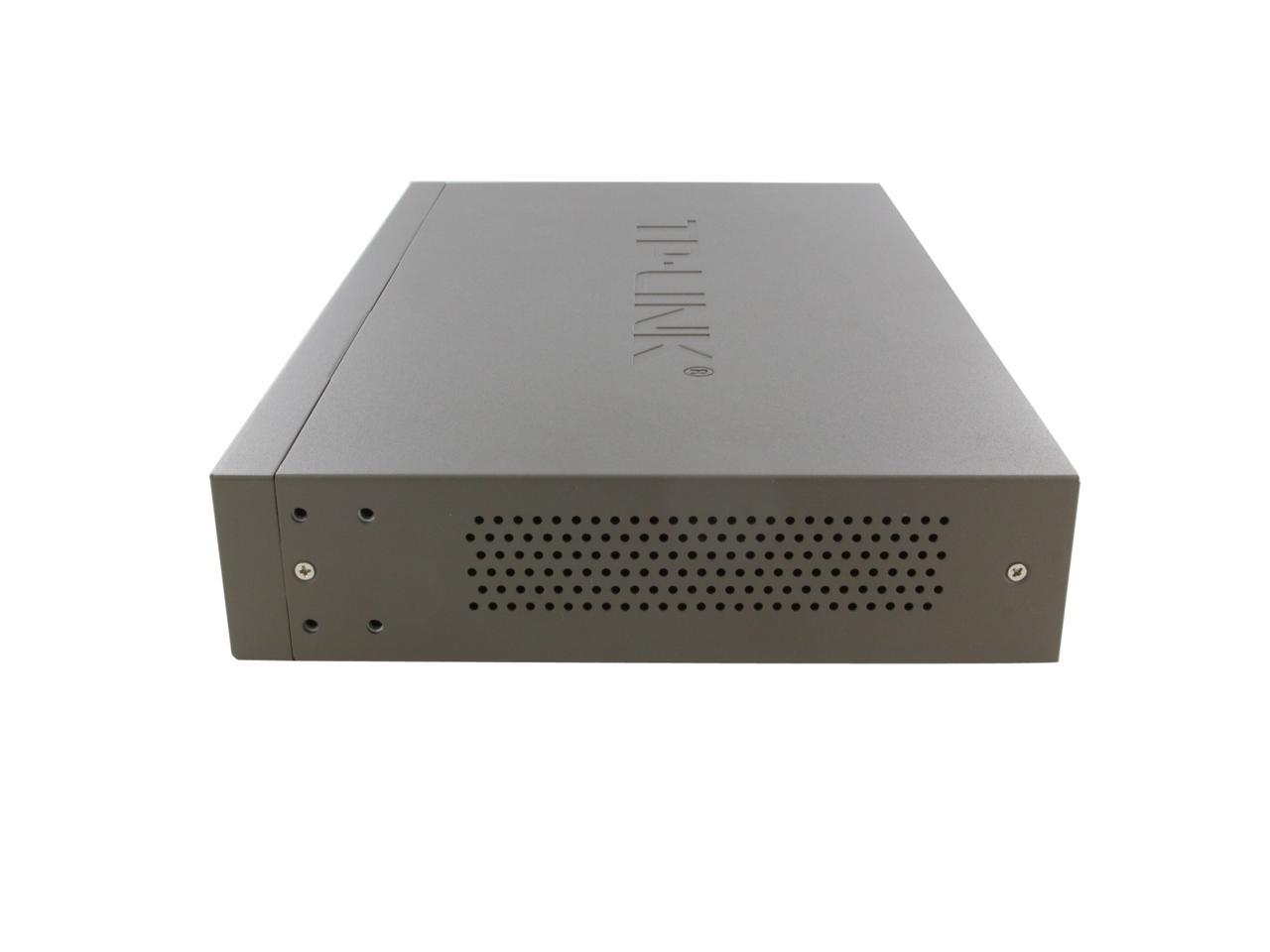

Fanless design to make sure it works quietly without disturbing your family.
Dimensions & Weight
Dimensions
11.6" x 7.1" x 1.7"
Weight
4.15
Group
Model
TL-SF1016DS
Additional Information
First Listed on Newegg
October 24, 2018
