8 x 10/100/1000 Mbps RJ45 Ports, all supporting PoE+ (Auto-Negotiation/Auto MDI/MDIX) 2 x 100/1000 Mbps SFP Slots
Data Transmission
MAC Address Table
8K
VLAN Support
VLAN Group - Max. 4K VLAN Groups 802.1Q tag VLAN MAC VLAN Protocol VLAN GVRP Voice VLAN
Jumbo Frames
9KB
Details
Buffer Memory
4.1 Mbit
Security
AAA 802.1X - Port based authentication - MAC (Host) based authentication - Authentication Method includes PAP/EAP-MD5 - MAB - Guest VLAN - Support Radius authentication and accountability IP/IPv6-MAC Binding - 512 Binding Entries - DHCP Snooping - DHCPv6 Snooping - ARP Inspection - ND Detection IP Source Guard - 253 Entries - Source IP+Source MAC IPv6 Source Guard - 183 Entries - Source IPv6 Address+Source MAC DoS Defend Static/Dynamic/Permanent Port Security - Up to 64 MAC addresses per port Broadcast/Multicast/Unicast Storm Control - kbps/ratio control mode Port Isolation Secure web management through HTTPS with SSLv3/TLS 1.2 Secure Command Line Interface (CLI) management with SSHv1/SSHv2 IP/Port/MAC based access control
PoE
Standard: 802.3at/af compliant PoE+ Ports: 8 Ports Power Supply: 150 W
QoS
802.1p CoS/DSCP priority 8 priority queues Priority Schedule Mode - SP (Strict Priority) - WRR (Weighted Round Robin) Queue Weight Config Bandwidth Control - Port/Flow based Rating Limit Smoother Performance Storm Control - Multiple Control Modes(kbps/ratio) - Broadcast/Multicast/Unknown-Unicast Control
LACP
Yes
Layer
2
Port Mirroring
Yes
Power
Max Power Consumption 12.2 W (110 V / 60 Hz with no PD connected) 173.9 W (110 V / 60 Hz with 150 W PD connected)
Dimensions & Weight
Dimensions

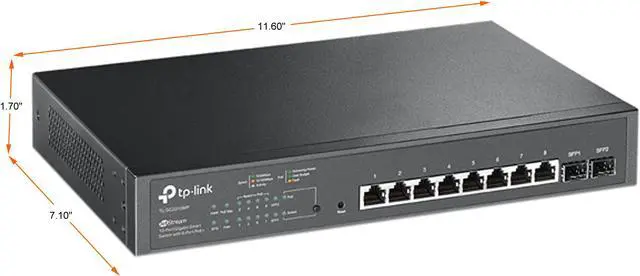

11.60" x 7.10" x 1.70"
Environmental
Temperature
Operating Temperature: 0 - 50 °C (32 - 122 °F); Storage Temperature: -40 - 70 °C (-40 - 158 °F)
