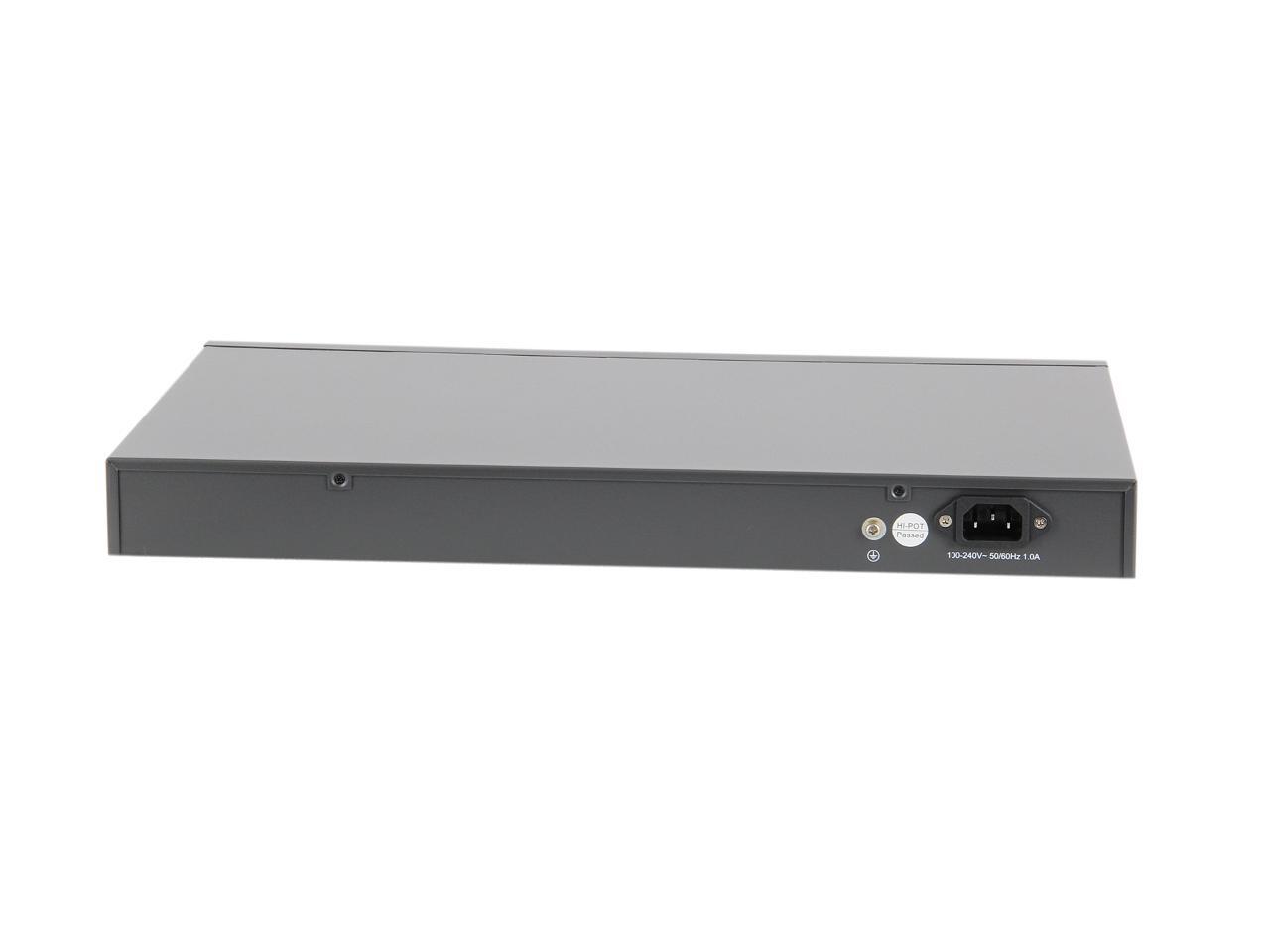

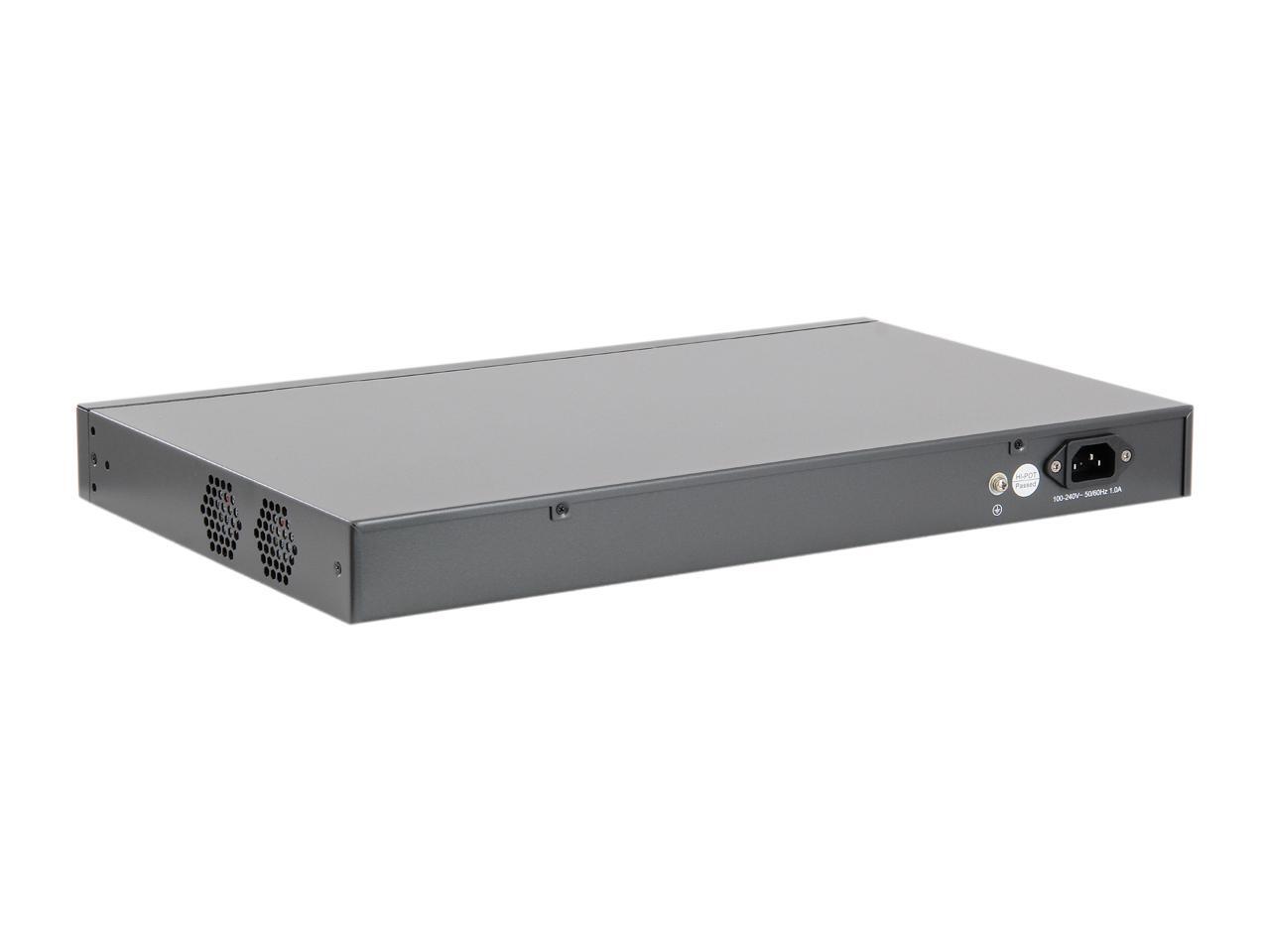

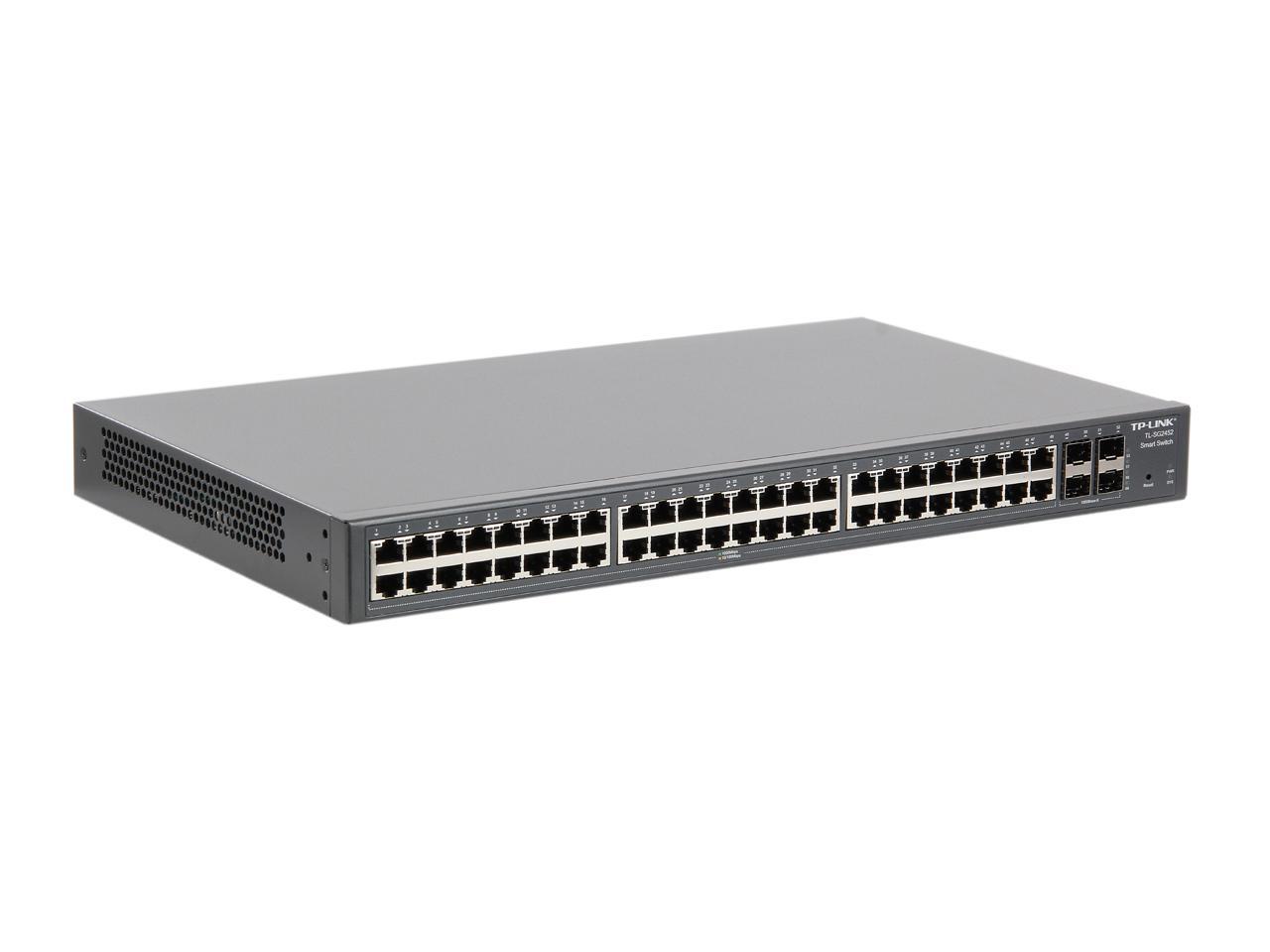

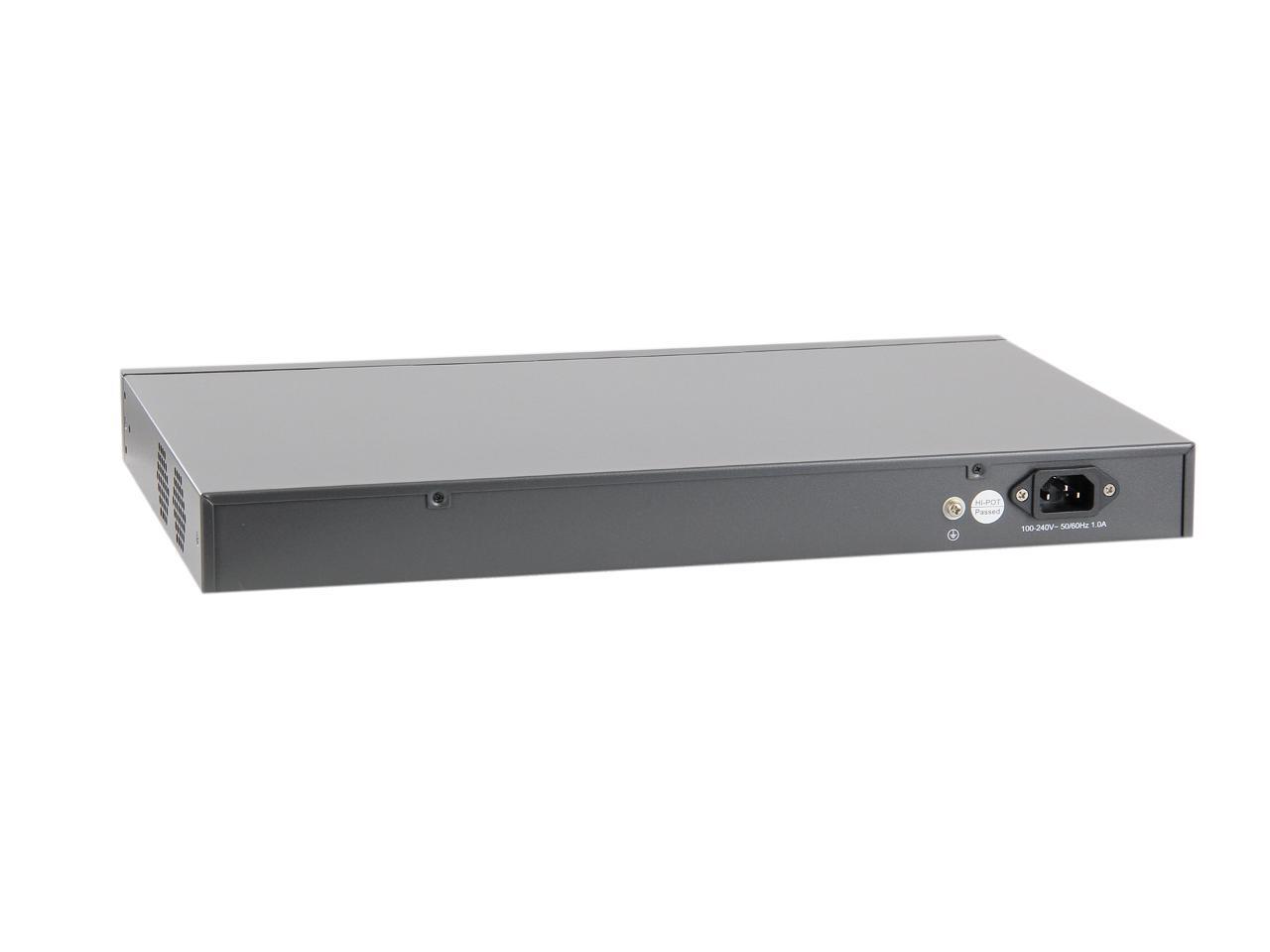

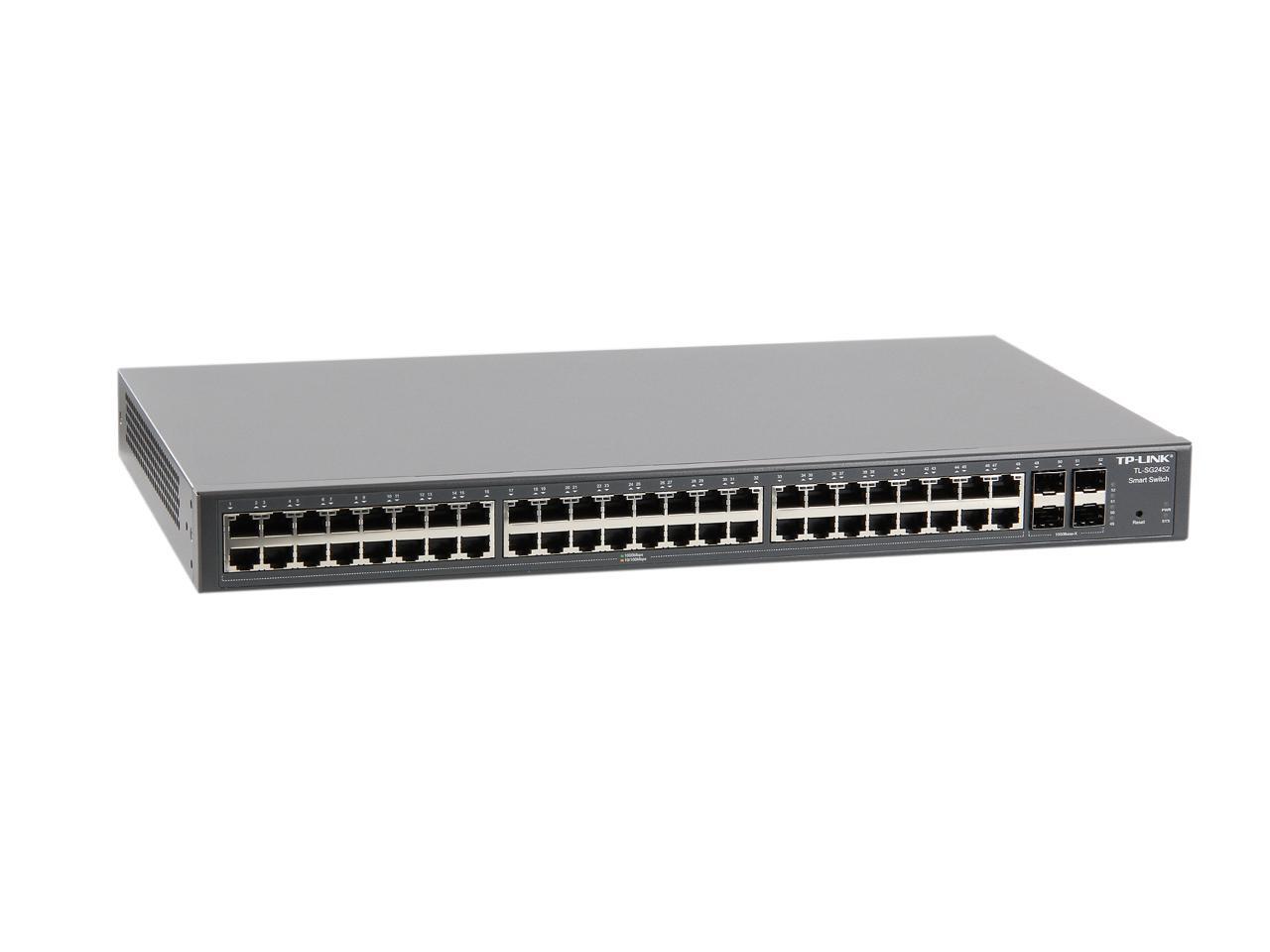

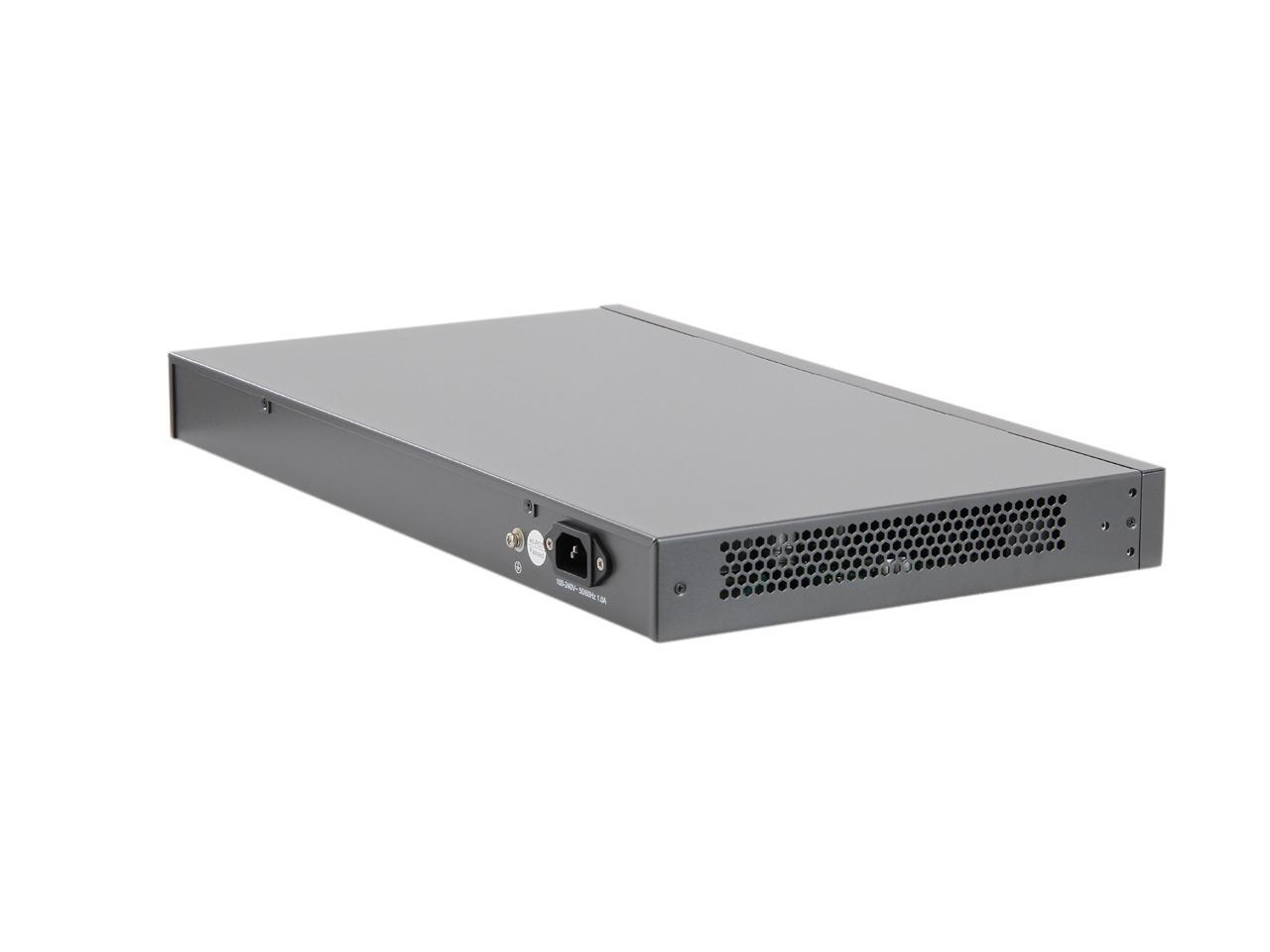

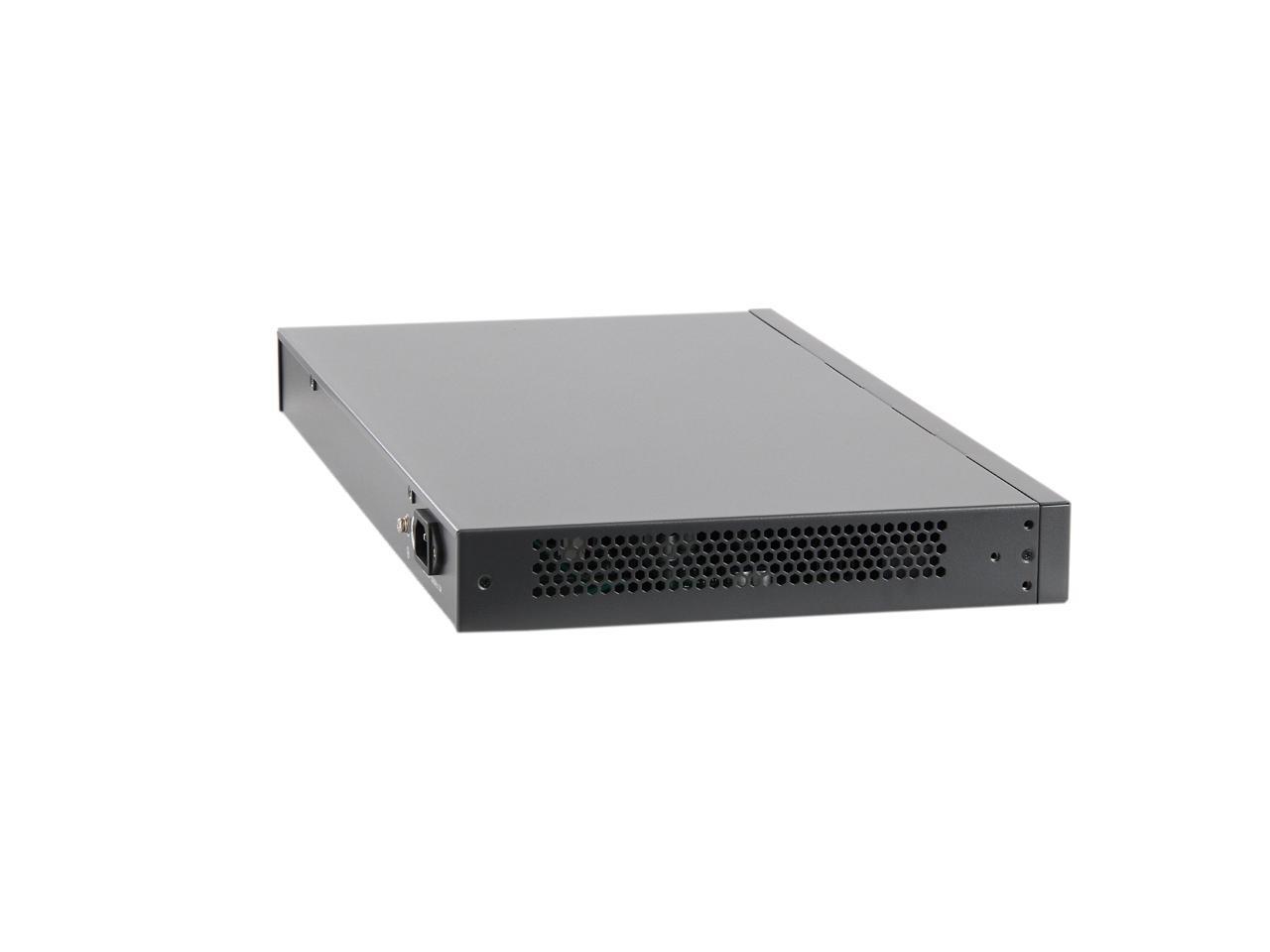

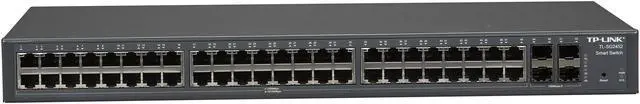

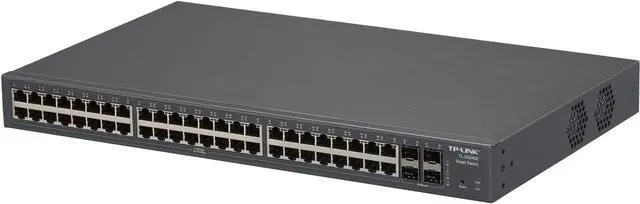

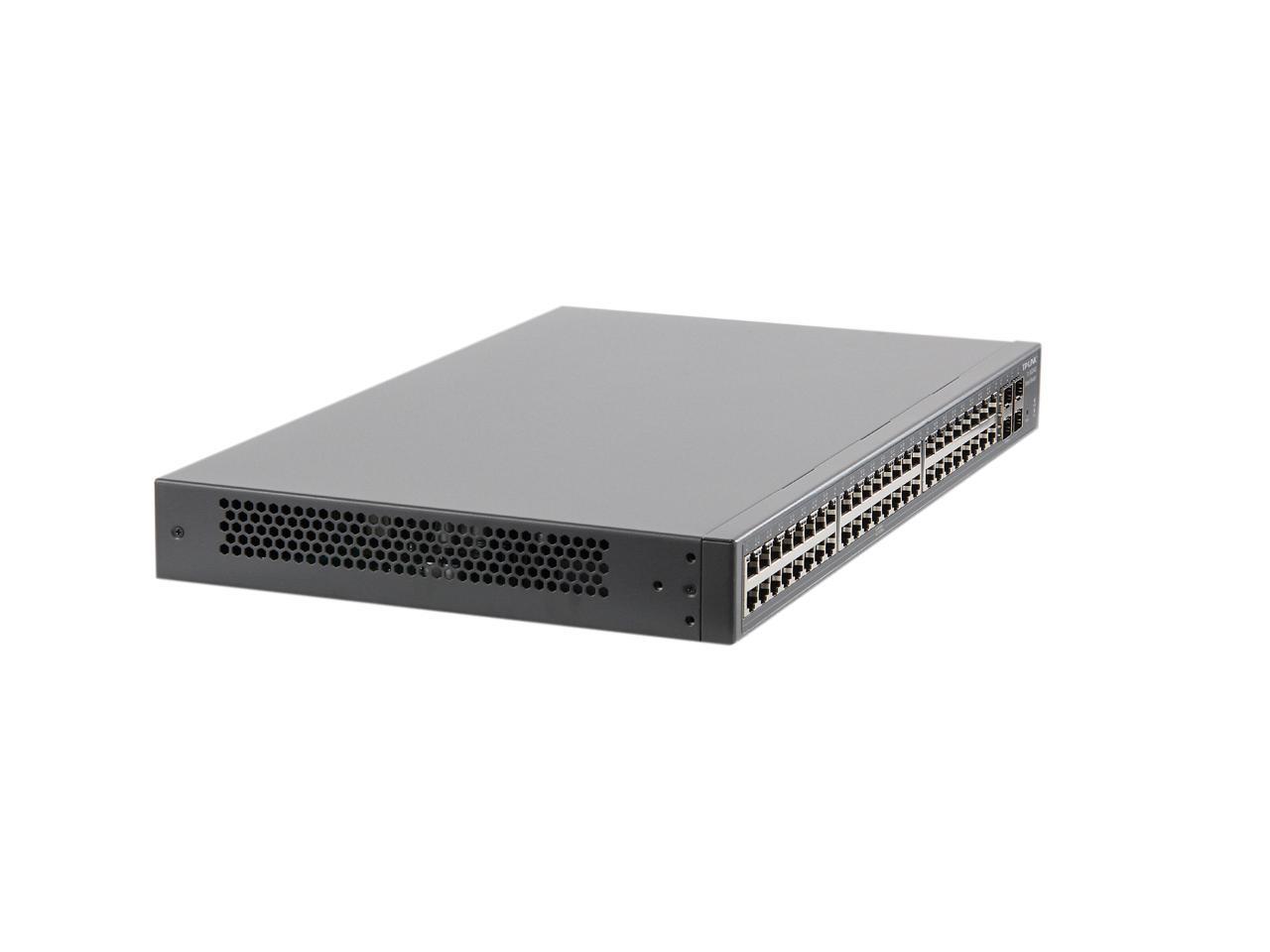

Main image of TP-Link TL-SG2452 Smart 48-Port Gigabit Switch

100%

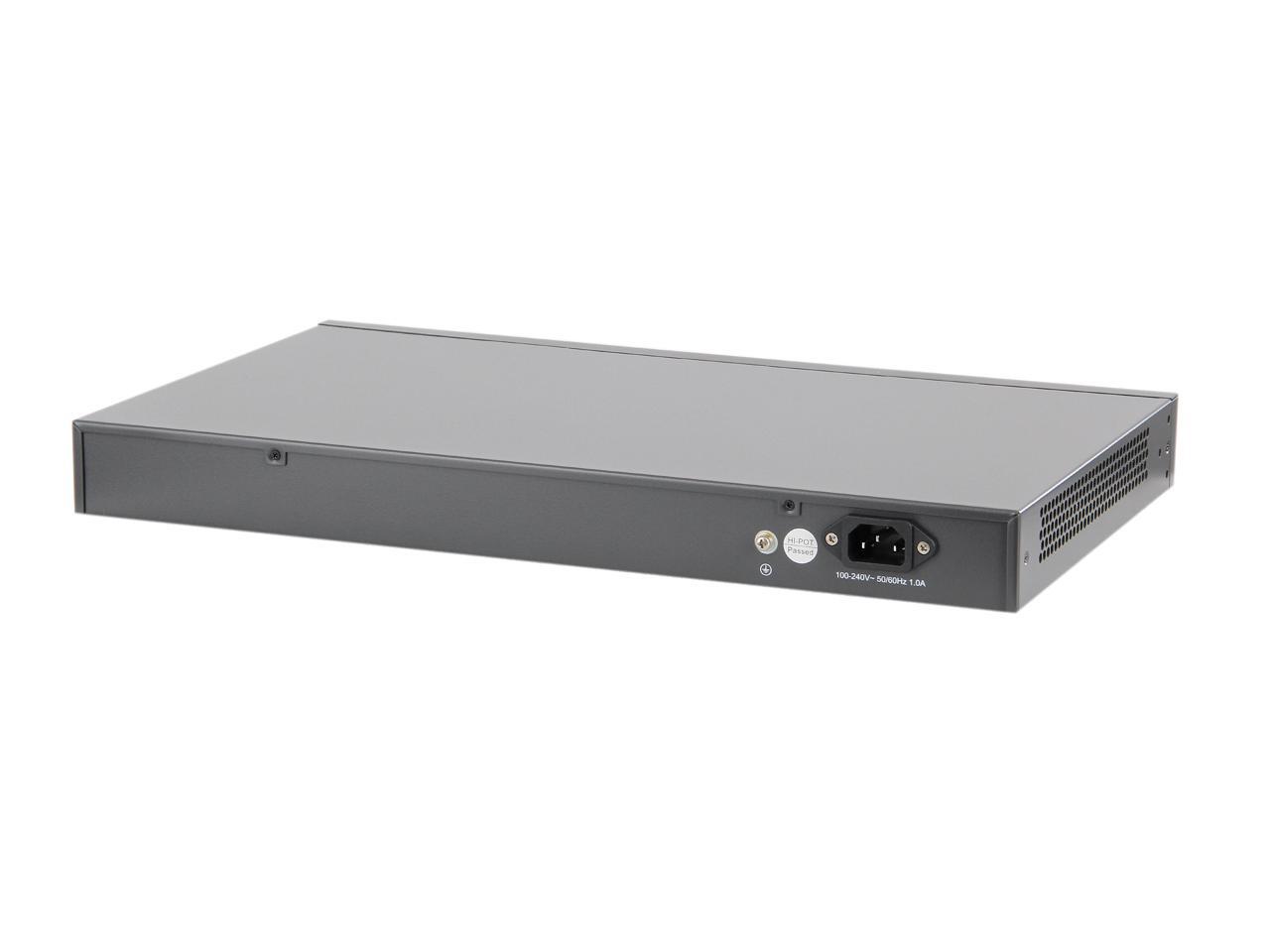

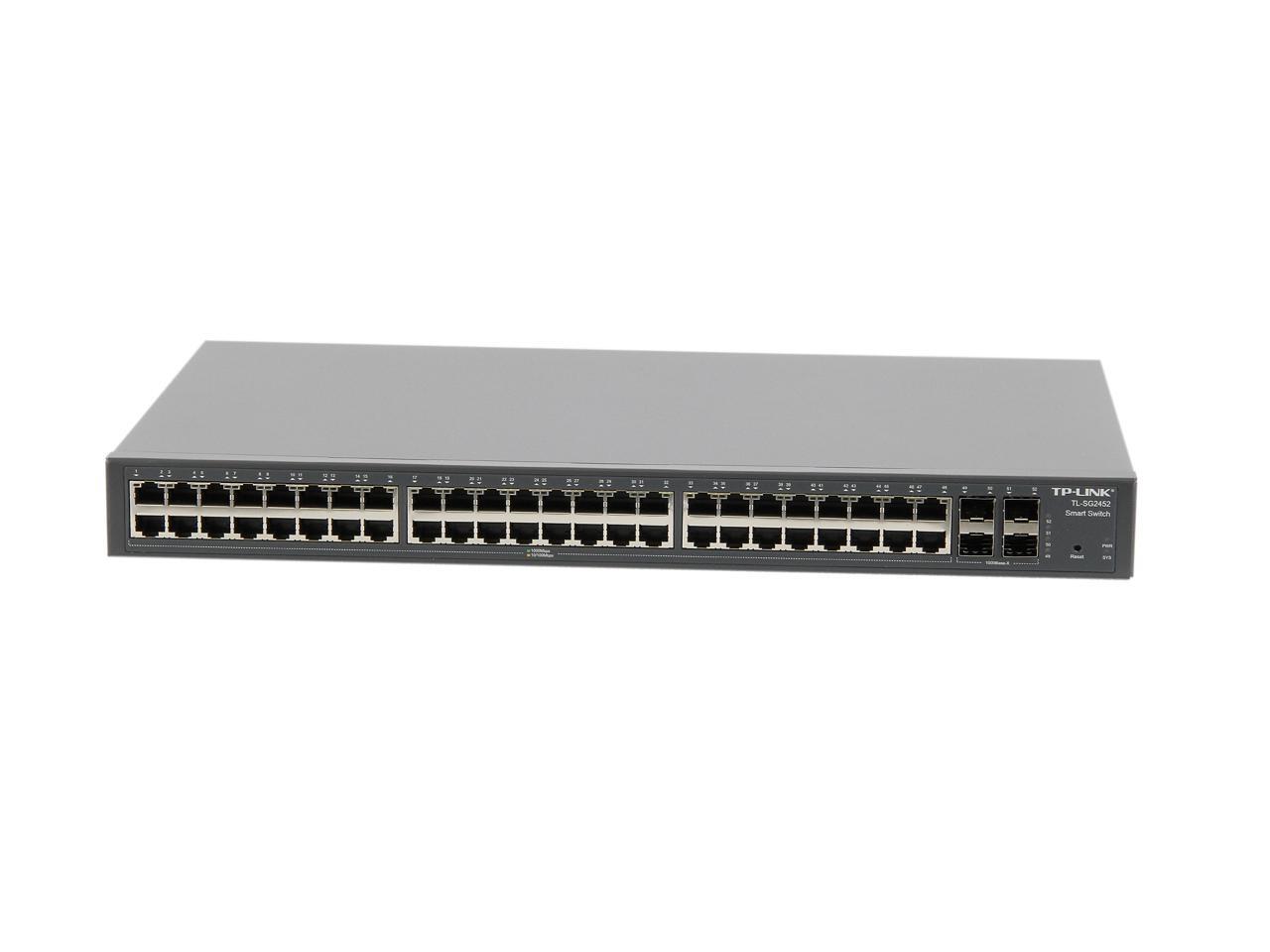

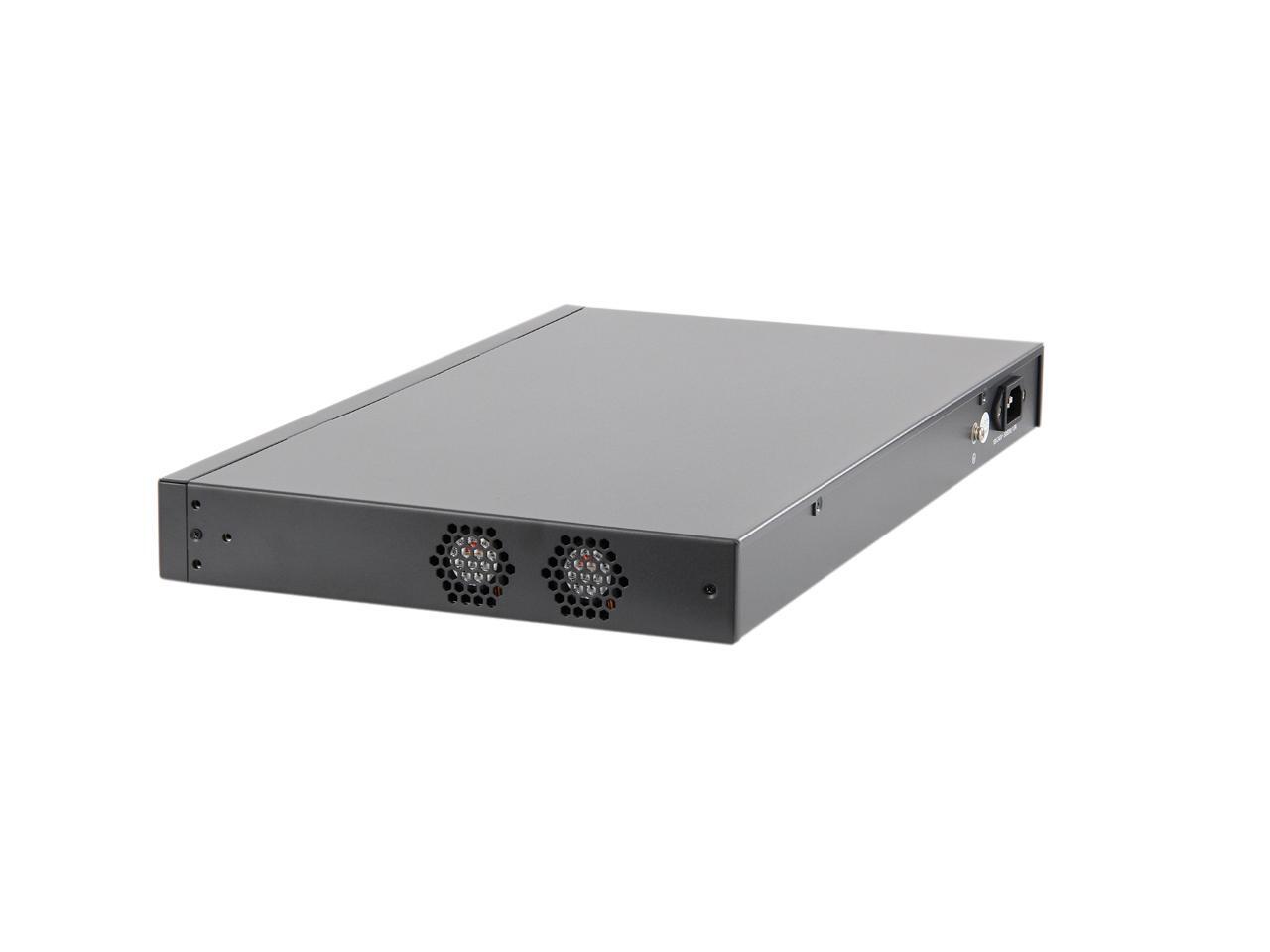

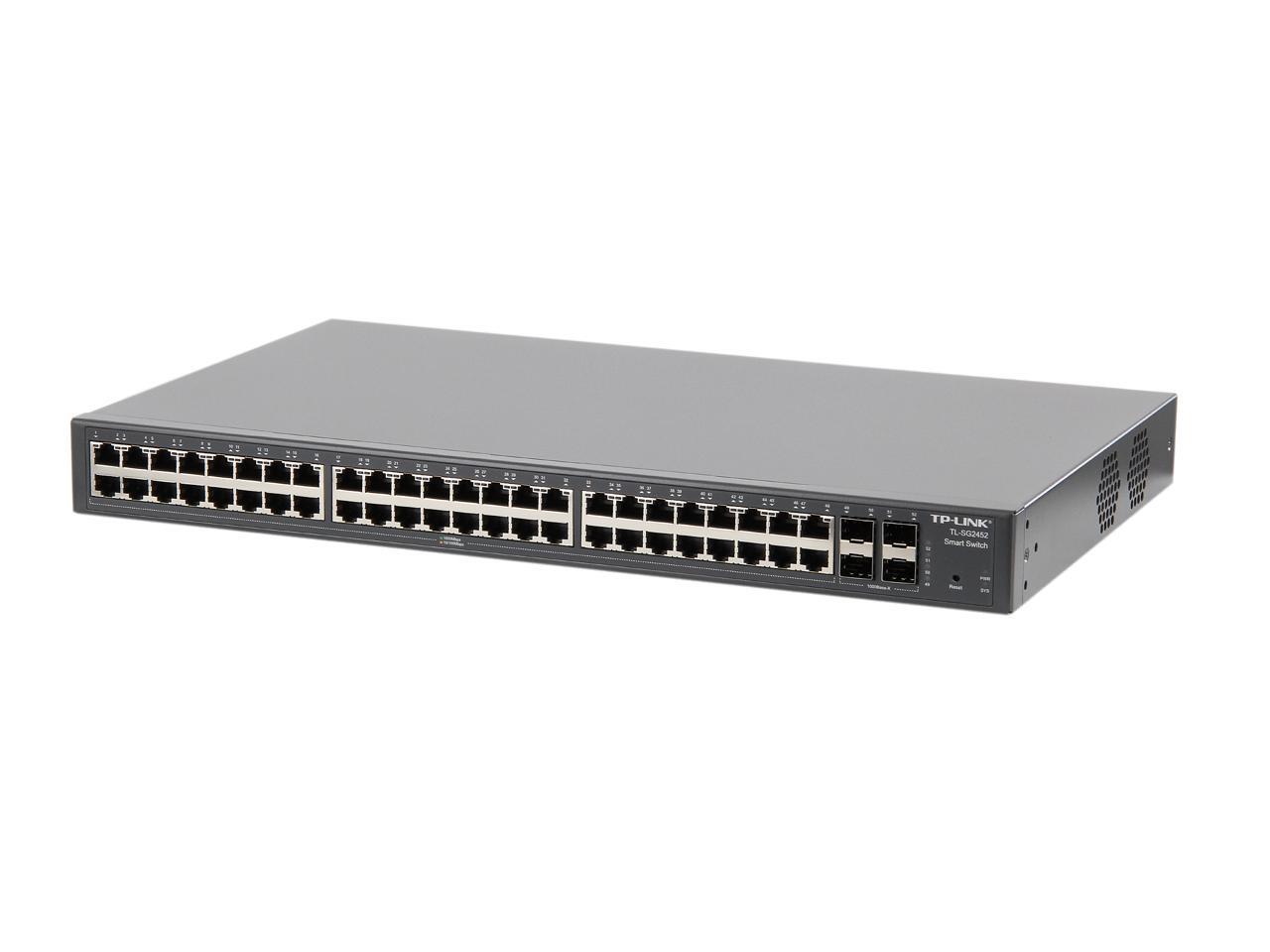

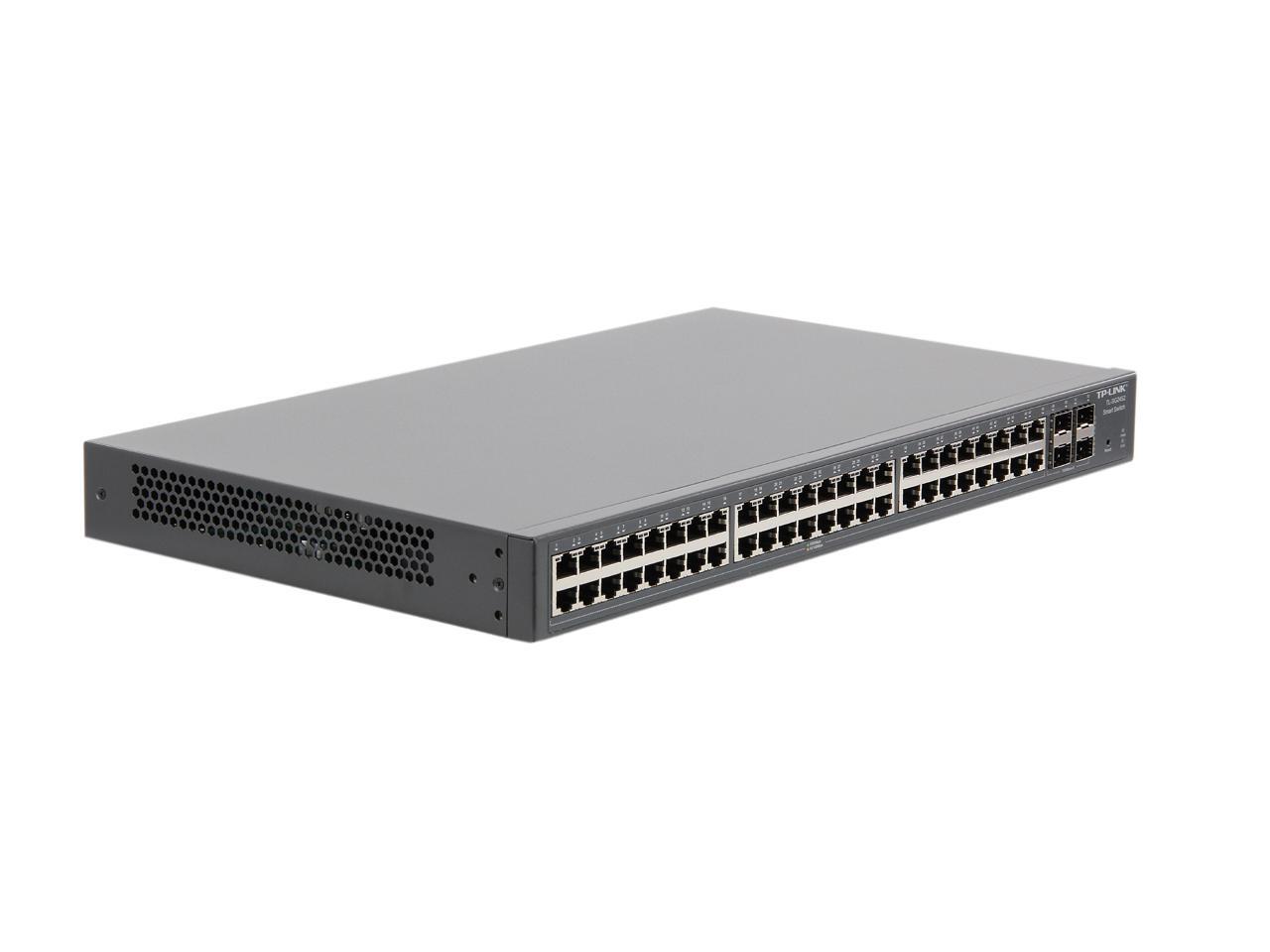

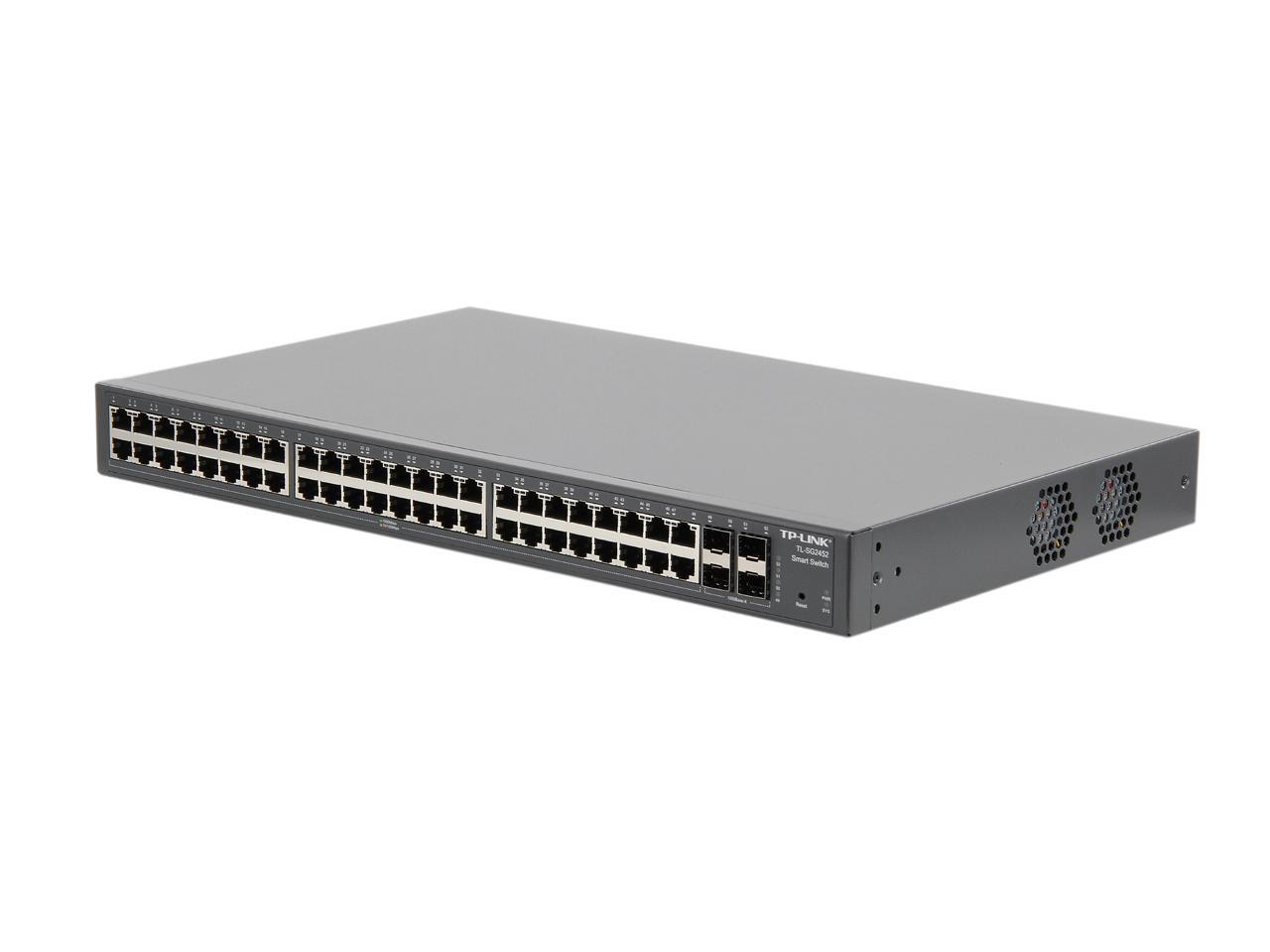

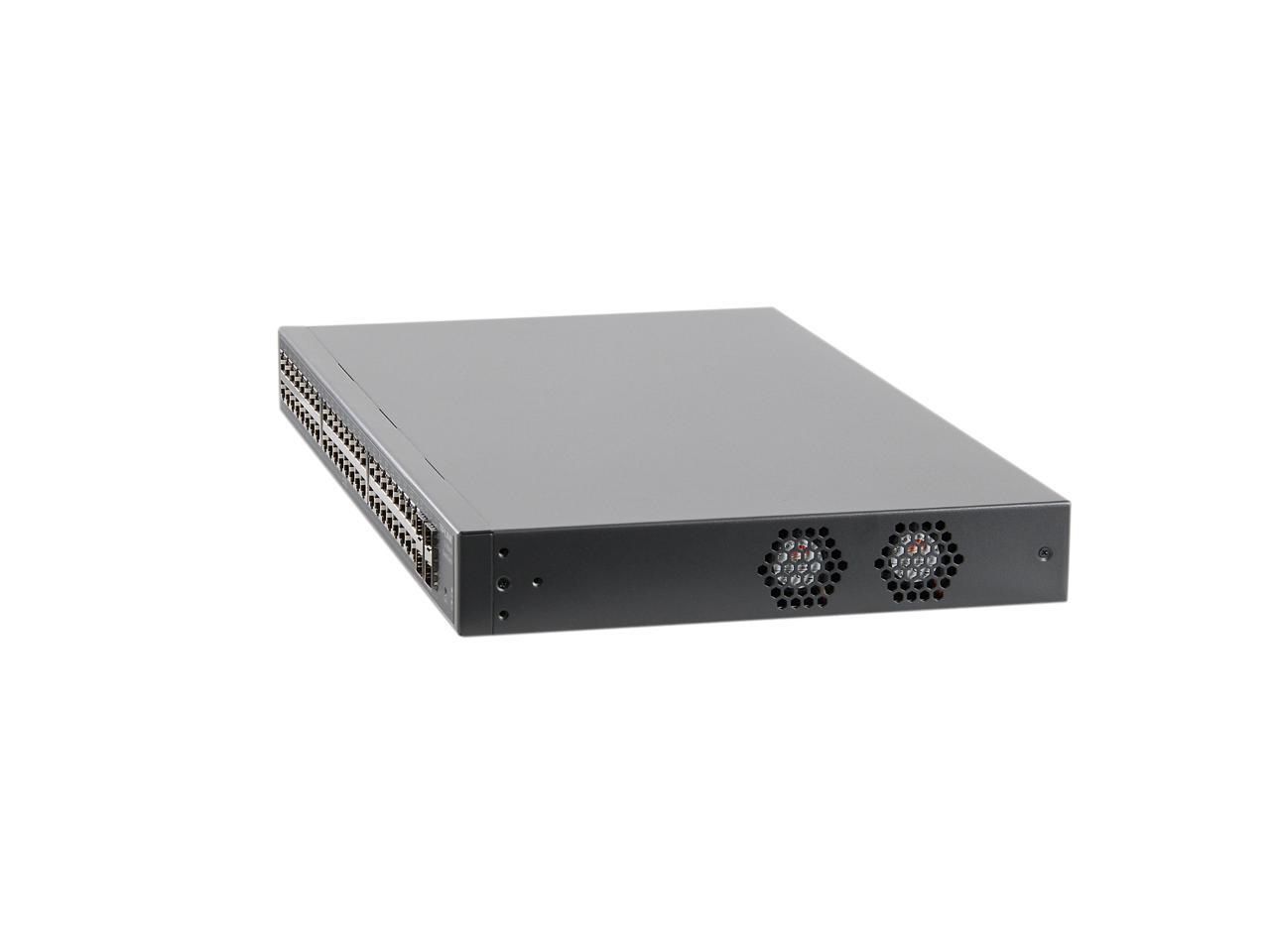

Alt view image 2 of 5 - TP-Link TL-SG2452 Smart 48-Port Gigabit Switch

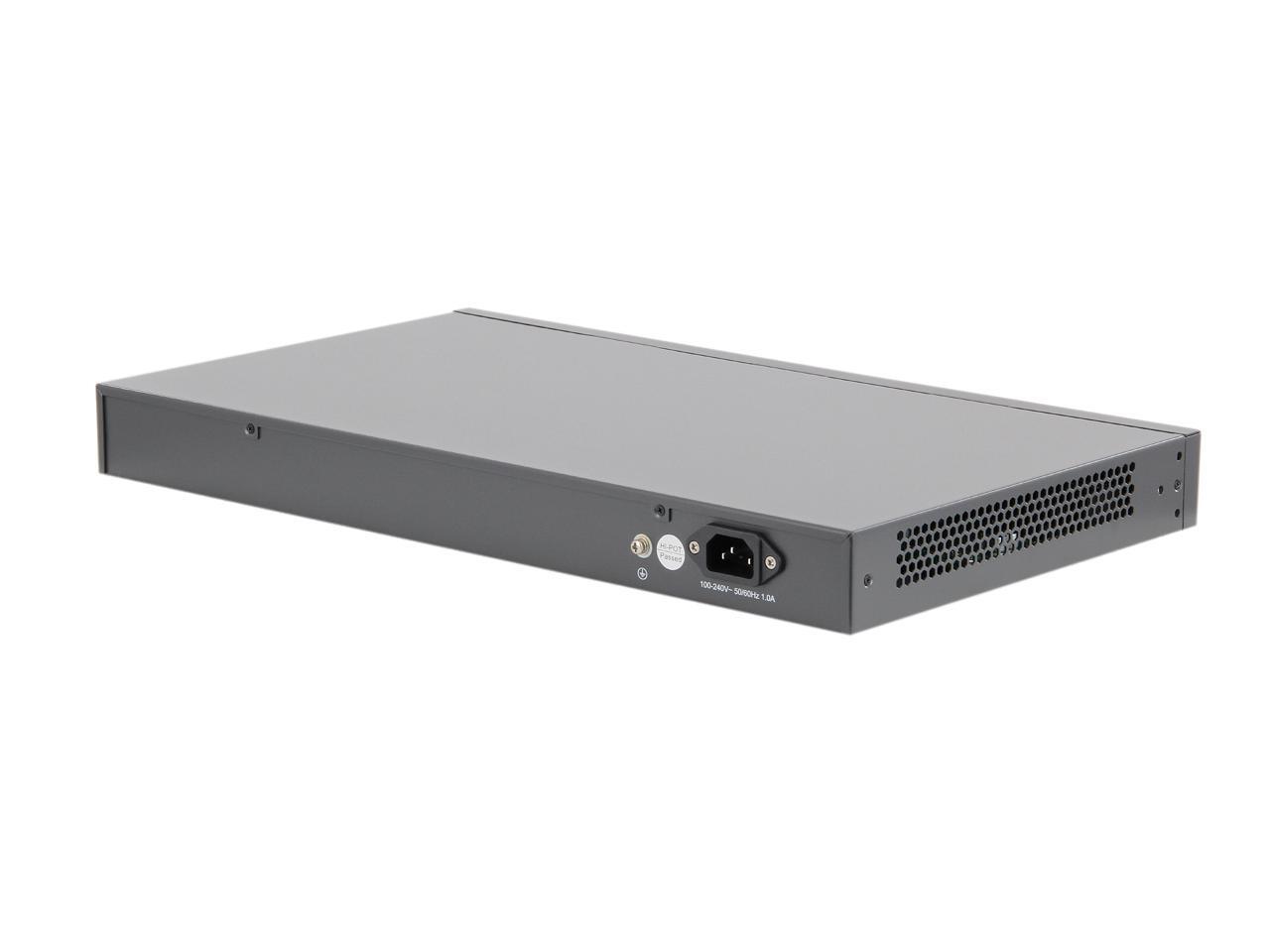

Alt view image 3 of 5 - TP-Link TL-SG2452 Smart 48-Port Gigabit Switch

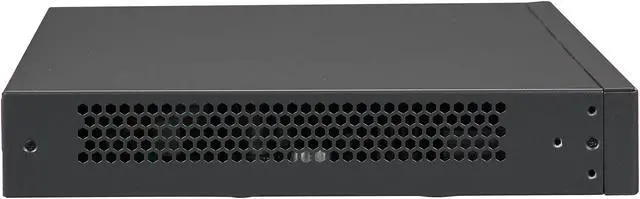

Alt view image 4 of 5 - TP-Link TL-SG2452 Smart 48-Port Gigabit Switch

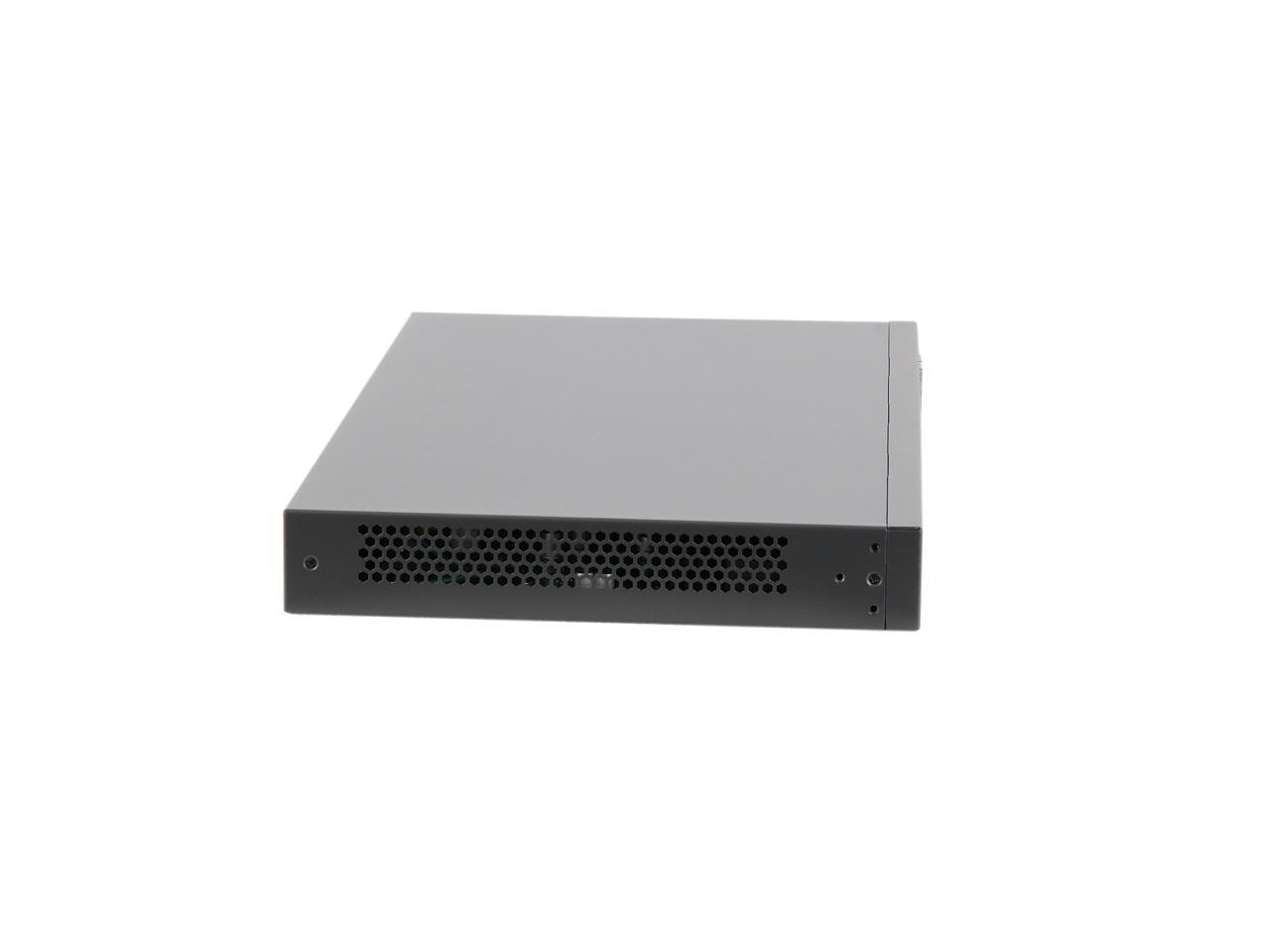

Alt view image 5 of 5 - TP-Link TL-SG2452 Smart 48-Port Gigabit Switch

360^°

Shop All TP-Link Products

TP-Link TL-SG2452 Smart 48-Port Gigabit Switch

Be the first to review this product...

8K MAC Address Table
Smart

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

Model
Brand	TP-Link
Model	TL-SG2452

Format & Standards
Format	Rackmount
Standards	IEEE 802.3i,IEEE 802.3u,IEEE 802.3ab,IEEE802.3z,IEEE 802.3x,IEEE 802.1d,IEEE 802.1s,IEEE 802.1w,IEEE 802.1q,IEEE 802.1p
Network Management Type	Smart

Ports & Interface
Primary Ports	48 x RJ45 + 4 x SFP
Primary Port Speed	10/100/1000Mbps

Data Transmission
MAC Address Table	8K
VLAN Support	Supports up to 512 VLANs simultaneously (out of 4K VLAN IDs)
Jumbo Frames	10240 Bytes

Details
Security	Port Security Broadcast/Multicast/Unknown-unicast Storm Control
SNMP	Yes
QoS	Yes
Layer	2
Port Mirroring	Yes
Cabling	10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) 100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m) 100BASE-FX:MMF,SMF 1000BASE-X: MMF, SMF

Power Supply
Power	100~240VAC, 50/60Hz

Dimensions & Weight
Dimensions	17.3" x 10.2" x 1.7" (440x260x44 mm)
Weight	9.8

Environmental
Temperature	0°C to 40°C (32°F to 104°F)
Humidity	10% - 90%, Non-condensing

Features
Features	Bandwidth/Backplane: 104Gbps Packet Forwarding Rate: 77.4Mpps Quality of Service: Support 802.1p CoS/DSCP priority Support 4 priority queues Queue scheduling: SP, WRR, SP+WRR Port/Flow-based Rate Limiting L2 Features: IGMP Snooping V1/V2/V3 LAG(Up to 6 aggregation groups, containing 4 ports per group) Spanning Tree STP/RSTP/MSTP BPDU Filtering/Guard TC/Root Protect Loop back detection 802.3x Flow Control Management: Web-based GUI SNMP v1/v2c/v3,compatible with public MIBs and TP-LINK private MIBs RMON (1, 2, 3, 9 groups) CPU Monitoring Port Mirroring Firmware Upgrade: Web System Diagnose: VCT SYSLOG & Public MIBS System Requirements: Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7, MAC OS, NetWare, UNIX or Linux. Gigabit Ethernet connections on all ports provide full speed of data transferring Integrated security strategy including 802.1Q VLAN, Port Security and Storm control help protect LAN area investment L2/L3/L4 QoS and IGMP snooping optimize voice and video applications WEB managed modes, SNMP, RMON bring abundant management features.

Packaging

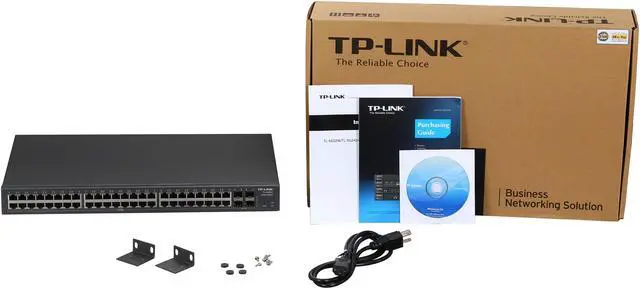

Package Contents	TL-SG2452 Power Cord Installation Guide Resource CD Rackmount Kit Rubber Feet
