Is this version 1 or version 2? If version 1, does it support ipv6?

I wish i knew. I made this purchase for a business i was doing a job for. Car lot with 6 computers, and it works GREAT for them.

does it work with windows 10?

Its a piece of networking equipment. Its independent of the desktop operating system. The control panel is accessed through a browser, so yes it will work with windows 10. I'm using it as the network switch for about 18 windows 10 pcs on the LAN.

Does this unit support IPv6? Thanks in advance.

Yes it does. Independent control for V4 and V6.

Out of stock

This item is currently out of stock and it may or may not be restocked.

Out of Stock

Sold by Newegg

Shipped by Newegg

Add to wish list

Get Educated

Make informed decisions with expert advice. Learn More

More Resources

TPLINK;TL-SG3216;TL-SG3216_V2_Datasheet - TP-Link

TPLINK;JetStream TL-SG3424;TL-SG3216/TL-SG3424 JetStream L2 Lite ... - Wifi-stock

TPLINK;JetStream TL-SG3424;TL-SG3210/TL-SG3216/TL-SG3424 JetStream L2 ... - TP-Link

TPLINK;TL-SG3216;TL-SG3216_V2_Datasheet - TP-Link

TPLINK;TL-SG3210;TL-SG3210/TL-SG3216/TL-SG3424 JetStream L2 ... - TP-Link

TPLINK;JetStream TL-SG3216;TL-SG3210/TL-SG3216/TL-SG3424 JetStream L2 ... - TP-LINK

TPLINK;JetStream TL-SG3216;TL-SG3210/TL-SG3216/TL-SG3424 JetStream L2 ... - TP-Link

TPLINK;TL-SG3216;TL-SG3210/TL-SG3216/TL-SG3424 JetStream L2 ... - TP-Link

TPLINK;TL-SG3216;TL-SG3216/TL-SG3424 JetStream L2 Managed Switch - TP-Link

TPLINK;JetStream TL-SG3216;TL-SG3210/TL-SG3216/TL-SG3424 JetStream L2 ... - TP-LINK

Main image of TP-Link JetStream TL-SG3216 Managed 16-Port Gigabit L2 Lite Managed Switch

Alt view image 2 of 5 - TP-Link JetStream TL-SG3216 Managed 16-Port Gigabit L2 Lite Managed Switch

Alt view image 3 of 5 - TP-Link JetStream TL-SG3216 Managed 16-Port Gigabit L2 Lite Managed Switch

Alt view image 4 of 5 - TP-Link JetStream TL-SG3216 Managed 16-Port Gigabit L2 Lite Managed Switch

Alt view image 5 of 5 - TP-Link JetStream TL-SG3216 Managed 16-Port Gigabit L2 Lite Managed Switch

Shop All TP-Link Products

TP-Link JetStream TL-SG3216 Managed 16-Port Gigabit L2 Lite Managed Switch

(5) Write a Review

8K MAC Address Table
512KB Buffer Memory
Managed

Overview

Specs

Reviews (5)

See all Q & A

Model
Brand	TP-Link
Series	JetStream
Model	TL-SG3216

Format & Standards
Format	Rackmount
Standards	IEEE 802.3i,IEEE 802.3u,IEEE 802.3ab,IEEE802.3z, IEEE 802.3ad,IEEE 802.3x,IEEE 802.1d,IEEE 802.1s, IEEE 802.1w,IEEE 802.1q,IEEE 802.1x,IEEE 802.1p
Network Management Type	Managed

Ports & Interface
Primary Ports	16 x RJ45 + 2 x SFP
Primary Port Speed	10/100/1000Mbps

Data Transmission
MAC Address Table	8K
VLAN Support	Yes
Jumbo Frames	10240 Bytes
Buffer Memory	512KB

Details
Security	IP-MAC-Port-VID Binding IEEE 802.1X Port/MAC Based authentication, Radius,Guest VLAN DoS Defence Dynamic ARP inspection (DAI) SSH v1/v2 SSL v2/v3/TLSv1 Port Security Broadcast/Multicast/Unknown-unicast Storm Control
SNMP	Yes
QoS	Yes
LACP	Yes
Layer	2
Port Mirroring	Yes
Cabling	10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) 100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m) 100BASE-FX:MMF,SMF 1000BASE-X: MMF, SMF

Power Supply
Power	100~240VAC, 50/60Hz

Dimensions & Weight
Dimensions	17.3" x 8.7" x 1.7"
Weight	8.55

Environmental
Temperature	0°C to 40°C (32°F to 104°F)
Humidity	10% - 90%, Non-condensing

Features
Features	Interface: 16 10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX) 2 Combo 100/1000Mbps SFP Slots 1 Console Port Bandwidth/Backplane: 32Gbps Packet Forwarding Rate: 23.8Mpps Quality of Service: Support 802.1p CoS/DSCP priority Support 4 priority queues Queue scheduling: SP, WRR, SP+WRR Port/Flow- based Rate Limiting Voice VLAN L2 Features: IGMP Snooping V1/V2/V3 802.3ad LACP (Up to 8 aggregation groups, containing 8 ports per group) Spanning Tree STP/RSTP/MSTP BPDU Filtering/Guard TC/Root Protect Loop back detection 802.3x Flow Control VLAN: Support IEEE802.1Q with 4K VLAN groups and 4K VIDs Port/ MAC/Protocol-based VLAN GARP/GVRP Access Control List: L2~L4 package filtering based on source and destination MAC address, IP address, TCP/UDP ports, 802.1p, DSCP, protocol and VLAN ID Time Range Based Management: Web-based GUI and CLI management SNMP v1/v2c/v3,compatible with public MIBs and TP-LINK private MIBs RMON (1, 2, 3, 9 groups) DHCP/BOOTP Client,DHCP Snooping,DHCP Option82 CPU Monitoring Port Mirroring Time Setting: SNTP Integrated NDP/NTDP feature Firmware Upgrade: TFTP & Web System Diagnose: VCT SYSLOG & Public MIBS

Packaging

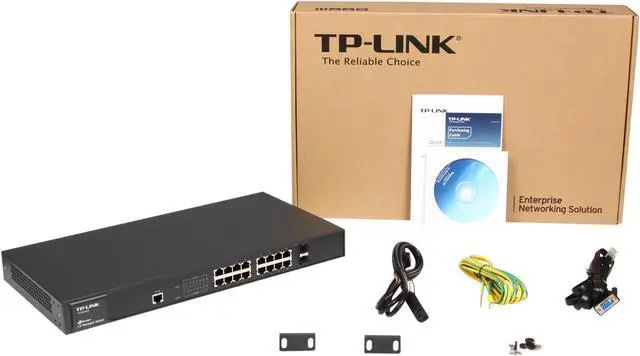

Package Contents	Switch Power Cord Quick Installation Guide Resource CD Rackmount Kit Rubber Feet

Additional Information
First Listed on Newegg	November 16, 2011

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Limited Warranty period (parts): 5 years
Limited Warranty period (labor): 5 years
