Main image of WR01RF Wireless 2.4G RF 4 Zones RGB RGBW RGBCCT Wall Mounted Smart Panel Remote Powered by 2XAAA Batteries 3V Work with DR03W DR04W WB5 LM052 C03RF C04RF C05RF C03W C04W C05W Controller

Alt view image 2 of 7 - WR01RF Wireless 2.4G RF 4 Zones RGB RGBW RGBCCT Wall Mounted Smart Panel Remote Powered by 2XAAA Batteries 3V Work with DR03W DR04W WB5 LM052 C03RF C04RF C05RF C03W C04W C05W Controller

Alt view image 3 of 7 - WR01RF Wireless 2.4G RF 4 Zones RGB RGBW RGBCCT Wall Mounted Smart Panel Remote Powered by 2XAAA Batteries 3V Work with DR03W DR04W WB5 LM052 C03RF C04RF C05RF C03W C04W C05W Controller

Alt view image 4 of 7 - WR01RF Wireless 2.4G RF 4 Zones RGB RGBW RGBCCT Wall Mounted Smart Panel Remote Powered by 2XAAA Batteries 3V Work with DR03W DR04W WB5 LM052 C03RF C04RF C05RF C03W C04W C05W Controller

Alt view image 5 of 7 - WR01RF Wireless 2.4G RF 4 Zones RGB RGBW RGBCCT Wall Mounted Smart Panel Remote Powered by 2XAAA Batteries 3V Work with DR03W DR04W WB5 LM052 C03RF C04RF C05RF C03W C04W C05W Controller

Alt view image 6 of 7 - WR01RF Wireless 2.4G RF 4 Zones RGB RGBW RGBCCT Wall Mounted Smart Panel Remote Powered by 2XAAA Batteries 3V Work with DR03W DR04W WB5 LM052 C03RF C04RF C05RF C03W C04W C05W Controller

Alt view image 7 of 7 - WR01RF Wireless 2.4G RF 4 Zones RGB RGBW RGBCCT Wall Mounted Smart Panel Remote Powered by 2XAAA Batteries 3V Work with DR03W DR04W WB5 LM052 C03RF C04RF C05RF C03W C04W C05W Controller

Shop All Generic Brand Products | Visit HalongzhiUKshop Store

FOLLOW

WR01RF Wireless 2.4G RF 4 Zones RGB RGBW RGBCCT Wall Mounted Smart Panel Remote Powered by 2XAAA Batteries 3V Work with DR03W DR04W WB5 LM052 C03RF C04RF C05RF C03W C04W C05W Controller

Be the first to review this product...

Matching controllerRGB RGBW Controller RF Remote .Match with DR03W,DR04W,C03RF,C04RF,C05RF,C03W,C04W,C05W,WB5,LM052,LM053 Controller .Control 4pin 4 wires(V+ R G B) PWM LED controller or 5pin 5 wires(V+ R G B W) PWM LED.
2.4GHz RF Wireless Transmitting,30 Meters(98 feet) Control Distance,that means you don't have to install it with lamps in the same circuit,don't have to change any electric circuit exist. Free installation,no wiring,more convinent and smart.
4 Zones Control Separately: Each Zone Control Countless LED Strip Controllers. Each controller can match with 4 Remote at the same time.
Dimming 1%-100% the light randomly,9 Color Changing Models, choose the color atmospheres you want. 16 million colors .Can Light up pure white light.Senstive touching,Touch screen is stable.
Powered by 2pcs AAA batteries package doest not include.You don't have to make any change to your house electric circuit.Just charge it with 2pcs AAA batteries,install or paste it on the wall.Touching button with sound.

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

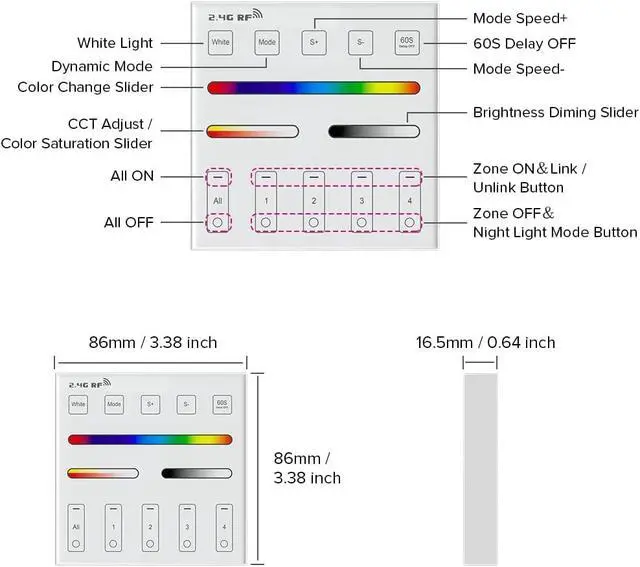

WR01RF

Product Parameters

Product Name: 4 Zone RGB , RGBW and RGBCCT Panel Remote Controller.
Model No: WR01RF
Working Voltage: 3V (2*AAA Battery) (Package Not Including Battery )
Transmitting: 6dBm
Standby Power: 20uA
Transmission Frequency: 2.4GHz
Modulation Method: GFSK
Control Distance: 30cm (98.42ft)
Working Temperature: -20-60°C
Size: 86*86*19mm (33.86*33.86*7.5in)
SupportController:C03RF,C04RF,C05RF,C03W,C04W,C05W,WB5,LM052,LM053.

WR01RF

Link / Unlink

Link Instructions:

Disconnect the LED controller from the power supply for 10 seconds and reconnect it.
When the light on, short press any zone of " — " 3 times within 3 seconds.
The LED Strip blink 3 times slowly means the linking is successful.

Note:Linking failed if light is not blinking slowly , Please follow above steps again( Note : Light that have linked cant link again).

Unlinking Instructions:

Disconnect the LED controller from the power supply for 10 seconds and reconnect it.
When the light is on , short press the been connected “—" zone 5 times within 3 seconds. (Unlinking must be the same zone with the Linking)
The LED strip blinks 10 times quickly means the unlinking is successful.

Note:Unlinking failed if light is not blinking quickly , Please follow above steps again( Note : Light haven't linked that don't need to unlink).

WR01RF

WR01RF

WR01RF

Attention:

Please check the cable, and make the circuit is correct before when power on.
When installation, please handle with the care to avoid the broken of the glass panel.
Please don't use the lighting fixtures around the mental area and high magnetic field, otherwise, it will badly affect the control distance.

	LM052	LM053	WB5	C03W	C04W	C05W

Customer Reviews	—	—	—	—	—	—
Price	—	—	—	—	—	—
Support LED	Monochrome/CCT/RGB/RGBW/RGBCCT	Monochrome/CCT/RGB/RGBW/RGBCCT	Monochrome/CCT/RGB/RGBW/RGBCCT	RGB	RGBW	RGBCCT
WiFi/Bluetooth	2.4GHz WiFi	Bluetooth Mesh	2.4GHz WiFi	2.4GHz WiFi	2.4GHz WiFi	2.4GHz WiFi
Google Home/Alexa	Need Tuya WiFi Dual-Mode Gateway	Need Tuya WiFi Dual-Mode Gateway	?	?	?	?
Zigbee 3.0	?	no data	no data	no data	no data	no data
Philip H-ue	?	no data	no data	no data	no data	no data
Group Control	?	?	?	?	?	?
Work With WR02RF RF Remote	?	?	?	?	?	?
Current	6A/Channel Total Output: Max 15A	6A/Channel Total Output: Max 15A	6A/Channel Total Output: Max 15A	6A/Channel Total Output: Max 15A	6A/Channel Total Output: Max 15A	6A/Channel Total Output: Max 15A
Voltage	DC12V/DC24V	DC12V/DC24V	DC12V/DC24V	DC12V/DC24V	DC12V/DC24V	DC12V/DC24V
APP	Smart Life/Tuya Smart/Hue/Smarthings	Smart Life/Tuya Smart	Smart Life/Tuya Smart	Smart Life/Tuya Smart	Smart Life/Tuya Smart	Smart Life/Tuya Smart

2PIN ~ 6PIN LED Controller

2.4GHZ WiFi / Bluetooth Mesh/ ZigBee 3.0 Controller

Working Voltage: DC5V/ DC12V/ DC24V

Only Indoor Use

BTF US Official Store
BTF-LIGHTING US is the exclusive distributor of the BTF-LIGHTING brand on the . The shop mainly deals inLED Controllers,Accessories,Dream Color LED strips, FCOB LED strips,LED matrix, power supplies. Committed to building a smart home, through different combinations to make the light strip suitable for a variety of use scenarios, and provide customers with better choices.
Dream Color LED Controller
Sngle Color Controller(NO IC)
CCT Controller(No IC)
RGB Controller(No IC)
RGBW Controller(No IC)
RGB CCT Controller(No IC)
2.4GHz RF Remote
PWM Monochrome Controller Set
CCT Controller Set(NO IC)
RGB Controller Set(NO IC)
RGBW Controller Set(NO IC)
RGBCCT Controller Set(NO IC)

WR01RF

Product Parameters

Product Name: 4 Zone RGB , RGBW and RGBCCT Panel Remote Controller.
Model No: WR01RF
Working Voltage: 3V (2*AAA Battery) (Package Not Including Battery )
Transmitting: 6dBm
Standby Power: 20uA
Transmission Frequency: 2.4GHz
Modulation Method: GFSK
Control Distance: 30cm (98.42ft)
Working Temperature: -20-60°C
Size: 86*86*19mm (33.86*33.86*7.5in)
SupportController:C03RF,C04RF,C05RF,C03W,C04W,C05W,WB5,LM052,LM053.

WR01RF

Link / Unlink

Link Instructions:

Disconnect the LED controller from the power supply for 10 seconds and reconnect it.
When the light on, short press any zone of " — " 3 times within 3 seconds.
The LED Strip blink 3 times slowly means the linking is successful.

Note:Linking failed if light is not blinking slowly , Please follow above steps again( Note : Light that have linked cant link again).

Unlinking Instructions:

Disconnect the LED controller from the power supply for 10 seconds and reconnect it.
When the light is on , short press the been connected “—" zone 5 times within 3 seconds. (Unlinking must be the same zone with the Linking)
The LED strip blinks 10 times quickly means the unlinking is successful.

Note:Unlinking failed if light is not blinking quickly , Please follow above steps again( Note : Light haven't linked that don't need to unlink).

WR01RF

WR01RF

WR01RF

Attention:

Please check the cable, and make the circuit is correct before when power on.
When installation, please handle with the care to avoid the broken of the glass panel.
Please don't use the lighting fixtures around the mental area and high magnetic field, otherwise, it will badly affect the control distance.

	LM052	LM053	WB5	C03W	C04W	C05W

Customer Reviews	—	—	—	—	—	—
Price	—	—	—	—	—	—
Support LED	Monochrome/CCT/RGB/RGBW/RGBCCT	Monochrome/CCT/RGB/RGBW/RGBCCT	Monochrome/CCT/RGB/RGBW/RGBCCT	RGB	RGBW	RGBCCT
WiFi/Bluetooth	2.4GHz WiFi	Bluetooth Mesh	2.4GHz WiFi	2.4GHz WiFi	2.4GHz WiFi	2.4GHz WiFi
Google Home/Alexa	Need Tuya WiFi Dual-Mode Gateway	Need Tuya WiFi Dual-Mode Gateway	?	?	?	?
Zigbee 3.0	?	no data	no data	no data	no data	no data
Philip H-ue	?	no data	no data	no data	no data	no data
Group Control	?	?	?	?	?	?
Work With WR02RF RF Remote	?	?	?	?	?	?
Current	6A/Channel Total Output: Max 15A	6A/Channel Total Output: Max 15A	6A/Channel Total Output: Max 15A	6A/Channel Total Output: Max 15A	6A/Channel Total Output: Max 15A	6A/Channel Total Output: Max 15A
Voltage	DC12V/DC24V	DC12V/DC24V	DC12V/DC24V	DC12V/DC24V	DC12V/DC24V	DC12V/DC24V
APP	Smart Life/Tuya Smart/Hue/Smarthings	Smart Life/Tuya Smart	Smart Life/Tuya Smart	Smart Life/Tuya Smart	Smart Life/Tuya Smart	Smart Life/Tuya Smart

2PIN ~ 6PIN LED Controller

2.4GHZ WiFi / Bluetooth Mesh/ ZigBee 3.0 Controller

Working Voltage: DC5V/ DC12V/ DC24V

Only Indoor Use

BTF US Official Store
BTF-LIGHTING US is the exclusive distributor of the BTF-LIGHTING brand on the . The shop mainly deals inLED Controllers,Accessories,Dream Color LED strips, FCOB LED strips,LED matrix, power supplies. Committed to building a smart home, through different combinations to make the light strip suitable for a variety of use scenarios, and provide customers with better choices.
Dream Color LED Controller
Sngle Color Controller(NO IC)
CCT Controller(No IC)
RGB Controller(No IC)
RGBW Controller(No IC)
RGB CCT Controller(No IC)
2.4GHz RF Remote
PWM Monochrome Controller Set
CCT Controller Set(NO IC)
RGB Controller Set(NO IC)
RGBW Controller Set(NO IC)
RGBCCT Controller Set(NO IC)

Product information

Color	White
Brand	BTF-LIGHTING
Voltage	3 Volts
Material	Plastic
Item Weight	30 Grams
Brand Name	BTF-LIGHTING
Manufacturer	BTF-LIGHTING Technology Co., Limited
Part Number	WR01RF
Model	WR01RF
Unit Count	1 Count
Display Type	Touchscreen
Material Type	Plastic
