can you plug a ethernet rj45 cable into this box?

Yes you can (and that is what the specifications say for Ports: "5 x RJ45"). It does have 5 ethernet rj45 ports. I use it for extending the network, just connect a CAT5 or CAT6 ethernet cable from a router or another switch similar to this one into one of the ports and now be able to connect 4 additional computers or other devices to the network.

Does this switch plug directly into an internet router port thereby supplying 5 additional ports with internet access?

My modem/Router connects to the switch via an ethernet cable. That takes up one of the five ports on the switch, leaving only four ports for devices to access the internet. I have my computer and VOIP phone adapter cabled into the switch. Things are working well. You would have to get a switch with more then five ports if you need to support five or more devices from the switch.

Out of stock

This item is currently out of stock and it may or may not be restocked.

Out of Stock

Add to wish list

Sold by Newegg

Shipped by Newegg

Get Educated

Make informed decisions with expert advice. Learn More

More Resources

TRENDnet;Switch TE100-S5;5-Port 10/100Mbps Fast Ethernet Switch (TE100-S5) 8 ... - TRENDnet

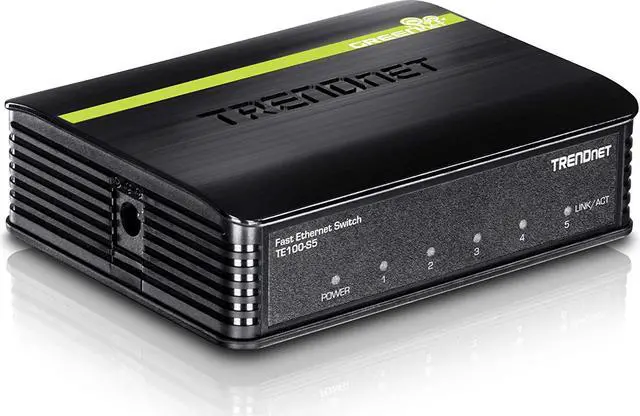

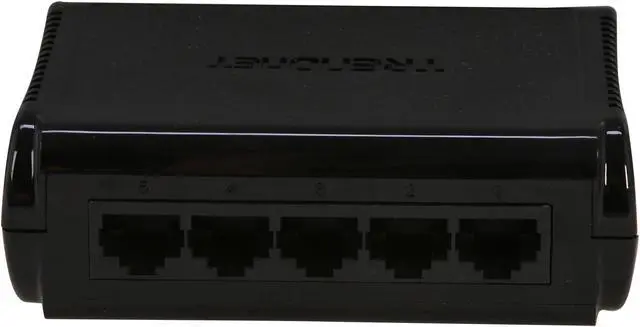

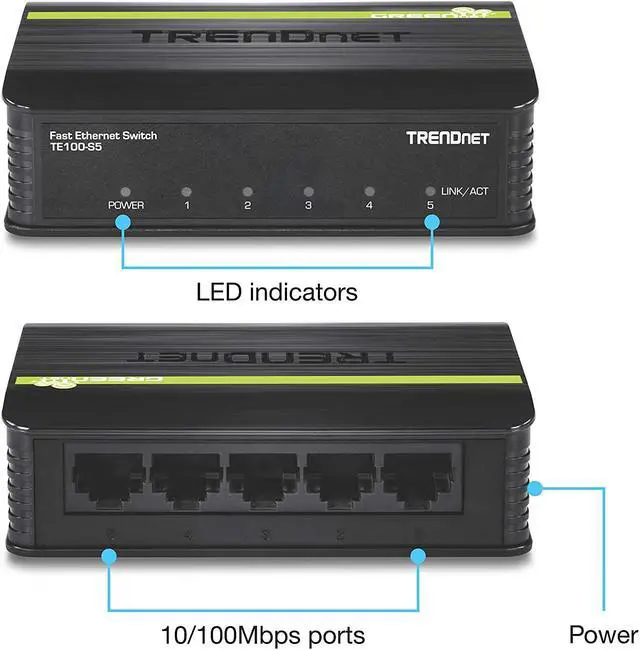

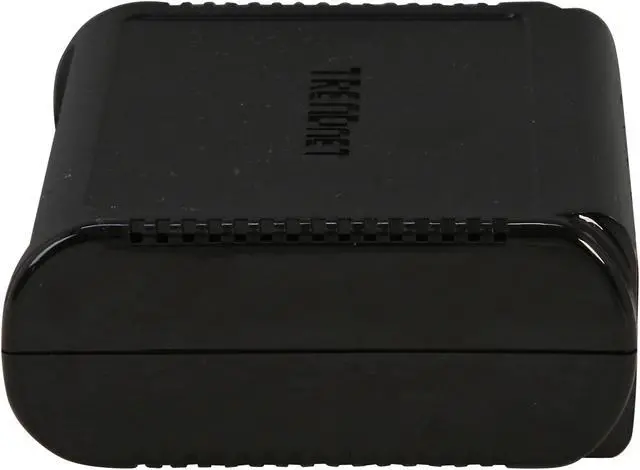

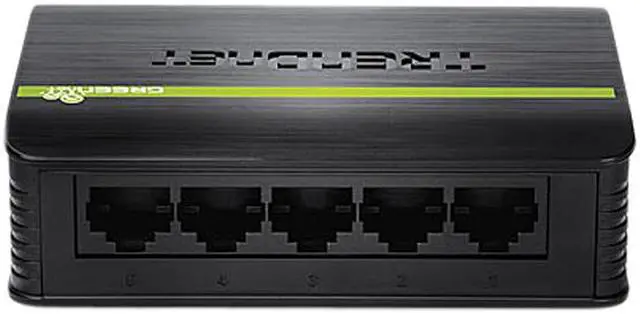

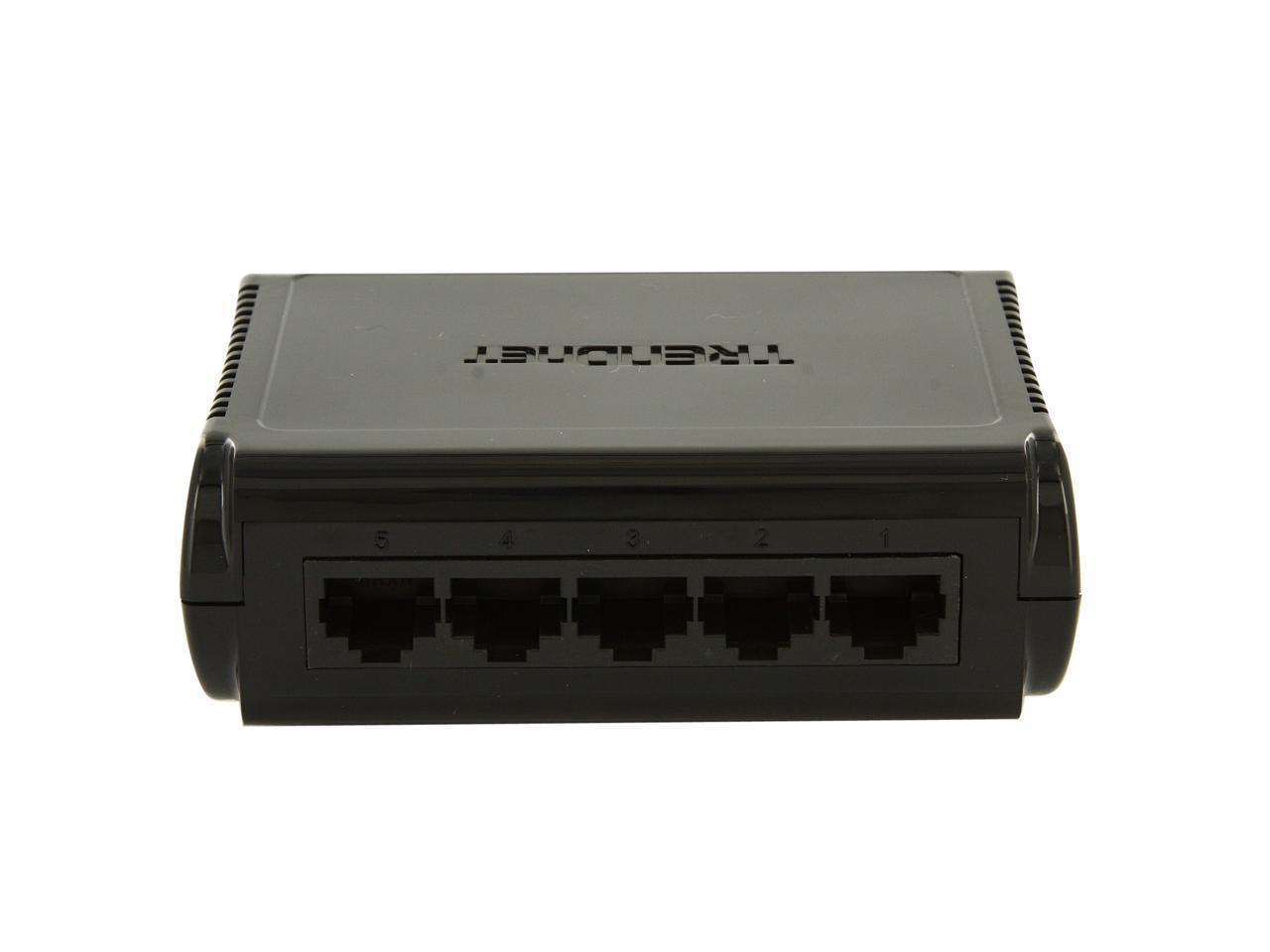

Main image of TRENDnet 5-Port Unmanaged 10/100 Mbps GREENnet Ethernet Desktop Plastic Housing Switch, 5 X 10/100 Mbps Ports, 1Gbps Switching Capacity, TE100-S5

100%

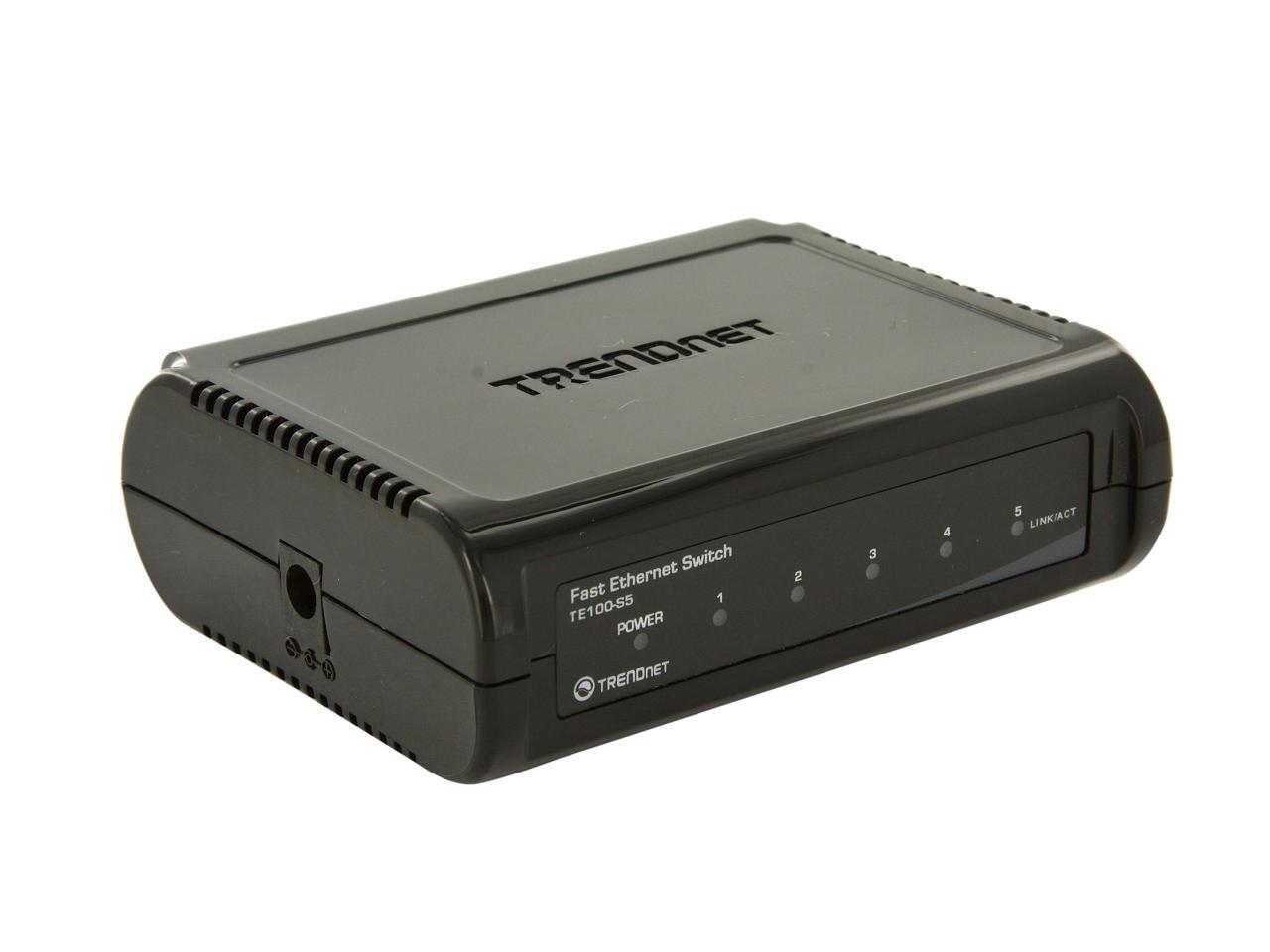

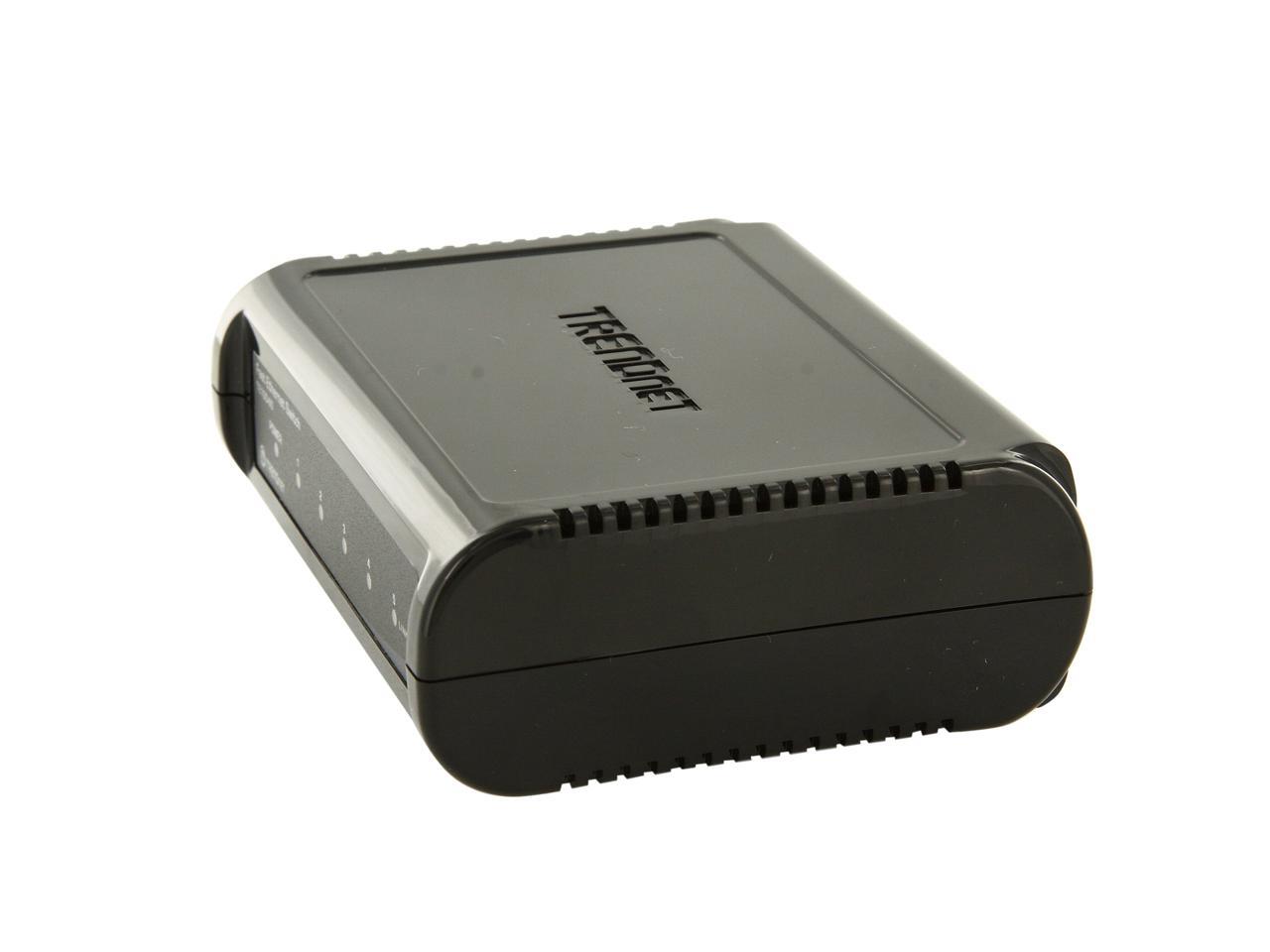

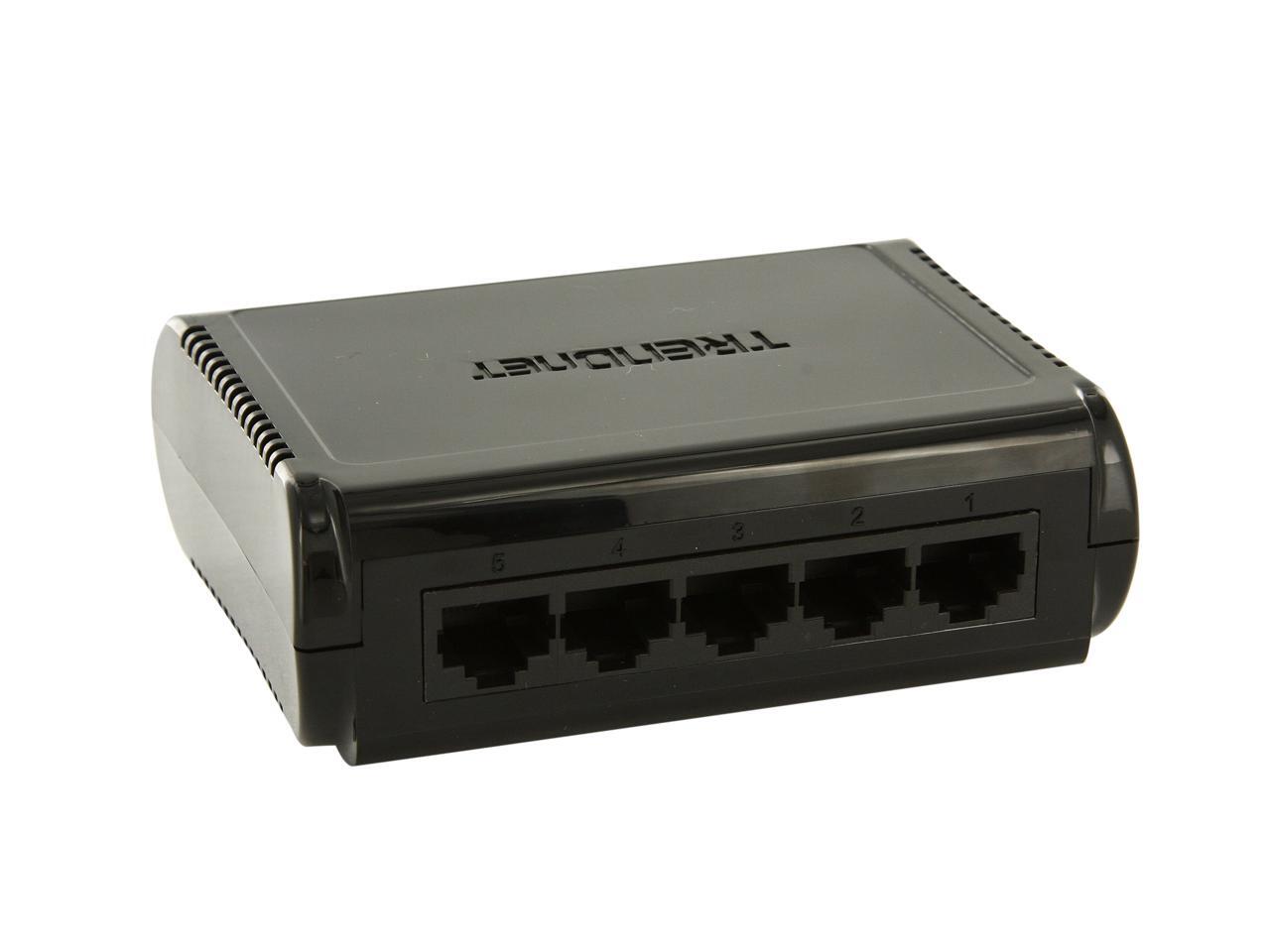

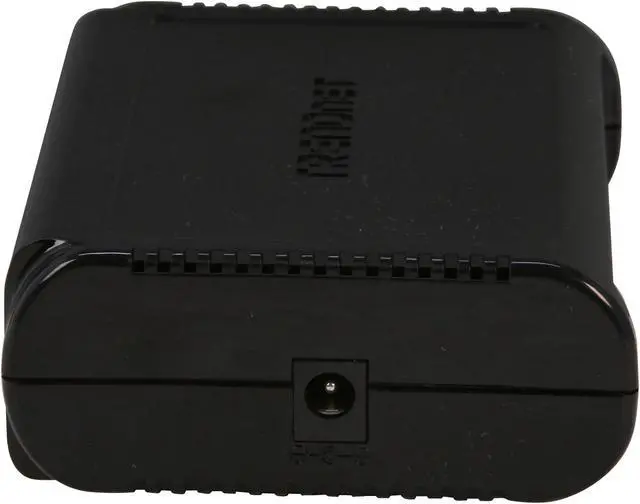

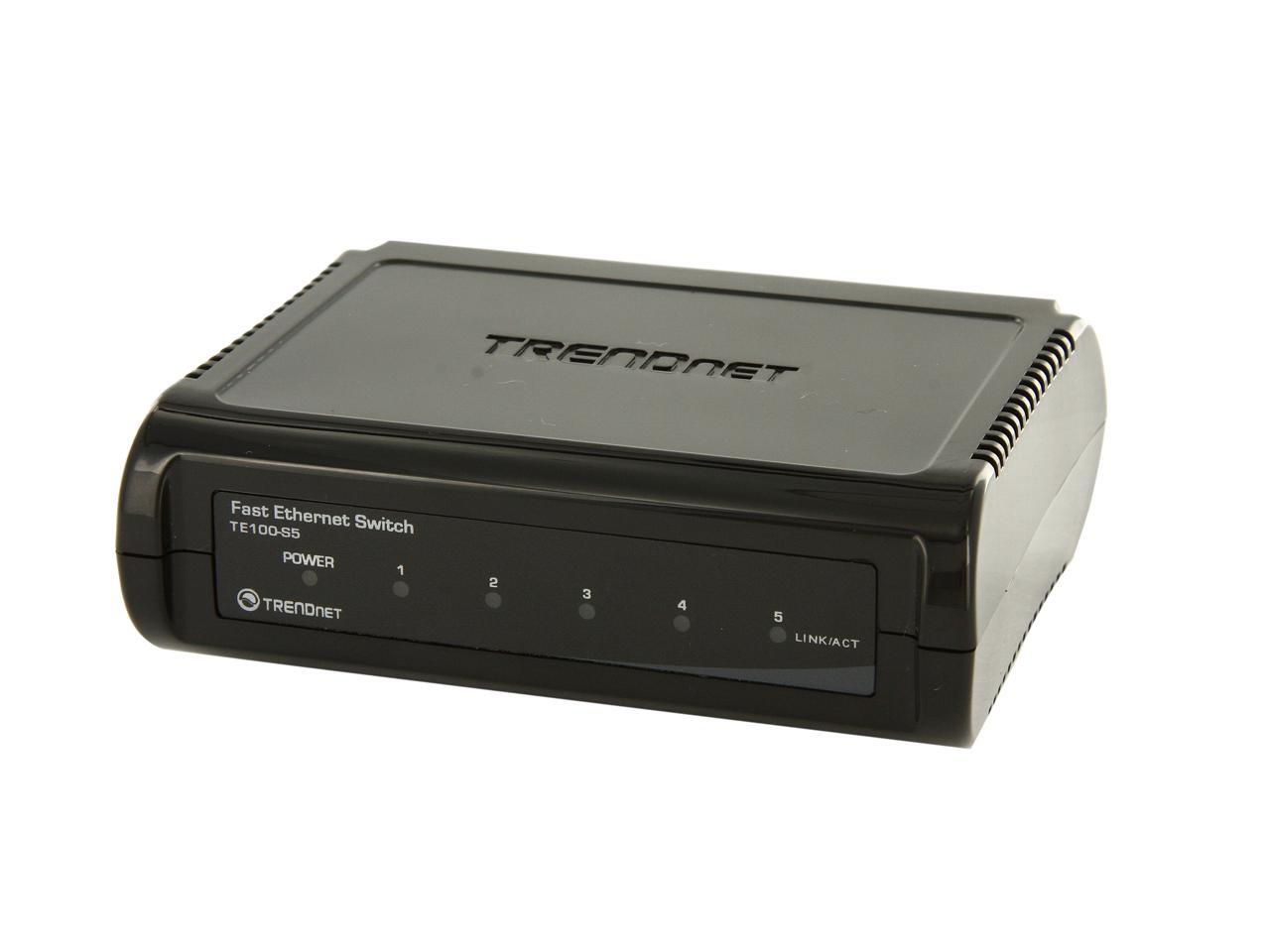

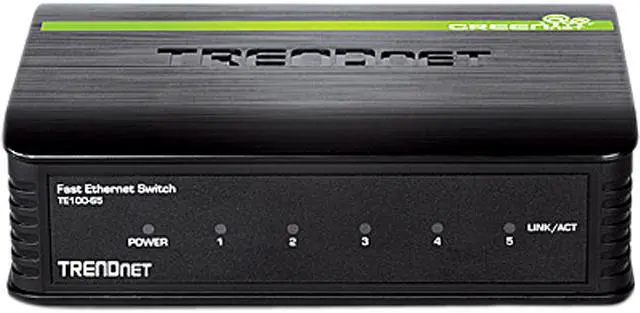

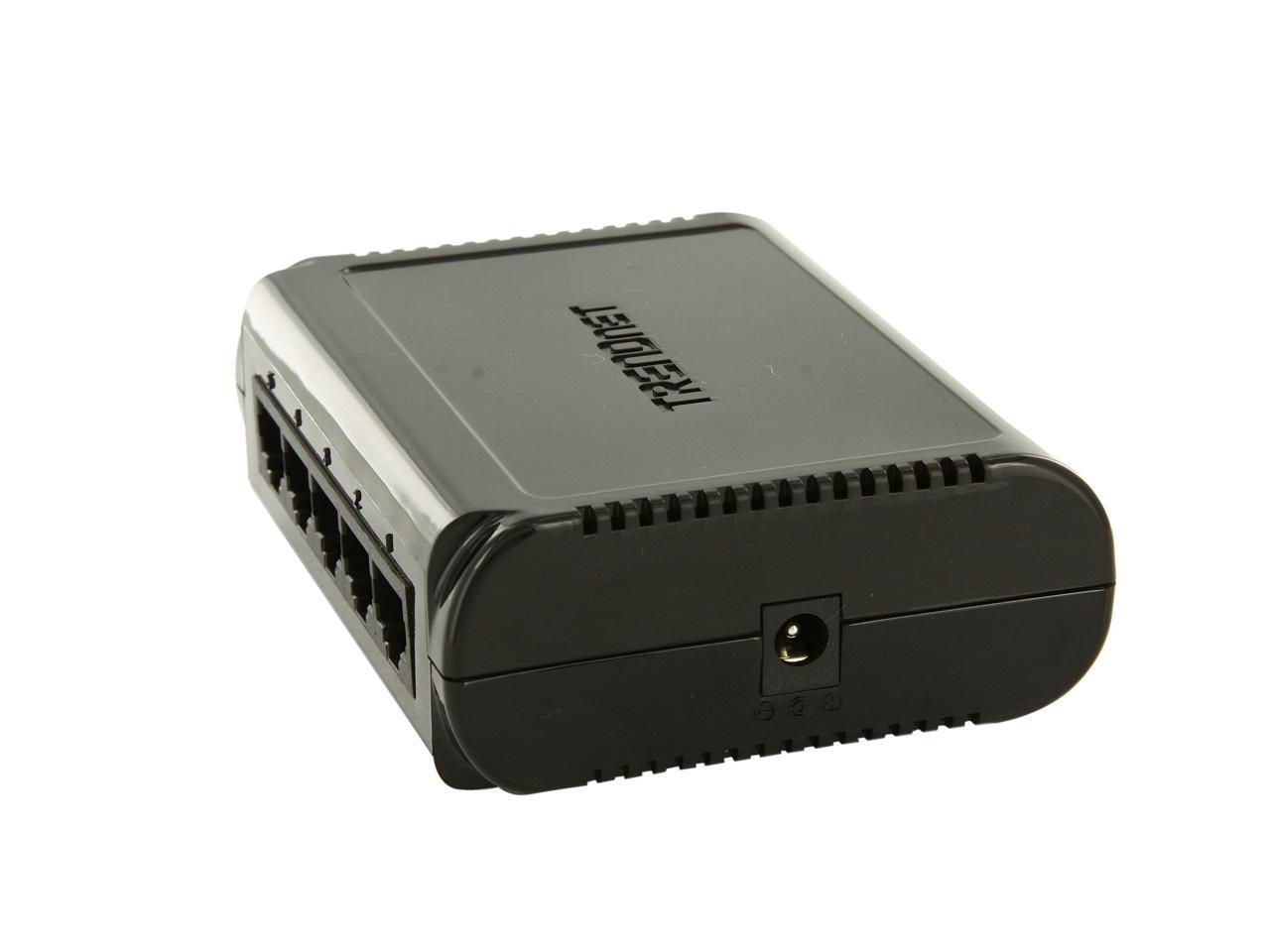

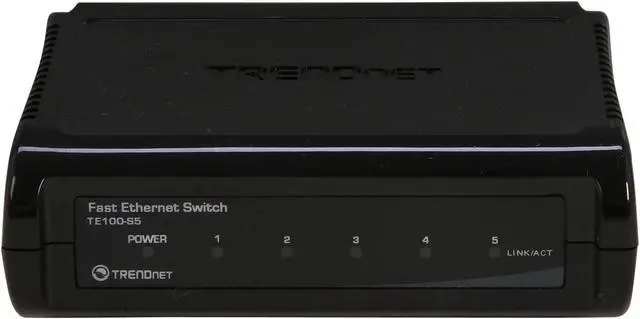

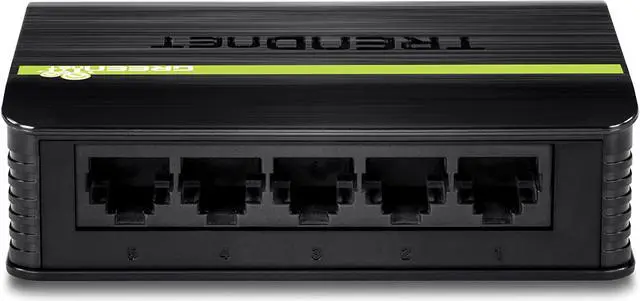

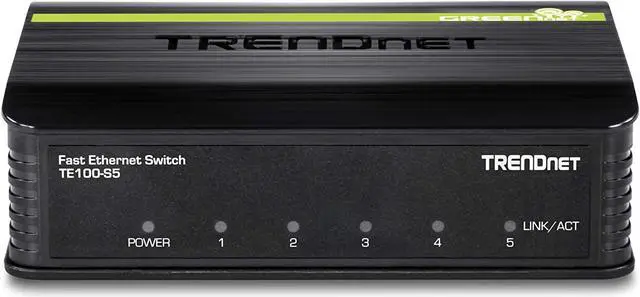

Alt view image 2 of 16 - TRENDnet 5-Port Unmanaged 10/100 Mbps GREENnet Ethernet Desktop Plastic Housing Switch, 5 X 10/100 Mbps Ports, 1Gbps Switching Capacity, TE100-S5

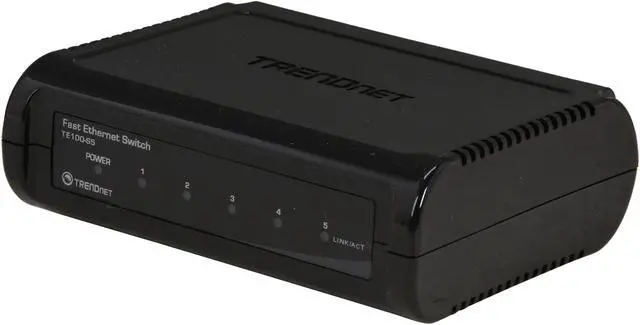

Alt view image 3 of 16 - TRENDnet 5-Port Unmanaged 10/100 Mbps GREENnet Ethernet Desktop Plastic Housing Switch, 5 X 10/100 Mbps Ports, 1Gbps Switching Capacity, TE100-S5

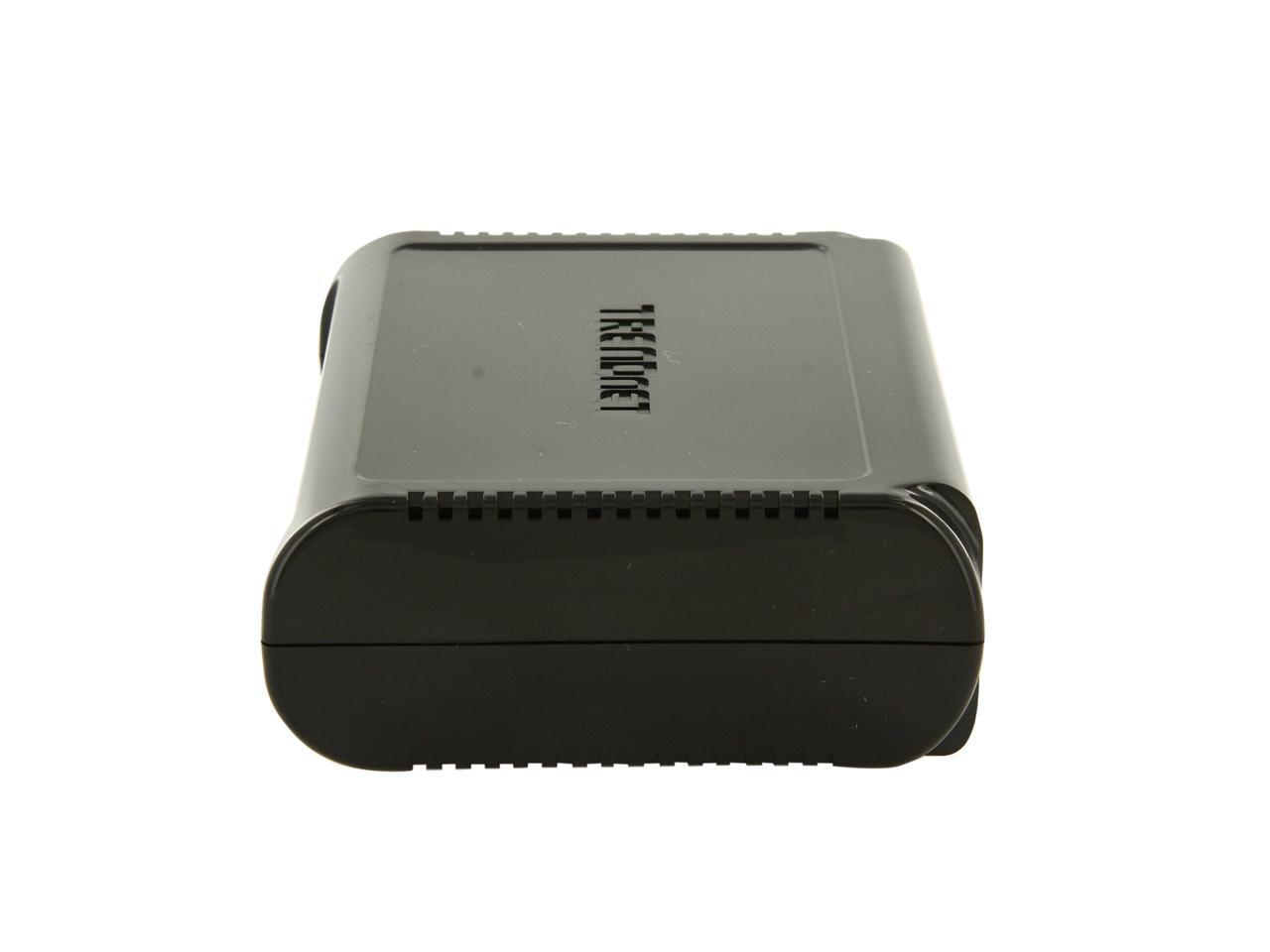

Alt view image 4 of 16 - TRENDnet 5-Port Unmanaged 10/100 Mbps GREENnet Ethernet Desktop Plastic Housing Switch, 5 X 10/100 Mbps Ports, 1Gbps Switching Capacity, TE100-S5

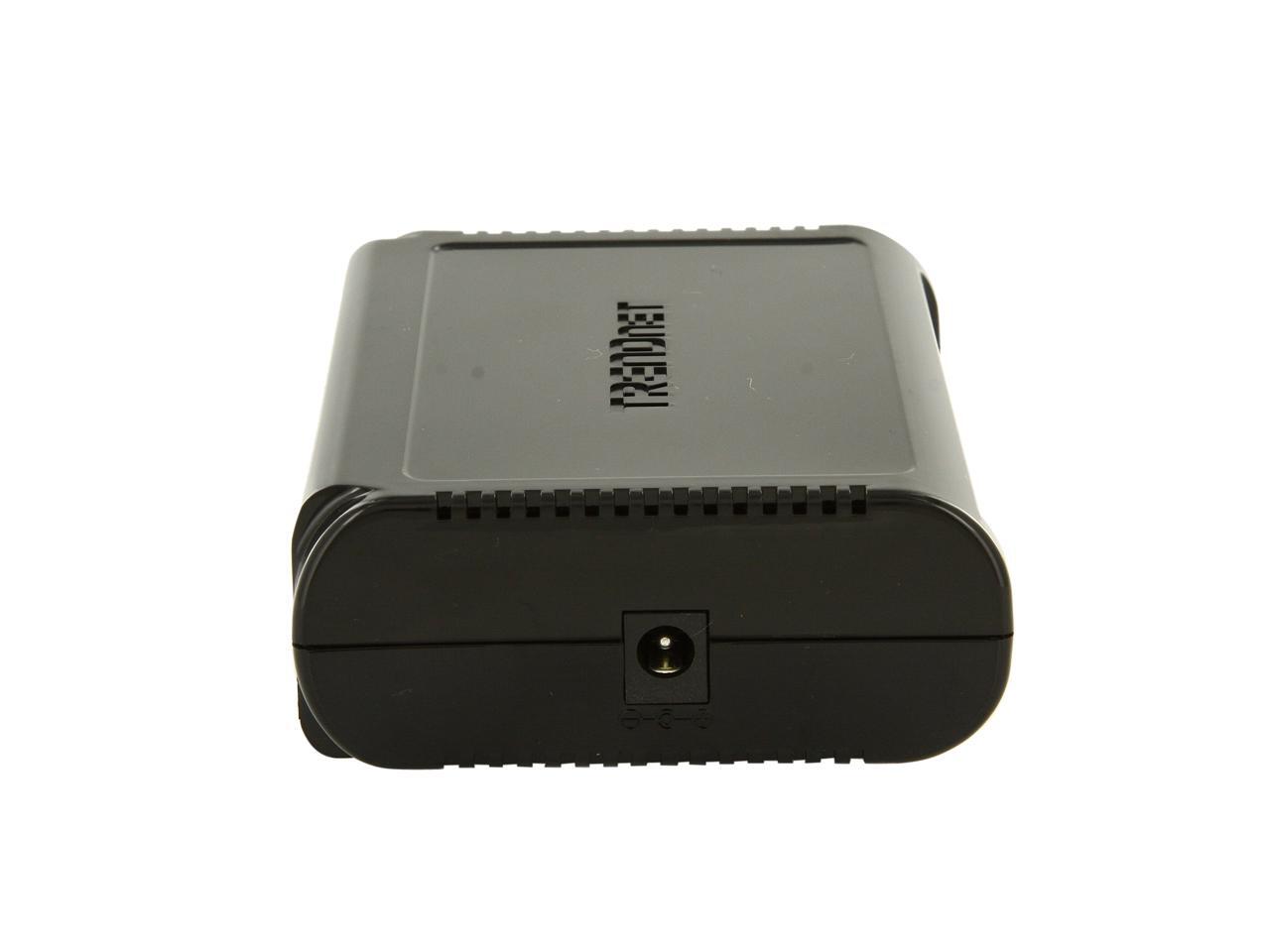

Alt view image 5 of 16 - TRENDnet 5-Port Unmanaged 10/100 Mbps GREENnet Ethernet Desktop Plastic Housing Switch, 5 X 10/100 Mbps Ports, 1Gbps Switching Capacity, TE100-S5

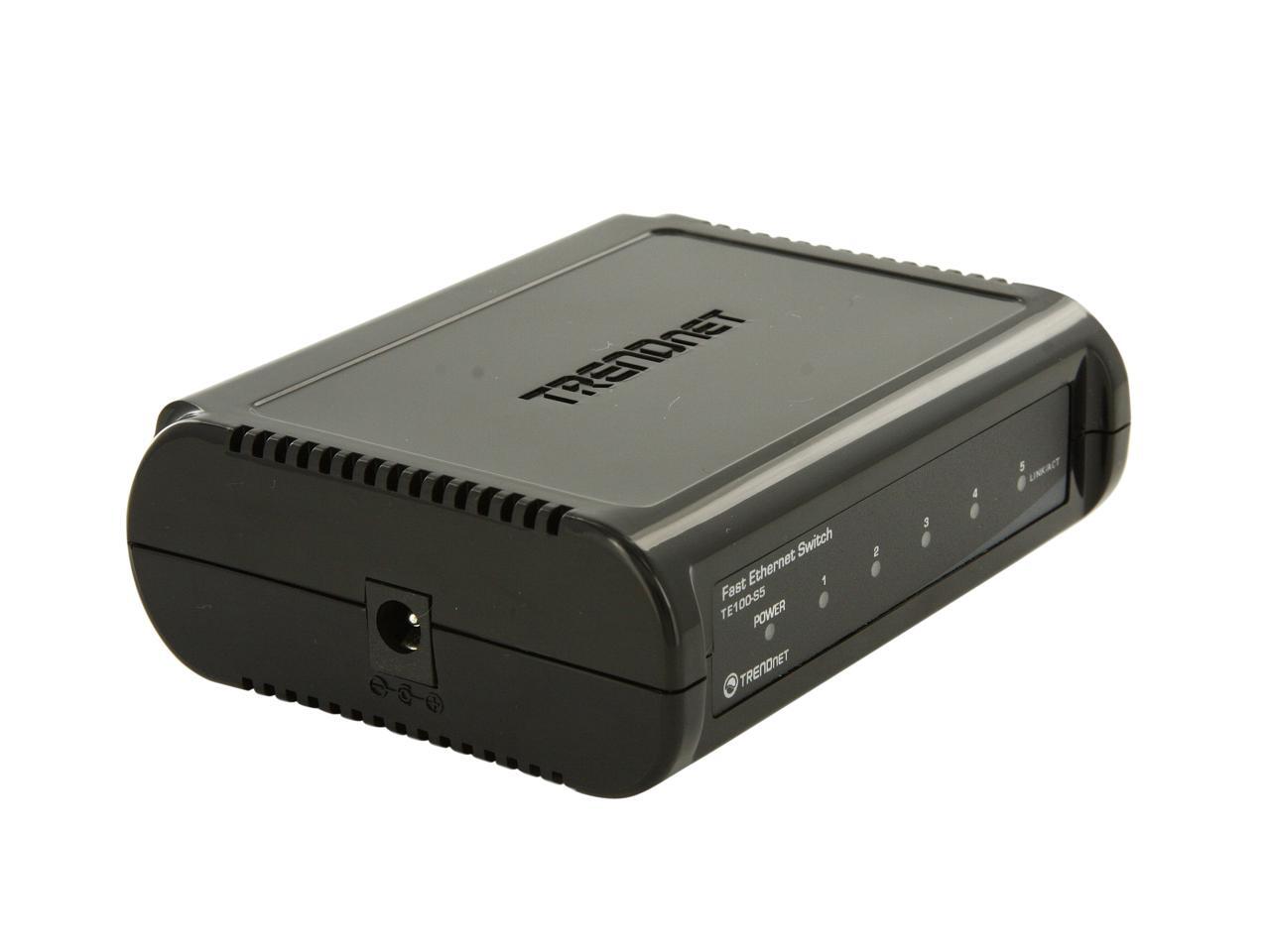

Alt view image 6 of 16 - TRENDnet 5-Port Unmanaged 10/100 Mbps GREENnet Ethernet Desktop Plastic Housing Switch, 5 X 10/100 Mbps Ports, 1Gbps Switching Capacity, TE100-S5

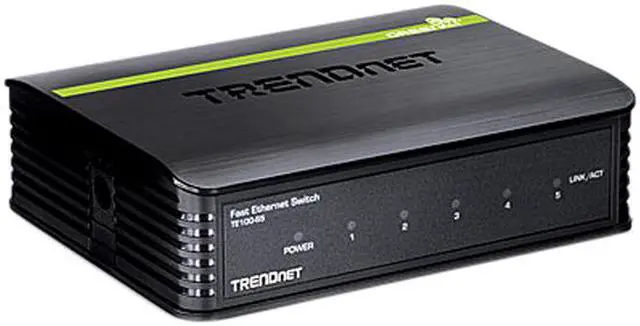

Alt view image 7 of 16 - TRENDnet 5-Port Unmanaged 10/100 Mbps GREENnet Ethernet Desktop Plastic Housing Switch, 5 X 10/100 Mbps Ports, 1Gbps Switching Capacity, TE100-S5

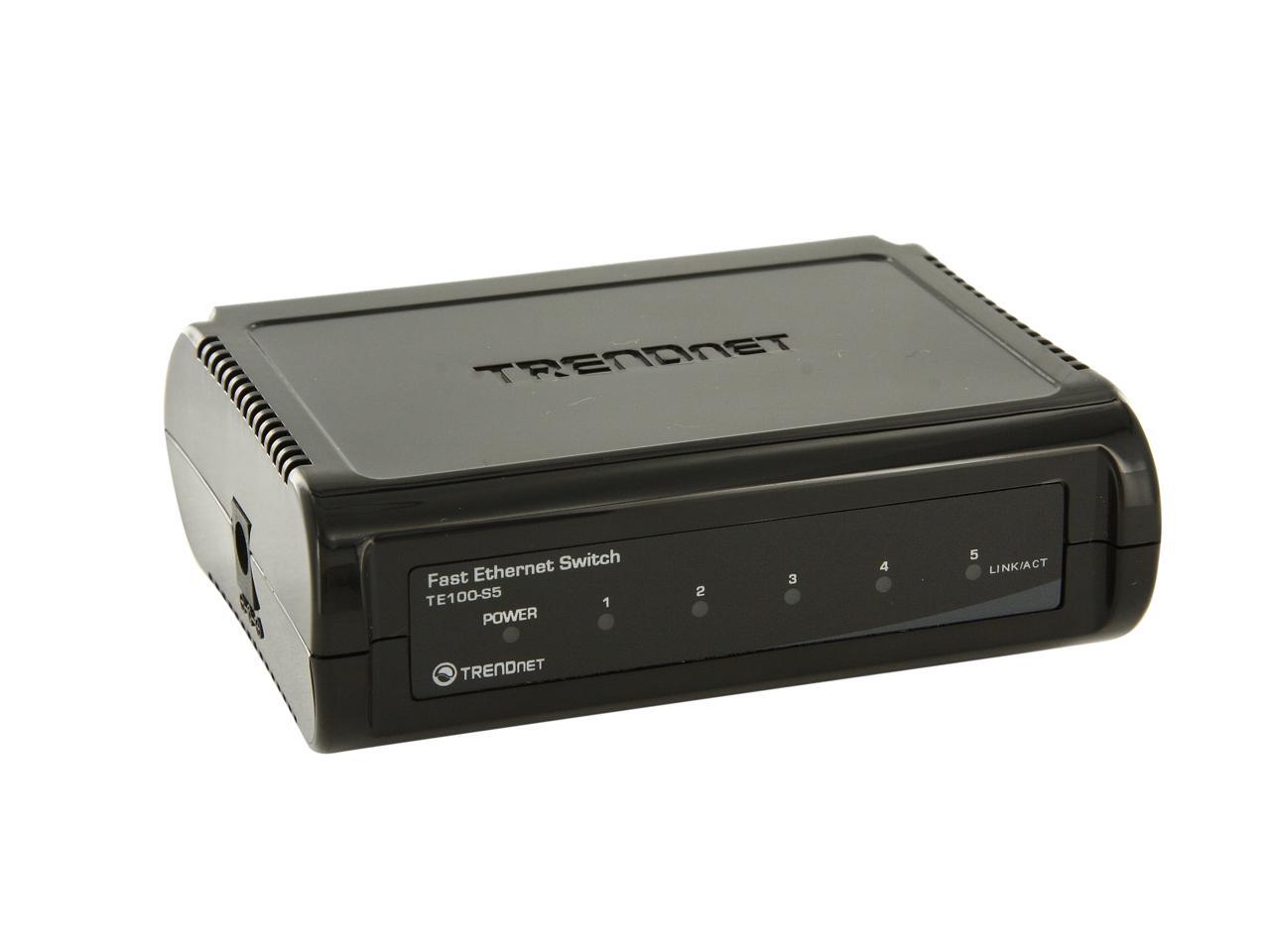

Alt view image 8 of 16 - TRENDnet 5-Port Unmanaged 10/100 Mbps GREENnet Ethernet Desktop Plastic Housing Switch, 5 X 10/100 Mbps Ports, 1Gbps Switching Capacity, TE100-S5

Alt view image 9 of 16 - TRENDnet 5-Port Unmanaged 10/100 Mbps GREENnet Ethernet Desktop Plastic Housing Switch, 5 X 10/100 Mbps Ports, 1Gbps Switching Capacity, TE100-S5

Alt view image 10 of 16 - TRENDnet 5-Port Unmanaged 10/100 Mbps GREENnet Ethernet Desktop Plastic Housing Switch, 5 X 10/100 Mbps Ports, 1Gbps Switching Capacity, TE100-S5

Alt view image 11 of 16 - TRENDnet 5-Port Unmanaged 10/100 Mbps GREENnet Ethernet Desktop Plastic Housing Switch, 5 X 10/100 Mbps Ports, 1Gbps Switching Capacity, TE100-S5

Alt view image 12 of 16 - TRENDnet 5-Port Unmanaged 10/100 Mbps GREENnet Ethernet Desktop Plastic Housing Switch, 5 X 10/100 Mbps Ports, 1Gbps Switching Capacity, TE100-S5

Alt view image 13 of 16 - TRENDnet 5-Port Unmanaged 10/100 Mbps GREENnet Ethernet Desktop Plastic Housing Switch, 5 X 10/100 Mbps Ports, 1Gbps Switching Capacity, TE100-S5

Alt view image 14 of 16 - TRENDnet 5-Port Unmanaged 10/100 Mbps GREENnet Ethernet Desktop Plastic Housing Switch, 5 X 10/100 Mbps Ports, 1Gbps Switching Capacity, TE100-S5

Alt view image 15 of 16 - TRENDnet 5-Port Unmanaged 10/100 Mbps GREENnet Ethernet Desktop Plastic Housing Switch, 5 X 10/100 Mbps Ports, 1Gbps Switching Capacity, TE100-S5

Alt view image 16 of 16 - TRENDnet 5-Port Unmanaged 10/100 Mbps GREENnet Ethernet Desktop Plastic Housing Switch, 5 X 10/100 Mbps Ports, 1Gbps Switching Capacity, TE100-S5

360^°

Shop All TRENDnet Products

TRENDnet 5-Port Unmanaged 10/100 Mbps GREENnet Ethernet Desktop Plastic Housing Switch, 5 X 10/100 Mbps Ports, 1Gbps Switching Capacity, TE100-S5

(104) Write a Review

Plug and play out of the box
5 x 10/100 Mbps Ethernet ports
Up to 40% GREENnet energy savings*
Up to 200 Mbps per port and total switching capacity of 1 Gbps
Power saving GREENnet technology reduces power consumption by up to 40%*

Overview

Specs

Reviews (104)

Any questions? Our AI beta will help you find out quickly.

Try me now

TE100-S5 is an Auto-MDIX switch designed specifically to boost network performance by eliminating network congestions and unnecessary network traffics. Each port on the Switch provides dedicated bandwidth and can negotiate between 10/100Mbps network speeds and half/full duplex modes. Plug and Play provides cost-effective and high performance solutions

Model
Brand	TRENDnet
Series	TE100-S5
Model	TE100-S5 (Version v3.0R)
Switch Type	Fast Ethernet

Format & Standards
Format	External
Standards	IEEE 802.3 IEEE 802.3u IEEE 802.3x IEEE 802.3az
Network Management Type	Unmanaged

Ports & Interface
Uplink Ports	None

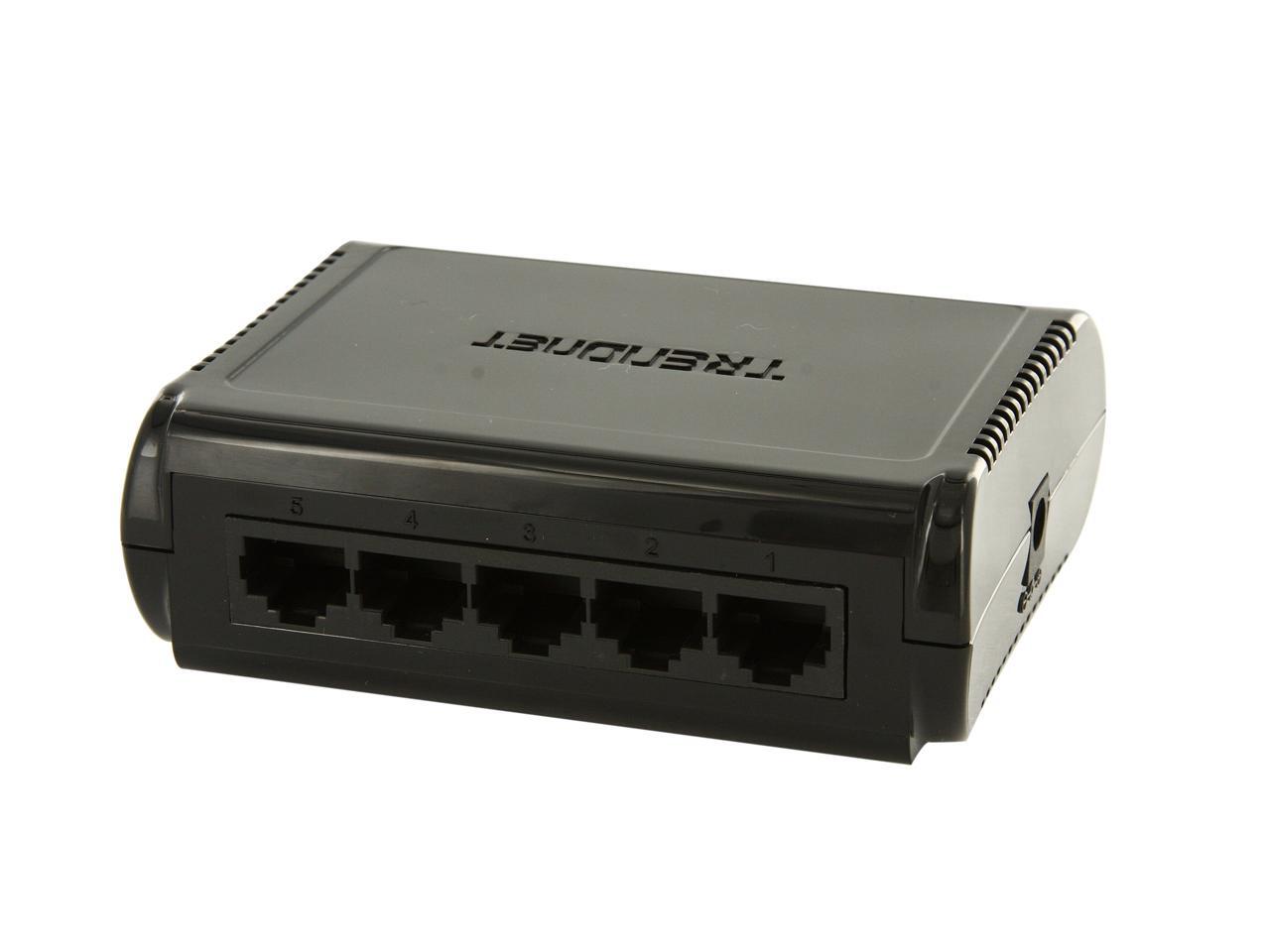

Primary Ports	5 x RJ45
Primary Port Speed	10/100Mbps

Data Transmission
MAC Address Table	1K
Switching Method	Store and Forward
VLAN Support	No
Jumbo Frames	No
Buffer Memory	Data RAM buffer: 56KB

Details
Protocols	TCP/IP
PoE	No
Stackable	No
SNMP	No
QoS	No
LACP	No
Port Mirroring	No
Module Support	No
Topology	Star

Power Supply
Power	Input: 100 240 V, 50/60 Hz, 0.2 A Output: 5 V DC, 0.6 A Consumption: 1.1 Watts Max

Dimensions & Weight

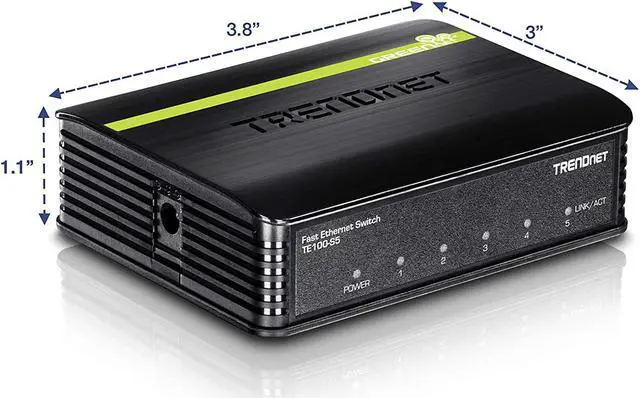

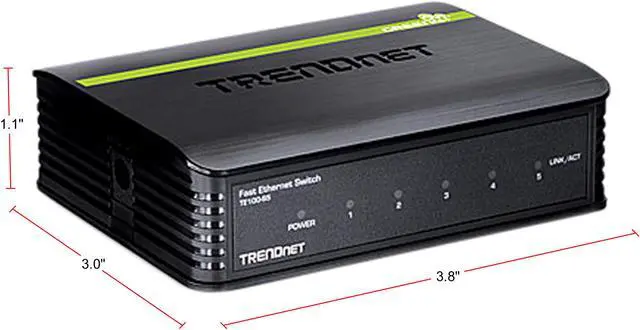

Dimensions	1.1" x 3.8" x 3.0" (H x W x D)
Weight	3.2oz.

Environmental
Temperature	0°C to 50°C (32°F to 122°F)
Humidity	10% - 90%, Non-condensing

Features
Features	Easy Setup Compact design fits in a crowded desktop Non-blocking wire-speed architecture Up to 200 Mbps per port and total switching capacity of 1 Gbps Power saving GREENnet technology reduces power consumption by up to 40%

Packaging

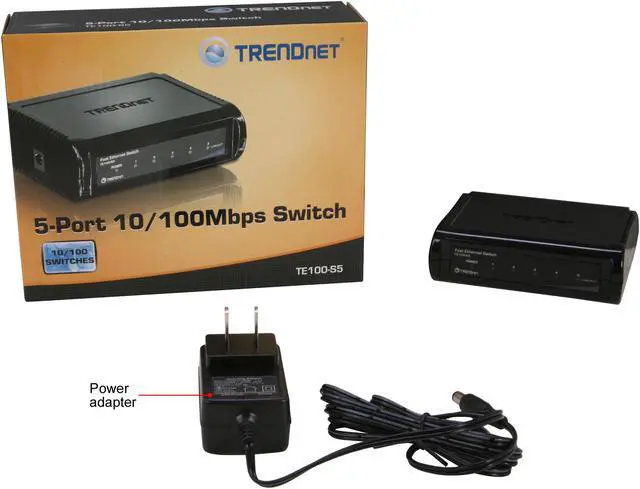

Package Contents	TE100-S5 Quick Installation Guide Power adapter (5 V, 0.6 A)

Additional Information
First Listed on Newegg	April 04, 2007
