Question 1

Does this converter work if there is a switch on the other end that has a gigabit sfp? Or do I need a pair of these, one on each end?

Accepted Answer

Not sure if I understand the question, but I'll give it a try.

I use the TRENDnet converters in several installations, mostly coming off a microwave CAT-5 then jumping onto fiber.  They have provided reliable service for many years.

Normally I connect to Netgear distribution switches using SFP fiber ports running fixed 1 Gb on the other end, no problems as long as the speeds match.

If you want another option, consider using SFP converters like the TRENDnet TFC-1000MGA .  Install whatever mini-GBIC you need for the job to match the other end.  Provides more flexibility for reuse and upgrades without having to replace the entire converter.

Dave

Question 2

what fiber optic cable to use with a pair of these?

Accepted Answer

Multi mode 50/125 or 62.5/125 are supported and I think its SC type connectors. These work great BTW I installed them in a house to house fiber hookup about 1/2 mile apart and they worked like a charm

Question 3

Does this work if I have a single fiber connector in and a single ethernet out?

Accepted Answer

Right fiber is usually a paired strand so likely if you ran 'one' cable you have a pair. Fiber is really the way to go if you need longer runs and want to do it pretty cheaply. You can get fiber from eBay really cheap, the tricky part is the termination as you need a decent fiber cleave tool which can be pricey or you need someone that has the equipment and knowledge to come terminate the ends for you.

Question 4

How much latency does this add in the conversion process?

Accepted Answer

We installed for a customer and haven't received and complaints. I can't really say for sure since we are not using it ourselves.

Brand	TRENDnet
Model	TFC-1000MSC

Device Type	Switches
Standards	IEEE 1000Base-TX and 1000Base-SX
Network Media	1000Base-TX: Cat. 5, EIA/TIA-568 100-ohm UTP/STP, up to 100 meters. 1000Base-SX: Multi-Mode fiber optic cable 50/62.5, up to 550 Meters.
Wavelength	850nm
Fiber Cable	50/125µm, 62.5/125µm
Protocols	CSMA/CD
Frame Size	No limitation (Standard Ethernet and Jumbo Frame)
Ports	1x 1000Base-T, 1x 1000Base-SX
Transfer Rate	1 Gbps
LEDs	Power, Link/Activity, Full-Duplex, and Speed
Power Adapter	7.5VDC, 1.5A

Temperature	0° ~ 40° C
Humidity	10% ~ 90%

Meet Your Seller

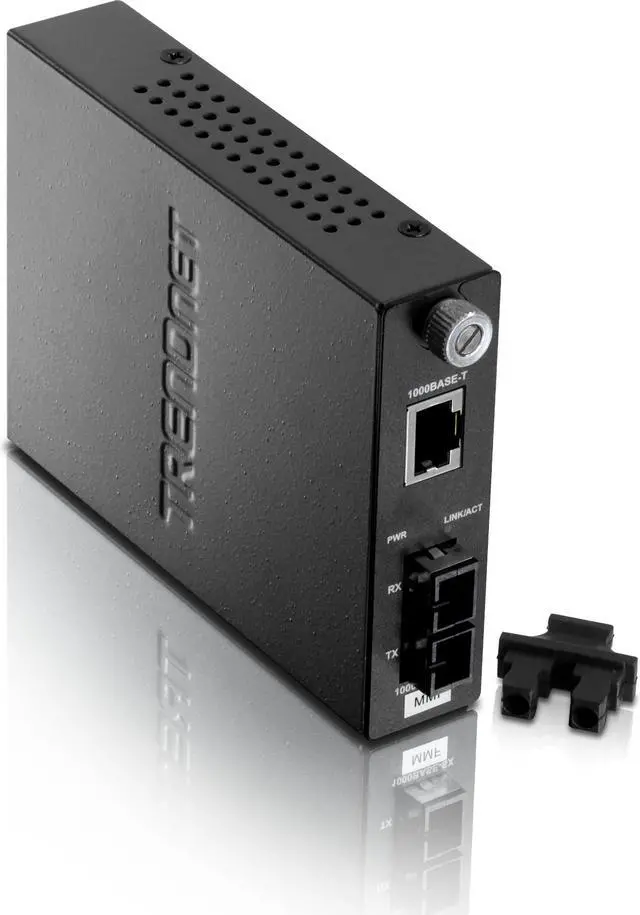

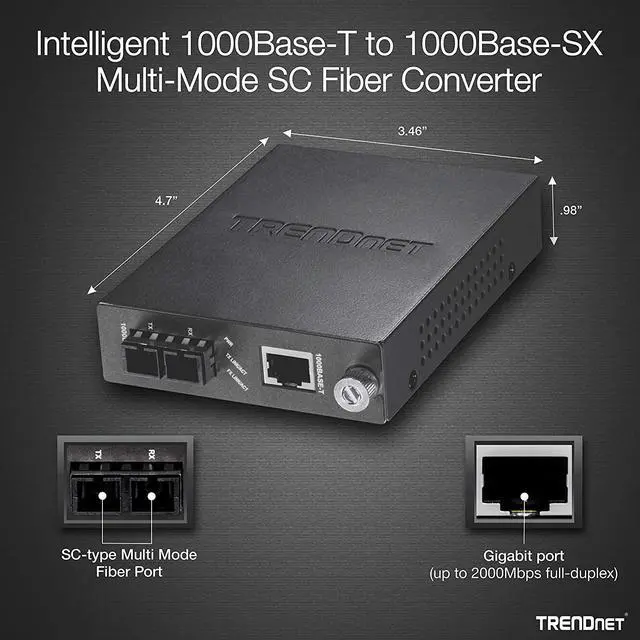

TRENDnet Intelligent 1000Base-T to 1000Base-SX Multi-Mode SC Fiber Media Converter, Up to 550M (1800 ft), Fiber to Ethernet Converter, 2Gbps Switching Capacity, Black, TFC-1000MSC
