Get Educated

Make informed decisions with expert advice. Learn More

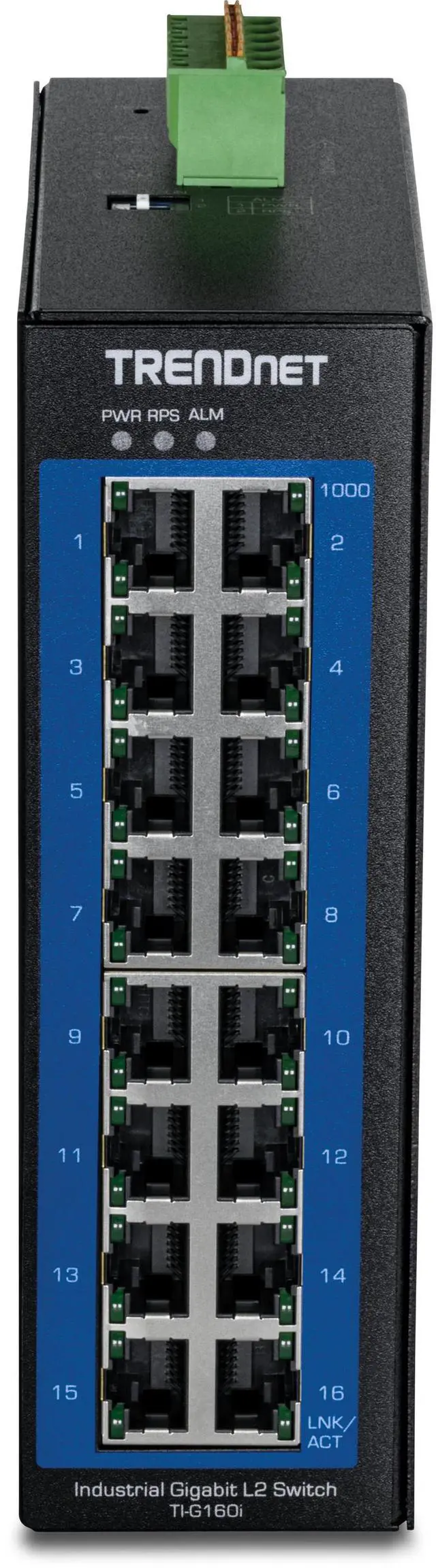

Main image of TRENDnet 16-Port Industrial Gigabit L2 Managed DIN-Rail Switch, Layer 2 Switch, 16 x Gigabit Ports, 32Gbps Switching Capacity, Extreme Temperature Gigabit Switch, Black, TI-G160i

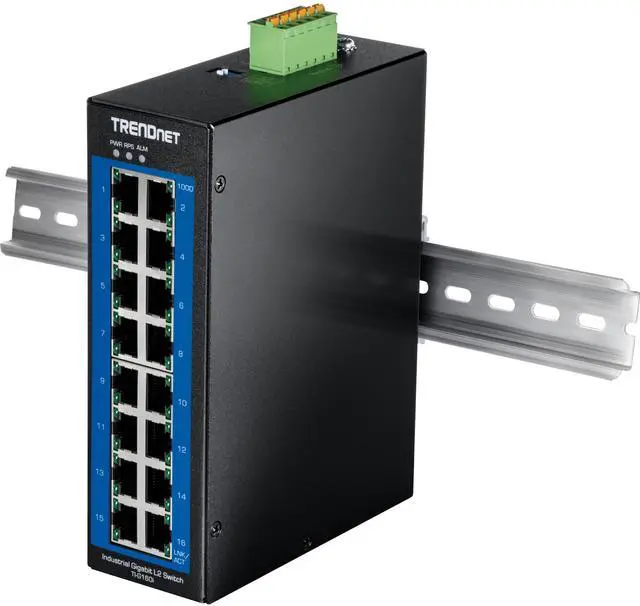

Alt view image 2 of 6 - TRENDnet 16-Port Industrial Gigabit L2 Managed DIN-Rail Switch, Layer 2 Switch, 16 x Gigabit Ports, 32Gbps Switching Capacity, Extreme Temperature Gigabit Switch, Black, TI-G160i

Alt view image 3 of 6 - TRENDnet 16-Port Industrial Gigabit L2 Managed DIN-Rail Switch, Layer 2 Switch, 16 x Gigabit Ports, 32Gbps Switching Capacity, Extreme Temperature Gigabit Switch, Black, TI-G160i

Alt view image 4 of 6 - TRENDnet 16-Port Industrial Gigabit L2 Managed DIN-Rail Switch, Layer 2 Switch, 16 x Gigabit Ports, 32Gbps Switching Capacity, Extreme Temperature Gigabit Switch, Black, TI-G160i

Alt view image 5 of 6 - TRENDnet 16-Port Industrial Gigabit L2 Managed DIN-Rail Switch, Layer 2 Switch, 16 x Gigabit Ports, 32Gbps Switching Capacity, Extreme Temperature Gigabit Switch, Black, TI-G160i

Alt view image 6 of 6 - TRENDnet 16-Port Industrial Gigabit L2 Managed DIN-Rail Switch, Layer 2 Switch, 16 x Gigabit Ports, 32Gbps Switching Capacity, Extreme Temperature Gigabit Switch, Black, TI-G160i

Shop All TRENDnet Products

TRENDnet 16-Port Industrial Gigabit L2 Managed DIN-Rail Switch, Layer 2 Switch, 16 x Gigabit Ports, 32Gbps Switching Capacity, Extreme Temperature Gigabit Switch, Black, TI-G160i

Be the first to review this product...

16 x Gigabit ports, 32Gbps switching capacity
Hardened IP30 rated metal housing, includes DIN-rail mounting bracket, power supply sold separately (models: TI-M6024, ti-s12024, TI-S12048, TI-S24048)
Operating temperature range of -40°- 75°C (-40°- 167°F)
Supports LACP, STP/RSTP, VLAN, and IGMP, IEEE 802. 1P QoS with Queue scheduling support
Bandwidth control per port, redundant power inputs with overload current protection, alarm output triggered by Power failure

Overview

Specs

Reviews

See all Q & A

Any questions? Our AI beta will help you find out quickly.

Try me now

TRENDnets 16-Port Industrial Gigabit L2 Managed DIN-Rail Switch, model TI-G160i, delivers advanced management features and
16 gigabit ports providing a total of 32Gbps switching capacity. Connect up to 16 devices to the switch for high-speed gigabit network
connections. The switch is equipped with an IP40 rated metal enclosure, designed to withstand a high degree of vibration and shock,
while operating within a wide temperature range of -40° 75° C (-40° 167° F) for industrial environments. Advanced traffic
management controls, troubleshooting, and SNMP monitoring support make this a powerful solution for SMB networks.
Easily manage and configure TRENDnets 16-Port Industrial Gigabit L2 Managed DIN-Rail Switch remotely by updating the switch to
the latest firmware for access to TRENDnet Hive. TRENDnet Hive is a network cloud manager that reduces management time and
cost. This cloud managed switch requires no additional hardware, server, or personal cloud with TRENDnets reli

Model
Brand	TRENDnet
Model	TI-G160i

Format & Standards
Format	DIN Rail Mount
Standards	IEEE 802.1d, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1w, IEEE 802.1X, IEEE 802.1ab, IEEE 802.1ax, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3az

Ports & Interface
Primary Ports	16 x RJ45
Primary Port Speed	10/100/1000Mbps

Data Transmission
MAC Address Table	8K
Switching Method	Store and Forward
VLAN Support	802.1Q tagged VLAN MAC-based VLAN Port isolation Up to 256 VLAN groups, ID range 1-4094
Jumbo Frames	10KB

Details
Security	802.1X authentication (Local user database, RADIUS, guest VLAN assignment) DHCP snooping/screening Trusted host/IP access list for management access Port Security/MAC address learning restriction (Up to 100 entries per port)
QoS	802.1p Class of service (CoS) DSCP (Differentiated Services Code Point) Bandwidth control per port Queue Scheduling: strict priority (SP), weighted round robin (WRR), weighted fair queuing (WFQ)
Power	PWR (Primary) terminal input: 12 - 60V DC RPS (Redundant) terminal input: 12 - 60V DC Compatible power supply: TI-M6024 (60W), TI-S12024 (120W),TI-S12048 (120W), TI-S24048 (240W) sold separately Max. Consumption: 12W

Features
Features	Netlite device discovery and map display in GUI Port security: MAC address learning restriction per port DHCP relay/option 82 & DHCP server snooping/screening support Wide operating temperature range Redundant power inputs Alarm relay triggered by power failure Surge and ESD protection

Dimensions & Weight
Dimensions	6.30" x 4.72" x 1.97"
Weight	1.95 lbs.

Environmental
Temperature	Operating Temperature: -40° - 75° C (-40° - 167° F)
Humidity	Operating Humidity: Max. 95% non-condensing

Packaging
Package Contents	TI-G160i DIN rail mounting bracket Quick Installation Guide
