I have 5 cameras with Ethernet connection (Samsung unit-died), would like to avoid rewire, they went from Samsung base to my DVR with bnc connection. I want to power up the 6 pin Ethernet cameras then send signal to the DVR via bnc connection. Will this work & how?

You don't provide sufficient information about what you're trying to do so it is hard to provide an answer. However, 1st, Ethernet is 8-pin (4 pairs of wires), not 6. Second, you said your cameras have an Ethernet connection, but were connected by BNC to the DVR (what's a "Samsung base" anyway?). Sounds like you want to continue using the existing BNC cabling to support the cameras, yet also use PoE to power them via their Ethernet port? I seriously doubt any camera is going to use both interfaces at the same time, but even if they did, you can't supply power to the Ethernet port without Ethernet cable run between the switch and the cameras.

Is this PoE switch compatible with Cisco's AP: AIR-LAP1252AG-A-K9?

I haven't installed it yet, but the specs are great. The IP address preset by Trendnet is outside of the range I normally use, so that will be need to be addressed when I do the install. There are instructions on how to do it. I'm not an IT geek, but think it will be fine.

$677^.29

Free 30-day Returns

Limit 99999 per customer.

Ships from Canada.

Price alert

Add to wish list

Sold by BTE Outlet

3.5 (1,436 seller ratings)

Shipped by BTE Outlet

Meet Your Seller

BTE Outlet

See Seller Store

Get Educated

Make informed decisions with expert advice. Learn More

More Resources

TRENDnet;TPE-1020WS;10-Port Gigabit Web Smart PoE+ Switch TPE-1020WS

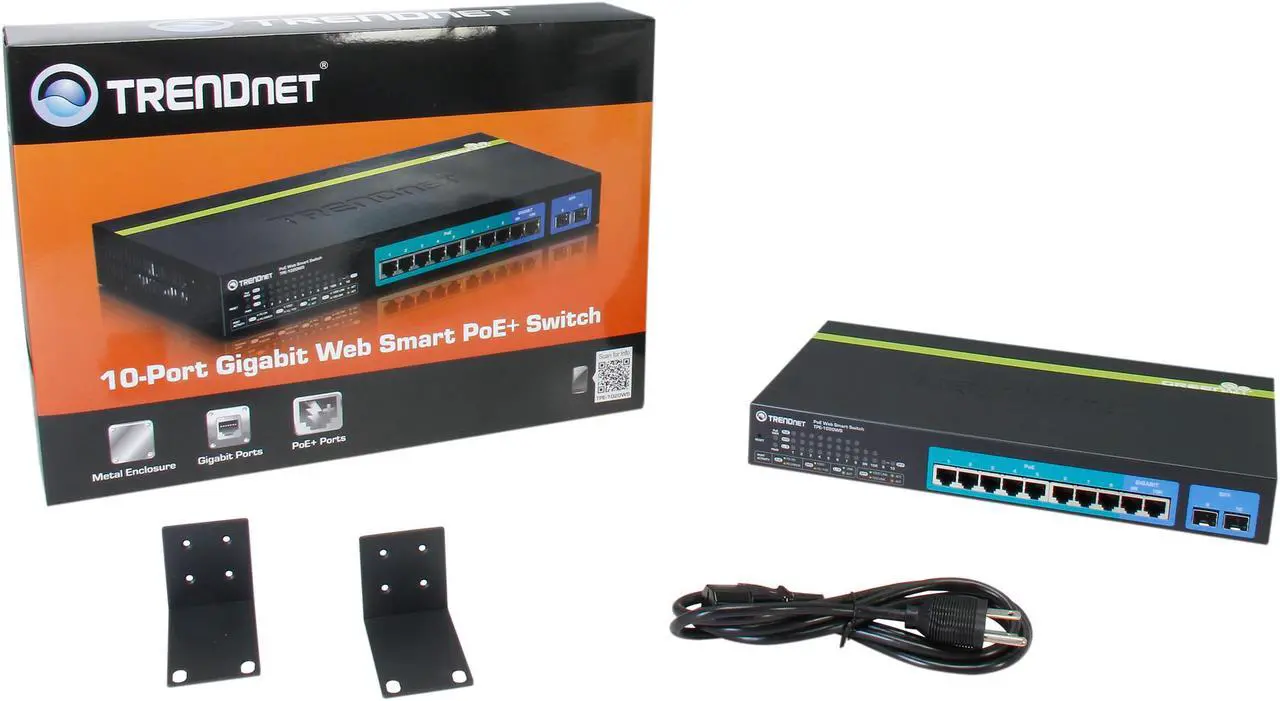

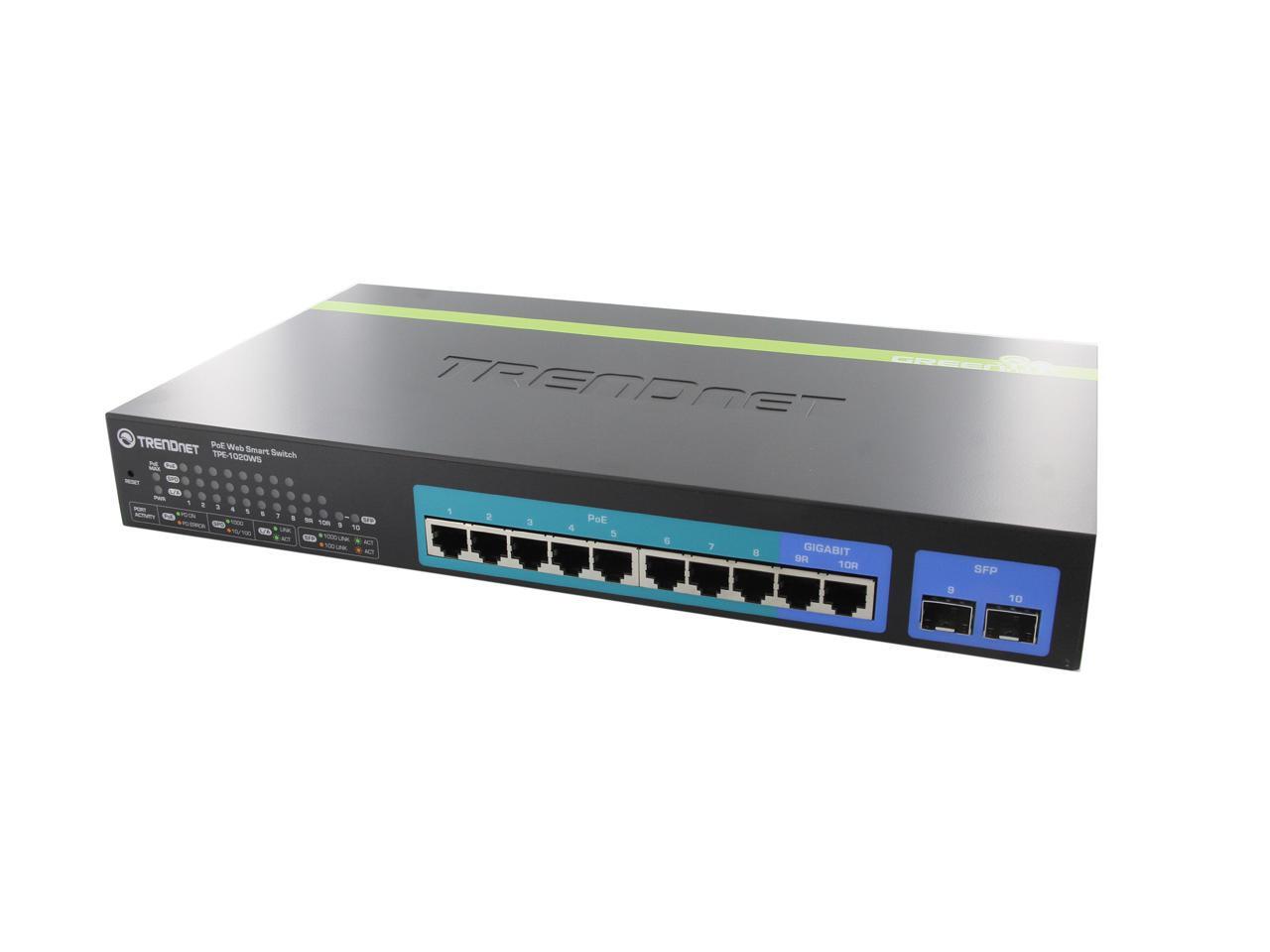

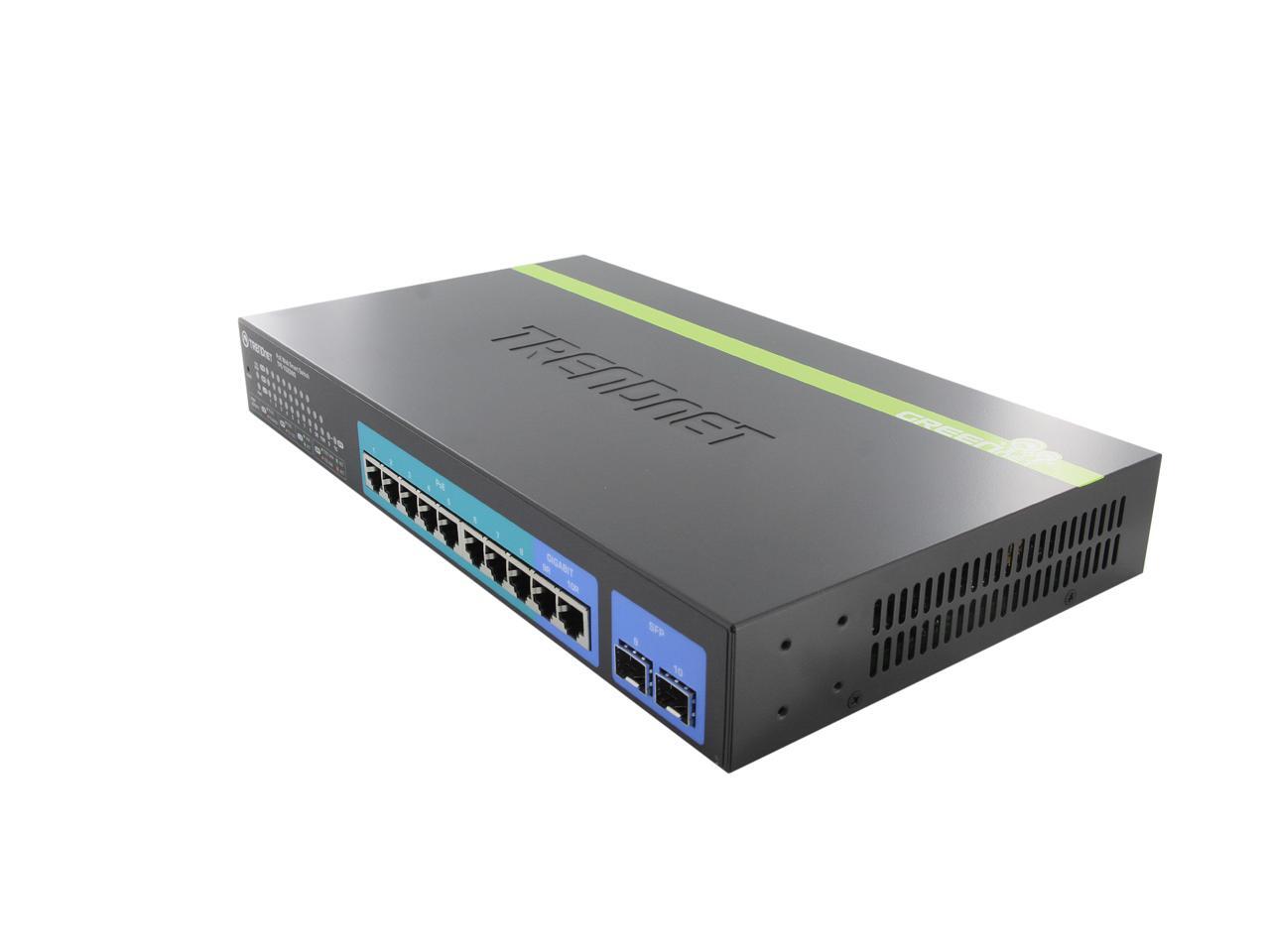

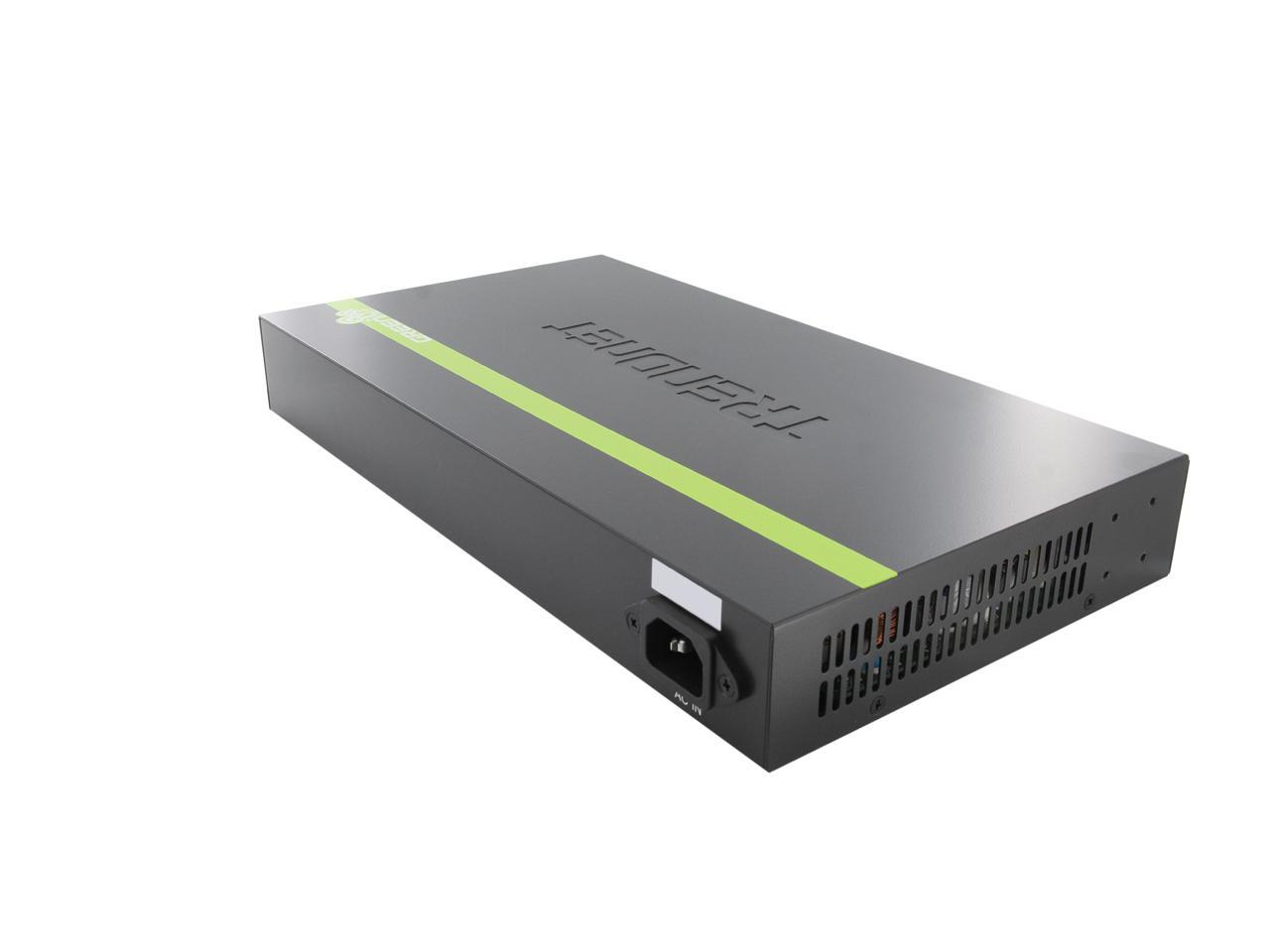

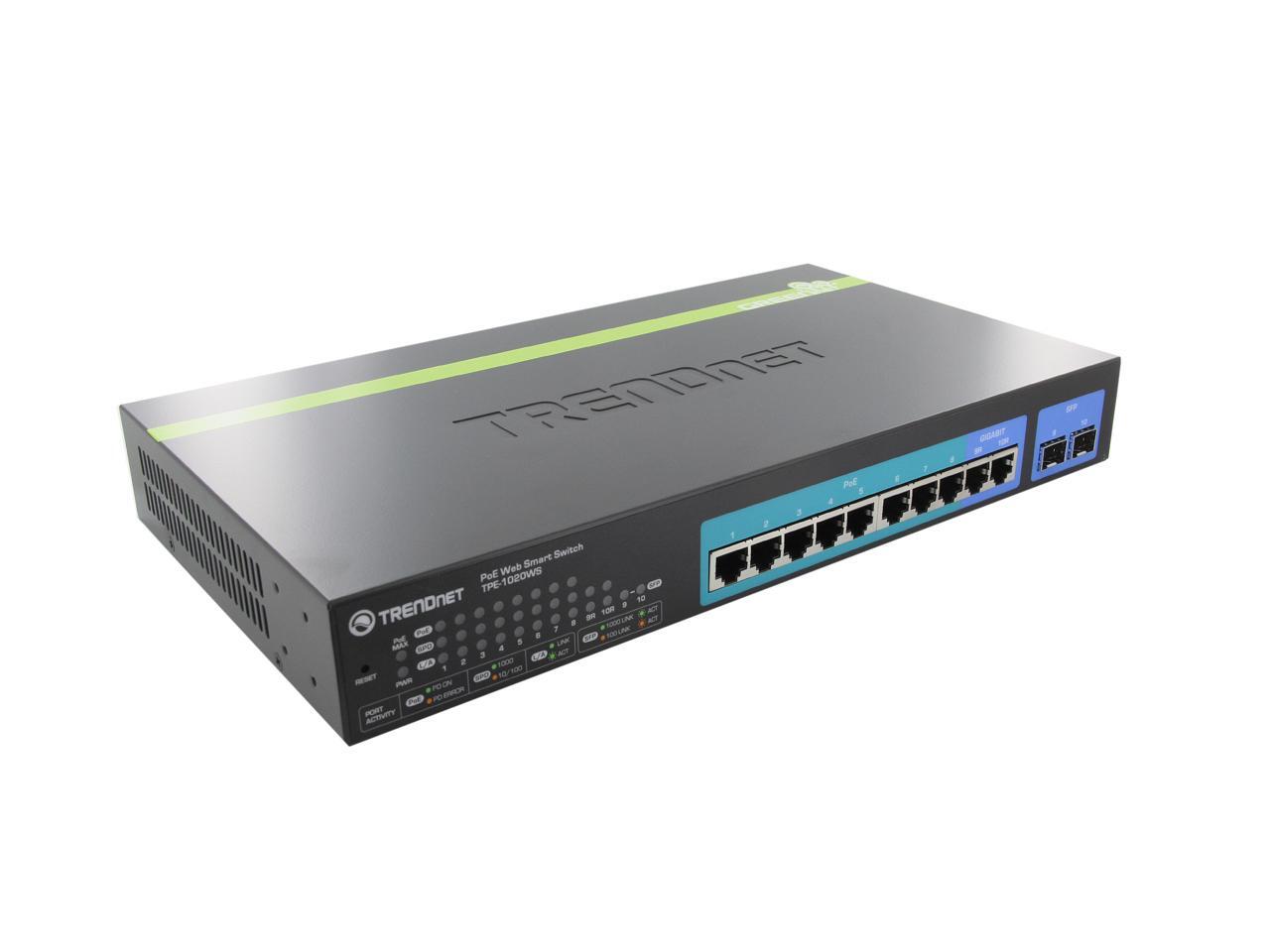

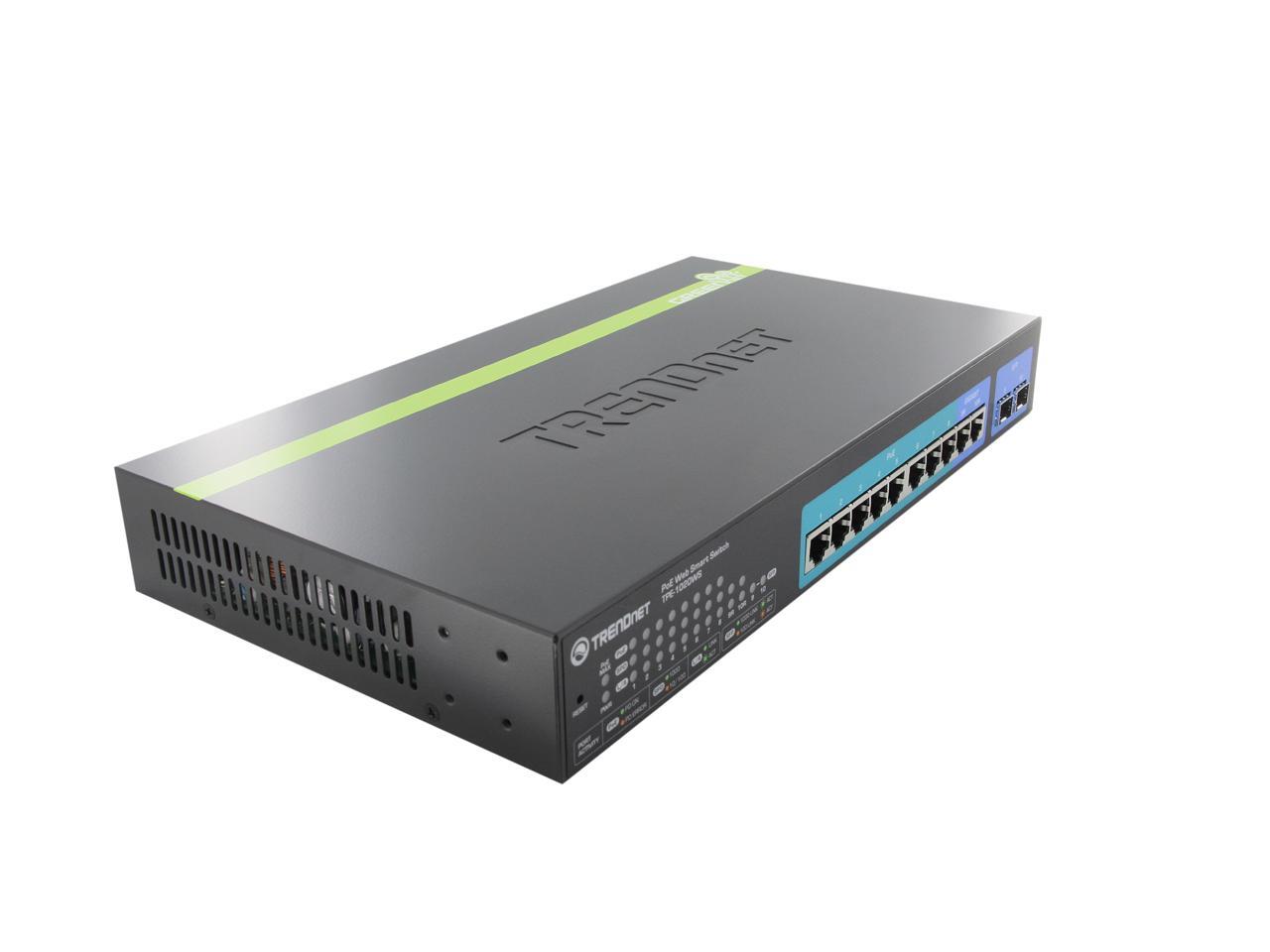

Main image of TRENDnet 10-Port Gigabit Web Smart PoE+ Switch, 8 x PoE+ Gigabit Ports, 2 x Gigabit Ethernet Ports, 2 x Shared SFP Slots, 75W Total Power Budget, Rack Mountable, Black, TPE-1020WS

100%

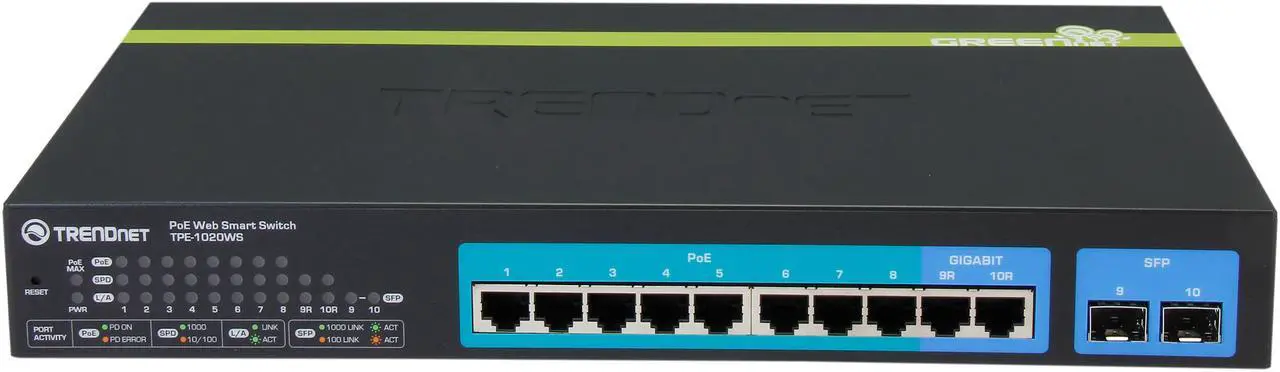

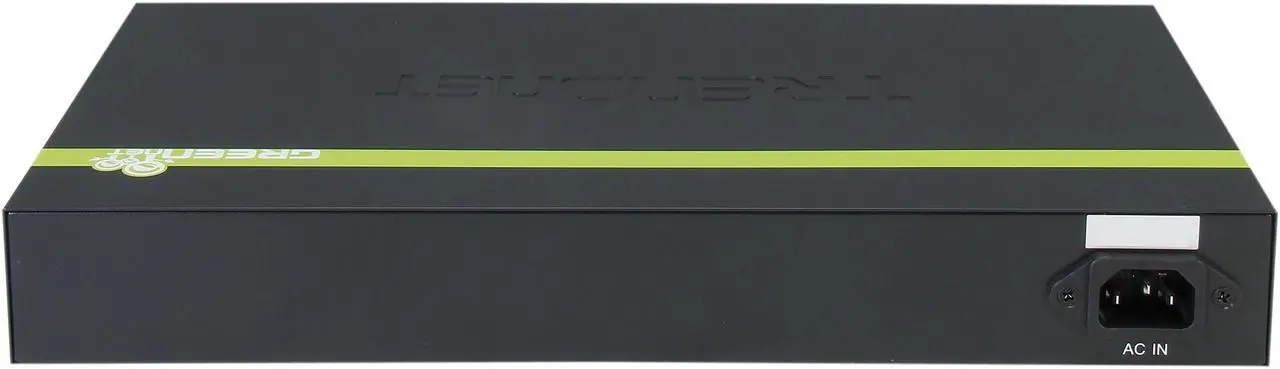

Alt view image 2 of 5 - TRENDnet 10-Port Gigabit Web Smart PoE+ Switch, 8 x PoE+ Gigabit Ports, 2 x Gigabit Ethernet Ports, 2 x Shared SFP Slots, 75W Total Power Budget, Rack Mountable, Black, TPE-1020WS

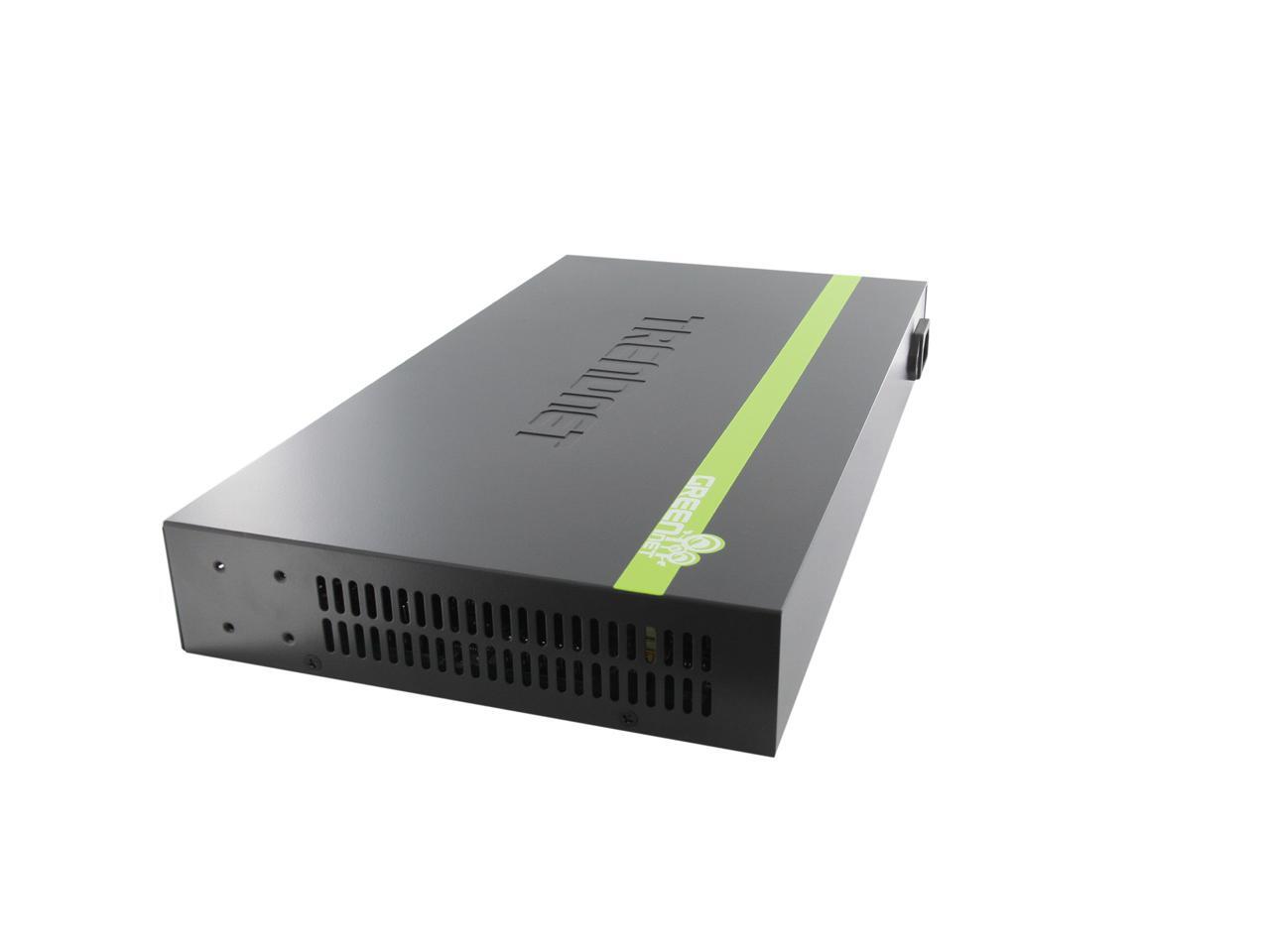

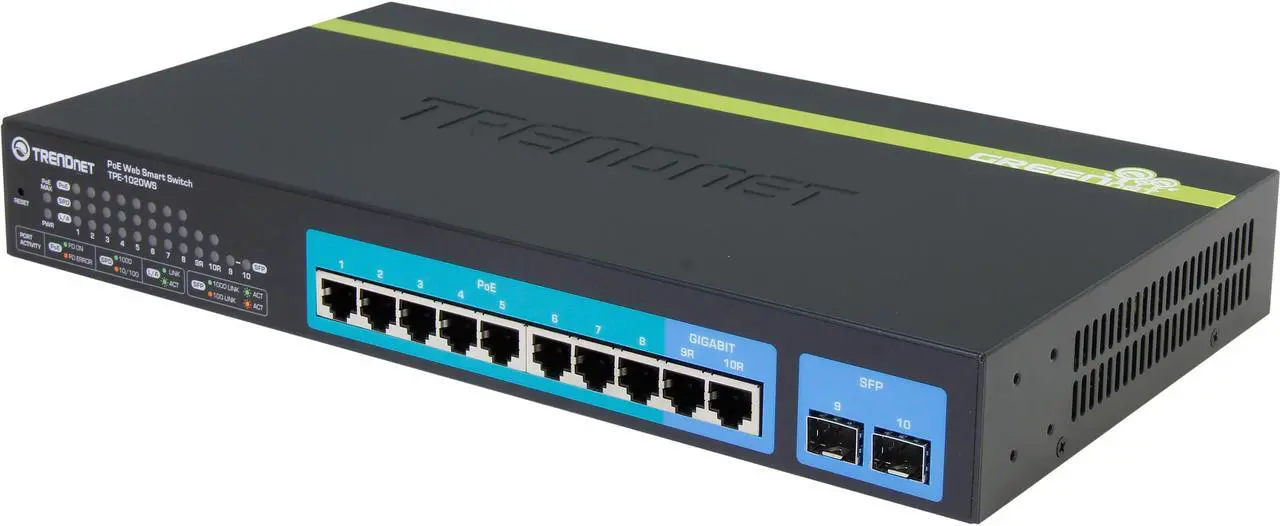

Alt view image 3 of 5 - TRENDnet 10-Port Gigabit Web Smart PoE+ Switch, 8 x PoE+ Gigabit Ports, 2 x Gigabit Ethernet Ports, 2 x Shared SFP Slots, 75W Total Power Budget, Rack Mountable, Black, TPE-1020WS

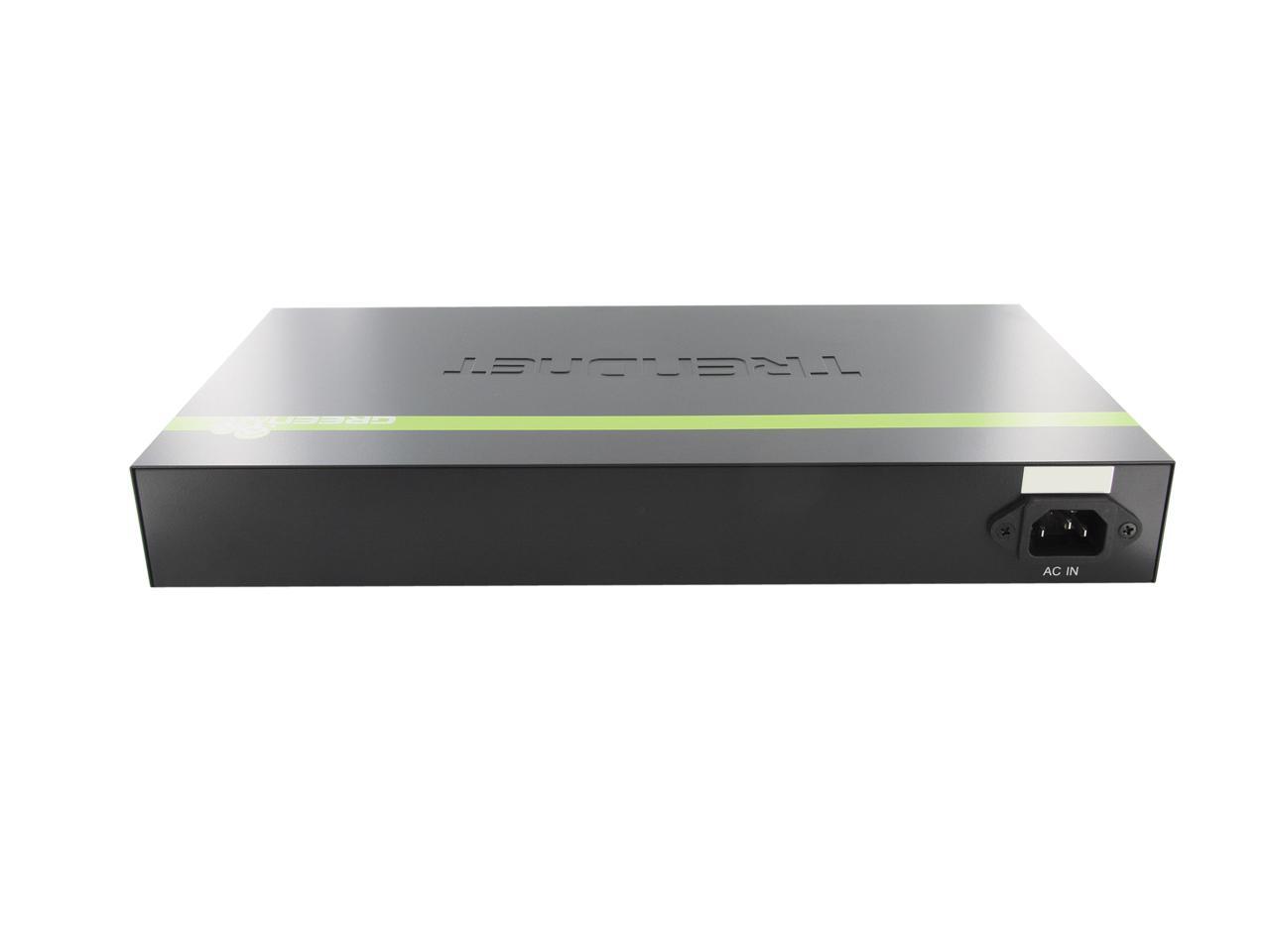

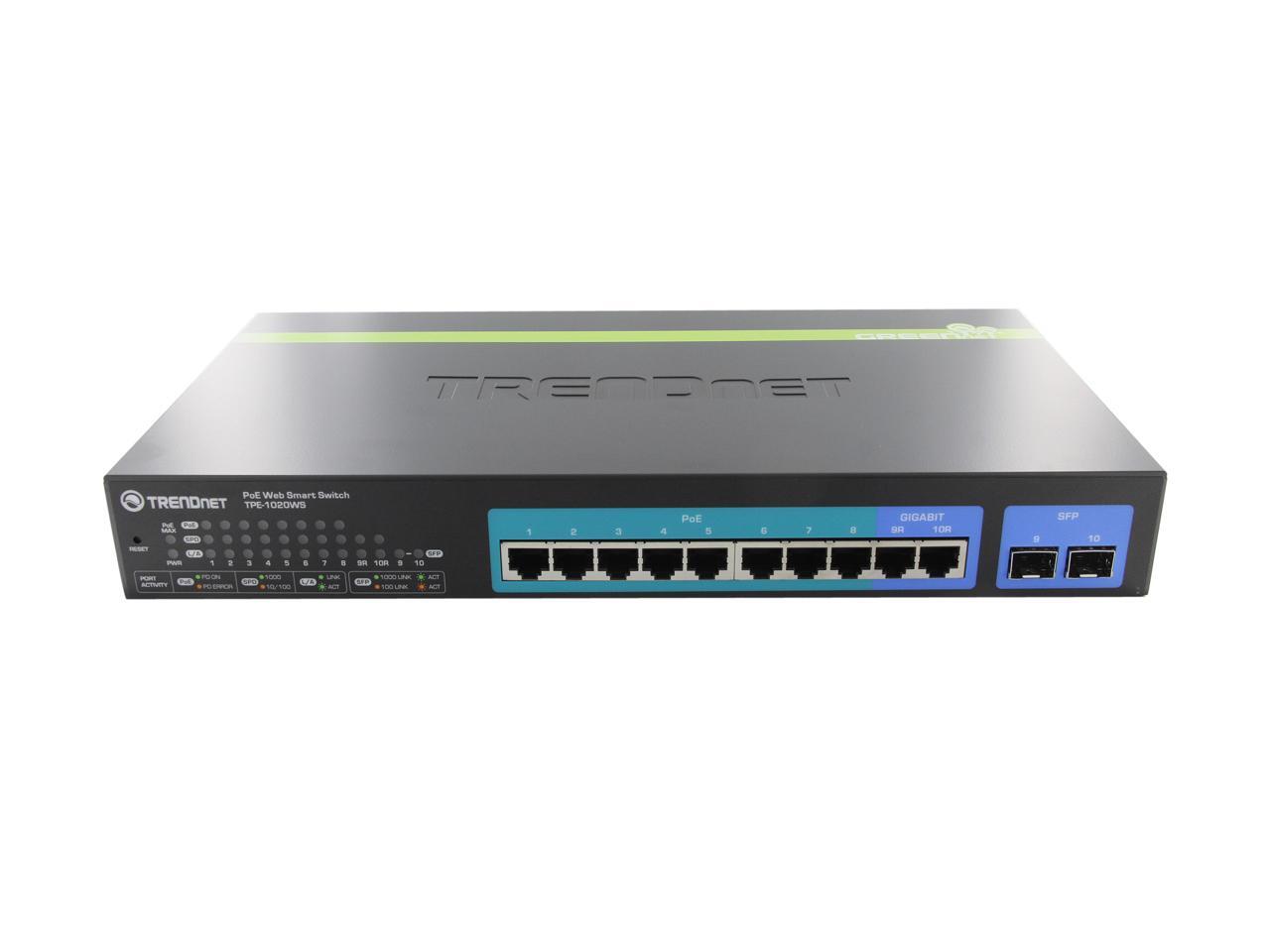

Alt view image 4 of 5 - TRENDnet 10-Port Gigabit Web Smart PoE+ Switch, 8 x PoE+ Gigabit Ports, 2 x Gigabit Ethernet Ports, 2 x Shared SFP Slots, 75W Total Power Budget, Rack Mountable, Black, TPE-1020WS

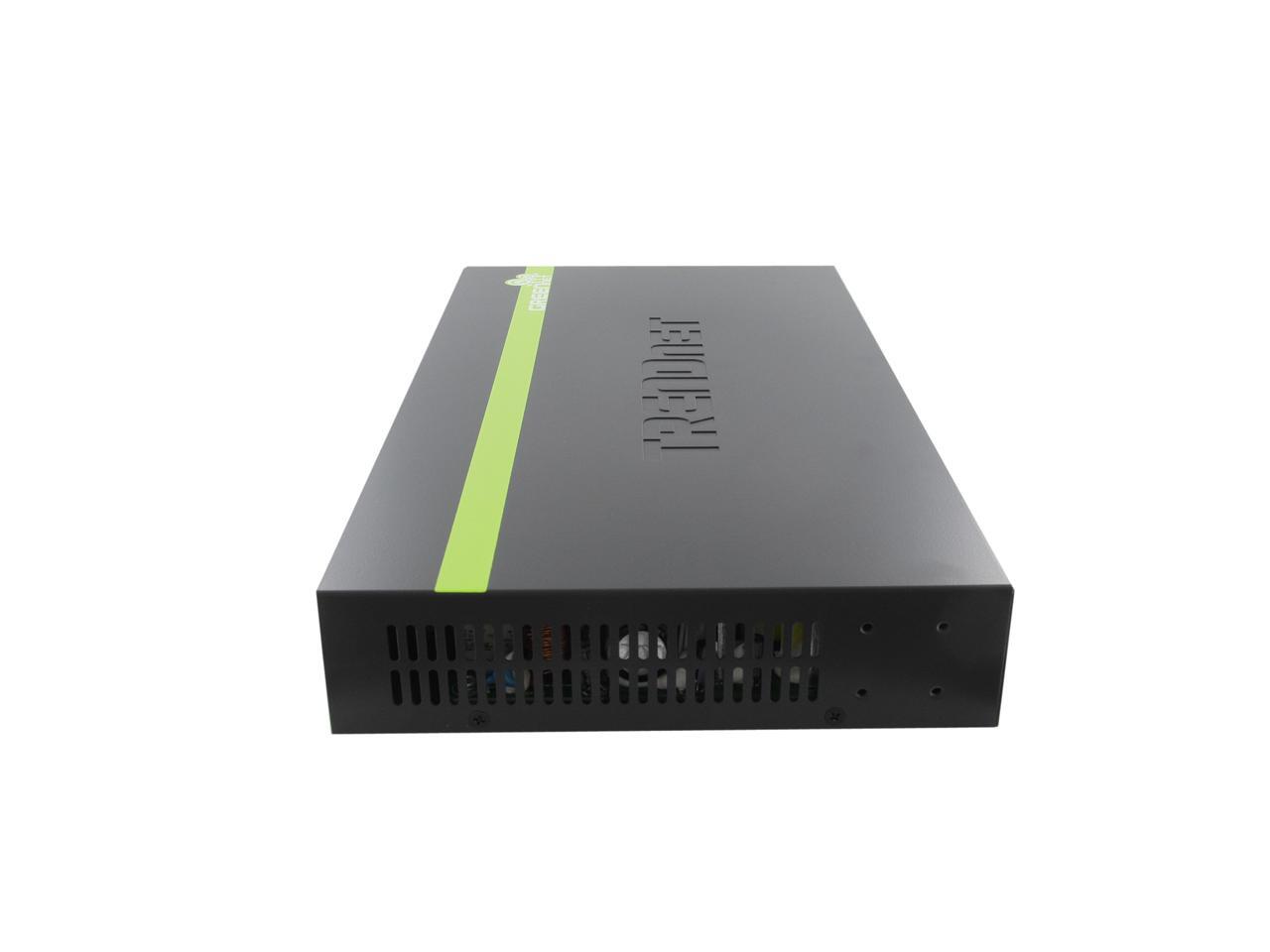

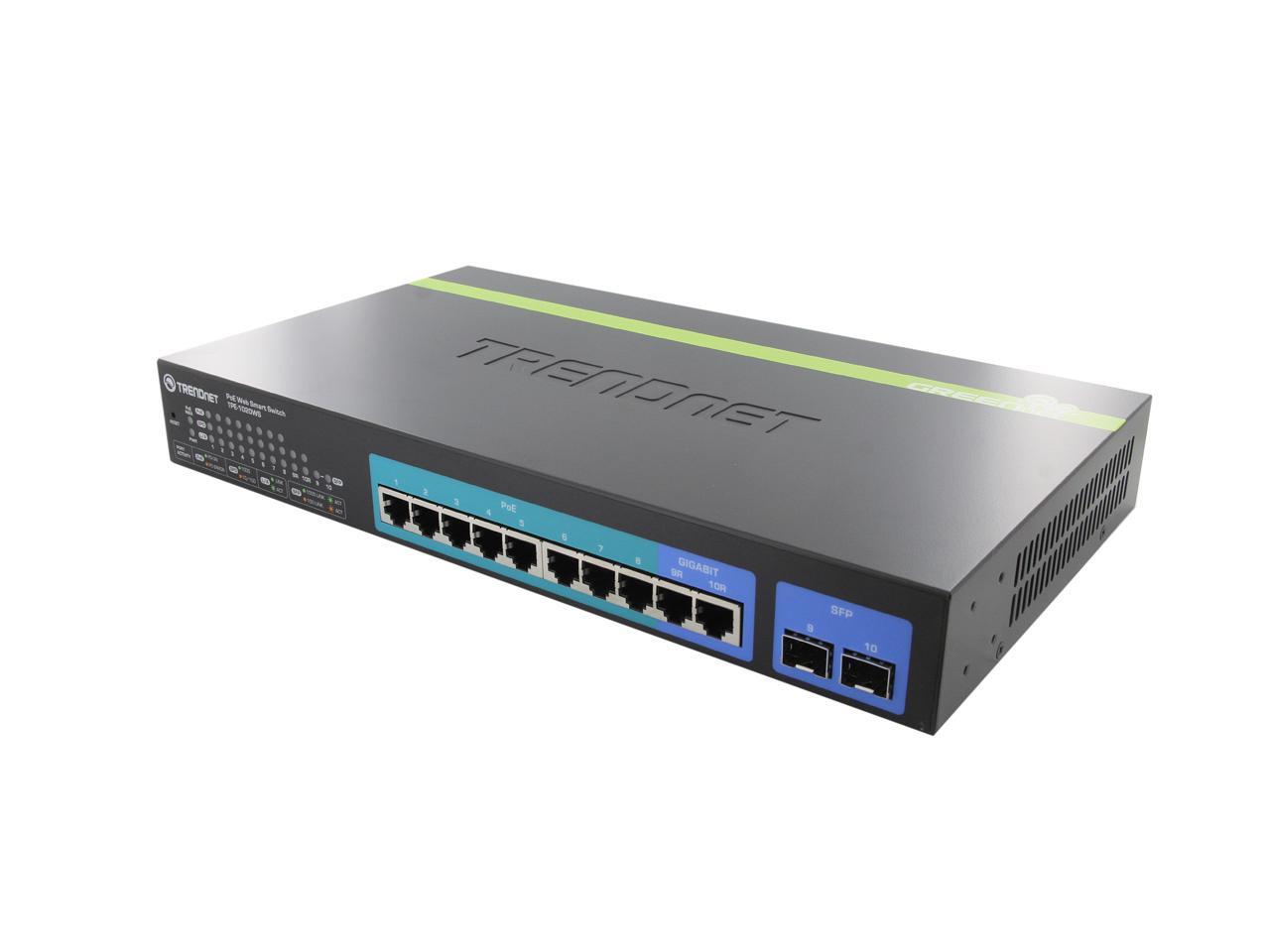

Alt view image 5 of 5 - TRENDnet 10-Port Gigabit Web Smart PoE+ Switch, 8 x PoE+ Gigabit Ports, 2 x Gigabit Ethernet Ports, 2 x Shared SFP Slots, 75W Total Power Budget, Rack Mountable, Black, TPE-1020WS

360^°

Shop All TRENDnet Products | Visit BTE Outlet Store

TRENDnet 10-Port Gigabit Web Smart PoE+ Switch, 8 x PoE+ Gigabit Ports, 2 x Gigabit Ethernet Ports, 2 x Shared SFP Slots, 75W Total Power Budget, Rack Mountable, Black, TPE-1020WS

(3) Write a Review

8 x PoE+ Gigabit ports
2 x Gigabit Ethernet ports and 2 x shared SFP slots
Up to 30 Watts per port with a 75 Watts total power budget
20 Gbps switching capacity
Rack mountable

Overview

Specs

Reviews (3)

See all Q & A

Any questions? Our AI beta will help you find out quickly.

Try me now

TRENDnet 10-Port Gigabit Web Smart PoE+ Switch, model TPE-1020WS, delivers a 20 Gbps switching capacity with eight PoE+ Gigabit ports and two Gigabit Ethernet uplink ports shared with two SFP slots. This IPv6 ready switch offers advanced traffic management, troubleshooting, security, energy saving GREENnet, and monitoring features at a reduced cost.

Model
Brand	TRENDnet
Model	TPE-1020WS

Format & Standards
Format	Rackmount
Standards	IEEE 802.3/3u/3ab, IEEE 802.3af/at
Network Management Type	Smart

Ports & Interface
Primary Ports	10 x RJ45, 2 x shared SFP
Primary Port Speed	10/100/1000Mbps

Data Transmission
MAC Address Table	16K
VLAN Support	Multiple management VLAN assignment Asymmetric VLAN 802.1Q Tagged VLAN Dynamic GVRP Up to 256 VLAN groups, ID Range 1-4094 Private VLAN (Protected Ports) Voice VLAN (10 user defined OUIs)
Jumbo Frames	10 Kbytes
Buffer Memory	8 Mbits

Details
Protocols	TCP/IP
PoE	Yes
SNMP	Yes
QoS	Yes
LACP	Yes
Port Mirroring	Yes

Power Supply
Power	Input: 100 - 240 V AC, 50/60 Hz, internal power supply Consumption: 92.3 Watts (Max) PoE budget: 75 Watts

Dimensions & Weight
Dimensions	330 x 183 x 44.45 mm (13 x 7.2 x 1.75 in.) Rack mountable 1U height
Weight	1.9 kg (4.1 lbs.)

Environmental
Temperature	0°C to 40°C (32°F to 104°F)
Humidity	90% Maximum, Non-condensing

Features
Features	*Interface: 8 x Gigabit PoE+ ports (ports 1-8) 2 x Gigabit Ethernet ports (ports 9-10) 2 x Shared SFP slots (shared with ports 9-10) Switch fabric: 20 Gbps HOL Blocking Prevention Forwarding rates: 14.88 Mppst Management: HTTP/HTTPS (SSL v2/3 TLS) Web based GUI SNMP v1, v2c, v3 RMON v1 Static Unicast MAC Address Enable/disable 802.3az Power Saving LLDP Virtual Cable Test IPv6: IPv6 Neighbor Discovery, IPv6 Static IP, DHCPv6, Auto configuration

Packaging
Package Contents	TPE-1020WS Multi language Quick Installation Guide CD-ROM (Utility & User's Guide) Power cord (1.8 m/6 ft.) Rack mount hardware
