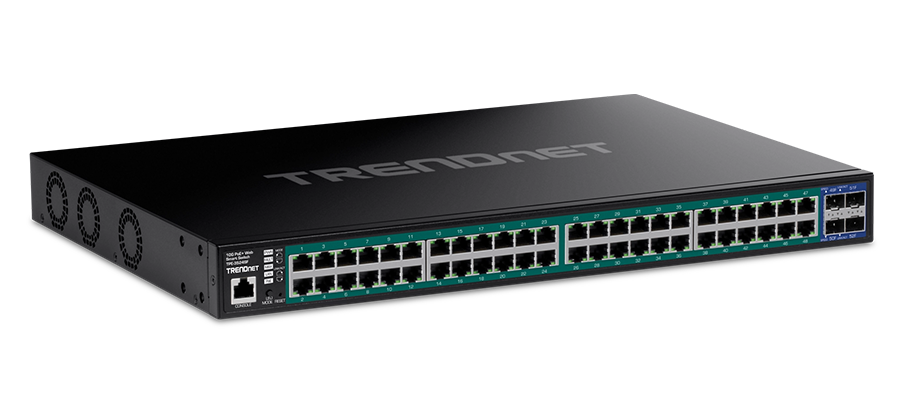

TPE-3524SF
52-Port Gigabit Web Smart 740W PoE+ Switch with 10G SFP+ Slots
TRENDnet’s 52-Port Gigabit Web Smart PoE+ Switch with 10G SFP+ ports, model TPE-3524SF, offers advanced L2+ features with enhanced traffic management controls to meet the evolving demands of SMB networks. This managed PoE+ switch with SFP+ ports comes with an intuitive web-based interface. Advanced managed switch features include LACP to group ports together to increase bandwidth between switches, VLANs for segmenting and isolating virtual LAN groups, QoS for traffic prioritization, port bandwidth controls, and SNMP monitoring, making this a powerful solution for SMB networks. Improve voice performance by isolating and prioritizing VoIP traffic from normal data traffic with the easy-to-use voice VLAN feature.
Free up router resources by offloading routing processes to the managed switch by using the L2+ Managed IPv4/IPv6 static routing feature to efficiently route traffic at the switch level. The dynamic ARP inspection feature helps protect connected devices from man-in-the-middle attacks by discarding malicious and invalid ARP packets. Take advantage of the available multicast and IGMP/MLD snooping features to optimize IP surveillance system performance, and minimize network traffic. This TRENDnet Web Smart Managed PoE+ Switch also feature 10G SFP+ ports to support long-distance fiber networking applications.

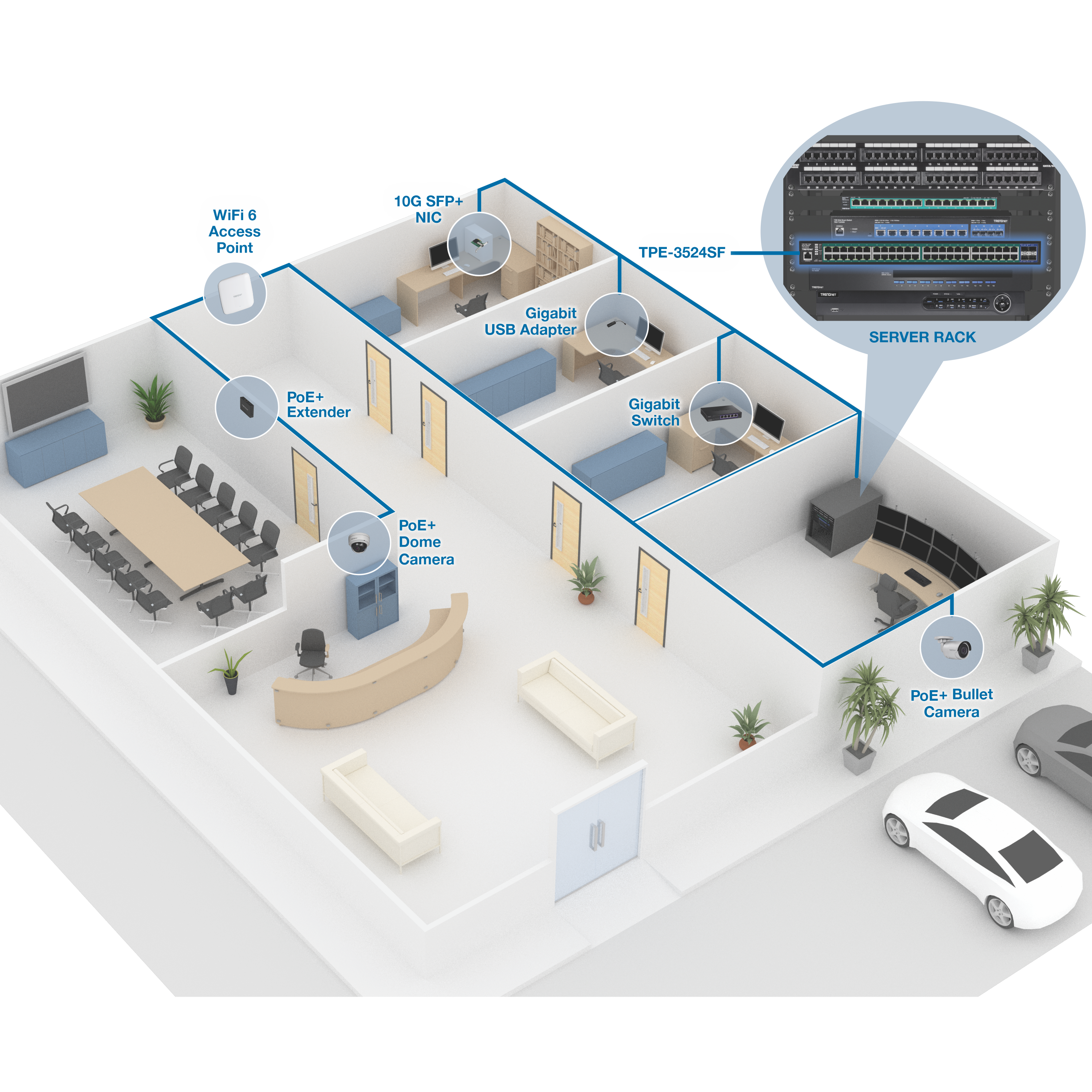

Installers and integrators can save on equipment costs and reduce installation time with TRENDnet’s Web Smart Managed PoE+ Switches by delivering up to 30W per port of PoE power and data over existing Ethernet cables. With PoE technology, users only need one set of cables to deliver both data and power. With this PoE+ managed switch, network PoE devices such as high-power wireless access points, PTZ and other advanced IP cameras, VoIP phone systems, IPTV decoders, access controls, and more.

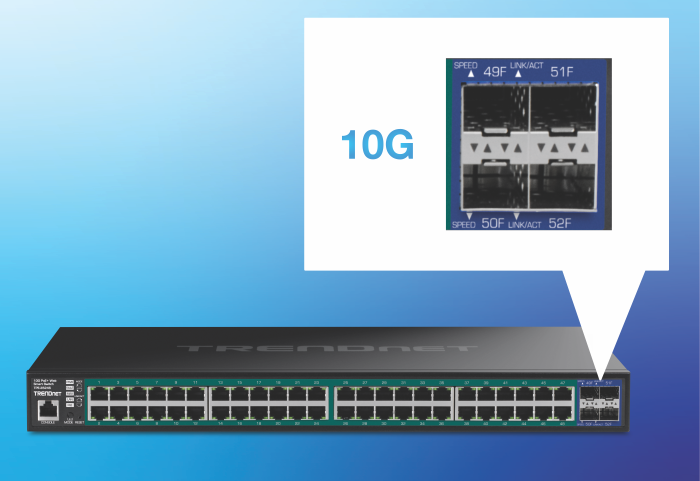

10G SFP+ Ports
Offers four dedicated 10G SFP+ ports for high-speed network connections, providing a cost-effective solution in adding 10G link capability to any SMB network.

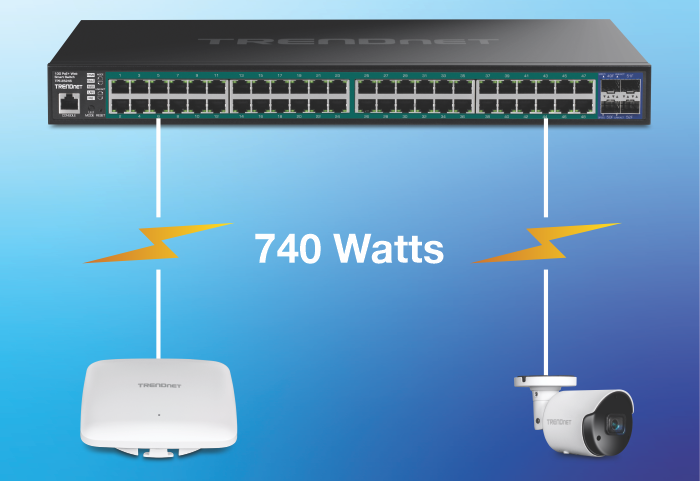

PoE Power
A 740W total PoE power budget on the managed PoE+ switch supplies Power over Ethernet devices with up to 30W per port.
Integration Flexibility
Managed switch features include access control lists, VLAN, IGMP/MLD snooping, QoS, RMON, SNMP trap, and syslog for monitoring and flexible network integration.

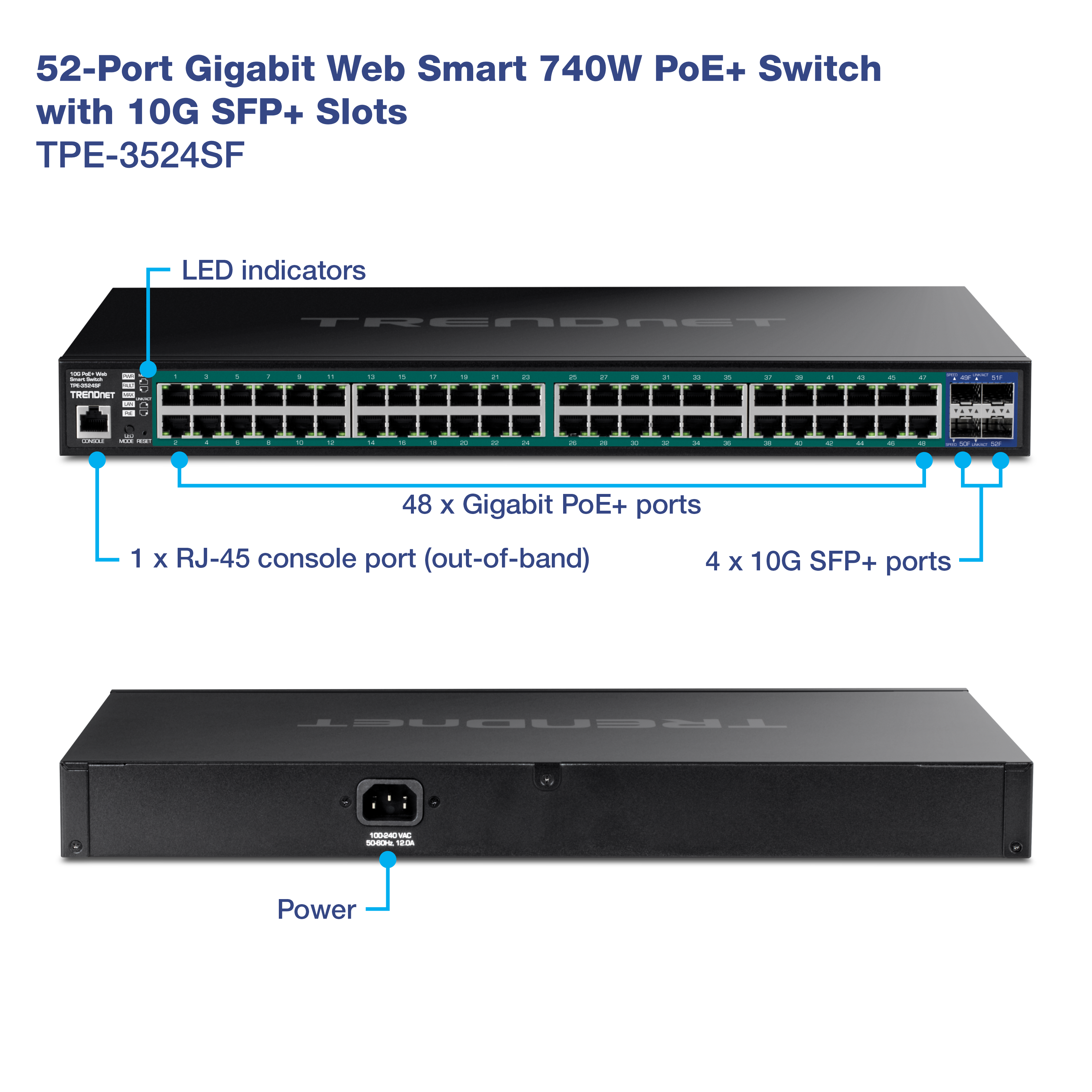

Hardware Design
Provides gigabit ports for device connections, 10G SFP+ ports for fiber applications, and a 1U 19” rackmount design with brackets included
PoE Power
A 740W total PoE power budget on the managed PoE+ switch supplies Power over Ethernet devices with up to 30W per port
10G SFP+ Ports
Offers four dedicated 10G SFP+ ports for high-speed network connections, providing a cost-effective solution in adding 10G link capability to an SMB network
IPv6 Ready
This managed PoE+ switch with SFP+ ports supports IPv6 configuration and IPv6 neighbor discovery
Traffic Management

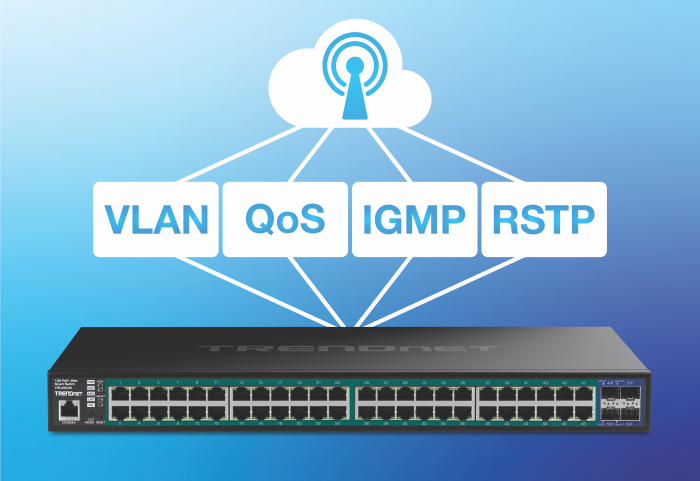

Managed switch features include: Link aggregation, 802.1Q VLAN, Voice VLAN, Multicast VLAN, RSTP, MSTP, Loopback Detection, QoS, and port bandwidth management
IPv4/IPv6 Static Routing
Offload routing processes to the managed PoE+ switch by using the L2+ IPv4/IPv6 static routing feature to efficiently route traffic at the switch level
Dynamic ARP Inspection
Dynamic ARP inspection feature helps protect connected devices from man-in-the-middle attacks by discarding malicious and invalid ARP packets
Troubleshooting
A convenient cable diagnostic test and traffic statistics aid in network troubleshooting
Access Control
Includes ACL, SSL, MAC/port filtering, 802.1X, TACACS+, and RADIUS
Monitoring
RMON, SNMP, SNMP Trap, and Port Mirroring support administrator monitoring solutions
Smart Fan
The smart fan on this managed PoE+ switch with SFP+ ports saves energy by auto-adjusting the fan speed and use based on cooling needs
Housing Design
Sturdy rack mountable metal housing
Jumbo Frame
Sends larger packets, or Jumbo Frames (up to 9KB) for increased performance
LED Indicators
LED indicators on this managed PoE+ switch with SFP+ ports convey port status
