Trendnet helps keep you safe with their TV-IP201 internet camera. This compact camera plugs into your network with a Fast Ethernet connection and can stream information real time over the internet. Or it can send you an email notification of activity.
The IP View application allows you to control and monitor multiple cameras. You can also set up alerts, and recording. Full HTTP support lets you log in remotely and see what's going on at home while you are on vacation.
Trendnet helps keep you safe with their TV-IP201 internet camera. This compact camera plugs into your network with a Fast Ethernet connection and can stream information real time over the internet. Or it can send you an email notification of activity.
The IP View application allows you to control and monitor multiple cameras. You can also set up alerts, and recording. Full HTTP support lets you log in remotely and see what's going on at home while you are on vacation.
High Quality Image CaptureEquipped with a high-performance 1/4" color CMOS sensor, the TRENDnet TV-IP201 captures high-quality video at up to 640 x 480 resolution.
10/100M Fast Ethernet ConnectionThe TRENDnet TV-IP201 provides an auto-sensing 10/100M fast Ethernet port for broadband connectivity so you can easily access and control the camera from any remote PC in the network for various surveillance applications.
Server FunctionWith the built-in CPU and web server, the TRENDnet TV-IP201 acts as a stand-alone unit for remote monitoring and streaming real-time events over the Internet without the need for a computer.
Great Surveillance FunctionalityThe TRENDnet TV-IP201 provides pan and tilt functions so you can adjust the monitoring range for complete surveillance. With Windows IPView Application Software, easily program multiple cameras monitoring, motion detection alerts, image capturing, and more.
Built-in MicrophoneWith the built-in microphone, video can be now attached with synchronized audio for a complete surveillance.
Learn more about the TRENDnet TV-IP201
Model
Brand
TRENDnet
Model
TV-IP201
Details
Network Camera
Yes
Type
Wired Camera
Network
Connection Type
RJ45
Ports

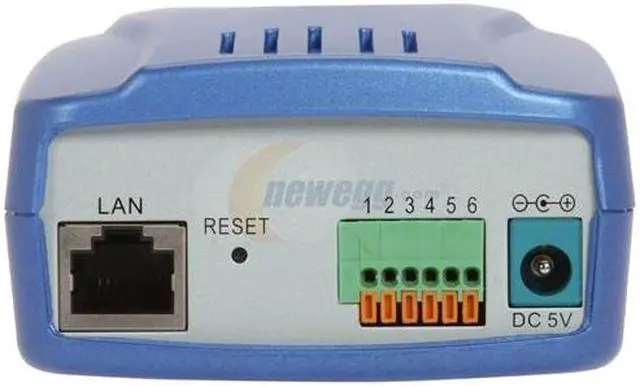

1 x 10/100Mbps Auto-Sense, Auto-MDIX Input: 1 set, 2 pin (photo relay; Active High: 9~40V DC; Dropout: 0 VDC) Output: 1 set, 2 pin (photo relay. Close circuit current: 70mA~100mA; 30Ohm. Open circuit voltage: 240VAC or 350VDC)
30fps@CIF, QCIF, VGA 1, 3, 7, 12, 15, 25, 30 (Depends on video format)
Lens Type
F :6.0mm F1.8 Lens (CS-Mount Standard, Replaceable)
Power
Power over Ethernet
No
Power
5VDC 2.5A External Power Adapter
Feature
Operating Systems Supported
Windows 98SE, ME,2000,XP
Features
Audio: MIC Input Volume: Internal MIC (mono) Control: Adjustable Compression: ADPCM/PCM
Supports M-JPEG Compression and Audio Monitoring Built-in RS-485 connectors for Pan & Tilt control device (additional Pan & Tilt control device required) Supports ActiveX Control for Internet Explorer and Java applet for Internet Explorer and Netscape Navigator Allows for Remote Access from Web Browser for Live Image Viewing and listening Supports TCP/IP networking, SMTP e-mail, HTTP and other Internet related protocols Supports Web Configuration with Password Protection Powerful Windows IPView Application Software for multiple cameras monitoring, motion detection alerts, image capturing, and video recording (Windows 98/ME/2000/XP) Built-in I/O Ports to Trigger Alarm and Email Notification Broad Range of Applications for Monitoring Homes, Offices, Banks, Hospitals, and a Variety of Private and Public Monitoring

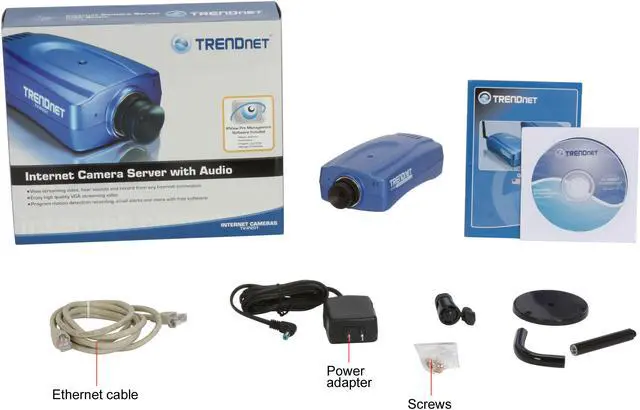

Package Contents
Package Contents
TV-IP201 Metal Stand Utility CD-ROM AC Power Adapter Quick Installation Guide
