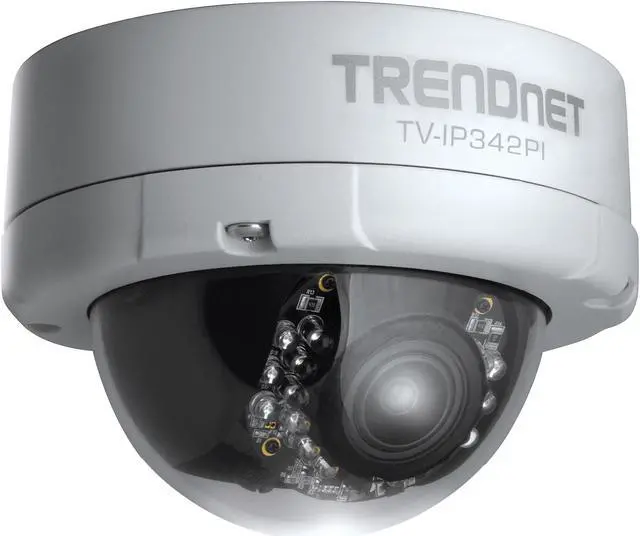

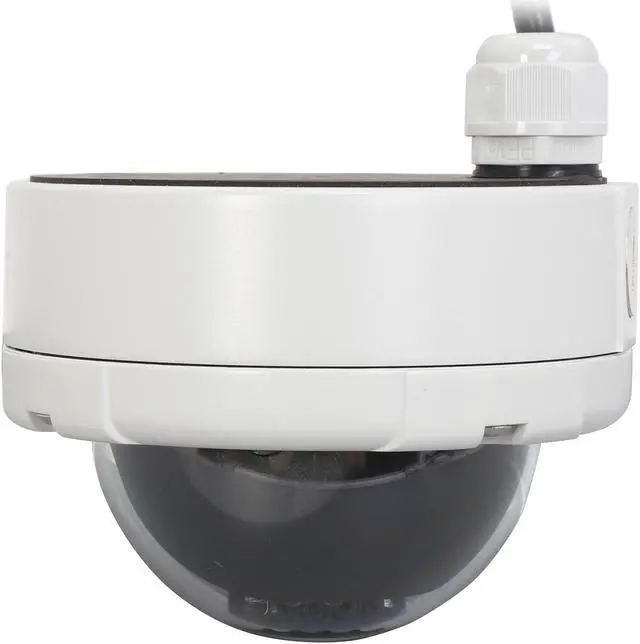

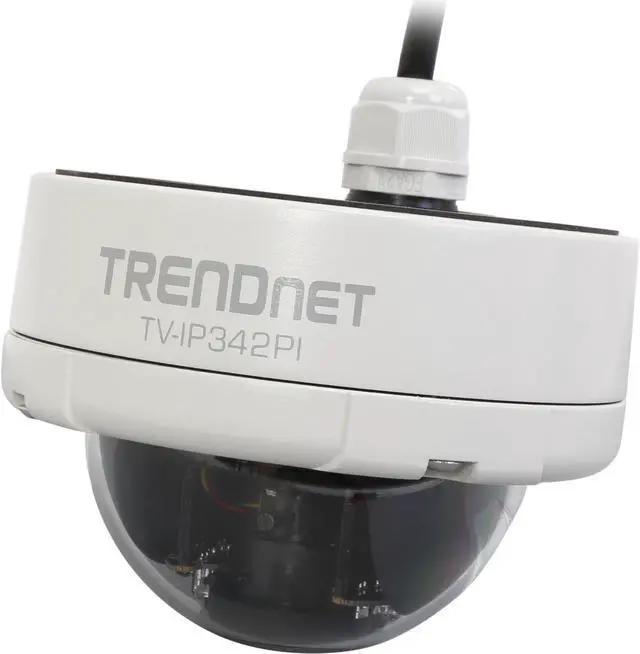

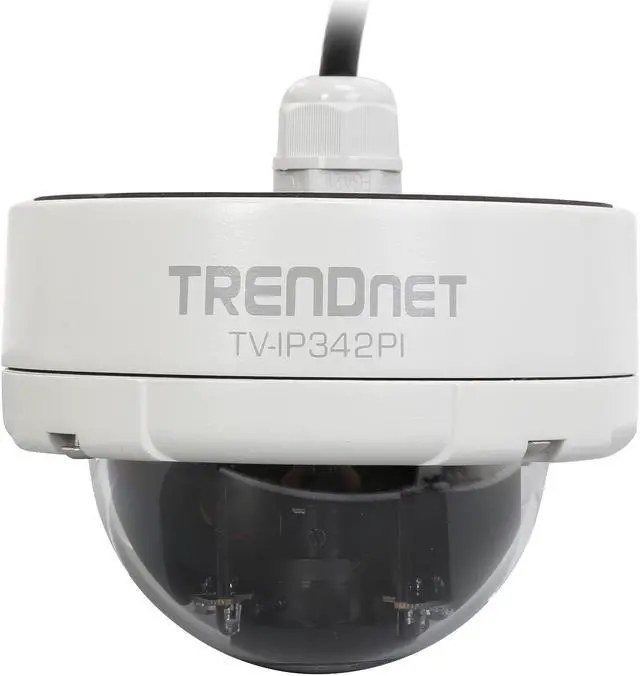

TRENDnet TV-IP342PI Outdoor 2MP Full HD Vari-Focal PoE Day & Night Dome Network Camera

Be the first to review this product...

Full 1080p HD Resolution
Manual 3X Optical Zoom
Night Vision up to 50ft (15 meters)
Outdoor IP66 Weather Rating
PoE, ONVIF, D-WDR
MicroSD Card Slot

Overview

Specs

Reviews

MAIN OVERVIEW FEATURES:

Color Supported: Color
Effective Camera Resolution: 2 Megapixel
Video Formats: H.264
Maximum Video Resolution: 1920 x 1080
Optical Zoom: 3x
Connectivity Technology: Cable
Network (RJ-45): Yes
Form Factor: Dome

Model
Brand	TRENDnet
Model	TV-IP342PI

Details
Network Camera	Yes
Type	Dome Camera
Connection Type	BNC
Mounting Location	Outdoor IP66 weather rating
Micro SD Slot	Add up to 32 GB memory for on-board video storage

Network
Wireless Standard	IEEE 802.1x IEEE 802.3 IEEE 802.3u IEEE 802.3x IEEE 802.3af
Networking Protocol	IPv4, IPv6, UDP, TCP/ IP DHCP, NTP, DDNS, SMTP, FTP, LLTD SNMP v1-v3, QoS/DSCP, IEEE 802.1X Samba, Bonjour HTTP, HTTPS PPPoE UPnP, RTSP, RTP, 3GPP
ONVIF	Yes

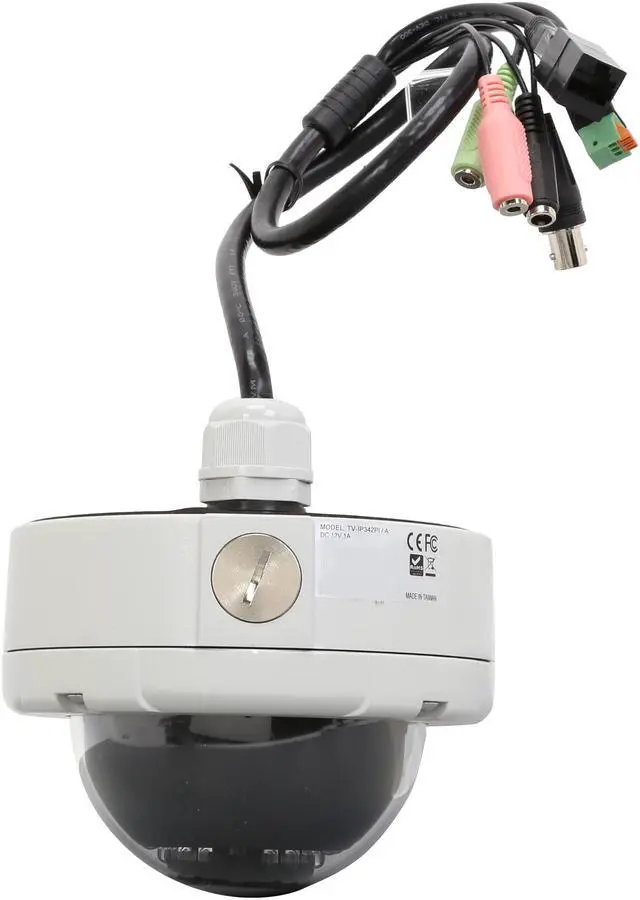

Ports	10/100 Mbps PoE port Micro SD card slot (internal) IR LEDs BNC port 3.5 mm microphone jack 3.5 mm speaker jack GPIO terminal Power jack (optional)

Camera
Sensor & Detector	1/3" 2 Megapixel CMOS sensor
HD Resolution	1080P
MAX Resolution	1920 x 1080
Frame Rate	H.264: 1920 x 1080 up to 30 fps MJPEG: 1920 x 1080 up to 30 fps H.264: 640 x 480 up to 15 fps (3GPP only)
Lens Type	Focal Length: 3 - 9 mm @ F1.8 Focal depth: 70 cm to infinity Vari-focal lens (internal manual zoom and focus adjustment)
Optical Zoom	Optical 3x
Digital Zoom	4x Digital Zoom
Night Vision	Yes
Audio	External 3.5 mm microphone jack External 3.5 mm speaker jack

Power
Power over Ethernet	Yes
Power	Input: 100 - 240 V AC , 1 A, 50 - 60 Hz Output: 12 V DC 1 A external power adapter (for non-PoE installations) Max. consumption: 6.7 W

Features
Features	Adjustable fixed position dome network camera Manual 3x optical zoom provides installation flexibility Night vision up to 15 meters (50 ft.) Full 1080p HD resolution Outdoor IP66 weather rating Save installation costs with Power over Ethernet (PoE) Program motion detection recording and email alerts Free mobile apps

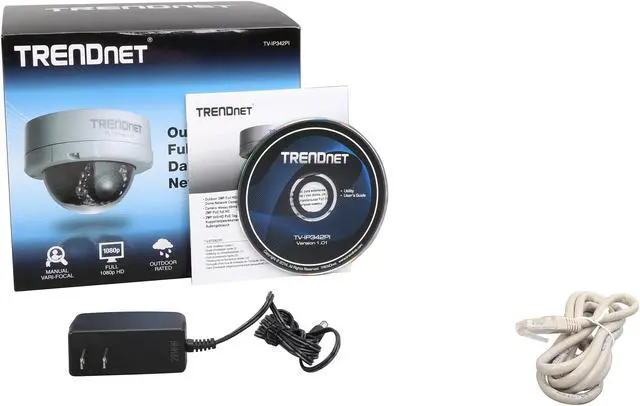

Package Contents
Package Contents	TV-IP342PI Multi-Language Quick Installation Guide CD-ROM (Utility, Software, & User’s Guide) Power adapter (12 V DC, 1A) (1.5 m/5 ft.) Network cable (1.5 m/5 ft.) RJ45 coupler Camera mounting hardware

Additional Information
First Listed on Newegg	October 06, 2014
