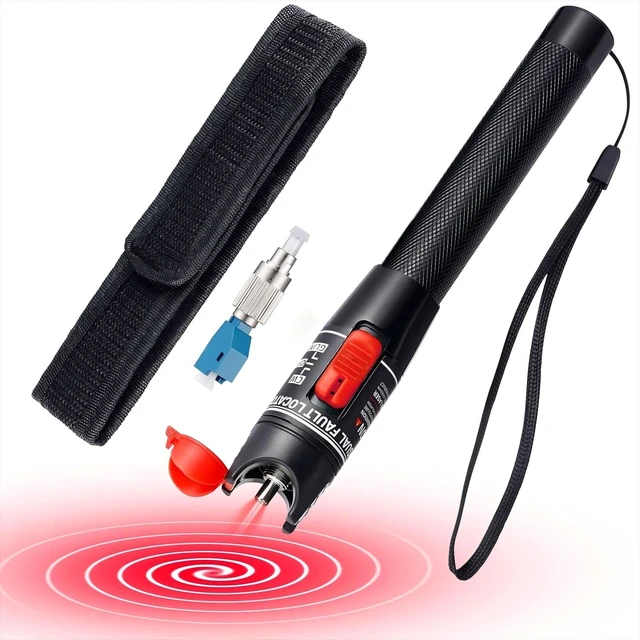

VFL Fiber Optic HT-50, Visual Fault Locator Red Light Tester CATV | FC to LC adapter, SM 9/125m & multimode, CW/pulse modes, for telecom & FTTH, laser pen

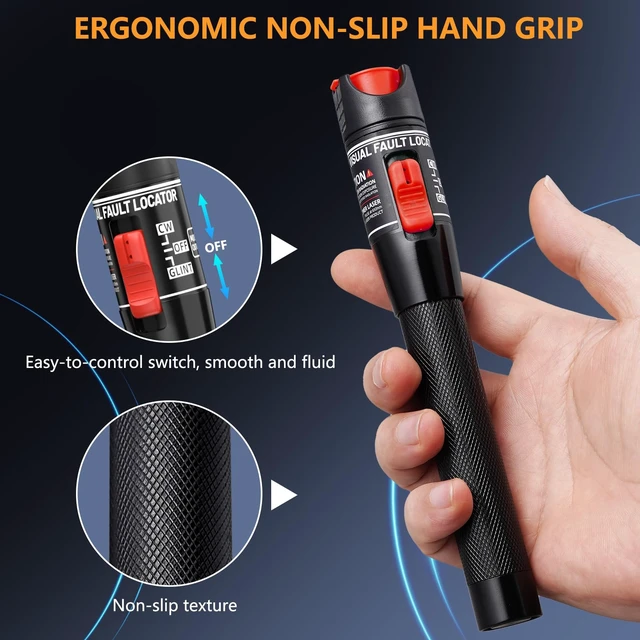

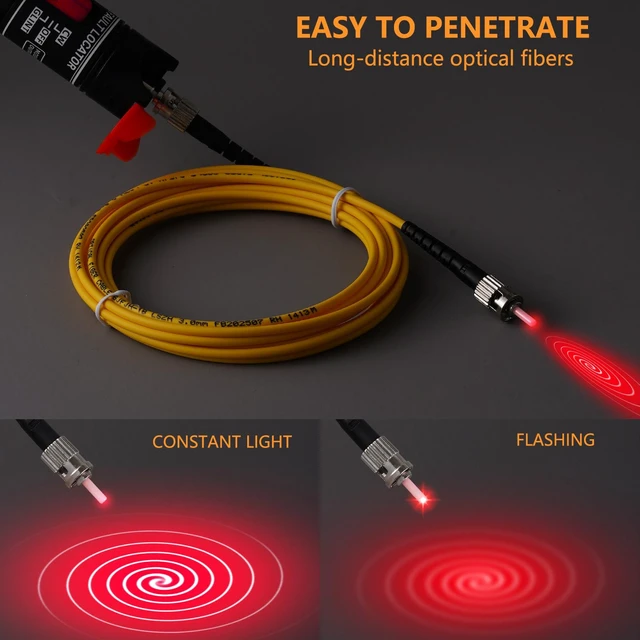

Precise Fault Identification with Two Operation Modes This VFL (Visual Fault Locator) is a fiber optic tester that uses a bright <5mW red laser to pinpoint fiber breaks, sharp bends, damaged connectors, incorrect routing, and link continuity issues. Switch between continuous and flashing modes to distinguish signal from ambient light. For continuity, a red light at the far-end connector means the core is not broken. For long-distance faults, use an OTDR to find the approximate distance, then this fiber fault locator to pinpoint the exact spot. Note: Range depends on fiber conditionfaults or high attenuation shorten visible distance. Waterproof/dark jackets may block red light.

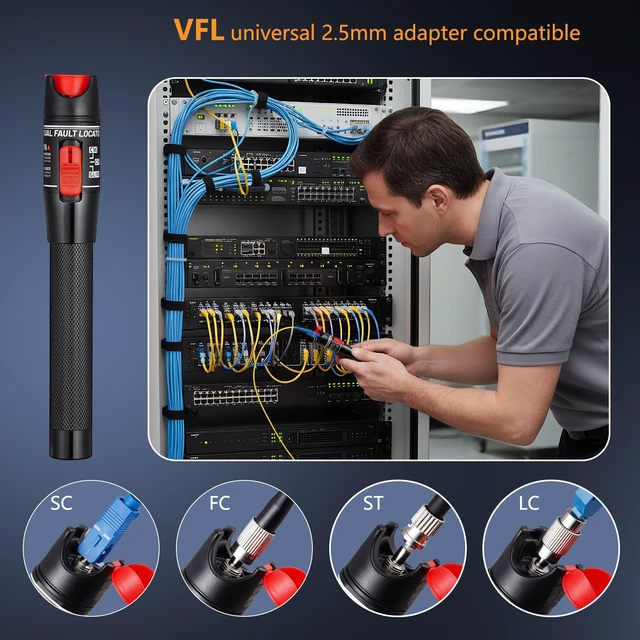

Universal Compatibility & Wide ApplicationsIncludes 2.5mm universal adapter for SC/FC/ST and FC-to-LC adapter for LC fiber tester needs. Supports Single Mode (SMF) and Multimode (MMF). Works as a fiber optic tracer for enterprise, telecom, surveillance, campus, and data networks.

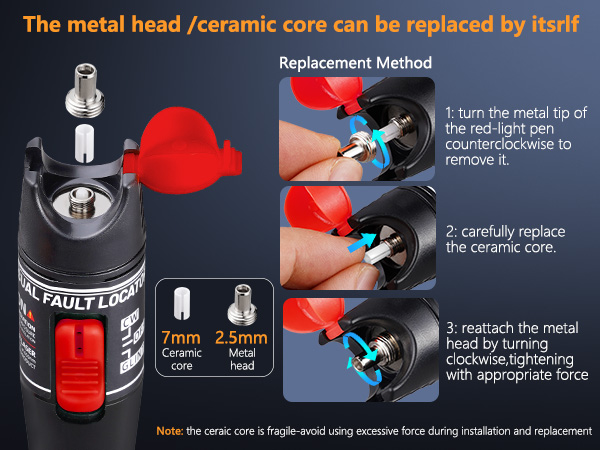

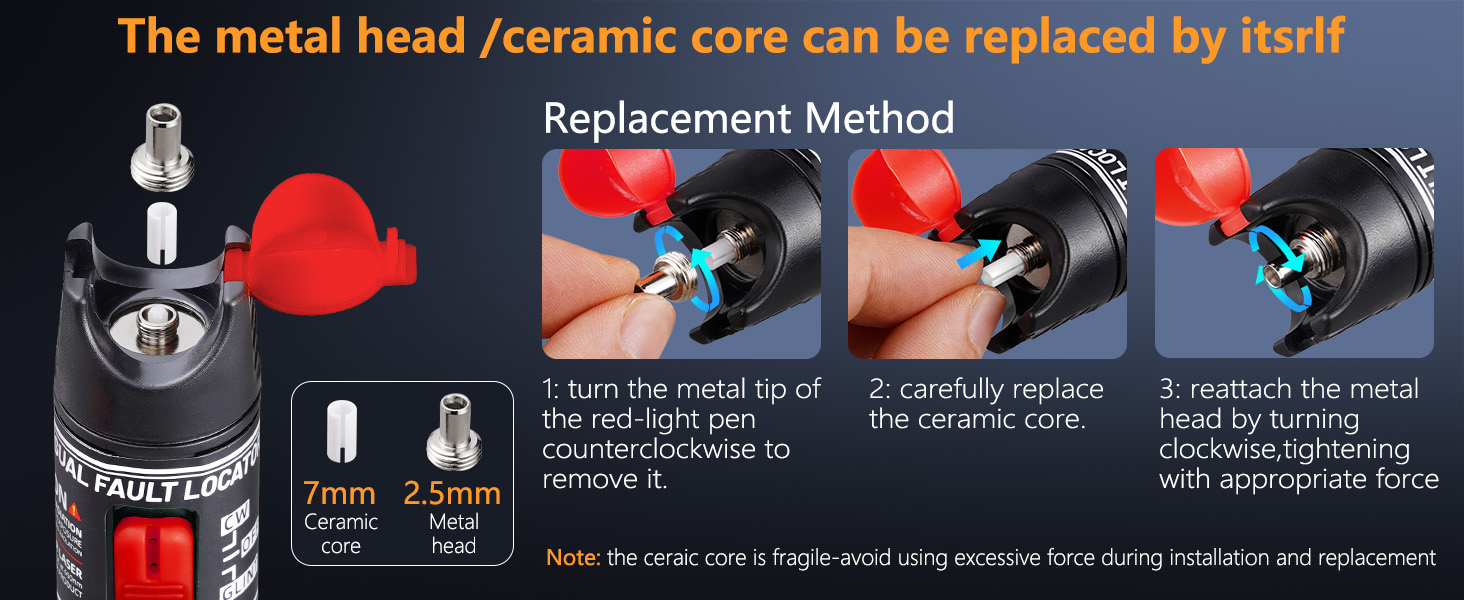

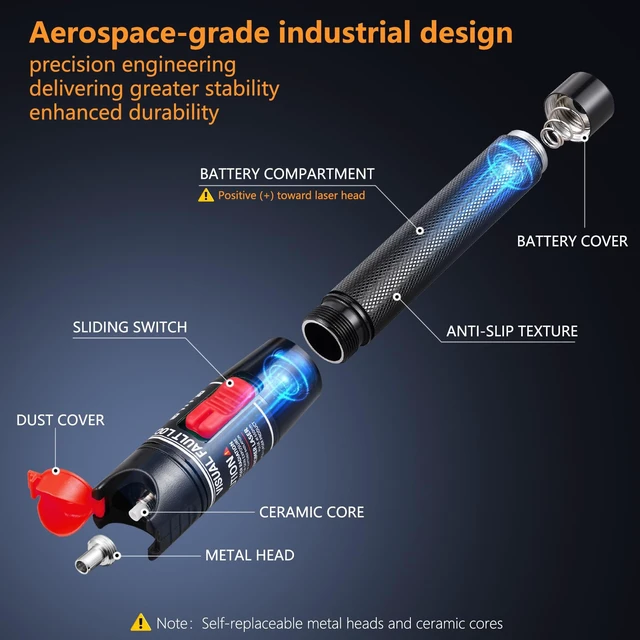

Long Battery Life, Brightness Troubleshooting & Replaceable Ceramic CoreUses 2 AA batteries (not included) for full-day field use. If this fiber light tester appears dim/weak: (1) replace batteries (most common cause); (2) check ceramic core for cracks; (3) clean connector with a cleaning pen. Install positive (+) toward laser head; reverse polarity prevents operation. Remove batteries for extended storage. Replaceable ceramic core extends product life and cuts maintenance costs.

VFL Fiber Optic HT-50	VFL Fiber Optic HT-30	VFL Fiber Optic HT-80	Rechargeable VFL HG-30	S09 Fiber Cleaver	Fiber Optic Tool Kit HT30	Fiber Optic Tool Kit HT50
Customer Reviews	Customer Reviews	Customer Reviews	Customer Reviews	Customer Reviews	Customer Reviews	Customer Reviews
—	—	—	—	—	—	—
Price	Price	Price	Price	Price	Price	Price
—	—	—	—	—	—	—
Power	Power	Power	Power	Power	Power	Power
Battery	Battery	Battery	Polymer battery	Cutter	Battery+Cutter	Battery+Cutter
model	model	model	model	model	model	model
HT-50	HT-30	HT-80	HG-30	S09	HT-30+S09	HT-30+S09
Material	Material	Material	Material	Material	Material	Material
Aircraft-grade Aluminum	Aircraft-grade Aluminum	Aircraft-grade Aluminum	High-strength plastic	Aircraft-grade Aluminum	Aircraft-grade Aluminum	Aircraft-grade Aluminum
Quantity	Quantity	Quantity	Quantity	Quantity	Quantity	Quantity
1	1	1	1	1	1	1
Application	Application	Application	Application	Application	Application	Application
Network cable detection	Network cable detection	Network cable detection	Network cable detection	Fiber End Face Cutting	Fiber Optic Tool Kit	Fiber Optic Tool Kit

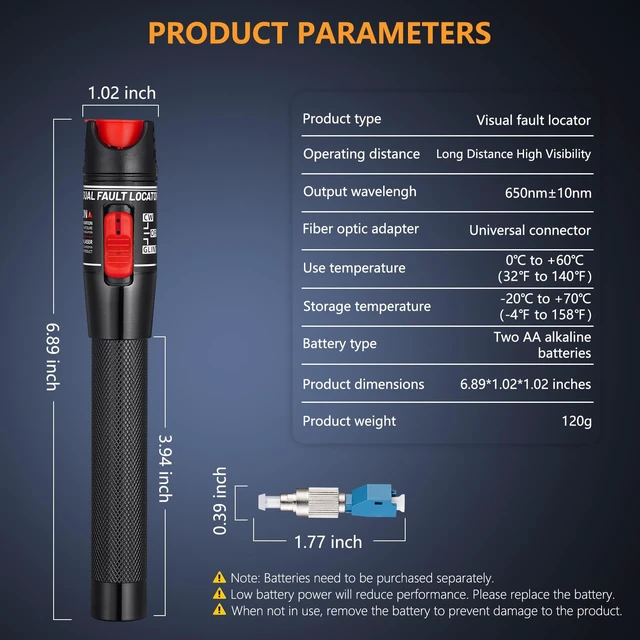

Size/Dimensions	3.4036 cm x 7.493 cm x 19.4056 cm
Bandwidth	Pen-style Visual Fault Locator, SC, FC, ST, LC
Sampling Rate	Pen-style Visual Fault Locator
Display Type	Pen-style Visual Fault Locator
Accuracy	±1db
Scope Channels	1
Color	Red
Number of Digits	Pen-style Visual Fault Locator

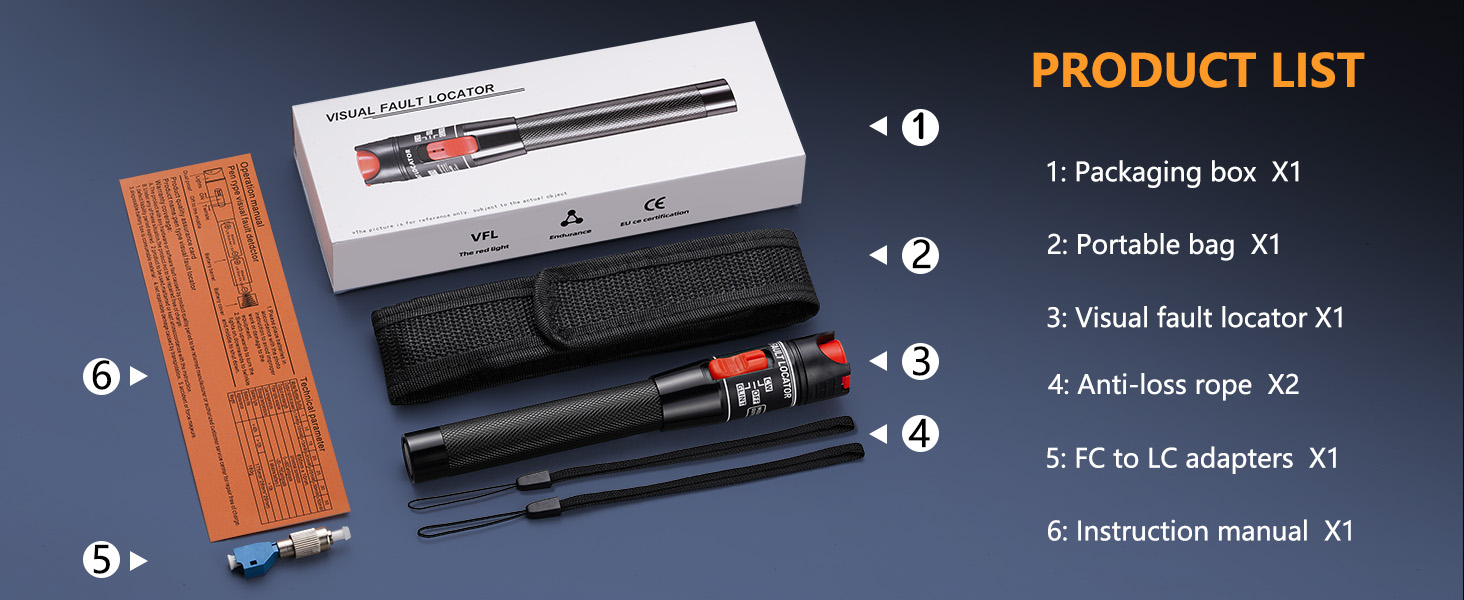

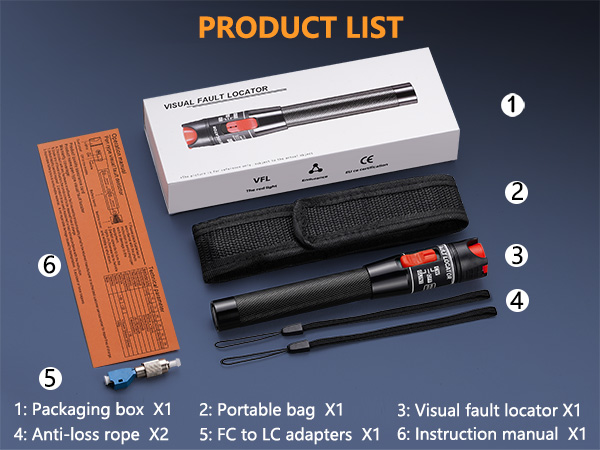

Mount	Visual Fault Locator ,Adapter,Carrying Pouch , Lanyard ,User Manual
Working Temperature	60 degrees_celsius
Gauge Glass Type	Pen-style Visual Fault Locator
Voltage	3 volts
Maximum Operating Temperature	60 degrees_celsius
Display Size	Pen-style Visual Fault Locator
Power Source	Battery Powered
Interface	Pen-style Visual Fault Locator
Data Storage	Pen-style Visual Fault Locator
Data Hold	Pen-style Visual Fault Locator
Sensitivity	±1db
Count Modes	Count
Operating Frequency	Pen-style Visual Fault Locator, not_applicable
Working Distance	HT-50
Number of Functions	Pen-style Visual Fault Locator
