What is included in the package with this extender kit?

The package includes the local transmitter unit, remote receiver unit, a mini-screwdriver for EQ/Gain adjustment, 2 mounting hardware kits, 2 external power supplies with NEMA 1-15P plugs, and the owner's manual.

How far can this VGA and audio signal be extended over Cat5e/6 cable at 1920 x 1440 resolution?

It can extend a 1920 x 1440 (60 Hz) video and audio signal up to 500 ft. when using 24Awg solid wire Cat5e/6 cable.

$140^.99

Free 80-day Returns

Limit 99999 per customer.

Sold by Newegg

Shipped by Newegg

Price alert

Add to Wish List

Best Sellers

Zoro

4.6 (2,802 total ratings)

$144^.99

More Resources

Manufacturer Brochure

Main image of Tripp Lite VGA with Audio Over Cat5 / Cat6 Extender, Transmitter and Receiver with EDID Copy, 1920x1440 at 60 Hz (B130-101A-2)

Shop All Tripp Lite Products

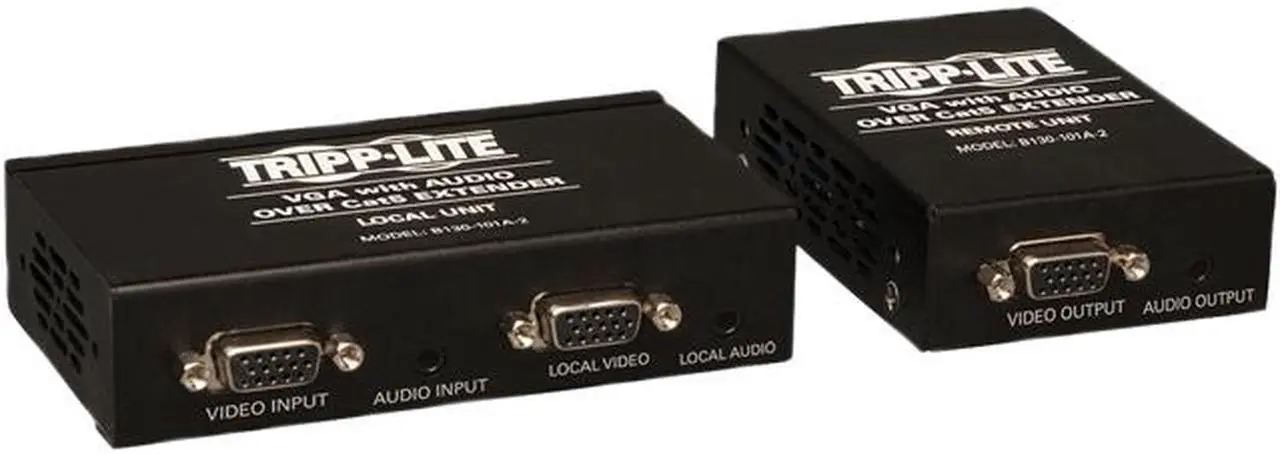

Tripp Lite VGA with Audio Over Cat5 / Cat6 Extender, Transmitter and Receiver with EDID Copy, 1920x1440 at 60 Hz (B130-101A-2)

(1 from Tripp Lite) Write a Review

Extends a 1920x1440 (60 Hz) video and audio signal up to 500 ft., or a 1024x768 (60 Hz) video and audio signal up to 1,000 ft., when using 24Awg, Solid Wire Cat5e/6 cable, such as Tripp Lute's N022-01K-GY (Cat5) and N222-01K-GY (Cat6)
EDID copy feature ensures optimal display compatibility
For optimal image quality between 500 and 1,000 ft., use Zero-Skew cable, such as Tripp Lite P524-01K
The remote (Receiver) unit features built-in Equalization and Gain controls to adjust the video image
Includes mounting hardware for both local and remote units, allowing them to be wall mounted, rack mounted or pole mounted

Overview

Specs

Reviews (1)

See all Q & A

Any questions? Ask Celeste^SM will help you find out quickly.

Try me now

VGA & Audio over Cat5 Extender Kit Transmitter Receiver TAA GSA

Model
Brand	Tripp Lite
Model	B130-101A-2

Connection
Network Interface	Side A: RJ45 (FEMALE) Side B: RJ45 (FEMALE)
VGA	Side A: 2 x HD15 (FEMALE) Side B: HD15 (FEMALE)
Analog Aduio	Side A: 2 x 3.5MM (FEMALE) Side B: 3.5MM (FEMALE)

Specification
Specification	COMMUNICATIONS Max 1024 x 768 Range (ft.): 1000 Max 480P Range (ft.): 1000 Max 1440 x 900 Range (ft.): 500 Max 1080i Range (ft.): 500 Max 1080P Range (ft.): 500 Max 1920 x 1440 Range (ft.): 500 Max 480i Range (ft.): 1000 Max 640 x 480 Range (ft.): 1000 Max 800 x 600 Range (ft.): 1000 Max 1600 x 1200 Range (ft.): 500 Max 1920 x 1200 Range (ft.): 500 Max 720P Range (ft.): 500

Feature
Feature	Extends a 1920 x 1440 (60 Hz) video and audio signal up to 500 ft., or a 1024 x 768 (60 Hz) video and audio signal up to 1,000 ft., when using 24Awg, Solid Wire Cat5e/6 cable, such as Tripp Lite's N022-01K-GY (Cat5) and N222-01K-GY (Cat6) EDID copy feature ensures optimal display compatibility The range and number of monitors/speakers can be further expanded by adding B132-110A repeater units Connect up to 3 repeaters, with the B130-101A-2 receiver at the end of the chain, for a total of 4 sets of monitors and speakers A 1920 x 1440 (60 Hz) Video and Audio signal can be extended up to 500 ft. from the first repeater in the chain to the last receiver. A 1024 x 768 (60 Hz) Video and Audio signal can be extended up to 1,000 ft. from the first repeater in the chain to the last receiver For optimal image quality between 500 and 1,000 ft., use Zero-Skew cable, such as Tripp Lite P524-01K The remote (Receiver) unit features built-in Equalization and Gain controls to adjust the video image Includes mounting hardware for both local and remote units, allowing them to be wallmounted, rackmounted or pole mounted Ideal for digital signage situations, such as retail, schools, churches, etc. Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases

Dimensions & Weight
Dimensions	Transmitter: 1.00" x 4.50" x 2.50" Receiver: 1.00" x 2.50" x 3.50"

Package Contents
Package Content	Local (Transmitter) unit Remote (Receiver) unit Mini-Screwdriver for EQ/Gain adjustment 2 x Mounting Hardware Kits 2 x External Power Supply with NEMA 1-15P Plug (Input: 100-240V, 50/60 Hz, 0.5A Output: 5V, 2A) Owner's Manual

Additional Information
First Listed on Newegg	October 24, 2013

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Limited Warranty period (parts): 1 year
Limited Warranty period (labor): 1 year
Read full details

Return Policies

We want to ensure your holiday shopping this year is hassle-free. That’s why we’re automatically extending our return policies on almost every product! For purchases placed between November 1st, 2026 and December 31, 2026 you will have until January 31, 2027 to return your product.

Return for refund until: January 31, 2027
Return for replacement until: January 31, 2027
This item is covered by Newegg.com's Extended Holiday Return Policy.
Read full return policy for details.

Manufacturer Contact Info

The Tripp Lite B130-101A-2 is a VGA-and-audio extender kit for sending signals over Cat5e/6 cable, suited to digital signage and other installations where a display is far from its source; it supports up to 1920×1440 at 60 Hz over 500 ft. with specified cable.

Recommended For

Retail, school, or church AV teams extending an existing VGA-and-audio source to a distant display for digital signage or announcements.
Installers connecting a VGA computer to a remote projector or monitor over existing solid-wire Cat5e/6 cabling, where running a long VGA cable is impractical.
Facilities maintaining legacy VGA equipment that need to carry both video and analog audio to a remote display, with resolution and distance matched to the cable run.
AV integrators sending the same VGA video and audio to multiple remote display locations by adding compatible B132-110A repeaters.

Spec Summary

Attribute	Value
Best For	Extending VGA video and analog audio over Cat5e/6 for digital signage in retail, schools, churches, and similar settings
Signal Extension And Compatibility	Supports up to 1920 × 1440 at 500 ft. and 1024 × 768 at 1,000 ft. over 24 AWG solid-wire Cat5e/6; other listed limits include 1600 × 1200 and 1920 × 1200 at 500 ft., and 640 × 480, 800 × 600, and 480i/480p at 1,000 ft. EDID copy supports display compatibility. Zero-skew cable is recommended for image quality between 500 and 1,000 ft.
Interfaces	Transmitter: 2 female HD15 VGA and 2 female 3.5 mm audio inputs, plus female RJ45; receiver: female HD15 VGA and female 3.5 mm audio outputs, plus female RJ45
Expansion And Image Adjustment	Can connect up to 3 B132-110A repeaters, for up to 4 sets of monitors and speakers; receiver has equalization and gain controls for video adjustment
Mounting	Includes hardware for wall, rack, or pole mounting of the transmitter and receiver
Power And Included Components	Includes transmitter, receiver, mini-screwdriver for EQ/gain adjustment, two mounting hardware kits, two external power supplies with NEMA 1-15P plugs, and owner’s manual; power supplies accept 100–240 V, 50/60 Hz, 0.5 A and output 5 V, 2 A
Physical Dimensions	Transmitter: 1.00 × 4.50 × 2.50 in.; receiver: 1.00 × 2.50 × 3.50 in.
Compliance	Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
Model Identifiers	Tripp Lite B130-101A-2
