Cable Type: VGA Display Style: Splitter Color: Black
Feature
Feature

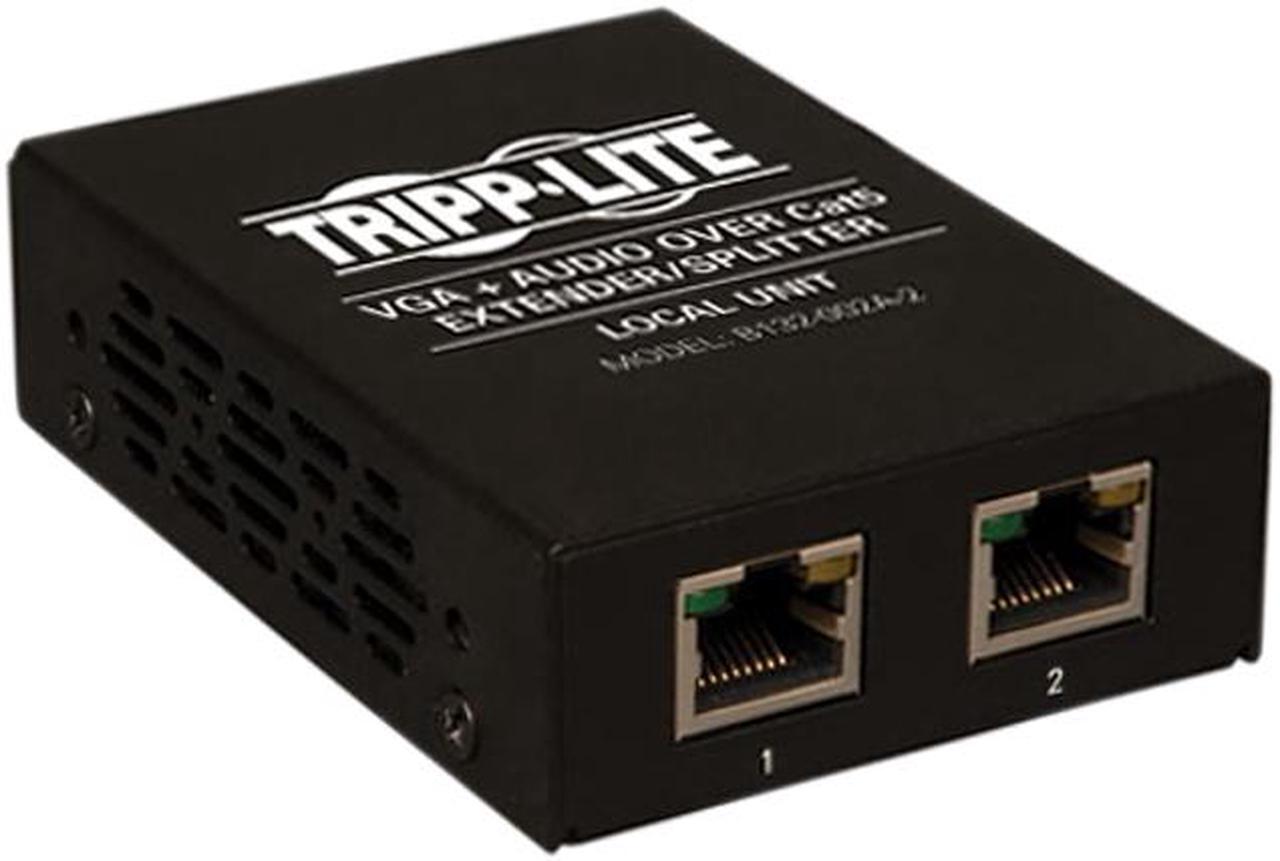

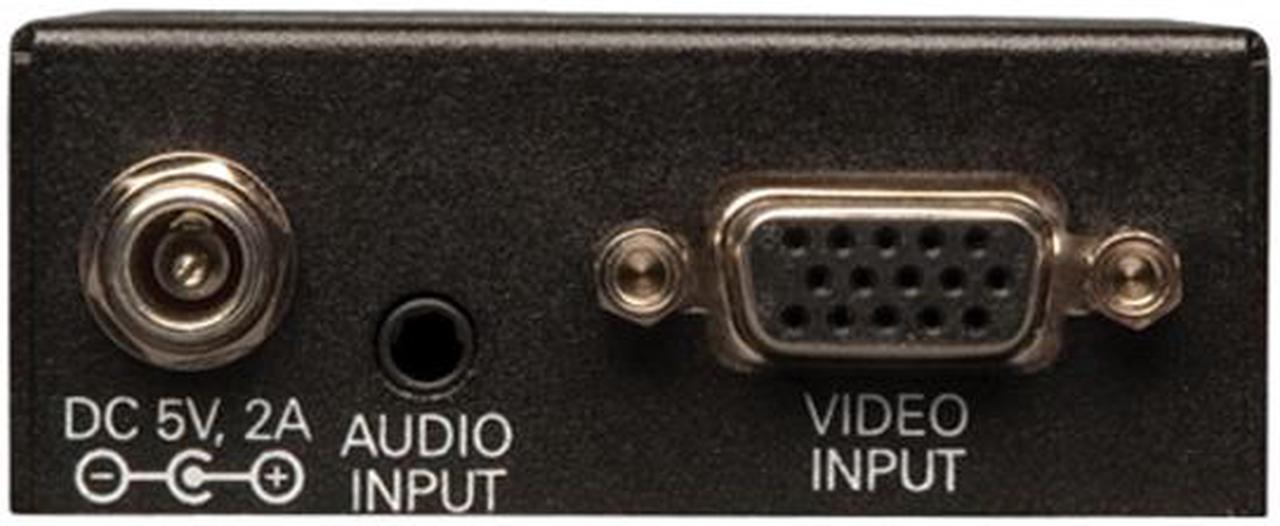

Splits a single VGA Video and Audio signal into 2
A B132-100A or B132-100A-WP-1 remote receiver unit is required for each connected monitor
Extends a 1920 x 1440 (60Hz) Video and Audio signal up to 500 ft., or a 1024 x 768 (60Hz) Video and Audio signal up to 1,000 ft., when using 24Awg, Solid Wire Cat5e/6 cable, such as Tripp Lite's N022-01K-GY (Cat5) and N222-01K-GY (Cat6)
Can further expand the range and number of monitors/speakers by adding B132-110A repeaters
Connect up to 4 remote units in a repeater chain (3 repeaters and 1 receiver), with a set of monitor and speakers at each location
A 1920 x 1440 (60Hz) Video and Audio signal can be extended up to 500 ft. from the first repeater in the chain to the last receiver. A 1024 x 768 (60Hz) Video and Audio signal can be extended up to 1,000 ft. from the first repeater in the chain to the last receiver.
For optimal image quality between 500 and 1,000 ft., use Zero-Skew cable, such as Tripp Lite P524-01K
Includes mounting hardware that allows unit to be wallmounted, rackmounted or pole mounted.
Ideal for digital signage situations, such as retail, shools, churches, etc.
Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
Dimensions & Weight
Dimensions
3.7" x 2.5" x 1"
Weight
0.45 lbs.
Package Contents
Package Content

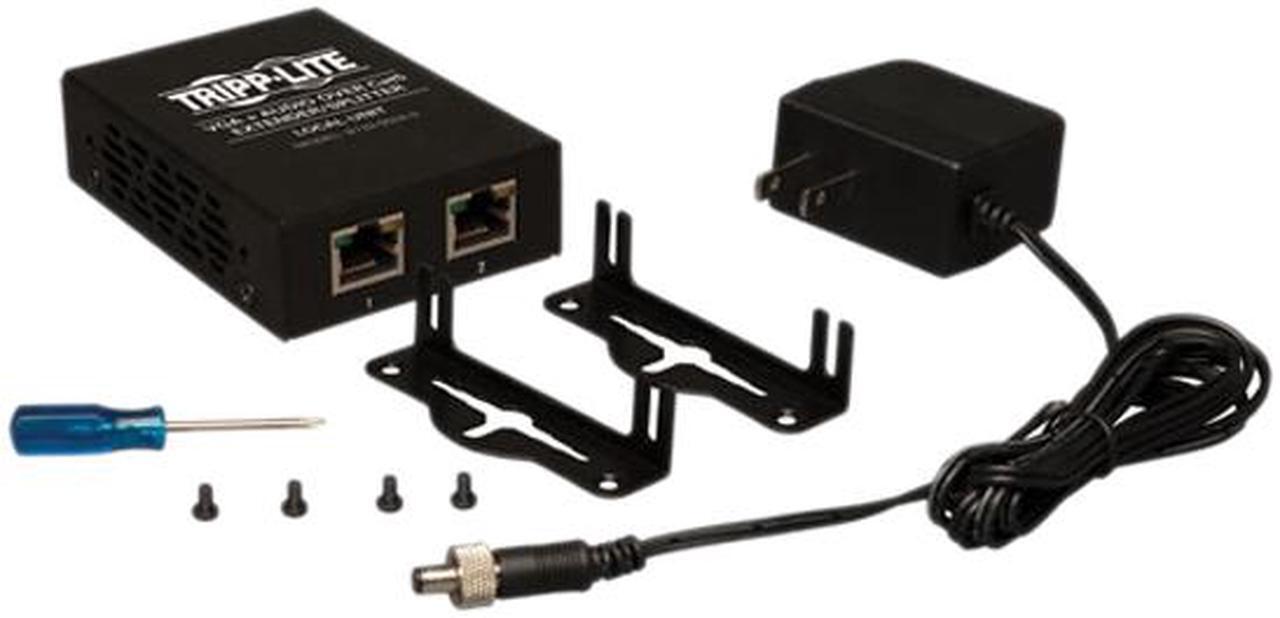

2 Port Extender/Splitter local (Transmitter) unit Mounting hardware External Power Supply Owner's Manual
Additional Information
Date First Available
October 26, 2024
