Extend a DVI-D Single-Link signal up to 200 ft. at 1024 x 768 (60Hz), or up to 150 ft. at 1920 x 1080 (60Hz), when using 24Awg, solid wire Cat5e/6 cabling. (Tripp Lite N202-Series)
Features a built-in Equalization control for adjustment of the video image
Can further expand the range and number of monitors by adding B140-110 repeaters
Compatible with all operating systems & plug and play, no software or drivers required
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
DVI Over CAT5 2pc Super - Extender Kit up to 200ft
up to 200 ft. at 1024 x 768 (60Hz) up to 150 ft. at 1920 x 1080 (60Hz)
Color
Black
Indicater
LED Indicator

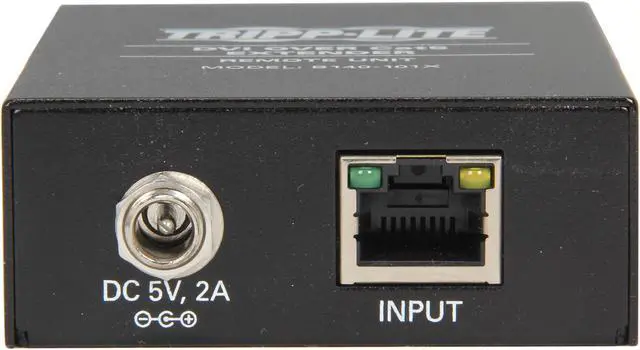

The Green RJ45 LED on the local unit illuminates to indicate it is connected to and receiving power from the source. The Orange RJ45 LED on the local unit does not illuminate. The Green RJ45 LED on the remote unit illuminates to indicate it is receiving power from the external power supply. The Orange RJ45 LED on the remote unit illuminates to indicate it is connected to the local unit and receiving a signal from the source.
Compatibility
System Requirements
Computer with DVI video card, and monitor with DVI input
Specification
Specification
Cable Type: DVI Display Style: Extender
Connector A: DVI-D SINGLE LINK (MALE) Connector B: X2) RJ45 (FEMALE) Connector C: DVI-I (FEMALE)
Feature
Feature
Kit comes with both local transmitter and remote receiver units.
Extend a DVI-D Single-Link signal up to 200 ft. at 1024 x 768 (60Hz), or up to 150 ft. at 1920 x 1080 (60Hz), when using 24Awg, solid wire Cat5e/6 cabling. (Tripp Lite N202-Series)

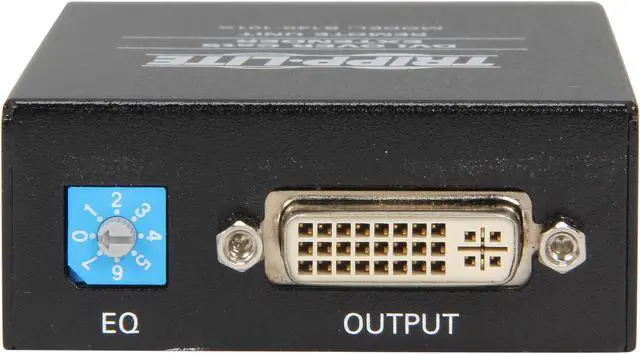

Remote unit features built-in Equalization setting that allows for adjustment of the video image.
Mounting hardware is included that allows the remote unit to be wallmounted, rackmounted or pole-mounted.
No software or drivers required.
HDCP and DDC compatible
Compatible with all operating systems.
Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.
Dimensions & Weight
Weight
1.22
Package Contents
Package Content

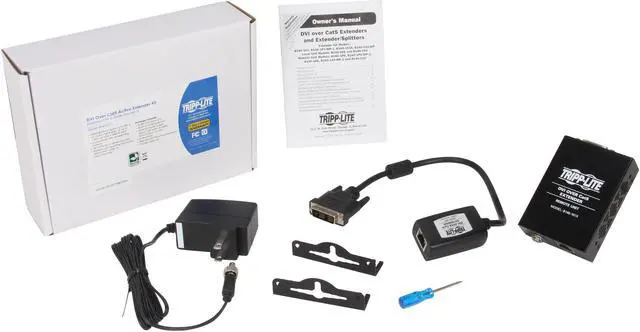

B140-101X local transmitter unit B140-101X remote receiver unit Screwdriver (used for Equalization control) Mounting hardware External power supply (Input: 100-240V, 50/60Hz, 0.5A Output: 5V, 2A) Owner's manual
