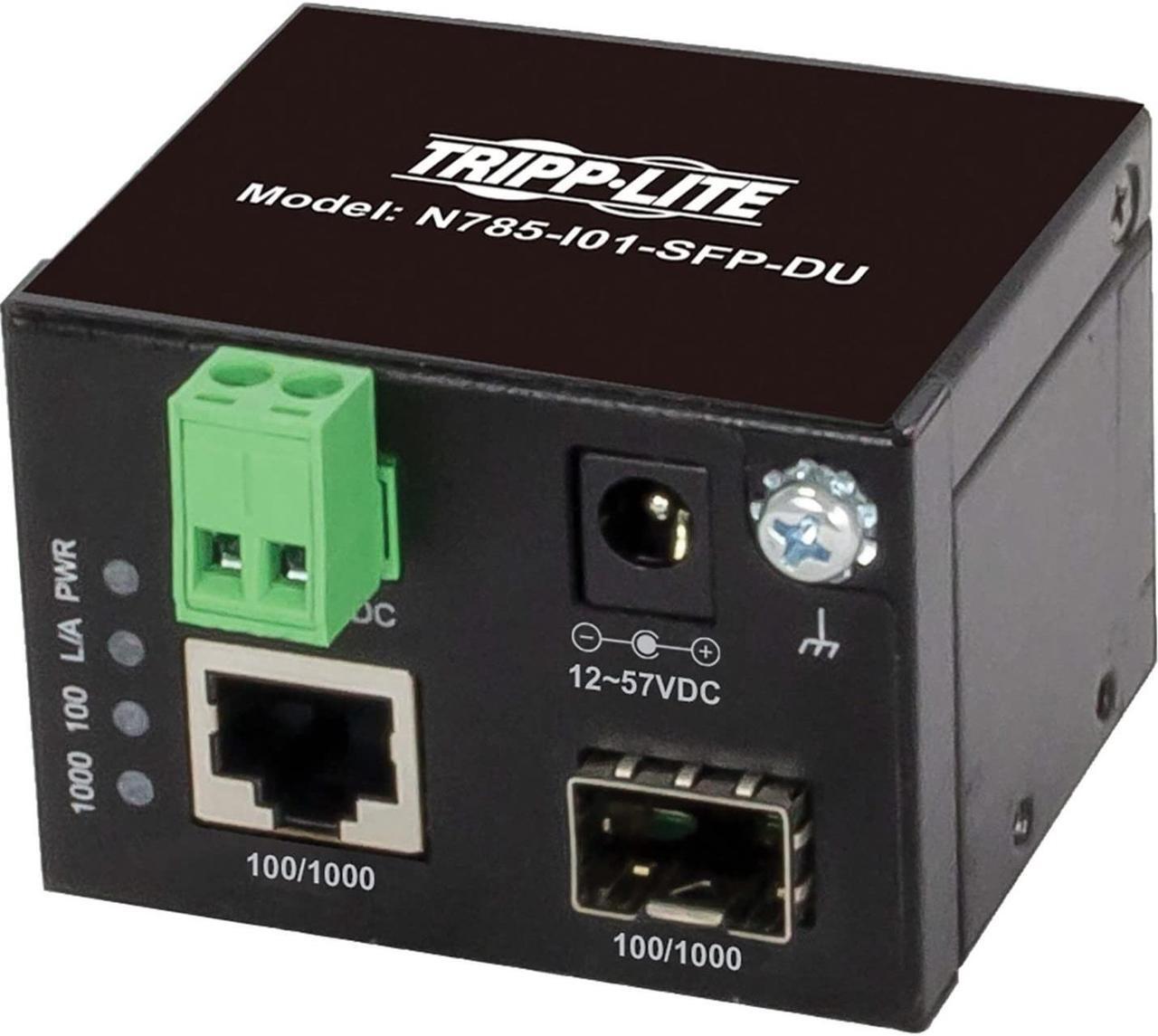

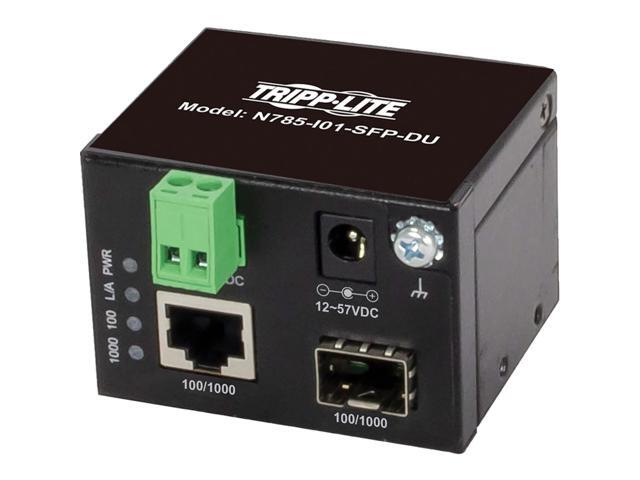

Tripp Lite N785-I01-SFP-DU Unmanaged Industrial Gigabit Fiber to Ethernet Media Converter, 10/100/1000 Mbps, RJ45/SFP, -40° to 75°C, DC Power
- 10 Mbps; 100 Mbps; 1000 Mbps
- RJ45 (FEMALE); SFP (FEMALE)
+
+
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the Tripp Lite N785-I01-SFP-DU
| Brand | Tripp Lite |
|---|---|
| Model | N785-I01-SFP-DU |
| Device Type | Converter |
|---|---|
| Media Conversion | Fiber to Ethernet |
| Standards | 802.3ab; 802.3u; 802.3z |
| Network Media | Multimode; Singlemode |
| Ports | RJ45 (FEMALE); SFP (FEMALE) |
| Transfer Rate | 10 Mbps; 100 Mbps; 1000 Mbps |
| LEDs | PWR (Power), L/A (For Ethernet port link-up), 100 (For Ethernet & SFP speed 100Mbps), 1000 (For Ethernet & SFP speed 1000Mbps) |
| Power Adapter | 12-57V DC |
| Temperature | Operating Temperature Range: -40 to 167F (-40 to 75C) Storage Temperature Range: -40 to 185F (-40 to 85C) |
|---|---|
| Humidity | Operating Temperature Range: -40 to 167F (-40 to 75C) Storage Temperature Range: -40 to 185F (-40 to 85C) Relative Humidity: 5% to 95% RH, Non Condensing Operating Humidity Range: 10% to 95% RH (Non Condensing) Storage Humidity Range: 5% to 95% RH (Non Condensing) |
| Feature | Customize a Network Extension over Fiber Optic Cable This unmanaged media converter works with a variety of SFP transceivers to convert a copper Gigabit Ethernet signal to fiber optic and extend it to a second network device. The customizable SFP port supports both singlemode and multimode transceivers, allowing your network connection to reach hubs, switches and other devices located farther away than copper cabling’s 100-meter limit. Auto-negotiation and automatic MDI/MDI-X configuration seamlessly connect devices without crossover cabling. LEDs Indicate Installation Performance and Diagnostic Functions Easy-to-read LEDs on the side of the unit indicate essential information, including network speed, connection status and unit power. The included 12-57VDC terminal block provides primary and secondary power inputs. You can also power the media converter with a user-supplied 12VDC power supply. Protective Metal Housing Built to Withstand a Variety of Hazards The IP30 industrial-grade aluminum case is protected from entry by tools, wires and other solid objects greater than 2.5 millimeters in diameter. It can also operate in extreme temperatures ranging from -40 to 75 degrees Celsius (-40 to 167 degrees Fahrenheit). It is protected from electrostatic discharge (ESD), radio frequency interference (RFI) and power surges. Hardware is included for DIN mounting. TAA-Compliant for GSA Schedule Purchases The N785-I01-SFP-DU is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts. |
|---|
| Dimensions | 1.97" x 1.67" x 2.36" |
|---|---|
| Weight | 0.42 lb. |
| Package Contents | N785-I01-SFP-DU Media Converter SFP connector cap RJ45 connector cap Terminal block (12-57VDC) DIN rail kit Quick Start Guide |
|---|
| First Listed on Newegg | January 07, 2025 |
|---|
