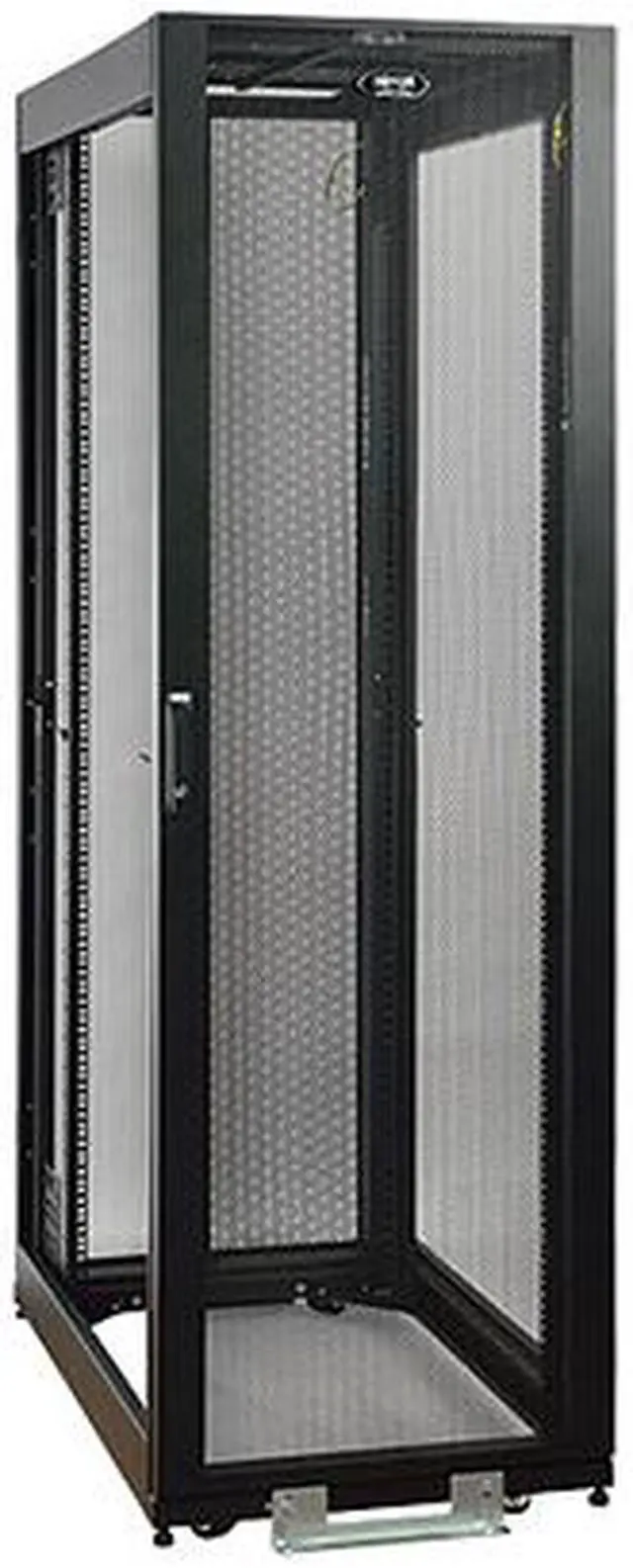

Main image of Tripp Lite SR2400 42U 42U SmartRack Value Series Rack Enclosure Cabinet (includes doors and side panels)

Alt view image 2 of 11 - Tripp Lite SR2400 42U 42U SmartRack Value Series Rack Enclosure Cabinet (includes doors and side panels)

Alt view image 3 of 11 - Tripp Lite SR2400 42U 42U SmartRack Value Series Rack Enclosure Cabinet (includes doors and side panels)

Alt view image 4 of 11 - Tripp Lite SR2400 42U 42U SmartRack Value Series Rack Enclosure Cabinet (includes doors and side panels)

Alt view image 5 of 11 - Tripp Lite SR2400 42U 42U SmartRack Value Series Rack Enclosure Cabinet (includes doors and side panels)

Alt view image 6 of 11 - Tripp Lite SR2400 42U 42U SmartRack Value Series Rack Enclosure Cabinet (includes doors and side panels)

Alt view image 7 of 11 - Tripp Lite SR2400 42U 42U SmartRack Value Series Rack Enclosure Cabinet (includes doors and side panels)

Alt view image 8 of 11 - Tripp Lite SR2400 42U 42U SmartRack Value Series Rack Enclosure Cabinet (includes doors and side panels)

Alt view image 9 of 11 - Tripp Lite SR2400 42U 42U SmartRack Value Series Rack Enclosure Cabinet (includes doors and side panels)

Alt view image 10 of 11 - Tripp Lite SR2400 42U 42U SmartRack Value Series Rack Enclosure Cabinet (includes doors and side panels)

Alt view image 11 of 11 - Tripp Lite SR2400 42U 42U SmartRack Value Series Rack Enclosure Cabinet (includes doors and side panels)

Shop All Tripp Lite Products

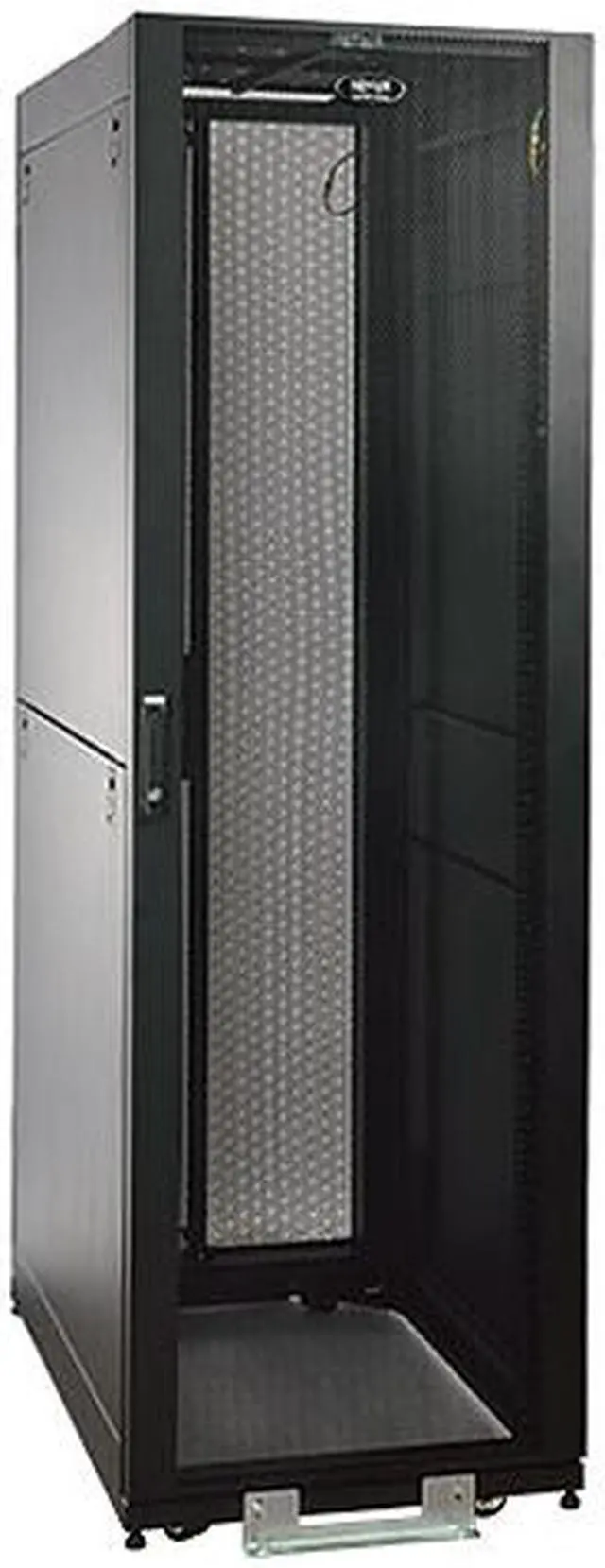

Tripp Lite SR2400 42U 42U SmartRack Value Series Rack Enclosure Cabinet (includes doors and side panels)

Be the first to review this product...

Standard 24" (600mm) width and 42" (1050mm) depth for optimal use of floor space
Ships fully assembled
2400 lb stationary / 2250 lb rolling load capacity

Overview

Specs

Reviews

See all Q & A

Any questions? Our AI beta will help you find out quickly.

Try me now

Model
Brand	Tripp Lite
Model	SR2400

Details
Type	Rack Enclosure Cabinet
Rack Units	42U
Color	Black
Weight Capacity	Stationary: 2400 lbs. Rolling: 2250 lbs.

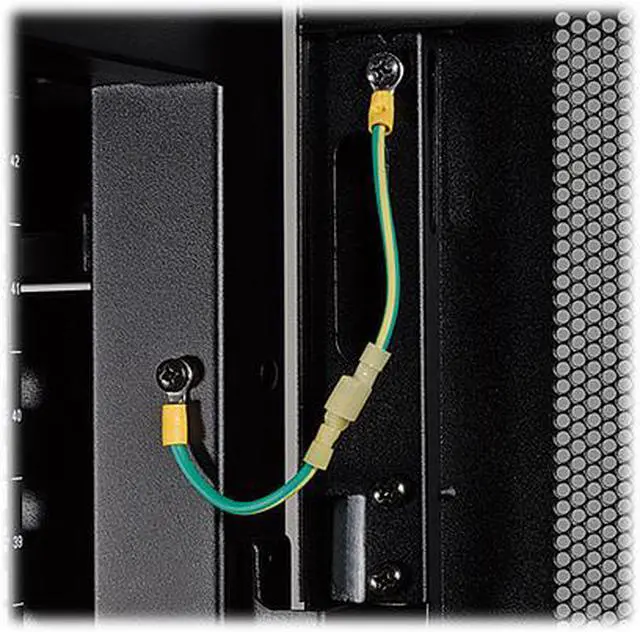

Specification	Installed whole system maximum rack depth: 37" Installed whole system minimum rack depth: 4" Style: Floor Standing Factory preset rack depth: 27.75" Grounding lug: Front and back door frames CERTIFICATIONS: Certifications: UL60950; RoHS; CE NOM (Mexico): Tested to NOM (Mexico) Approvals: EIA / ECA-310-E

Features

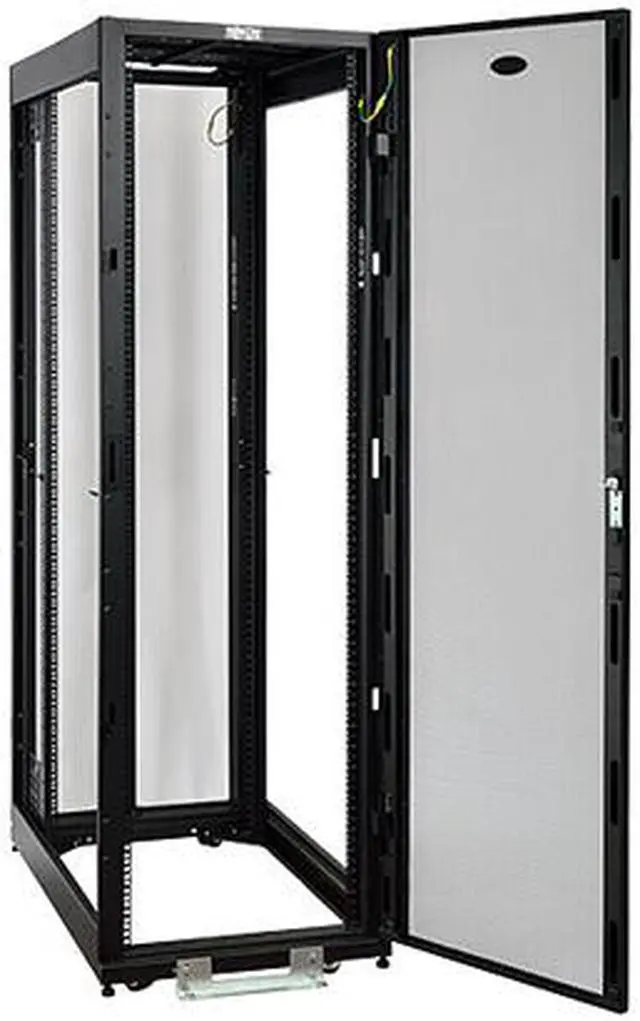

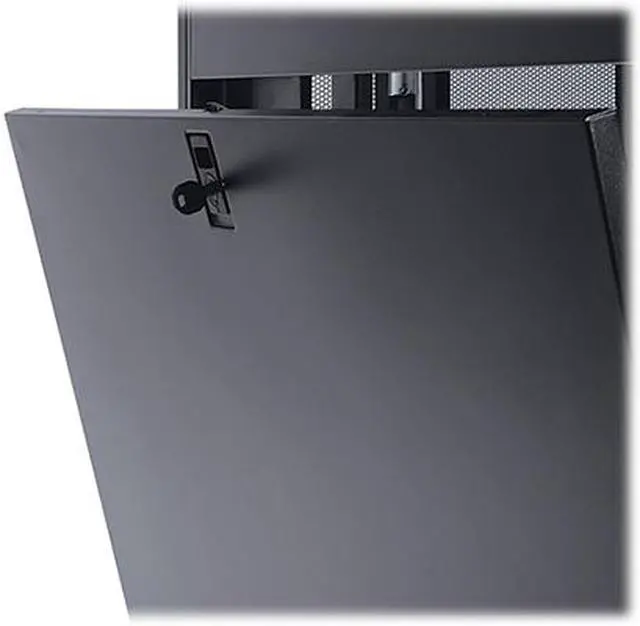

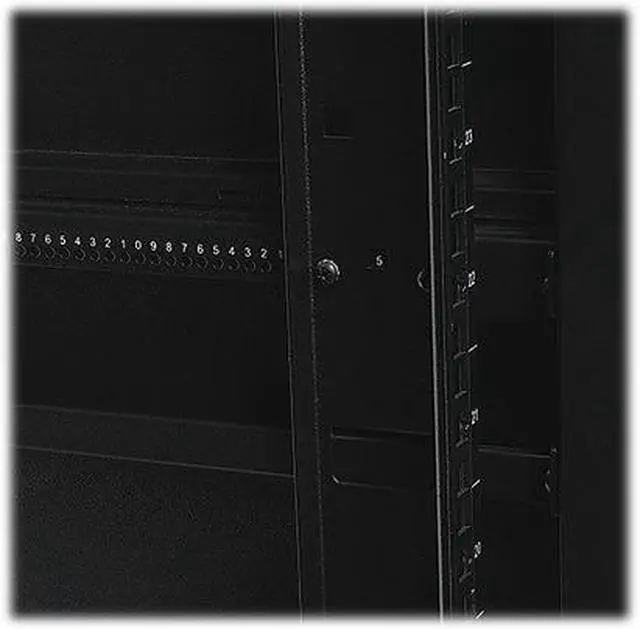

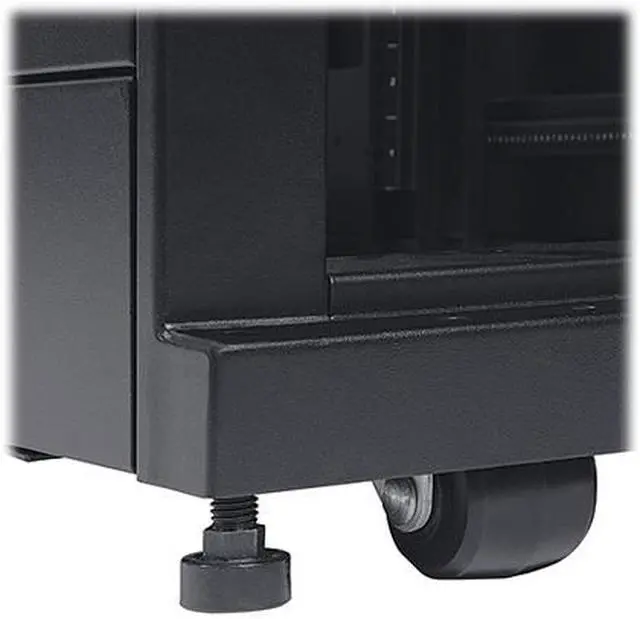

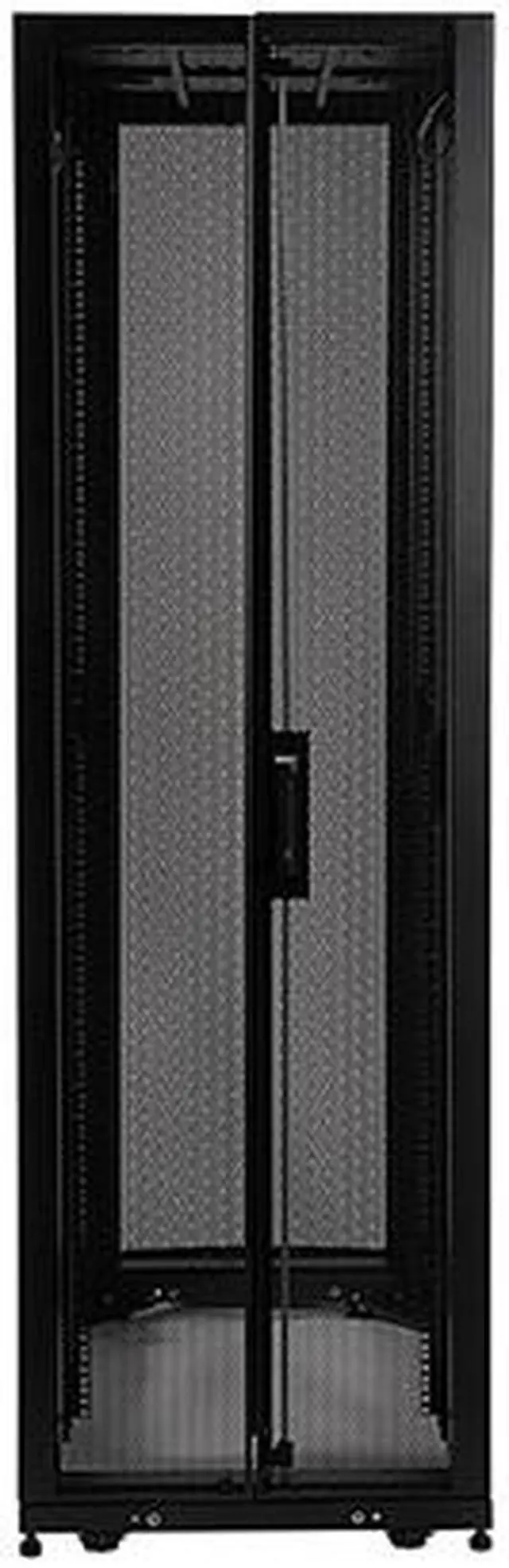

Features	Ships fully assembled for rapid deployment and rolls into place on heavy-duty pre-installed casters (casters are removable) Front and rear sets of equipment mounting rails adjust in 1/4" increments. Adjustment is quick and convenient. The easy-view depth index ensures consistent rail placement without requiring time-consuming measurements. Toolless mounting brackets allow quick installation of compatible PDUs and vertical cable managers. Each rack can accommodate two vertical PDUs Rack Enclosure includes mounting hardware of 50 pieces of M6 cage nuts and 50 pieces of M6 screws Tough textured powder coat finish resists conditions found in non-IT environments such as warehouses Massive front-to-rear ventilation capacity. 65+% open space in door perforation pattern meets or exceeds server manufacturer requirements Maximum usable internal depth of 37 inches/94 cm (front to rear rail) Weight ratings of 2400 lb stationary and 2250 lb rolling Front door is locking, reversible and removable Rear doors are locking and reversible. Split rear door design reduces clearance requirements for service entry allowing the enclosure to be placed closer to a wall Locking removable side panels are 'half size' to make them smaller and lighter improving ease of installation and servicing. Two side panels per side (4 panels total). Side panels are keyed alike to the front and rear doors. Built in baying tabs allow enclosures to be combined securely in rows. Center-to-center width can be set at 600mm or 24" to match standard data center floor tiles Leveling feet extend to allow enclosure to be positioned on uneven floors. Levelers are removable Compact design allows the enclosure to roll through standard height commercial doorways Convenient grounding system. All components are grounded to the enclosure frame which includes multiple connections for facility ground. Front and rear doors include quick-release ground wires.
Included Accessory	SR2400 Rack Value Series Rack Enclosure Cabinet (4) side panels (4) side panel locks (2) door & side panel keys (50) M6 screws (50) M6 washers (50) M6 cage nuts Owner's Manual

Dimension & Weight
Unit Dimension	78.5" x 23.63" x 43.00"
Unit Weight	260 lbs.
Shipping Dimension	84.50" x 27.75" x 47.00"
Shipping Weight	315 lbs.

Additional Information
First Listed on Newegg	October 20, 2014

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Limited Warranty period (parts): 5 years
Limited Warranty period (labor): 5 years
Read full details

Return Policies

Return for refund within: Non-refundable

Return for replacement within: 30 days

This item is covered by Newegg.com's Replacement Only Return Policy.
Read full return policy for details.

Manufacturer Contact Info

Manufacturer Product Page
Manufacturer Website
Support Phone: 1-773-869-1111
Support Website
