I know it's not really meant for this but would it be big enough to store a PC and video game consoles?

It depends on the size of the PC case but probably yes. I have placed a small backup server and battery backup along with switch and patch panel, it will hold a lot of weight if mounted correctly. It is about 2 feet tall inside.

Does the SmartRack 12 U cabinet have vertical mounting rails in the front and back of the enclosure?

Yes it does have normal rails so you can mount a shelf or network equipment directly to the vertical rails. It only has rails in the front.

Would I be able to fit a cable manager inside if the manager sticks out a little past 3" from the rails? How much space is there max?

You can if you move the rails back in the front. Unless your equipment is really deep, you should be able to move the front rails back and install your cable manager without difficultly. I did it with tripp lite cable managers and they originally stuck out about an inch too far. Moved the rails back one peg and all was well. My patch panels, switches, router, and UPS all installed with plenty of room behind them.

What are the dimensions and weight of the Tripp Lite 12U Wall-Mount Rack Enclosure Cabinet?

The unit dimensions are 25.0" x 23.62" x 17.69" and the unit weight is 48.50 lbs.

What is the maximum load capacity of the Tripp Lite 12U Wall-Mount Rack Enclosure Cabinet?

The maximum load capacity is 200 lbs.

$448^.99

Limit 99999 per customer.

Price alert

Add to wish list

Sold by Newegg

Shipped by Newegg

Best Sellers

Deal Targets

Hot Seller

3.2 (2,123 total ratings)

$404^.81
+ $64.53 Shipping

BeachAudio

Top Rated

4.4 (8,564 total ratings)

$575^.11

Volume Discounts Available

Hot Deals 4 Less

Hot Seller

4 (3,708 total ratings)

$872^.29

More Resources

TrippLite;SRW12U13;SRW12U13 Submittal Drawing - Tripp Lite

Shop All Tripp Lite Products

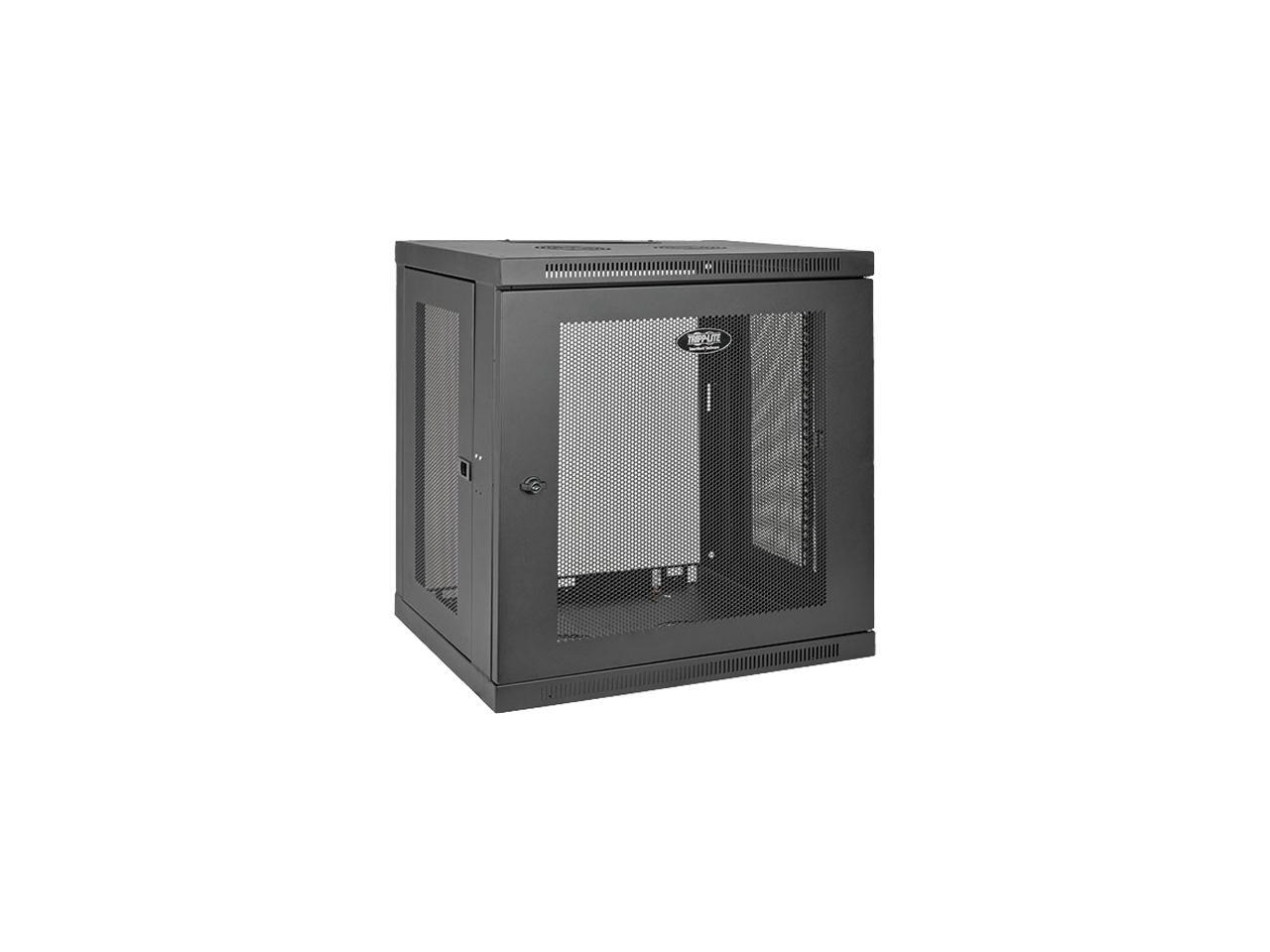

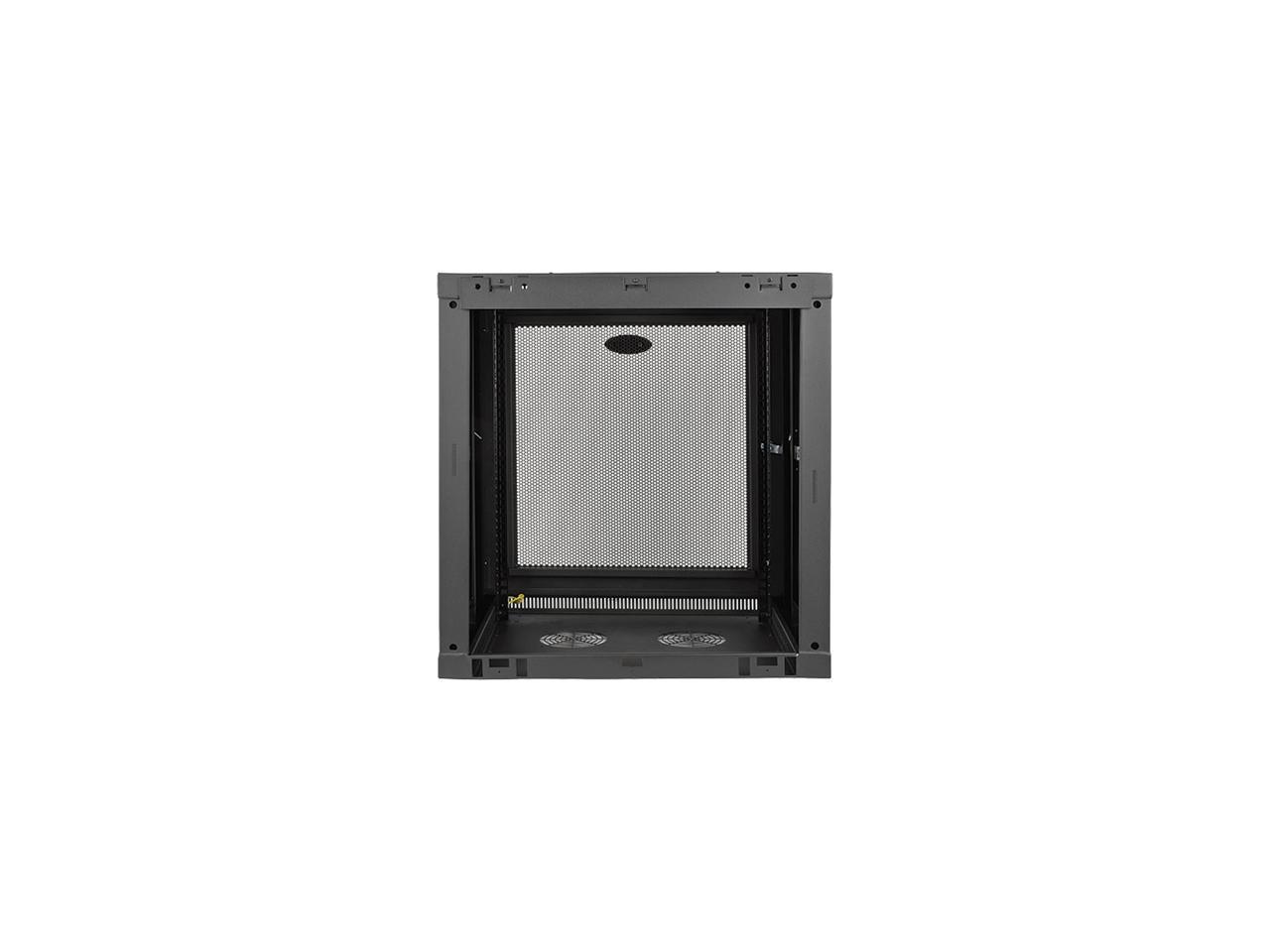

Tripp Lite 12U Wall-Mount Rack Enclosure Cabinet, Low-Profile Switch-Depth (SRW12U)

(2) Write a Review

Secures 12U of 19 in. rack equipment up to 16.5 in. deep
Maximum load capacity of 200 lbs.
Locking steel cabinet vented at sides, front, top and bottom
Mounts to wall or rolls on floor (with optional SRCASTER)
5-Year Limited Warranty

This item is covered under the Manufacturer Only Return Policy.

Overview

Specs

Reviews (2)

See all Q & A

Any questions? Our AI beta will help you find out quickly.

Try me now

SmartRack 12U Low-Profile Switch-Depth Wall-Mount Rack Enclosure Cabinet

Best Seller Ranking	#55 in Server Racks / Cabinets

Model
Brand	Tripp Lite
Model	SRW12U

Details
Type	Wall Mount Cabinet
Rack Units	12U
Color	Black

Features

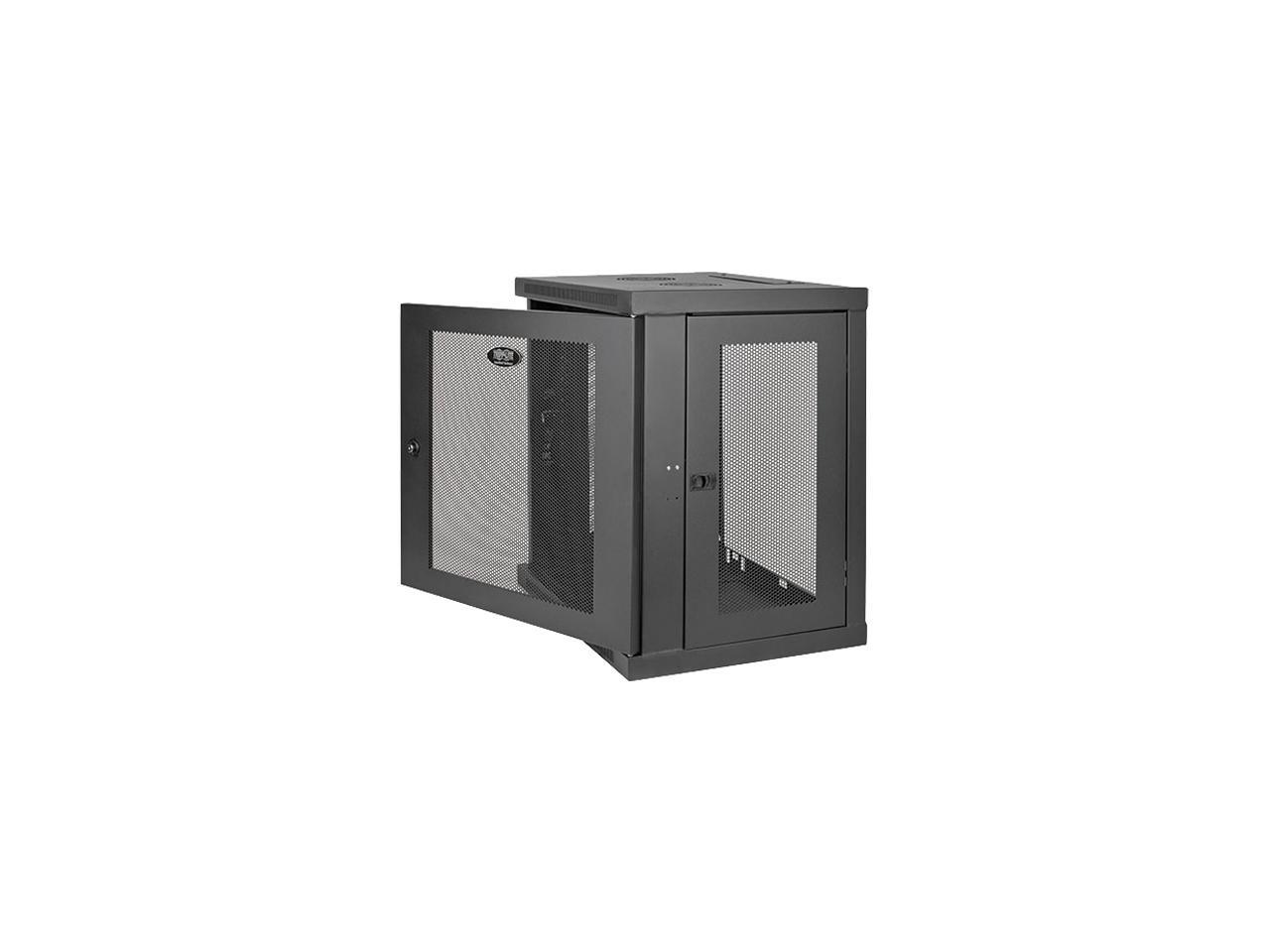

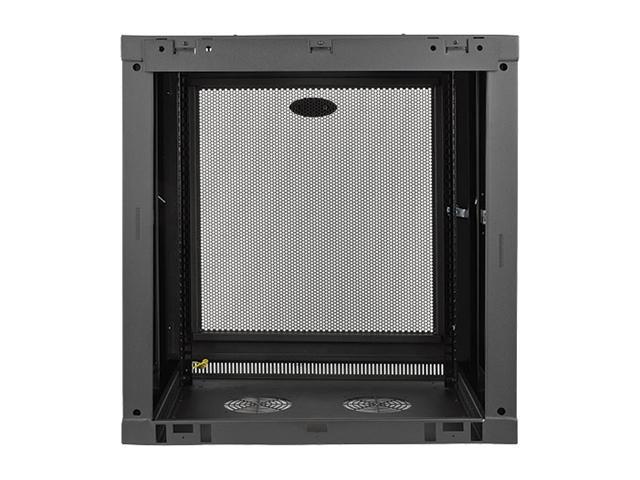

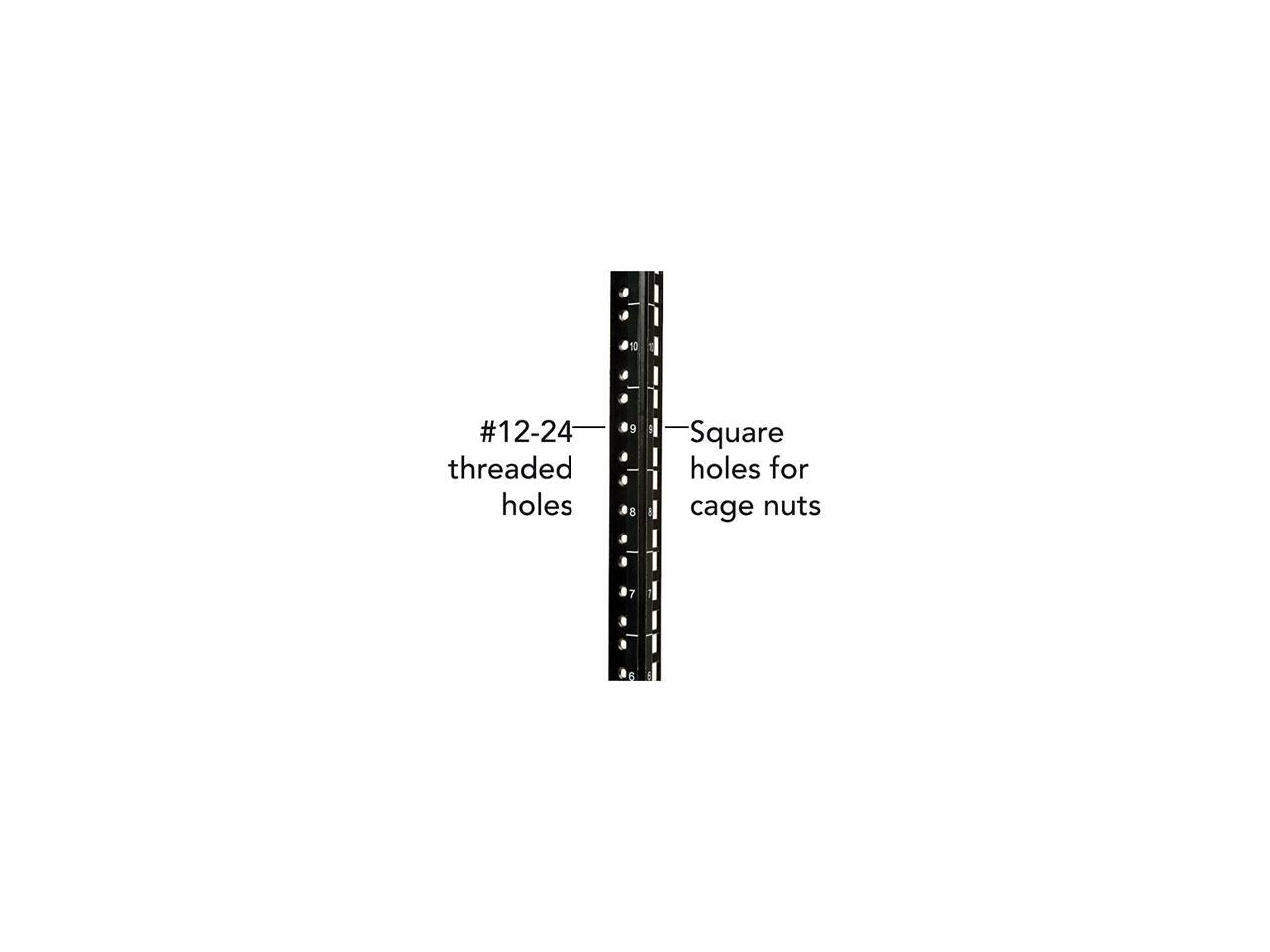

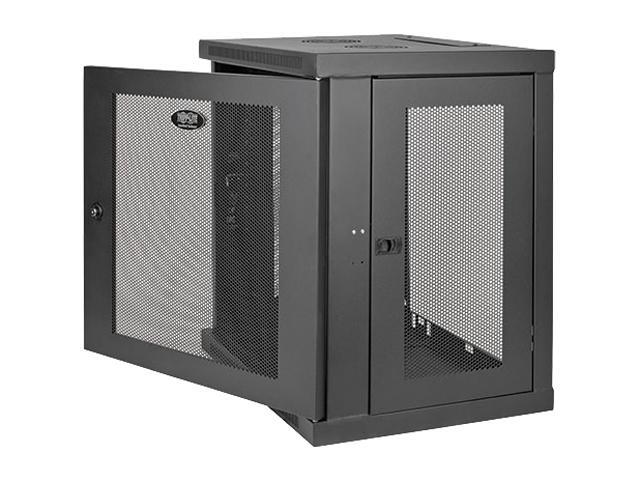

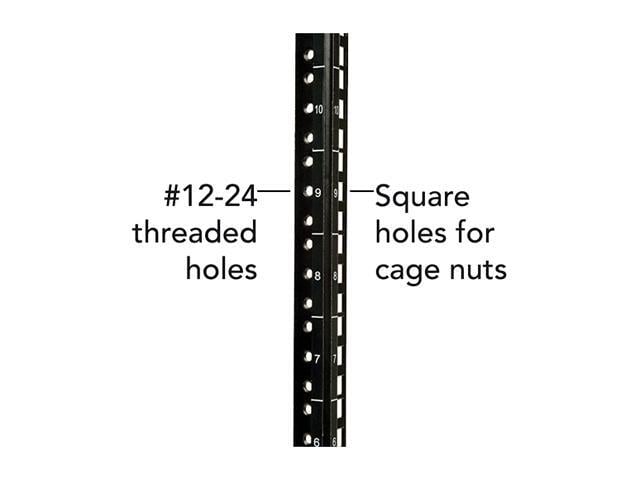

Features	Saves Valuable Workspace Perfect for network wiring closets, retail locations, classrooms, back offices and other areas with limited floor space where you need equipment to be secure, organized and out of the way Houses EIA-standard 19 in. rack equipment in 12U of space Maximum load capacity of 200 lbs. Keeps Important Equipment Secure Side panels and front door lock securely to help prevent damage, tampering or theft Vented panels allow generous airflow that keeps equipment cool Rotate cabinet 180° before mounting to open reversible front door left or right Convenient ports with removable covers allow cable routing through top and bottom Easy Enclosure and Equipment Installation Ships fully assembled for quick installation Mounts to wall or rolls on floor with Tripp Lite’s optional SRCASTER caster kit Wall-mounting holes spaced 16 in. apart for standard wall stud placement Vertical mounting rails adjust in 7/8 in. increments to accommodate equipment up to 16.5 in. deep, such as network switches and patch panels Rails adjust easily—unscrew them, slide them to desired depth, and screw them back in Rails support square-hole or threaded-hole mounting Rack spaces numbered for easy reference Meets Payment Card Industry Standards Provides physical equipment and media security required for PCI DSS(Payment Card Industry Data Security Standard) compliance

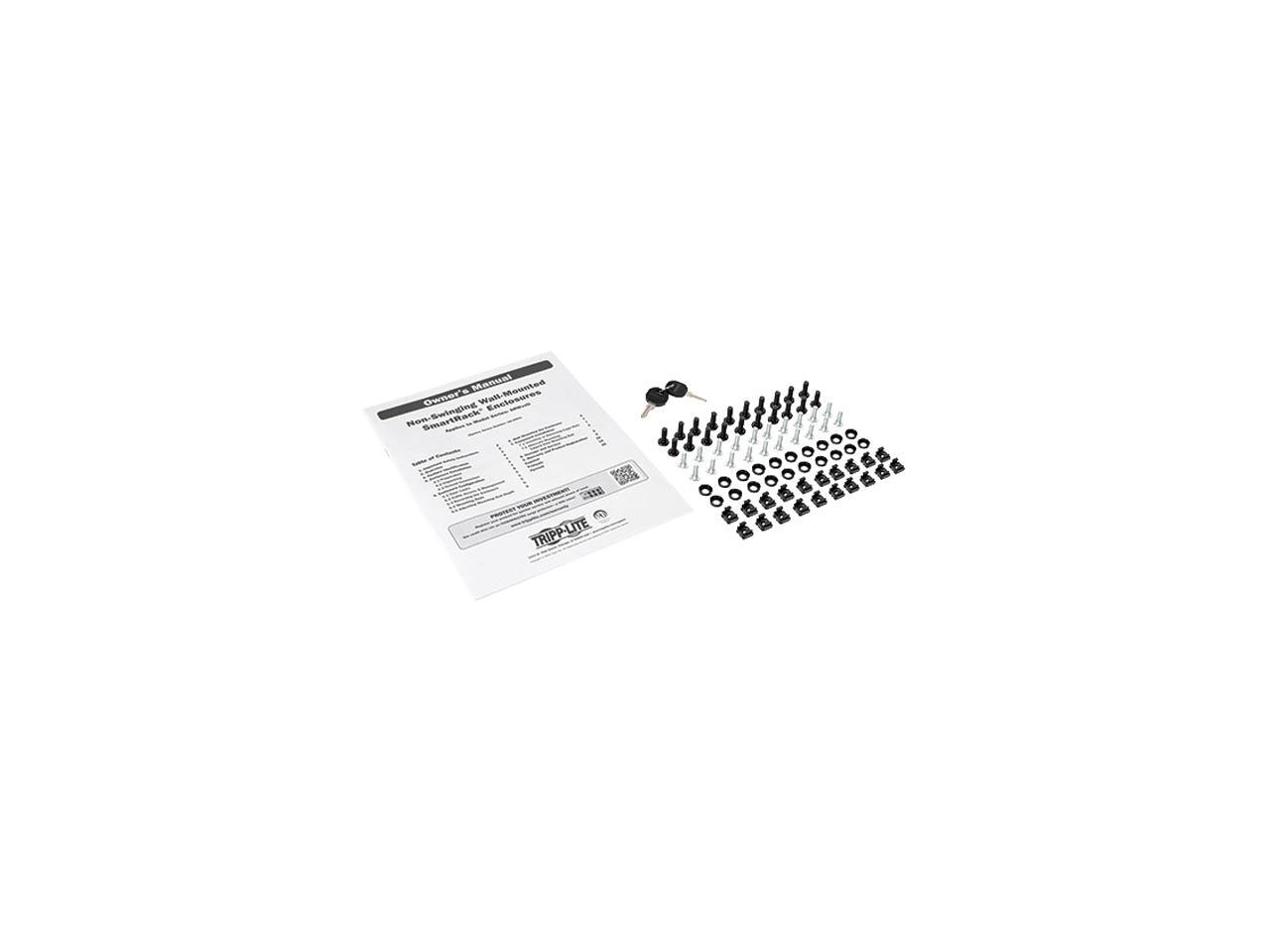

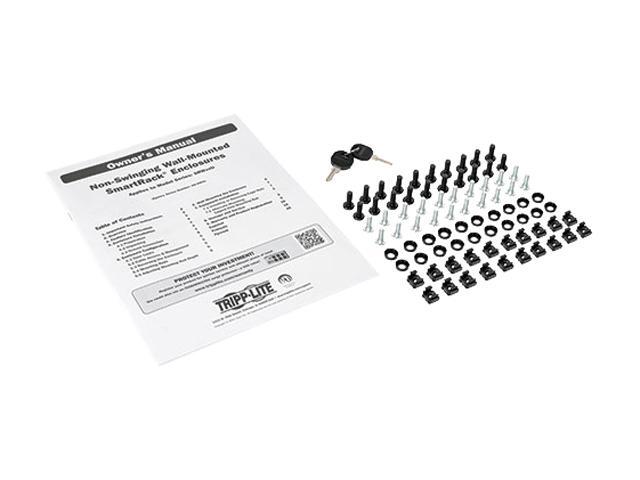

Included Accessory	SRW12U SmartRack 12U Low-Profile Switch-Depth Wall-Mount Rack Enclosure Cabinet (20) M6 screws (20) M6 cage nuts (20) M6 cup washers (20) 12-24 screws Removable mounting plate (3) Mounting plate screws (2) Keys Owner’s manual

Dimension & Weight
Unit Dimension	25.0" x 23.62" x 17.69"
Unit Weight	48.50 lbs.
Shipping Dimension	27.95" x 26.38" x 20.67"
Shipping Weight	55.12 lbs.

Additional Information
First Listed on Newegg	September 23, 2012
