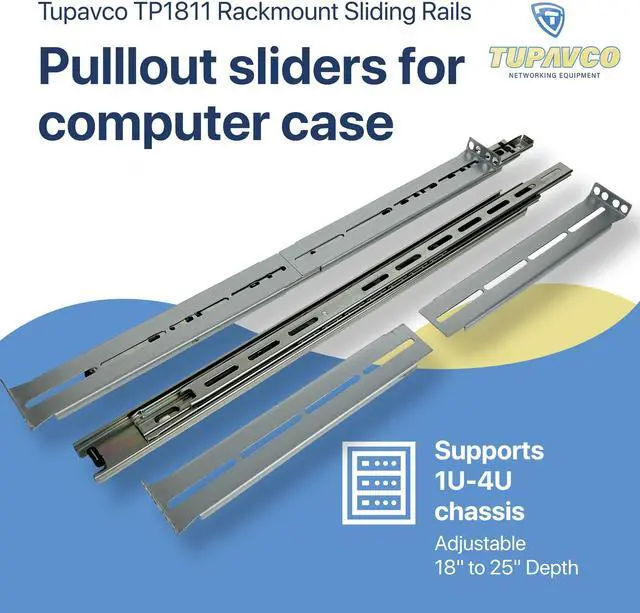

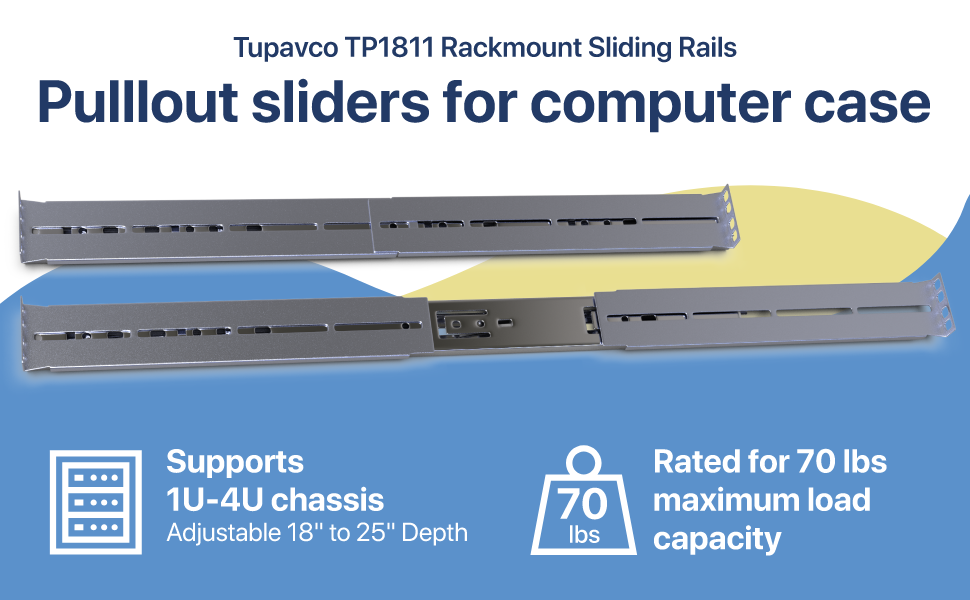

    Rackmount Sliding Rails - Kit for 1U-4U Chassis (Adjustable 18" to 25" Depth) 2 or 4 Post Mount Sliders for Server Case (Compatible with Any Standard Rack, Cabinet, Computer Enclosure) Tupavco TP1811

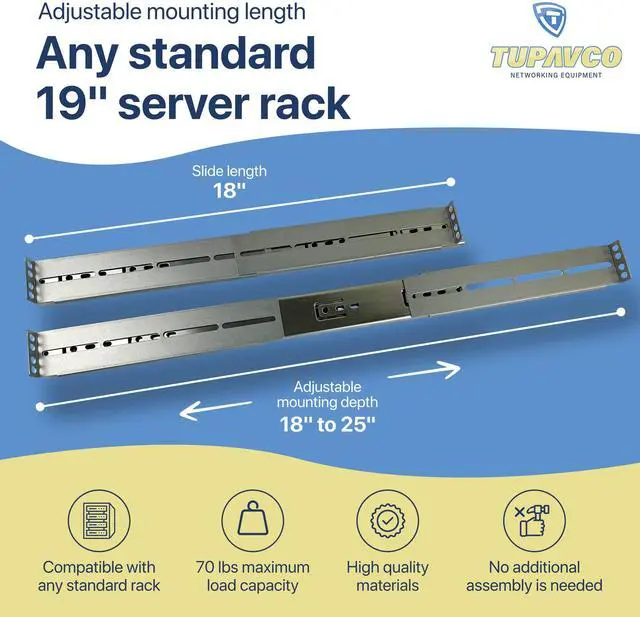

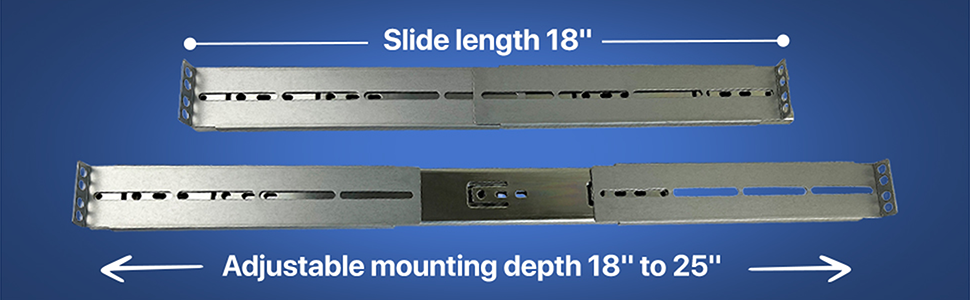

    • Adjustable mounting depth for rear posts from 18 to 25
    • Slide length of 18 plus an additional 18 when slide is extended

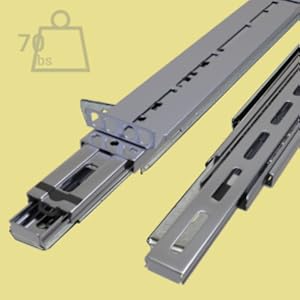

    • The TP1811 rails are rated for 70 lbs maximum load capacity
    • Suitable for 1U to 4U mounted device height with universal assembly holes
    • The mounted device has to be a minimum of 10 in length
    • TIP: For more space (wide) install ears (L bracket) inside (behind) the vertical rack U post (not to wrap ears around the post) and reverse mount cage nuts (screw it from the inside) so the mounting bracket flush even with the end of the U-post

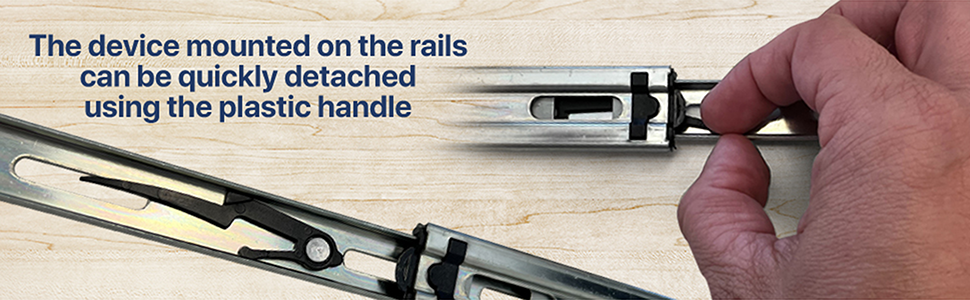

    • The device mounted on the rails can be quickly detached using the plastic handle

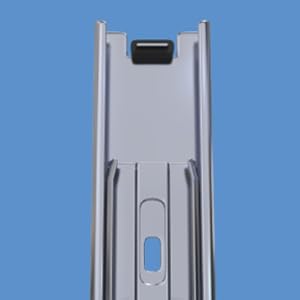

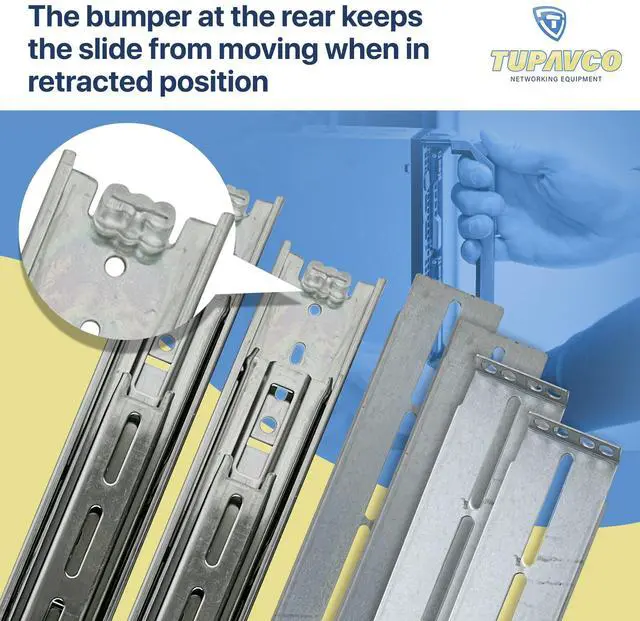

    • The bumper at the rear keeps the slide from moving when in retracted position

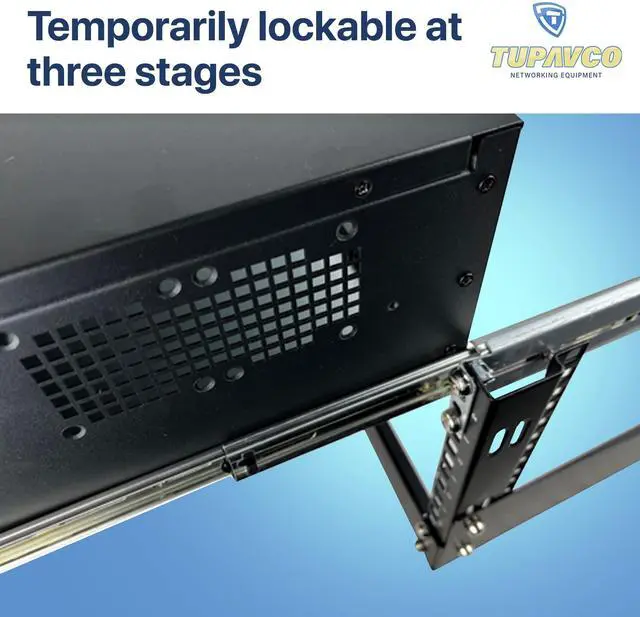

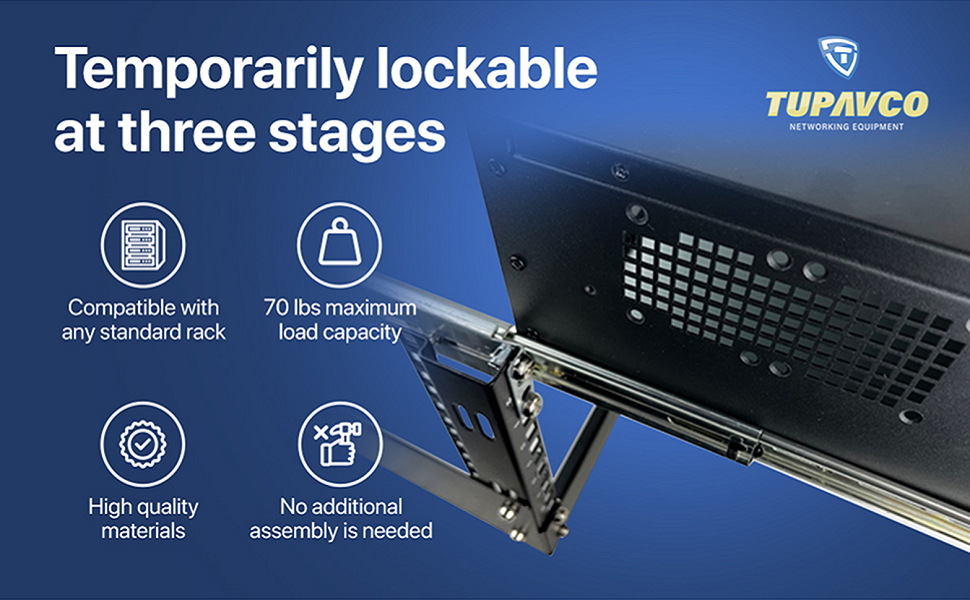

    • Ball bearing sliding rails that are temporarily lockable at three stages

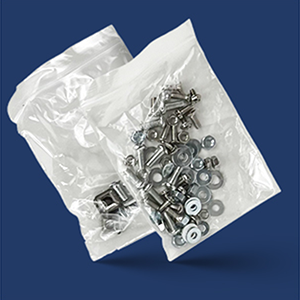

    • Toolless installation with all hardware included
    +
    +
    Overview
    Specs
    Reviews
    avatar

    Any questions? Our AI beta will help you find out quickly.

    Tupavco TP1811 Rackmount Sliding Rails

    The TP1811 adjustable sliding rail kit for rackmount computers and chassis will accommodate rack-mountable appliances for server cabinets. This rail kit is designed for mounting larger, heavier equipment, such as servers or hard disk arrays to a server rack.

    The rails are built from quality materials and are capable of holding weight up to 70 pounds. Ball bearing offer smoother movement, reduce wear and tear to the rail and are quieter. The 2U to 8U compatible server rack rails come with universal assembly holes. The product contains the rails along with all necessary hardware needed for setup.

    Rackmount Sliding Rails
    Tupavco TP1811 Rackmount Sliding Rails

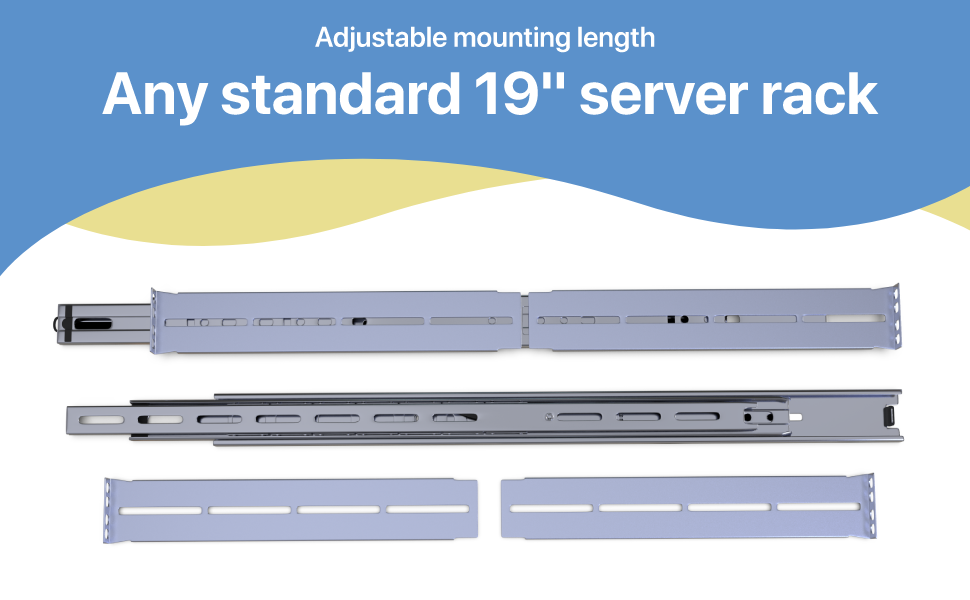

    Compatible with most standard size cabinets and racks, two-post or four-post, 18” to 25” deep. Sliding rails allow you to fully extend your server out of the rack for convenient access, without having to remove it from the rack.

    No additional assembly is needed, rails can be attached to your rack using screws provided in the package.

    Rackmount Sliding Rails

    Tupavco Rails

    Tupavco Rails

    Rackmount Sliding Rails

    Tupavco Rails

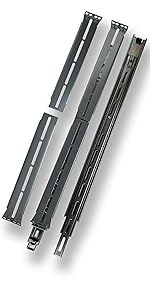

    https://m.media-amazon.com/images/S/aplus-media-library-service-media/eb4a73b9-74f7-4d84-aab1-fccee56cd359.__CR0,0,1000,2000_PT0_SX150_V1___.jpg
    TP1811

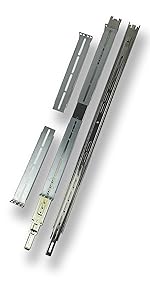

    https://m.media-amazon.com/images/S/aplus-media-library-service-media/f64a6cbe-2d1c-4b71-96cc-e91b1857c6c5.__CR0,0,1000,2000_PT0_SX150_V1___.jpg
    TP1812

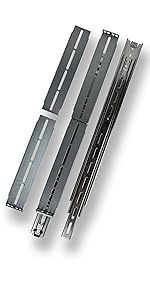

    https://m.media-amazon.com/images/S/aplus-media-library-service-media/5097a06b-671d-4ccd-b92d-f7d104074ee7.__CR0,0,1000,2000_PT0_SX150_V1___.jpg
    TP1821

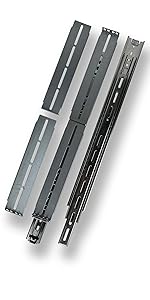

    https://m.media-amazon.com/images/S/aplus-media-library-service-media/d5a57963-e96e-4424-9168-7c509ff8a74b.__CR0,0,1000,2000_PT0_SX150_V1___.jpg
    TP1822
    Customer Reviews
    Price
    Length 18 in. 26 in. 18 in. 26 in.
    Size Supported 1U-4U 1U-4U 2U-8U 2U-8U
    Weight Supported 70 lbs 100 lbs 90 lbs 130 lbs
    Mountable on any 19" rack ? ? ? ?
    Toolless installation w/ all hardware included ? ? ? ?
    Depth 18" to 25" 26" to 40" 18" to 25" 26" to 40"
    Tupavco TP1811 Rackmount Sliding Rails

    The TP1811 adjustable sliding rail kit for rackmount computers and chassis will accommodate rack-mountable appliances for server cabinets. This rail kit is designed for mounting larger, heavier equipment, such as servers or hard disk arrays to a server rack.

    The rails are built from quality materials and are capable of holding weight up to 70 pounds. Ball bearing offer smoother movement, reduce wear and tear to the rail and are quieter. The 2U to 8U compatible server rack rails come with universal assembly holes. The product contains the rails along with all necessary hardware needed for setup.

    Rackmount Sliding Rails
    Tupavco TP1811 Rackmount Sliding Rails

    Compatible with most standard size cabinets and racks, two-post or four-post, 18” to 25” deep. Sliding rails allow you to fully extend your server out of the rack for convenient access, without having to remove it from the rack.

    No additional assembly is needed, rails can be attached to your rack using screws provided in the package.

    Rackmount Sliding Rails

    Tupavco Rails

    Tupavco Rails

    Rackmount Sliding Rails

    Tupavco Rails
    https://m.media-amazon.com/images/S/aplus-media-library-service-media/eb4a73b9-74f7-4d84-aab1-fccee56cd359.__CR0,0,1000,2000_PT0_SX150_V1___.jpg
    TP1811
    https://m.media-amazon.com/images/S/aplus-media-library-service-media/f64a6cbe-2d1c-4b71-96cc-e91b1857c6c5.__CR0,0,1000,2000_PT0_SX150_V1___.jpg
    TP1812
    https://m.media-amazon.com/images/S/aplus-media-library-service-media/5097a06b-671d-4ccd-b92d-f7d104074ee7.__CR0,0,1000,2000_PT0_SX150_V1___.jpg
    TP1821
    https://m.media-amazon.com/images/S/aplus-media-library-service-media/d5a57963-e96e-4424-9168-7c509ff8a74b.__CR0,0,1000,2000_PT0_SX150_V1___.jpg
    TP1822
    Customer Reviews
    Price
    Length 18 in. 26 in. 18 in. 26 in.
    Size Supported 1U-4U 1U-4U 2U-8U 2U-8U
    Weight Supported 70 lbs 100 lbs 90 lbs 130 lbs
    Mountable on any 19" rack ? ? ? ?
    Toolless installation w/ all hardware included ? ? ? ?
    Depth 18" to 25" 26" to 40" 18" to 25" 26" to 40"

    The TP1811 adjustable sliding rail kit for rackmount computers and chassis will accommodate rack-mountable appliances for server cabinets. This rail kit is designed for mounting larger, heavier equipment, such as servers or hard disk arrays to a server rack.

    The rails are built from quality materials and are capable of holding weight up to 70 pounds. Ball bearing offer smoother movement, reduce wear and tear to the rail and are quieter. The 2U to 8U compatible server rack rails come with universal assembly holes. The product contains the rails along with all necessary hardware needed for setup.

    Compatible with most standard size cabinets and racks, two-post or four-post, 18 to 25 deep. Sliding rails allow you to fully extend your server out of the rack for convenient access, without having to remove it from the rack.

    No additional assembly is needed, rails can be attached to your rack using screws provided in the package.


    Product information

    Brand Tupavco
    Color Silver
    Size Depth: 18 to 25
    Compatible Devices Server
    Mounting Type Rack Mount
    Product Dimensions 18 x 1.38 x 0.51 inches
    Item Weight 3.39 pounds
    Manufacturer Tupavco
    Item model number TP1811
    Date First Available September 26, 2022
