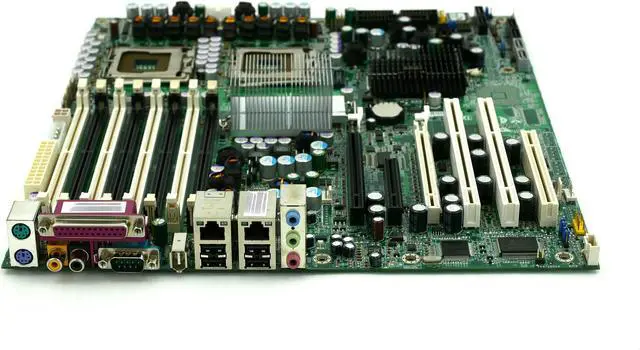

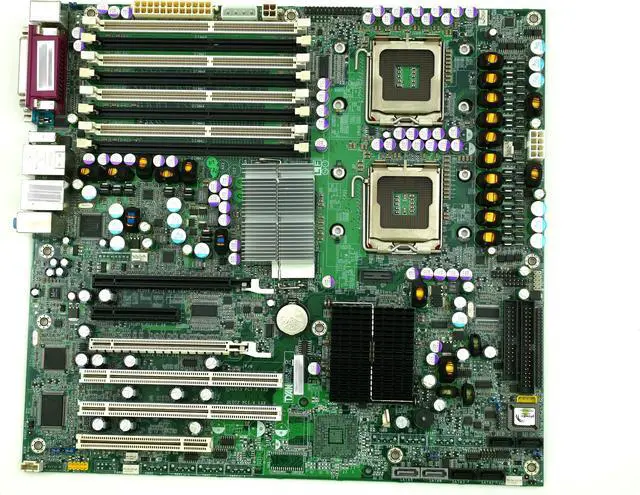

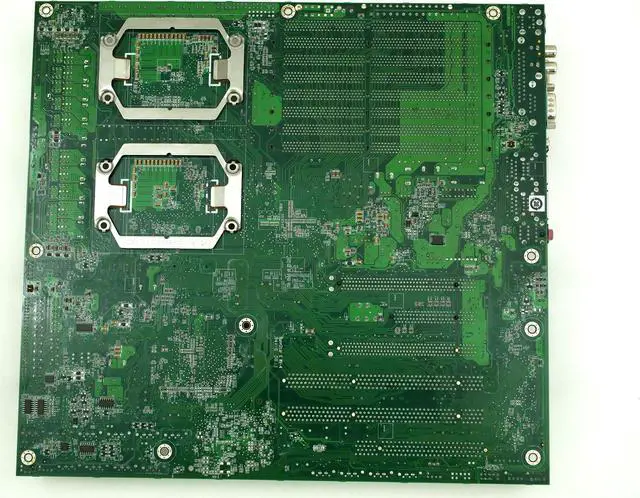

Tyan Server Motherboard Intel CPU 2x LGA771 S5396 R01

Tyan Server Motherboard Intel CPU 2x LGA771 S5396 R01

Condition Refurbished

Compeve SKU 386700100213

Specifications

Processors
2x Socket LGA771
Supports up to two Intel Xeon Woodcrest Processors
( 5000/5100 Series Dual-core);
Clovertown Processors (5300 Series, Quad-core);
Wolfdale-DP Processors (45nm, dualcore);
Harpertown Processors (45nm,quad-core)
1.33 / 1.06GHz FSB
VRD 11.0

Chipset
Intel 5400 MCH + 6321ESB Chipset support for 1.33 / 1.06GHz FSB
Winbond W83627EHG Super I/O Chip

8x Memory slot DDR2
Eight 240-pin DDR2 FB-DIMM sockets
4 memory channels
Supports ECC DIMMs
Maximum of 64/32 GB DDR2-533/667

Integrated Serial ATA II
Six (6) SATA-II ports running at 3.0 Gb/s
RAID 0, 1, 5, 10 support in Windows

Integrated SAS
LSI 1068E SAS Controller
PCI-E x4 interface to 6321ESB
Eight SAS Ports

Back Panel I/O Ports
Stacked PS/2 keyboard and mouse connectors
One SPDIF in and one SPDIF out
Stacked Serial (one) and parallel (one) connectors
Two stacked dual USB ports w/ GbE RJ-45 connectors
FireWire (1394a) connector
Stacked Line-in, Line-out, Mic-in audio connectors

Expansion Slots
Two (2) PCI Express x16 slots (X16 Gen2 signal from MCH)
One (1) PCI Express x8 slot (x8 signal from 6321ESB)
Two (2) PCI-X 133/100MHz slots from 6321ESB
One (1) PCI 32-bit 33MHz slot Total six expansion slots

Integrated I/O Interfaces
Two USB 2.0 headers
Six standard/integrated SATA-II connectors
One IDE and one Floppy CON
Eight SAS Ports
One 4-pin CD-in and one 4-pin Aux header
One 9-pin front panel audio header

Integrated LAN controllers
Intel Gigabit from 6321ESB (w/ dual ports Gilgal 82563)
Two RJ-45 ports with LEDs

Integrated PCI 1394
TI TSB43AB22 1394a controller
1394a channel for rear (connector)
1394a channel for front (header)
