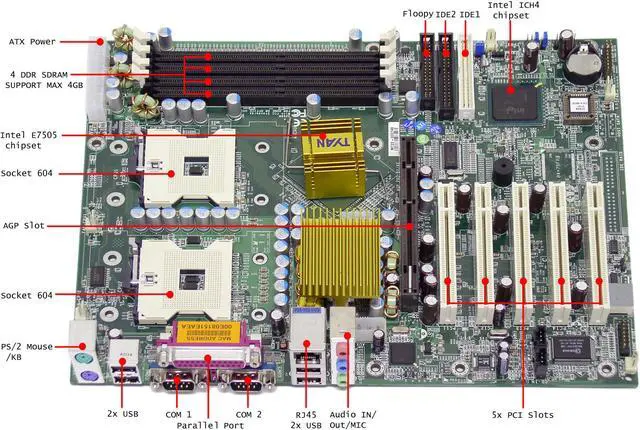

TYAN S2668AN ATX Server Motherboard Dual 603/604 Intel E7505

OPEN BOX Product Type
  • Dual 603/604
  • Intel E7505
  • 4 x 184Pin
Please note that this product is non-returnable and non-refundable.
Specs
avatar

Any questions? Our AI beta will help you find out quickly.

Learn more about the TYAN S2668AN

Model
Brand TYAN
Model S2668AN
Supported CPU
CPU Socket Type Dual 603/604
CPU Type Dual Intel Xeon
System Bus 533/400 MHz
Chipsets
North Bridge Intel E7505
South Bridge Intel ICH4
Memory
Number of DDR Slots 4 x 184Pin
DDR Standard DDR 266 (PC 2100)
Maximum Memory Supported 4GB
ECC Supported Yes
Expansion Slots
AGP Slots 1 x AGP 4X / 8X
PCI Slots 5 x PCI Slots
Storage Devices
PATA 2 x ATA 100 4 Dev. Max
Onboard Video
Onboard Video Chipset None
Onboard Audio
Audio Chipset Realtek ALC650
Audio Channels 6 Channels
Onboard LAN
LAN Chipset Intel 82551QM
LAN Speed 10/100Mbps
Max LAN Speed 100Mbps
Rear Panel Ports
PS/2 2
COM 2
LPT 1
USB 1.1/2.0 4 x USB 2.0
Audio Ports 3 Ports
Onboard Ports
Onboard USB 2 x USB 2.0
Dimensions
Form Factor ATX
Dimensions (W x L) 12" x 9.6"
