TYAN S2723GNN ATX Server Motherboard Dual mPGA604 Intel E7501
- Dual mPGA604
- Intel E7501 Intel P64H2 supports two PCI(-X) buses Winbond W83627HF Super I/O chip Winbond W83782D hardware monitoring chip
- 4 x 184Pin
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

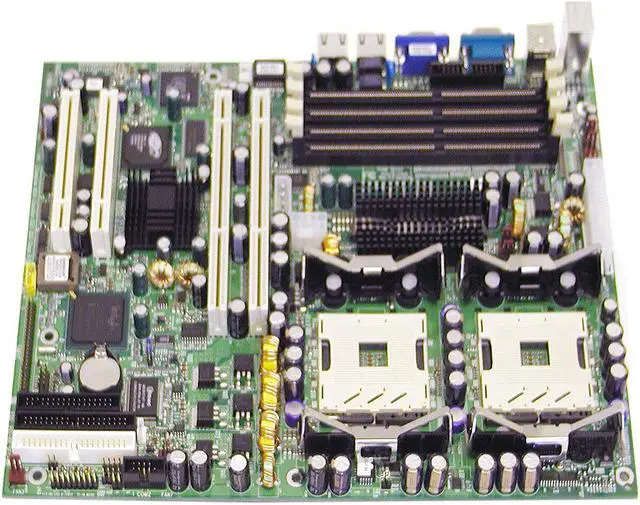

Learn more about the TYAN S2723GNN
| Brand | TYAN |
|---|---|
| Model | S2723GNN |
| CPU Socket Type | Dual mPGA604 |
|---|---|
| CPU Type | Dual Intel Xeon |
| System Bus | 533/400 MHz |
| North Bridge | Intel E7501 |
|---|---|
| South Bridge | Intel ICH3 |
| Other Chipset | Intel P64H2 supports two PCI(-X) buses Winbond W83627HF Super I/O chip Winbond W83782D hardware monitoring chip |
| Number of DDR Slots | 4 x 184Pin |
|---|---|
| DDR Standard | DDR266/200 |
| Maximum Memory Supported | 8GB |
| Channel Supported | Dual Channel |
| ECC Supported | Yes |
| Registered | Yes |
| PCI-X Slots (64-bit 133MHz) | 2 |
|---|---|
| PCI Slots | 2 x PCI Slots |
| PATA | 2 x ATA 100 4 Dev. Max |
|---|
| Onboard Video Chipset | ATI RAGE XL |
|---|
| LAN Chipset | Intel 82545EM |
|---|---|
| LAN Speed | 10/100/1000Mbps |
| Second LAN Chipset | Intel 82551QM |
| Second LAN Speed | 10/100Mbps |
| Max LAN Speed | 1Gbps + 100Mbps |
| PS/2 | 2 |
|---|---|
| COM | 1 |
| Video Ports | 1 |
| USB 1.1/2.0 | 2 x USB 1.1 |
| Onboard USB | 2 x USB 1.1 |
|---|
| Features | System Management: Total of seven 3-pin fan headers Six fan headers with tachometer monitoring One 3-pin chassis intrusion header Temperature, voltage, and fan monitoring Watchdog timer Regulatory: FCC Class B (Declaration of Conformity) European Community CE |
|---|
| Form Factor | ATX |
|---|---|
| Dimensions (W x L) | 12.0" x 9.8" |
| First Listed on Newegg | May 14, 2003 |
|---|
