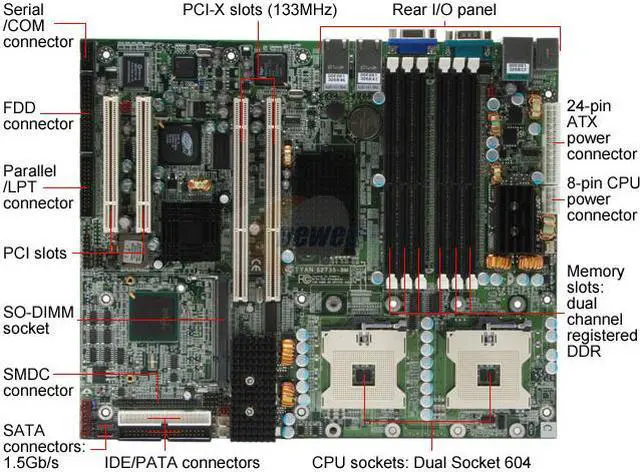

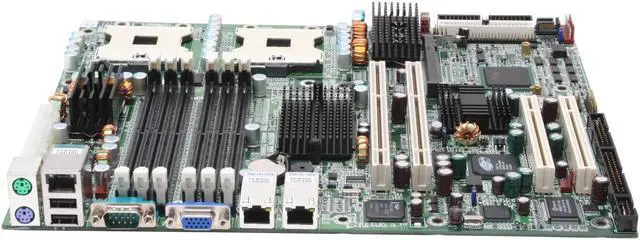

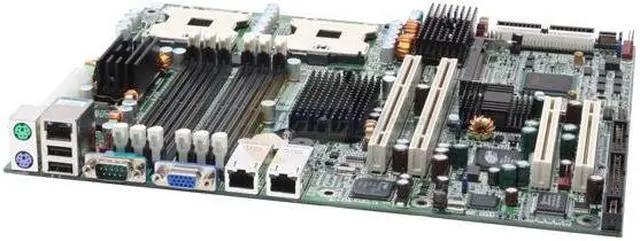

TYAN S2735G3NR-8M ATX footprint Server Motherboard Dual mPGA604 Intel E7501
- Dual mPGA604
- Intel E7501 Winbond W83627HF Super I/O chip Winbond W83782D hardware monitoring chip
- 6 x 184Pin
+
+
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the TYAN S2735G3NR-8M
| Brand | TYAN |
|---|---|
| Model | S2735G3NR-8M |
| CPU Socket Type | Dual mPGA604 |
|---|---|
| CPU Type | Dual Intel Xeon |
| System Bus | 533/400 MHz |
| North Bridge | Intel E7501 |
|---|---|
| South Bridge | Intel ICH5R |
| Other Chipset | Winbond W83627HF Super I/O chip Winbond W83782D hardware monitoring chip |
| Number of DDR Slots | 6 x 184Pin |
|---|---|
| DDR Standard | DDR 266 (PC 2100) |
| Maximum Memory Supported | 12GB |
| Channel Supported | Dual Channel |
| ECC Supported | Yes |
| Registered | Yes |
| PCI-X Slots (64-bit 133MHz) | 2 |
|---|---|
| PCI Slots | 2 x PCI Slots |
| PATA | 2 x ATA 100 4 Dev. Max |
|---|---|
| SATA | 2 x SATA 1.5Gb/s |
| SATA RAID | 0/1 |
| Onboard Video Chipset | ATI RAGE XL |
|---|
| LAN Chipset | Intel 82546EB |
|---|---|
| LAN Speed | 10/100/1000Mbps |
| Second LAN Chipset | Intel 82546EB |
| Second LAN Speed | 10/100/1000Mbps |
| Third LAN Chipset | Intel 82551QM |
| Third LAN Speed | 10/100Mbps |
| Max LAN Speed | 2 x 1Gbps + 100Mbps |
| PS/2 | 2 |
|---|---|
| COM | 1 |
| Video Ports | 1 |
| USB 1.1/2.0 | 2 x USB 2.0 |
| Onboard USB | 2 x USB 2.0 |
|---|
| Features | Note: Maximum number of IDE devices supported with any combination of Integrated IDE and SATA IDE is four devices. For example: 2 SATA and 2 PATA (total = 4) |
|---|
| Form Factor | ATX footprint |
|---|---|
| Dimensions (W x L) | 12.0" x 10.0" |

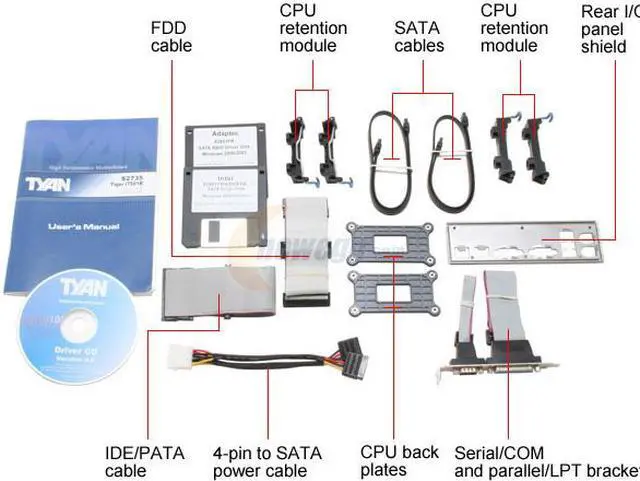

| Package Contents | S2735G3NR-8M User Manual Software Disk Rear I/O Panel Shield Power Cable 2 x Driver Floppy Disk 2 x SATA Cable LPT and COM Port Bracket Other Accessories |
|---|
| First Listed on Newegg | May 05, 2021 |
|---|
