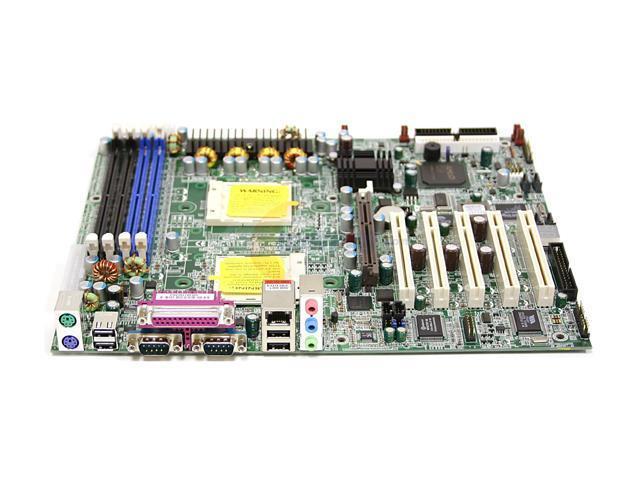

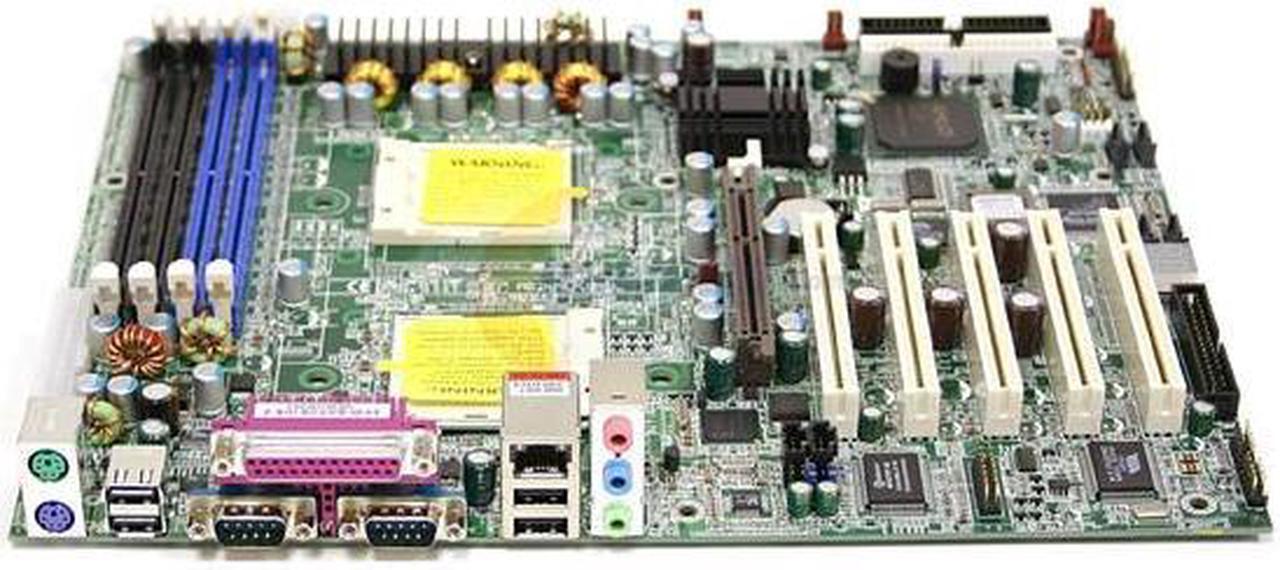

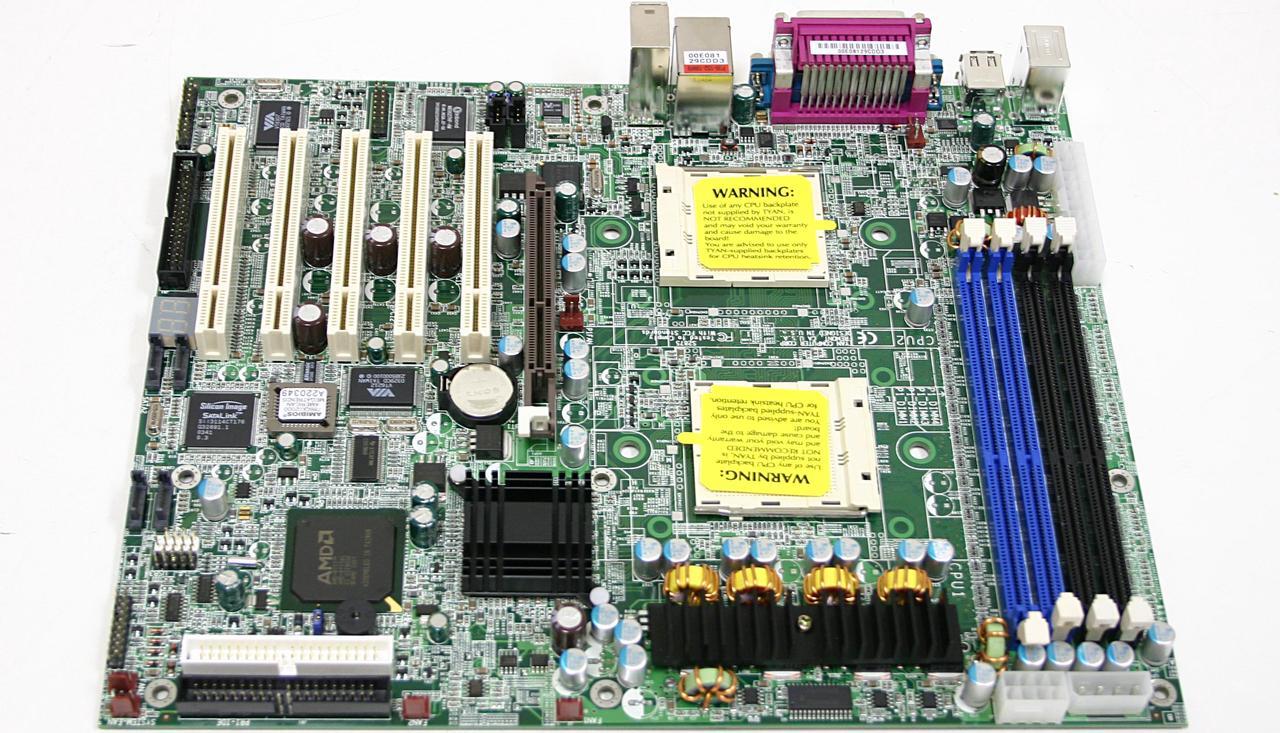

TYAN S2875ANRF ATX Server Motherboard Dual 940 AMD 8151
- Dual 940
- AMD 8151 Winbond W83627HF Super I/O ASIC
- 4 x 184Pin
Specs
Reviews (24)
Learn more about the TYAN S2875ANRF
| Brand | TYAN |
|---|---|
| Model | S2875ANRF |
| CPU Socket Type | Dual 940 |
|---|---|
| CPU Type | Dual AMD Opteron |
| North Bridge | AMD 8151 |
|---|---|
| South Bridge | AMD 8111 |
| Other Chipset | Winbond W83627HF Super I/O ASIC |
| Number of DDR Slots | 4 x 184Pin |
|---|---|
| DDR Standard | DDR 400 (PC 3200) |
| Maximum Memory Supported | 8GB |
| ECC Supported | Yes |
| Registered | Yes |
| AGP Slots | 1 x AGP 4X / 8X |
|---|---|
| PCI Slots | 5 x PCI Slots |
| PATA | 2 x ATA 133 4 Dev. Max |
|---|---|
| SATA | 4 x SATA 1.5Gb/s |
| SATA RAID | 0/1/0+1 |
| Additional RAID Controller | Sil 3114 |
| Onboard Video Chipset | None |
|---|
| Audio Chipset | Realtek ALC655 |
|---|---|
| Audio Channels | 6 Channels |
| LAN Chipset | Intel 82541EI |
|---|---|
| LAN Speed | 10/100/1000Mbps |
| Max LAN Speed | 1Gbps |
| PS/2 | 2 |
|---|---|
| COM | 2 |
| LPT | 1 |
| USB 1.1/2.0 | 2 x USB 1.1 + 2 x USB 2.0 |
| Audio Ports | 3 Ports |

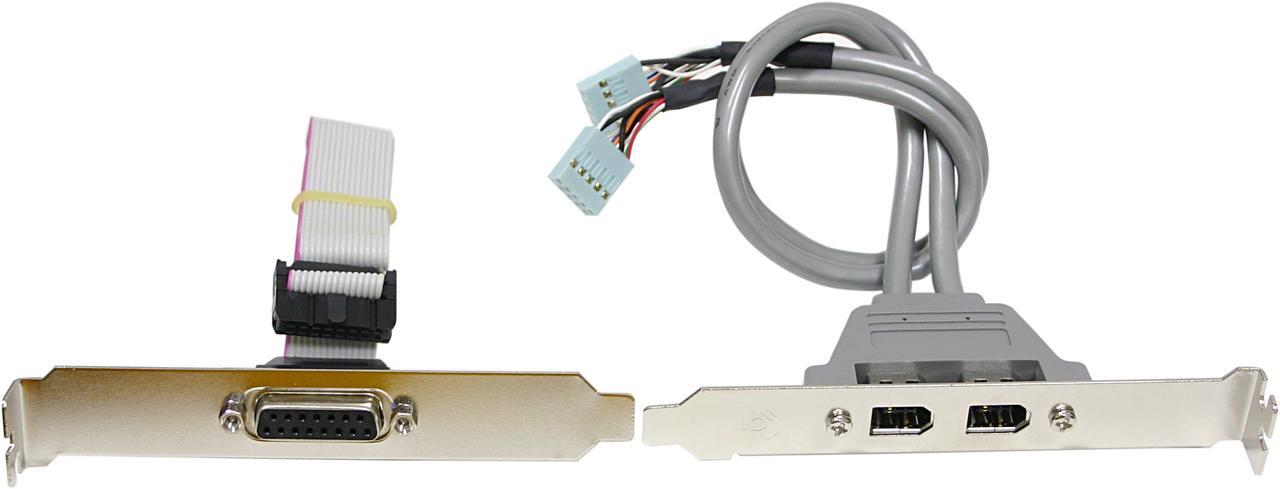

| Onboard 1394 | Two FireWire (IEEE 1394a) ports (one rear connector and one internal connector) |
|---|
| Features | Six 3-pin headers for CPU/Chassis Fans |
|---|
| Form Factor | ATX |
|---|---|
| Dimensions (W x L) | 12" x 9.8" |

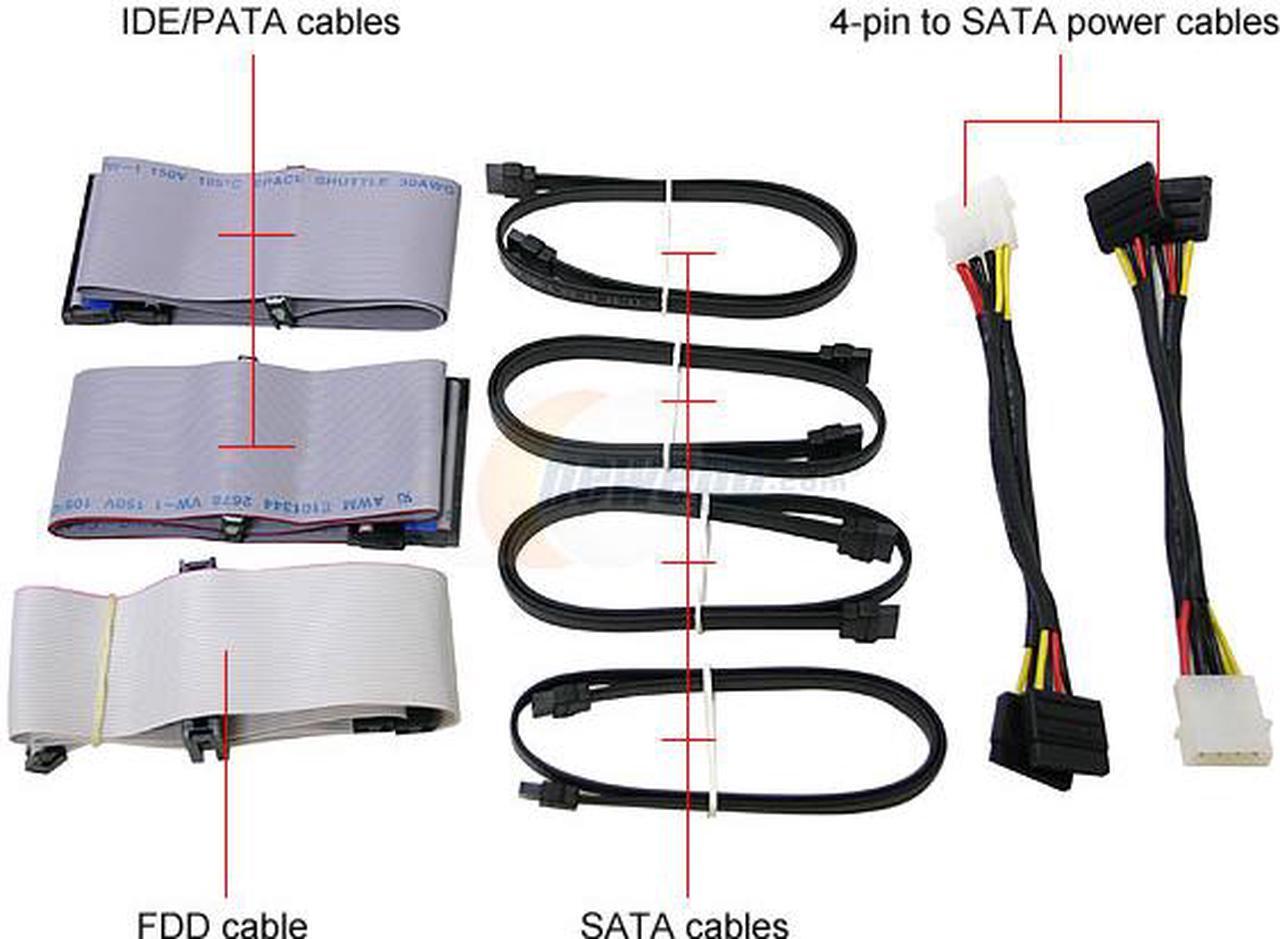

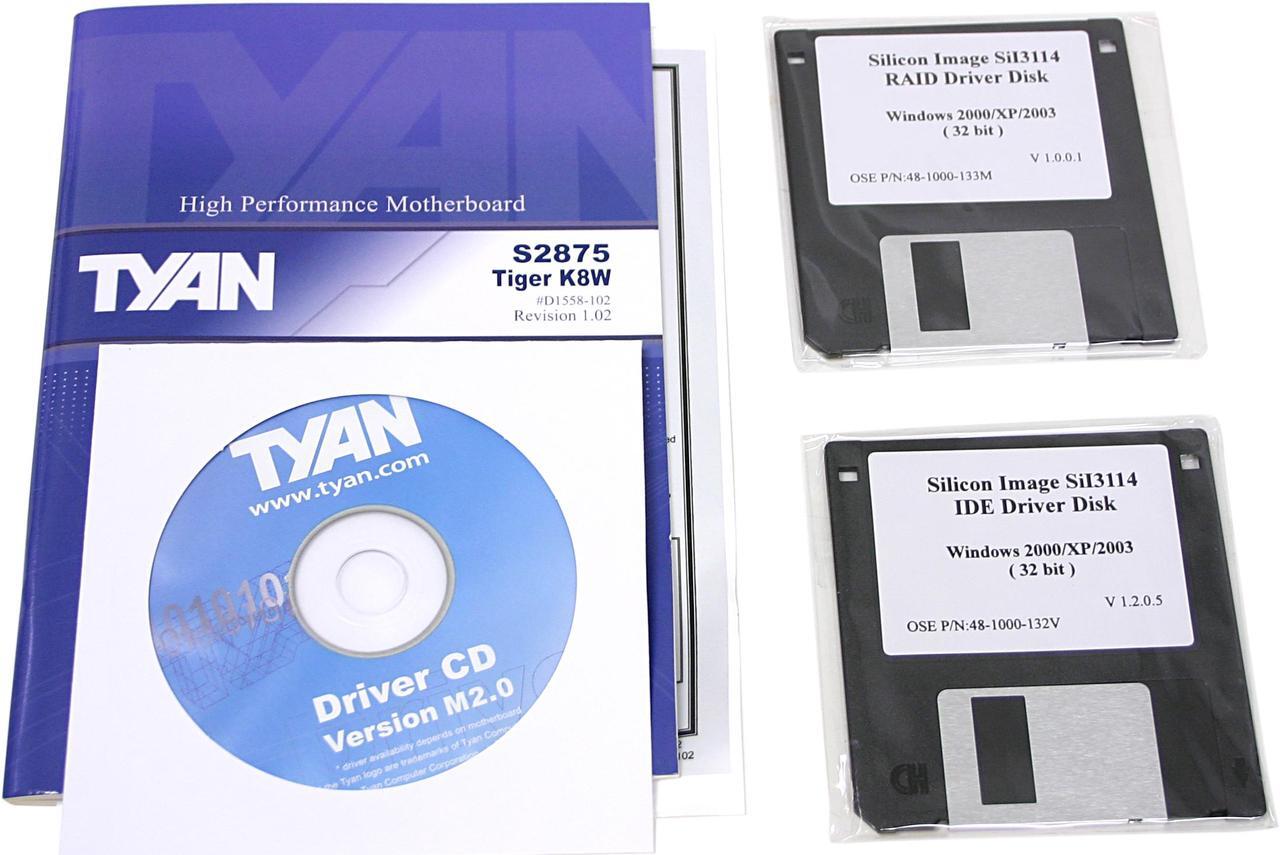

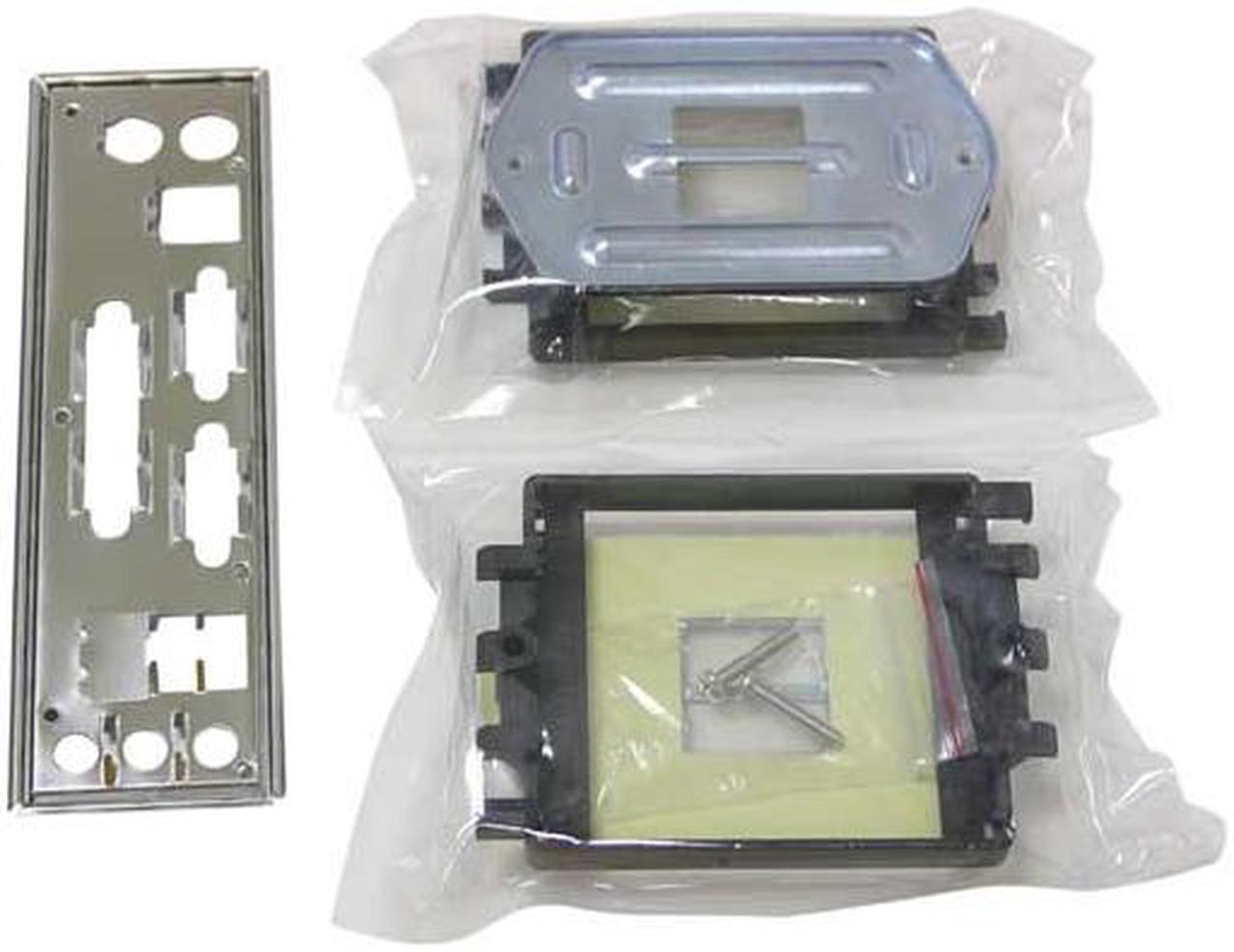

| Package Contents | S2875ANRF User Manual Software Disk Rear I/O Panel Shield 2 x Driver Floppy Disk 2 x IDE Cable FDD Cable 4 x SATA Cable 2 x Power Cable IEEE 1394 Bracket 2 x CPU Clip |
|---|
| Date First Available | March 29, 2004 |
|---|
