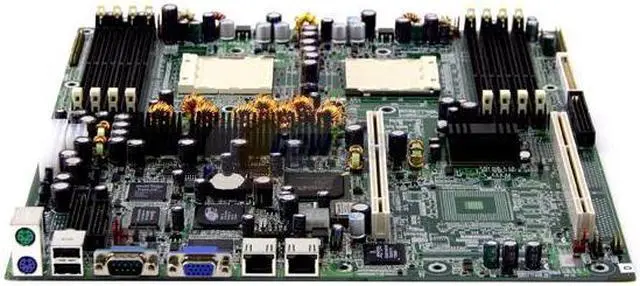

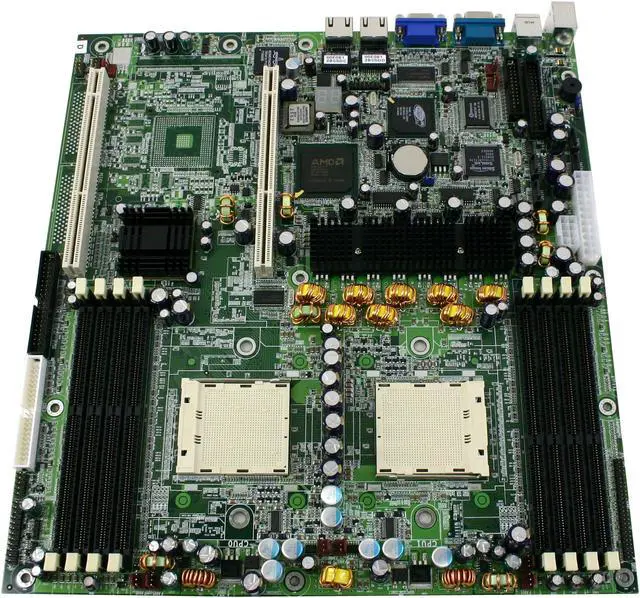

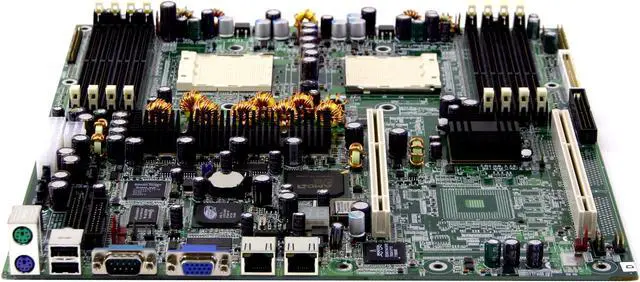

TYAN S2881G2NR SSI EEB 3.0 Server Motherboard Dual 940 AMD 8131
- Dual 940
- AMD 8131 Winbond W83627HF Super I/O ASIC Analog Devices ADT7463 Hardware Monitoring IC
- 8 x 184Pin
Specs
Reviews (2)
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the TYAN S2881G2NR
| Brand | TYAN |
|---|---|
| Model | S2881G2NR |
| CPU Socket Type | Dual 940 |
|---|---|
| CPU Type | Dual AMD Opteron |
| North Bridge | AMD 8131 |
|---|---|
| South Bridge | AMD 8111 |
| Other Chipset | Winbond W83627HF Super I/O ASIC Analog Devices ADT7463 Hardware Monitoring IC |
| Number of DDR Slots | 8 x 184Pin |
|---|---|
| DDR Standard | DDR 400 (PC 3200) |
| Maximum Memory Supported | 32GB |
| Channel Supported | Dual Channel |
| ECC Supported | Yes |
| Registered | Yes |
| SATA | 4 x SATA 1.5Gb/s |
|---|---|
| SATA RAID | 0/1/0+1 |
| Onboard Video Chipset | ATI RAGE XL |
|---|
| LAN Chipset | Broadcom BCM5704C |
|---|---|
| LAN Speed | 10/100/1000Mbps |
| Second LAN Chipset | Broadcom BCM5704C |
| Second LAN Speed | 10/100/1000Mbps |
| Max LAN Speed | 2 x 1Gbps |
| PS/2 | 2 |
|---|---|
| COM | 1 |
| Video Ports | 1 |
| USB 1.1/2.0 | 2 x USB 1.1 |
| Form Factor | SSI EEB 3.0 |
|---|---|
| Dimensions (W x L) | 12.0" x 13.0" |

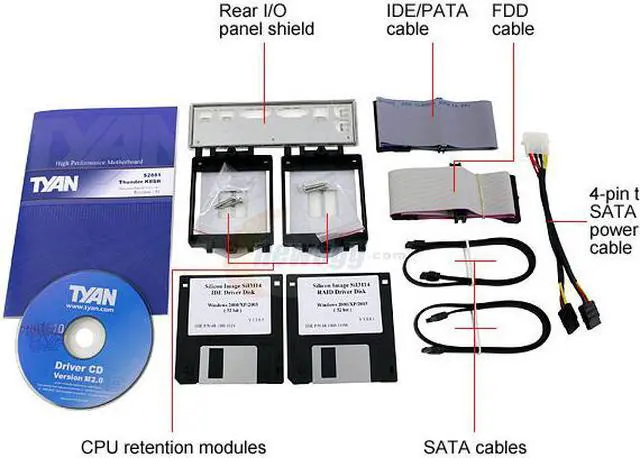

| Package Contents | S2881G2NR User Manual Software Disk Rear I/O Panel Shield IDE Cable FDD Cable 2 x SATA Cable Power Cable 2 x Driver Floppy Disk 2 x CPU Clip |
|---|
| First Listed on Newegg | August 12, 2004 |
|---|
