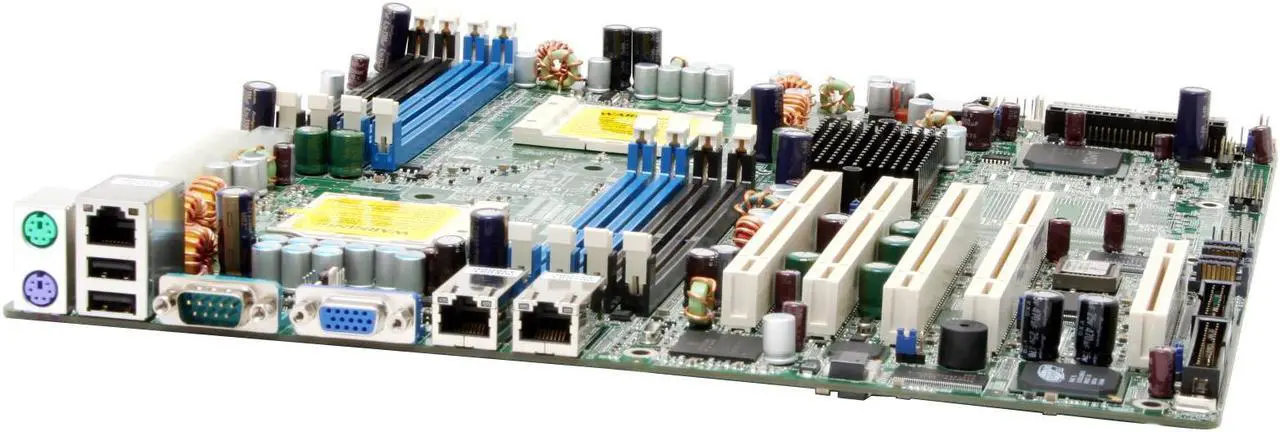

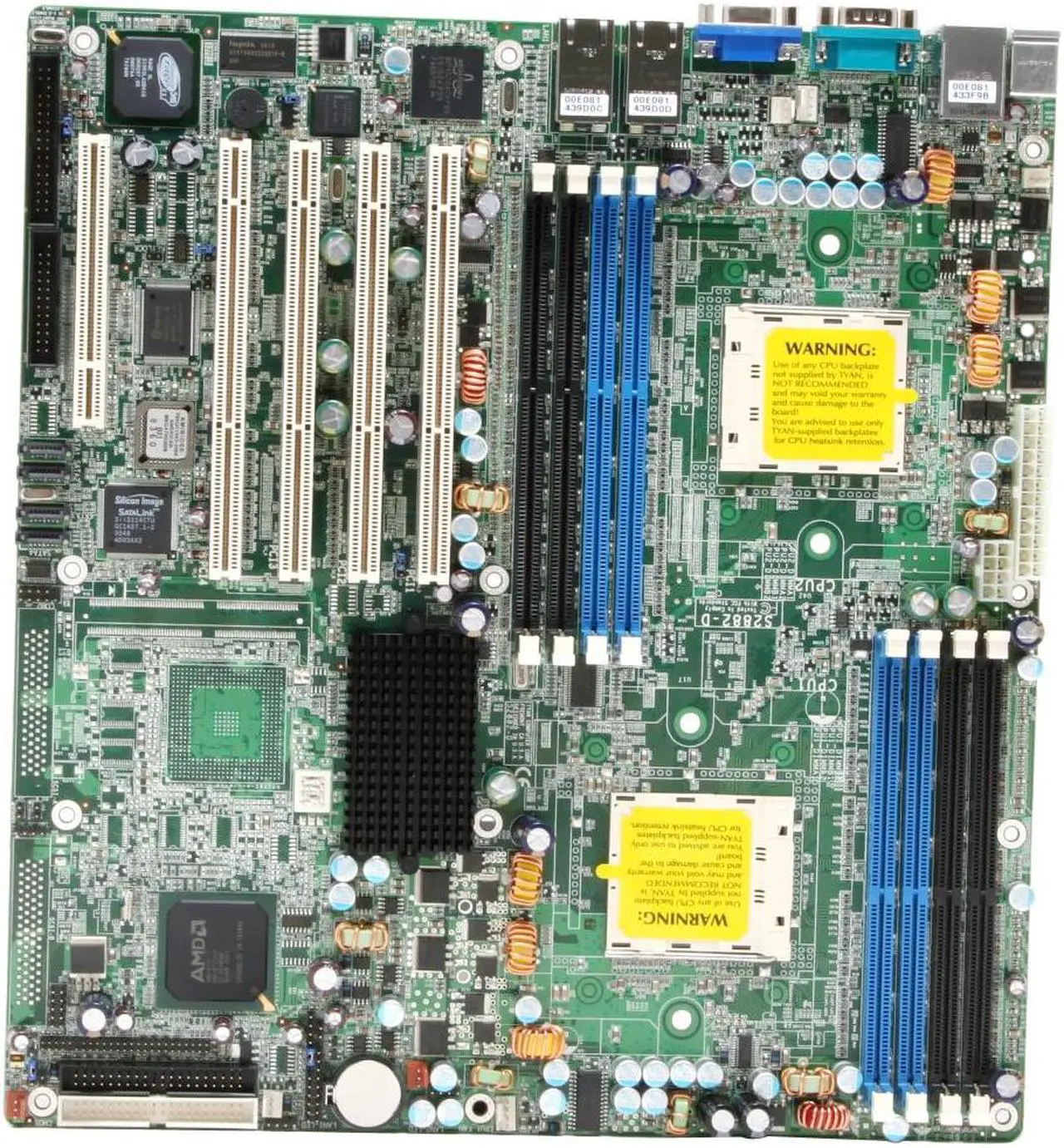

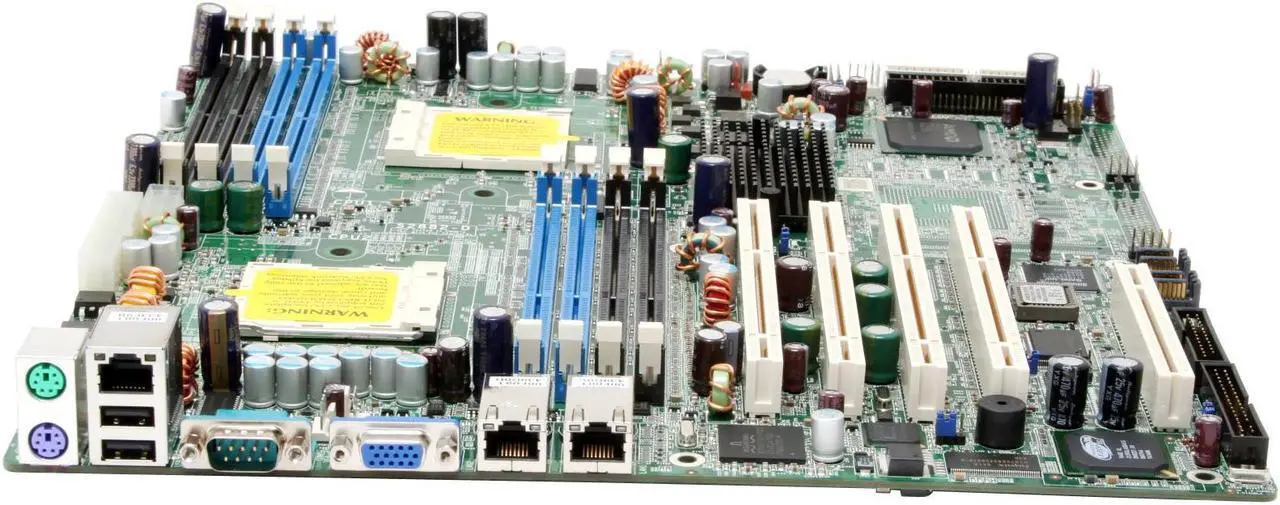

TYAN S2882G3NR-D-RS Extended ATX Server Motherboard Dual 940 AMD 8131
- Dual 940
- AMD 8131 Analog Devices ADM1027 Hardware Monitoring IC
- 8 x 184Pin
+
+
Specs
Reviews
Learn more about the TYAN S2882G3NR-D-RS
| Brand | TYAN |
|---|---|
| Model | S2882G3NR-D-RS |
| CPU Socket Type | Dual 940 |
|---|---|
| CPU Type | Dual AMD Opteron |
| North Bridge | AMD 8131 |
|---|---|
| South Bridge | AMD 8111 |
| Other Chipset | Analog Devices ADM1027 Hardware Monitoring IC |
| Number of DDR Slots | 8 x 184Pin |
|---|---|
| DDR Standard | DDR 400 (PC 3200) |
| Maximum Memory Supported | 16GB |
| Channel Supported | Dual Channel |
| ECC Supported | Yes |
| Registered | Yes |
| PCI Express x16 | None |
|---|---|
| PCI-X Slots (64-bit 133MHz) | Two 133/100/66/33 MHz PCI-X slots at PCI-X bus B |
| PCI-X Slots (64-bit 100MHz) | Two 100/66/33 MHz PCI-X slots at PCI-X bus A |
| PCI Slots | 1 x PCI Slot |
| PATA | 2 x ATA 133 4 Dev. Max |
|---|---|
| SATA | 4 x SATA 1.5Gb/s |
| SATA RAID | 0/1/0+1 |
| Additional RAID Controller | Silicon Image Sil3114 |
| Onboard Video Chipset | ATI RAGE XL |
|---|
| LAN Chipset | Broadcom BCM5704C |
|---|---|
| LAN Speed | 10/100/1000Mbps |
| Second LAN Chipset | Broadcom BCM5704C |
| Second LAN Speed | 10/100/1000Mbps |
| Third LAN Chipset | Intel 82551QM |
| Third LAN Speed | 10/100Mbps |
| Max LAN Speed | 2 x 1Gbps + 100Mbps |
| PS/2 | 2 |
|---|---|
| COM | 1 |
| Video Ports | 1 |
| USB 1.1/2.0 | 2 x USB 1.1 |
| Onboard USB | 4 x USB 1.1 |
|---|
| Form Factor | Extended ATX |
|---|---|
| Dimensions (W x L) | 13.0" x 12.0" |

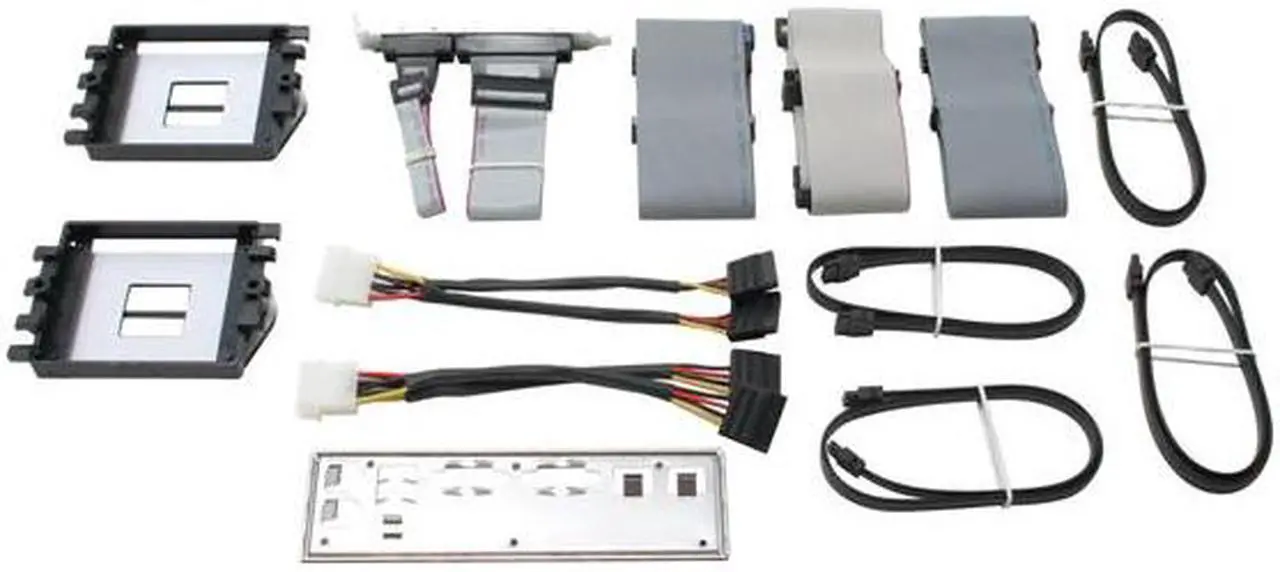

| Package Contents | S2882G3NR-D-RS User Manual Software Disk Rear I/O Panel Shield 4 x SATA Cable 2 x Power Cable 2 x CPU Clip 2 x IDE Cable FDD Cable LPT and COM Port Bracket |
|---|
| Date First Available | April 13, 2019 |
|---|
