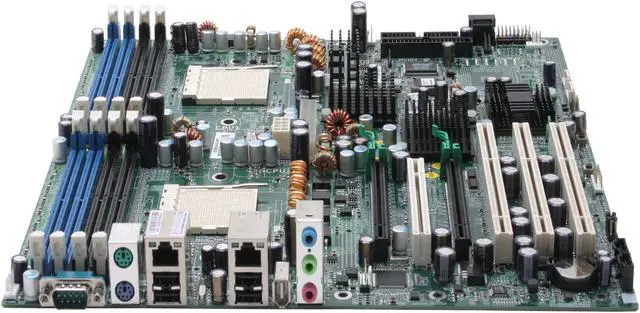

TYAN S2895A2NRF SSI EEB 3.5 Server Motherboard Dual 940 NVIDIA nForce Professional 2200 + 2050 + AMD8131
- Dual 940
- NVIDIA nForce Professional 2200 + 2050 + AMD8131
- 8 x 184Pin
Specs
Reviews (23)
Learn more about the TYAN S2895A2NRF
| Brand | TYAN |
|---|---|
| Model | S2895A2NRF |
| CPU Socket Type | Dual 940 |
|---|---|
| CPU Type | Dual AMD Opteron |
| System Bus | 800 MHz |
| North Bridge | NVIDIA nForce Professional 2200 + 2050 + AMD8131 |
|---|
| Number of DDR Slots | 8 x 184Pin |
|---|---|
| DDR Standard | DDR 400 (PC 3200) |
| Maximum Memory Supported | 16GB |
| Channel Supported | Dual Channel |
| ECC Supported | Yes |
| Registered | Yes |
| PCI Express x16 | 2 x PCI Express x16 |
|---|---|
| PCI-X Slots (64-bit 133MHz) | 1 |
| PCI-X Slots (64-bit 100MHz) | 2 |
| PCI Slots | 1 x PCI Slot |
| PATA | 1 x ATA 133 2 Dev. Max |
|---|---|
| SATA | 4 x SATA 3.0Gb/s |
| SATA RAID | 0/1/0+1 |
| Onboard Video Chipset | None |
|---|
| Audio Chipset | ADI AD1981B |
|---|---|
| Audio Channels | 6 Channels |
| LAN Speed | 10/100/1000Mbps |
|---|---|
| Second LAN Speed | 10/100/1000Mbps |
| Max LAN Speed | 2 x 1Gbps |
| PS/2 | 2 |
|---|---|
| COM | 1 |
| USB 1.1/2.0 | 4 x USB 2.0 |
| IEEE 1394 | 1 x IEEE 1394a |
| Audio Ports | 3 Ports |
| Onboard USB | 4 x USB 2.0 |
|---|---|
| Onboard 1394 | 1 x 1394a |
| Features | Supports Single and Dual Core processors Dual PCI Express x16 slots with FULL SPEED x16 lanes on each slot to support NVIDIA SLI |
|---|
| Form Factor | SSI EEB 3.5 |
|---|---|
| Dimensions (W x L) | 12.0" x 13.0" |

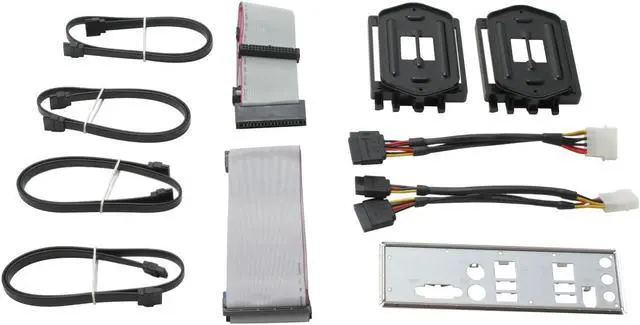

| Package Contents | S2895A2NRF User Manual Software Disk Rear I/O Panel Shield IDE Cable FDD Cable 4 x SATA Cable 2 x Power Cable Driver Floppy Disk 2 x CPU Clip |
|---|
| First Listed on Newegg | May 31, 2005 |
|---|
