TYAN S2895A2NRF-RS SSI EEB 3.5 Server Motherboard Dual 940 NVIDIA nForce4 Professional 2200 + 2050
- Dual 940
- NVIDIA nForce4 Professional 2200 + 2050
- 8 x 184Pin
Specs
Reviews (3)
Learn more about the TYAN S2895A2NRF-RS
| Brand | TYAN |
|---|---|
| Model | S2895A2NRF-RS |
| CPU Socket Type | Dual 940 |
|---|---|
| CPU Type | Dual AMD Opteron |
| Supported CPU Technologies | Three HyperTransport |
| North Bridge | NVIDIA nForce4 Professional 2200 + 2050 |
|---|
| Number of DDR Slots | 8 x 184Pin |
|---|---|
| DDR Standard | DDR 400 (PC 3200) |
| Maximum Memory Supported | 32GB |
| Channel Supported | Dual Channel |
| ECC Supported | Supports ECC with CHIPKILL technology |
| PCI Express x16 | 2 x16 PCI Express FULL SPEED slots |
|---|---|
| PCI-X Slots (64-bit 133MHz) | 1 |
| PCI-X Slots (64-bit 100MHz) | 2 |
| PCI Slots | 1 x PCI Slot |
| PATA | 1 x ATA 133 2 Dev. Max |
|---|---|
| SATA | 4 x SATA 3.0Gb/s |
| SATA RAID | 0/1/0+1 |
| Audio Chipset | AC97 Codec |
|---|
| LAN Speed | 10/100/1000Mbps |
|---|---|
| Second LAN Speed | 10/100/1000Mbps |
| Max LAN Speed | 2 x 1Gbps |
| PS/2 | 2 |
|---|---|
| COM | 1 |
| USB 1.1/2.0 | 4 x USB 2.0 |
| IEEE 1394 | 1 x IEEE 1394a |
| Onboard USB | 4 x USB 2.0 |
|---|---|
| Onboard 1394 | 1 x 1394a |

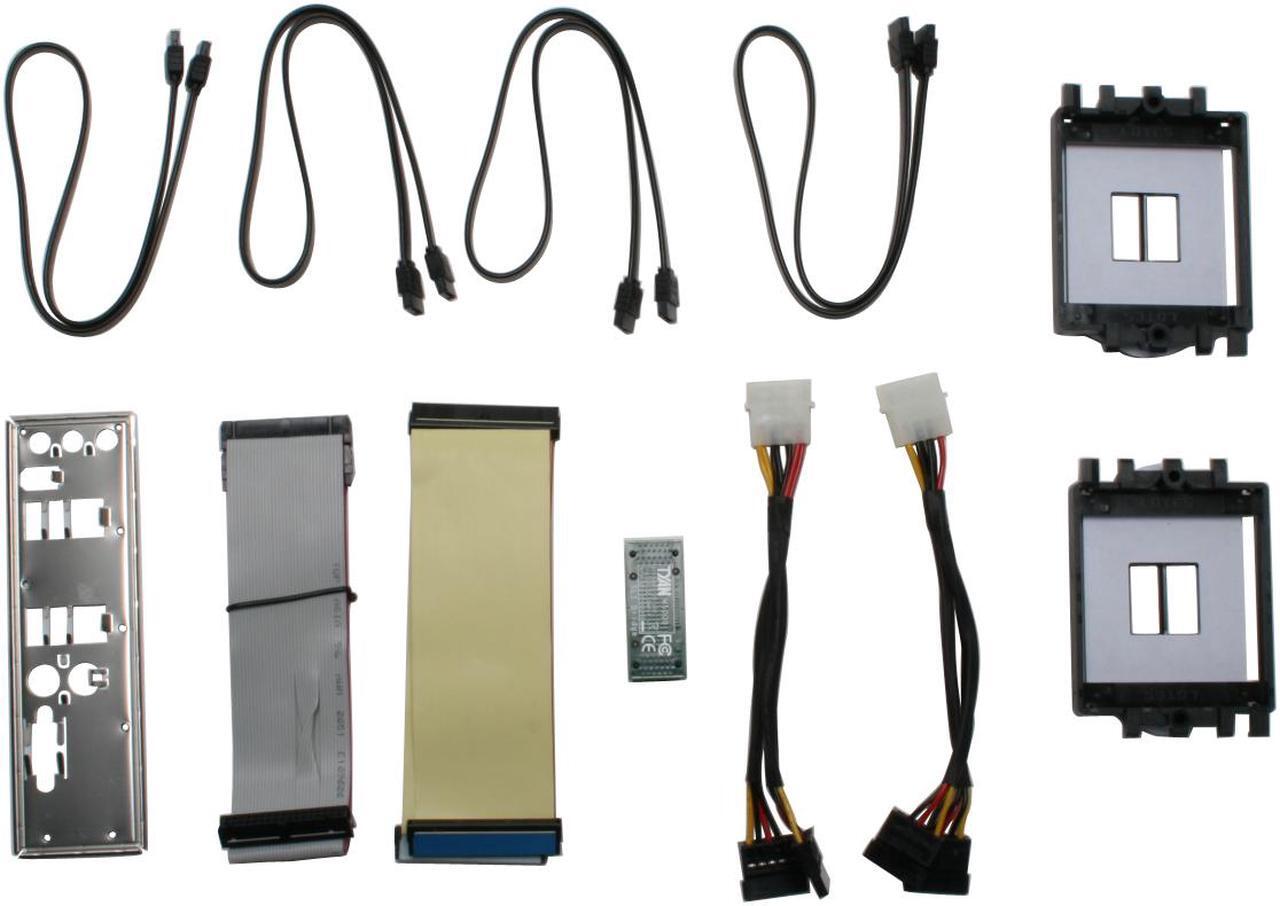

| Features | S2895A2NRF-RS User Manual Driver Disk 4 x SATA Cable 2 x CPU Clip IDE/PATA Cable FDD Cable Rear I/O Panel Shield |
|---|
| Form Factor | SSI EEB 3.5 |
|---|---|
| Dimensions (W x L) | 13.0" x 12.0" |
| Date First Available | April 03, 2007 |
|---|
