TYAN S2895UA2NRF SSI EEB 3.5 Server Motherboard Dual 940 NVIDIA nForce Professional 2200 + AMD 8131
- Dual 940
- NVIDIA nForce Professional 2200 + AMD 8131
- 8 x 184Pin
Specs
Reviews (17)
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the TYAN S2895UA2NRF
| Brand | TYAN |
|---|---|
| Model | S2895UA2NRF |
| CPU Socket Type | Dual 940 |
|---|---|
| CPU Type | Dual AMD Opteron |

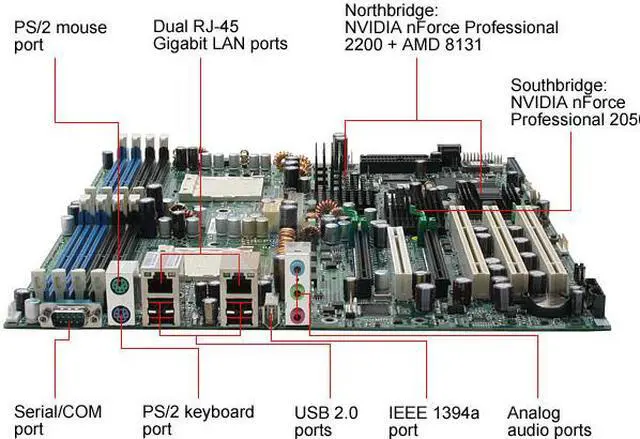

| North Bridge | NVIDIA nForce Professional 2200 + AMD 8131 |
|---|---|
| South Bridge | NVIDIA nForce Professional 2050 |
| Number of DDR Slots | 8 x 184Pin |
|---|---|
| DDR Standard | DDR 400 (PC 3200) |
| Maximum Memory Supported | 32GB |
| Channel Supported | Dual Channel |
| ECC Supported | Yes |
| Registered | Yes |
| PCI Express x16 | 2 x PCI Express x16 |
|---|---|
| PCI Slots | 1 x PCI Slot |
| SATA | 4 x SATA 3.0Gb/s |
|---|---|
| SATA RAID | 0/1/0+1 |
| SCSI | Dual-Chnl Ultra320 |
| SCSI Type | 68PIN |
| SCSI Chipset | LSI 53C1030 |
| Onboard Video Chipset | None |
|---|
| Audio Chipset | AC97 Codec |
|---|
| LAN Speed | 10/100/1000Mbps |
|---|---|
| Second LAN Speed | 10/100/1000Mbps |
| Max LAN Speed | 2 x 1Gbps |
| PS/2 | 2 |
|---|---|
| COM | 1 |
| USB 1.1/2.0 | 4 x USB 2.0 |
| IEEE 1394 | 1 x IEEE 1394a |
| Audio Ports | 3 Ports |
| Onboard USB | 4 x USB 2.0 |
|---|---|
| Onboard 1394 | 1 x 1394a |
| Form Factor | SSI EEB 3.5 |
|---|---|
| Dimensions (W x L) | 12.0" x 13.0" |

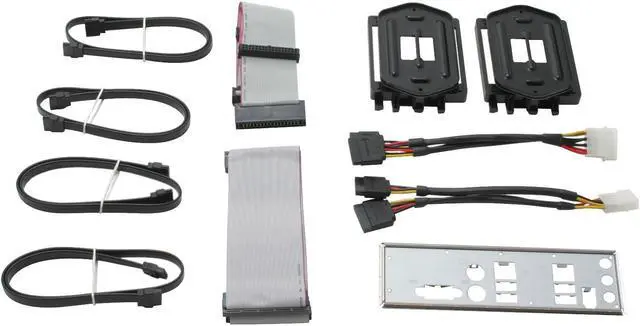

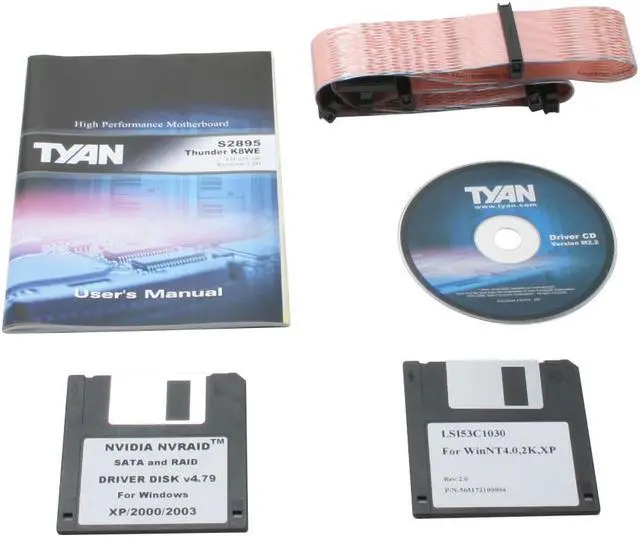

| Package Contents | S2895UA2NRF User Manual Software Disk Rear I/O Panel Shield IDE Cable FDD Cable 4 x SATA Cable 2 x Power Cable 2 x Driver Floppy Disk 2 x CPU Clip SCSI Cable |
|---|
| First Listed on Newegg | May 31, 2005 |
|---|
