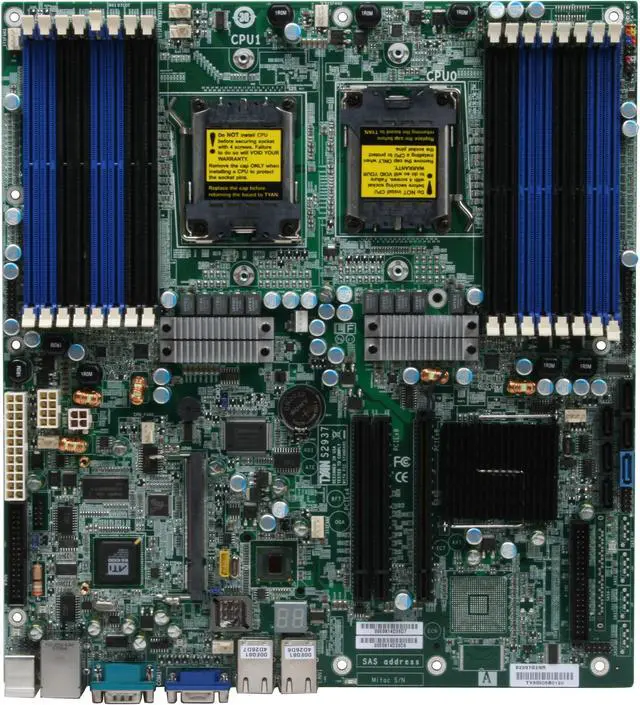

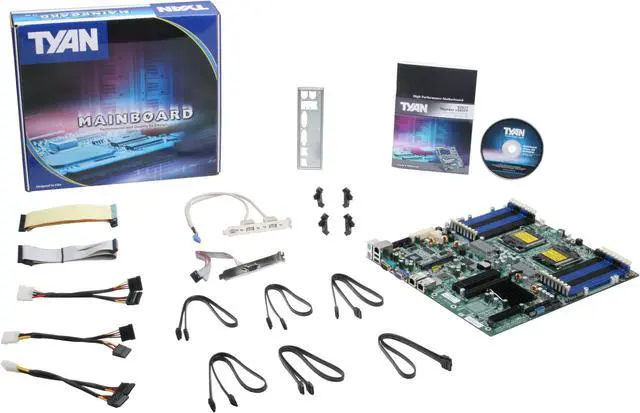

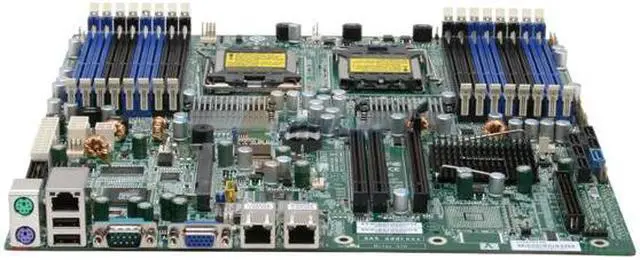

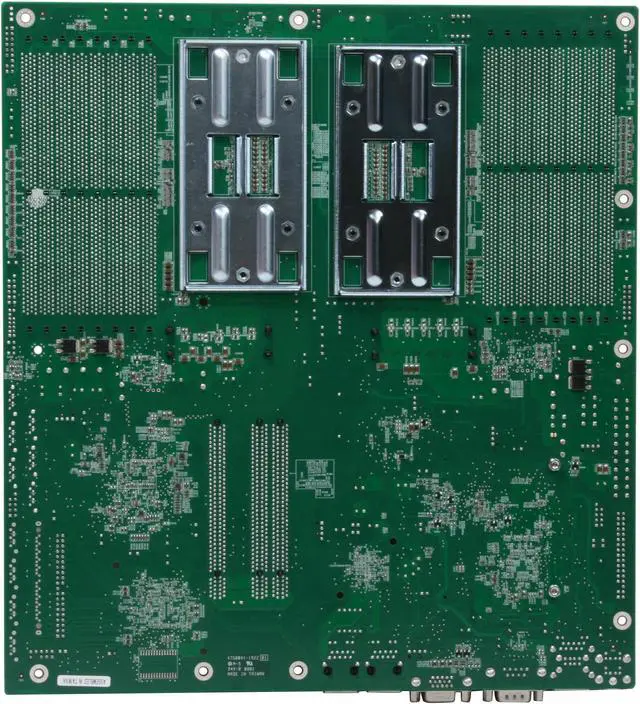

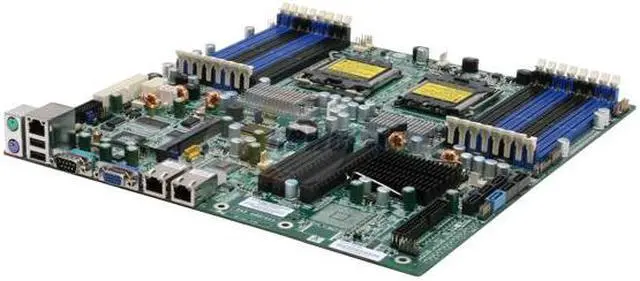

TYAN S2937G2NR Extended ATX Server Motherboard Dual 1207(F) NVIDIA nForce Professional 3600 DDR2 667
- Dual 1207(F)
- NVIDIA nForce Professional 3600
- 16 x 240Pin
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the TYAN S2937G2NR
| Brand | TYAN |
|---|---|
| Model | S2937G2NR |
| CPU Socket Type | Dual 1207(F) |
|---|---|
| CPU Type | Dual AMD Opteron |
| North Bridge | NVIDIA nForce Professional 3600 |
|---|
| Number of DDR2 Slots | 16 x 240Pin |
|---|---|
| DDR2 Standard | DDR2 667 |
| Maximum Memory Supported | 64GB |
| Channel Supported | Dual Channel |
| ECC Supported | Yes |
| Registered | Yes |
| PCI Express x16 | 2 x PCI-E x16 slots (w/ x8 signal) 1 x PCI-E x16 slot (w/ x4 signal) |
|---|---|
| Other Slots | 1 x OPMA connector support M3 OPMA card |
| PATA | 1 x ATA 133 2 Dev. Max |
|---|---|
| SATA | 6 x SATA 3.0Gb/s |
| SATA RAID | 0/1/0+1/5 |
| Onboard Video Chipset | ATI ES1000 |
|---|
| LAN Chipset | Intel 82571EB |
|---|---|
| LAN Speed | 10/100/1000Mbps |
| Second LAN Chipset | Intel 82571EB |
| Second LAN Speed | 10/100/1000Mbps |
| Max LAN Speed | 2 x 1Gbps |
| PS/2 | 2 |
|---|---|
| COM | 1 |
| Video Ports | D-Sub |
| USB 1.1/2.0 | 2 x USB 2.0 |
| Form Factor | Extended ATX |
|---|---|
| Dimensions (W x L) | 12.0" x 13.0" |
| First Listed on Newegg | April 08, 2008 |
|---|
