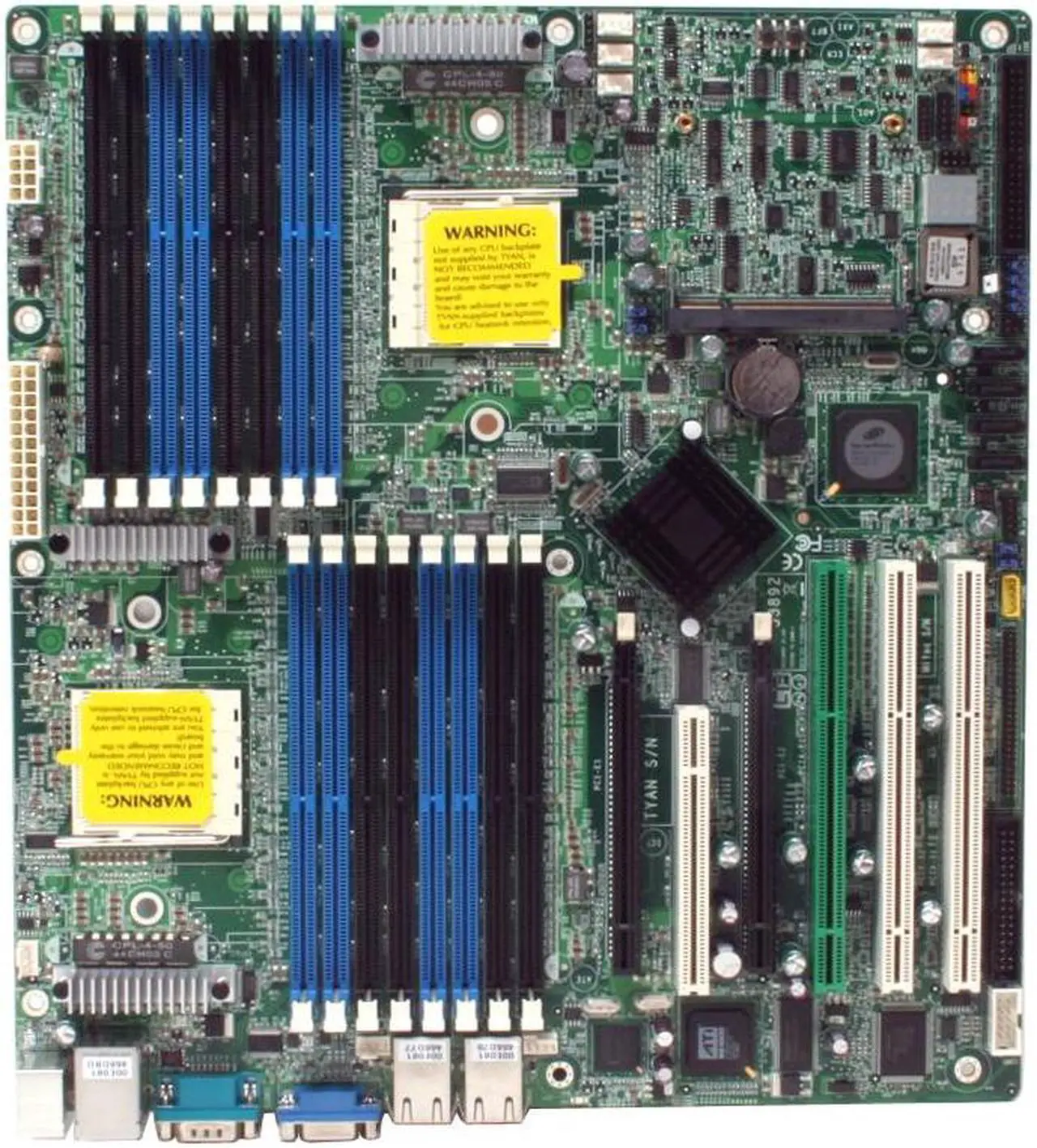

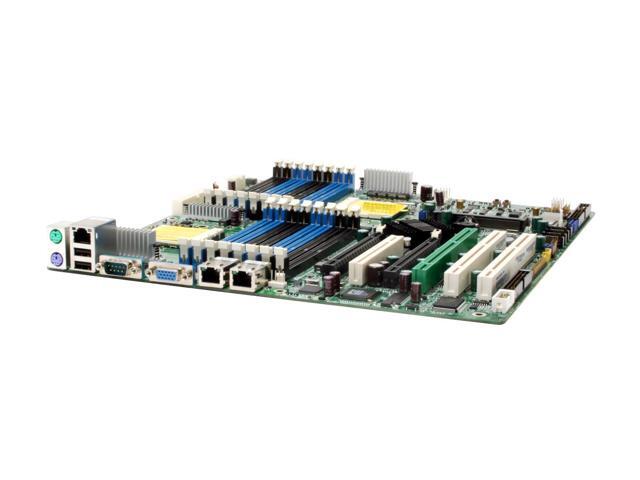

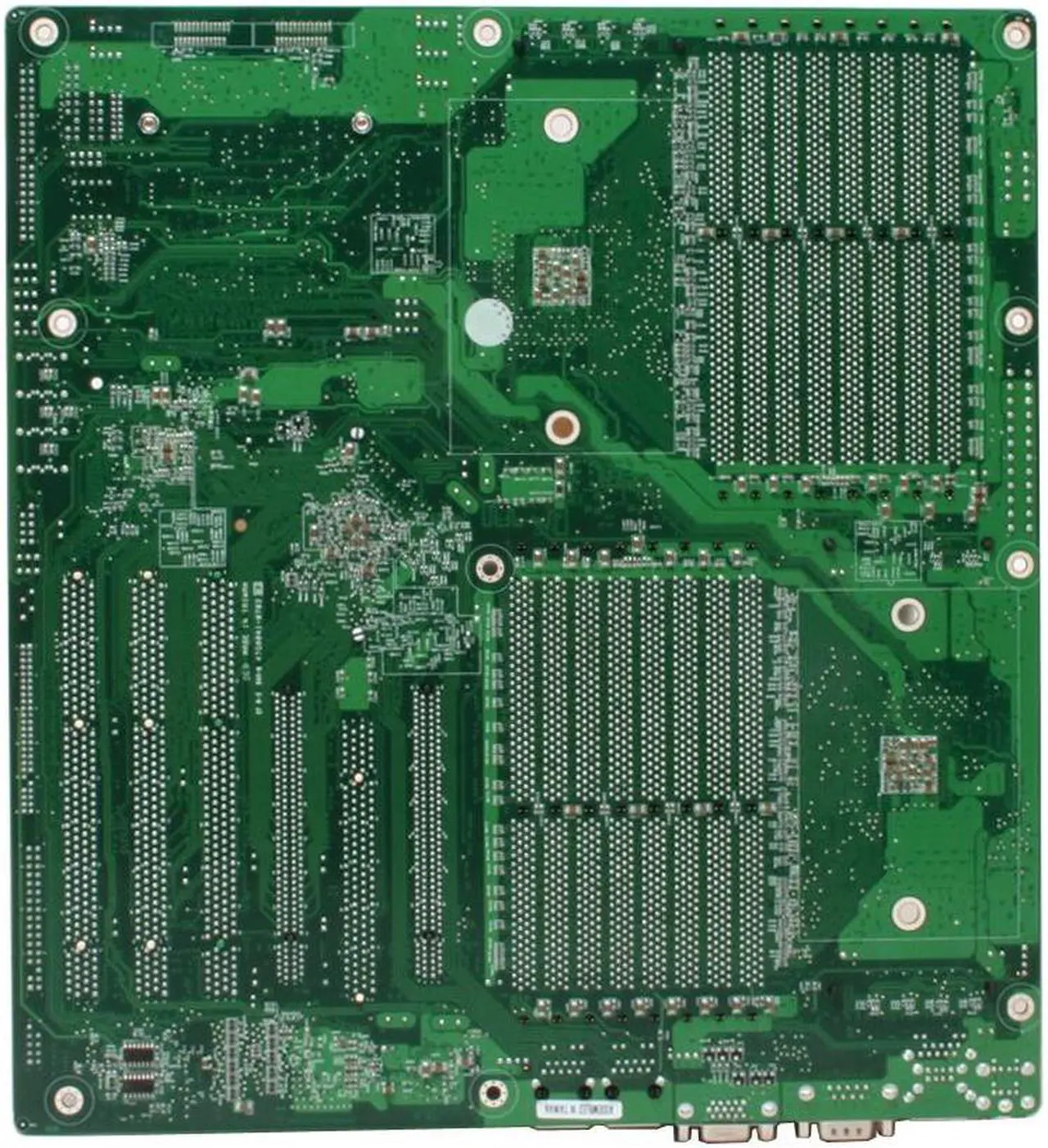

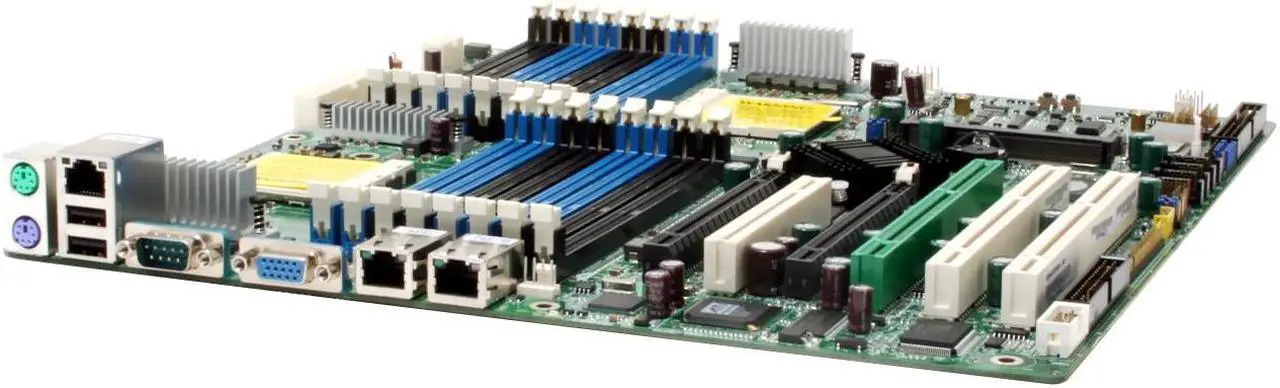

TYAN S3892G3NR-RS Extended ATX Server Motherboard Dual 940 ServerWorks HT2000 + HT1000
- Dual 940
- ServerWorks HT2000 + HT1000 National PC87417 Super I/O chip
- 16 x 184Pin
Specs
Reviews
Learn more about the TYAN S3892G3NR-RS
| Brand | TYAN |
|---|---|
| Model | S3892G3NR-RS |
| CPU Socket Type | Dual 940 |
|---|---|
| CPU Type | Dual AMD Opteron |

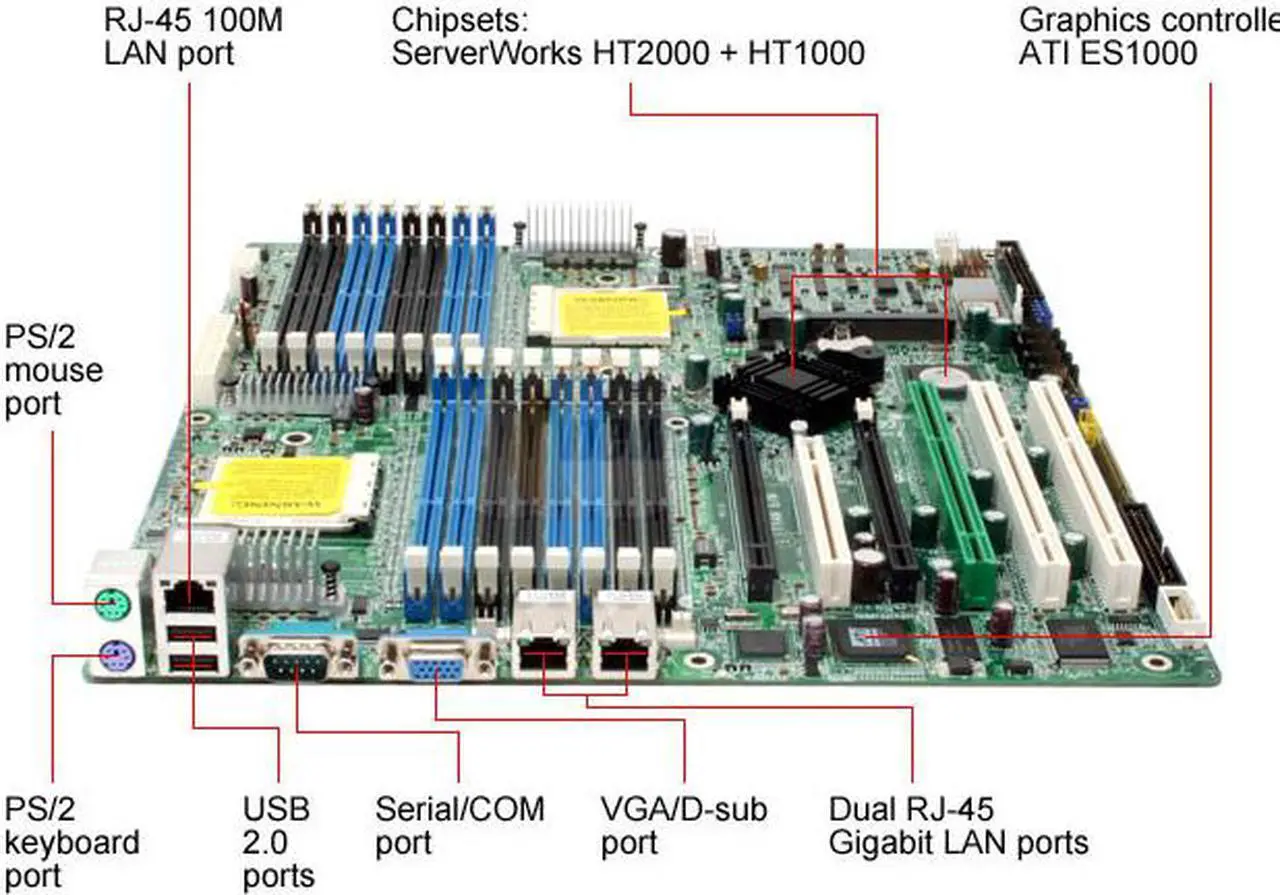

| North Bridge | ServerWorks HT2000 + HT1000 |
|---|---|
| Other Chipset | National PC87417 Super I/O chip |
| Number of DDR Slots | 16 x 184Pin |
|---|---|
| DDR Standard | Supports DDR 266 / 333 / 400 DDR400 memory can be used, but due to design considerations, the max. speed it will run is DDR333 |
| Channel Supported | Dual Channel |
| ECC Supported | Yes |
| Registered | Yes |
| PCI Express x8 | Two x16 PCI Express slots (each with x8 signal) |
|---|---|
| PCI-X Slots (64-bit 133MHz) | 2 |
| PCI-X Slots (64-bit 100MHz) | 1 |
| PCI Slots | 1 x PCI Slot |
| Other Slots | 1 x TYAN TARO SO-DIMM socket |
| PATA | 1 x ATA 100 2 Dev. Max |
|---|---|
| SATA | 4 x SATA 1.5Gb/s |
| SATA RAID | 0/1/5 |
| Onboard Video Chipset | ATI ES1000 |
|---|
| LAN Chipset | BCM5780 |
|---|---|
| LAN Speed | 10/100/1000Mbps |
| Second LAN Chipset | BCM5780 |
| Second LAN Speed | 10/100/1000Mbps |
| Third LAN Chipset | Intel 82551QM |
| Third LAN Speed | 10/100Mbps |
| Max LAN Speed | 2 x 1Gbps + 100Mbps |
| PS/2 | 2 |
|---|---|
| COM | 1 |
| Video Ports | 1 |
| USB 1.1/2.0 | 2 x USB 2.0 |
| Onboard USB | 2 x USB 2.0 |
|---|
| Form Factor | Extended ATX |
|---|---|
| Dimensions (W x L) | 12.0" x 13.0" |

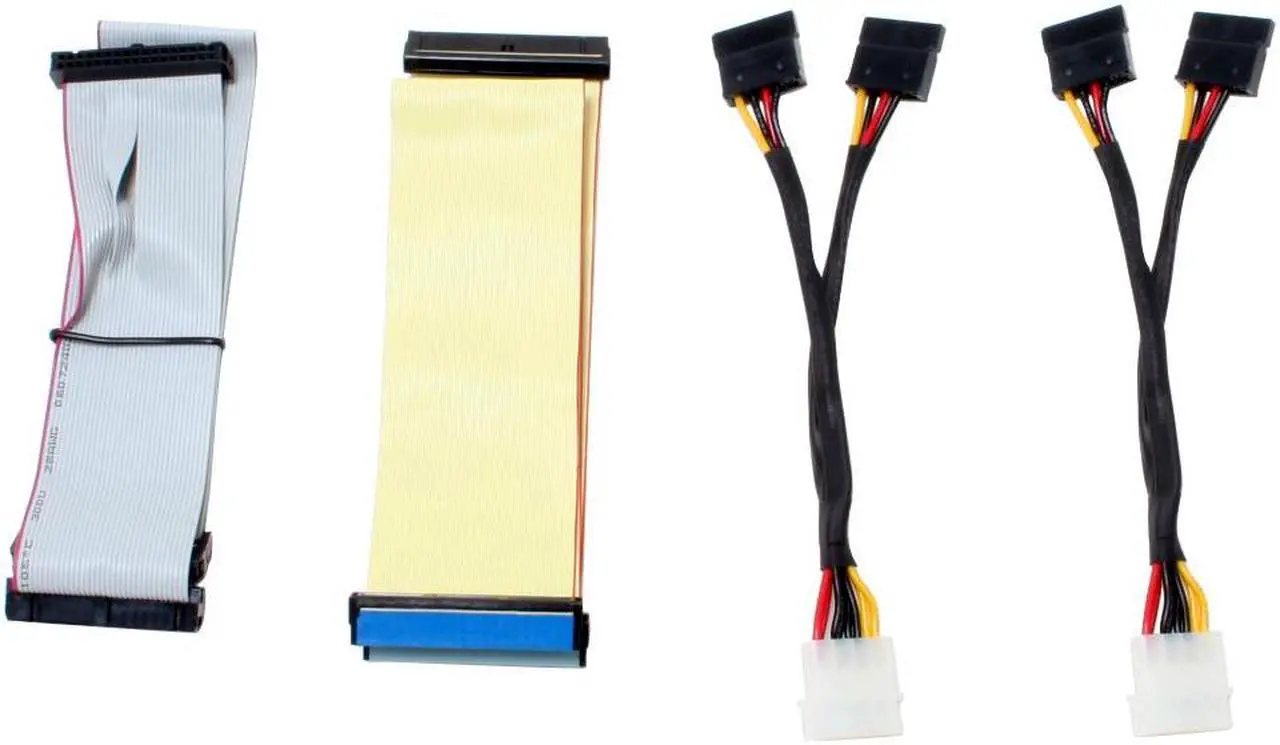

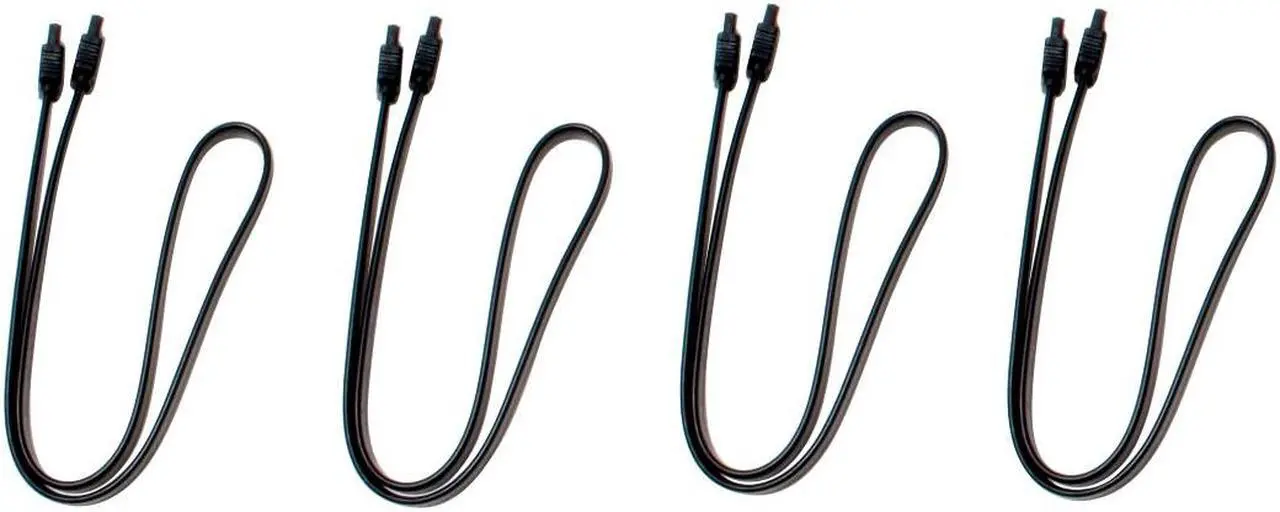

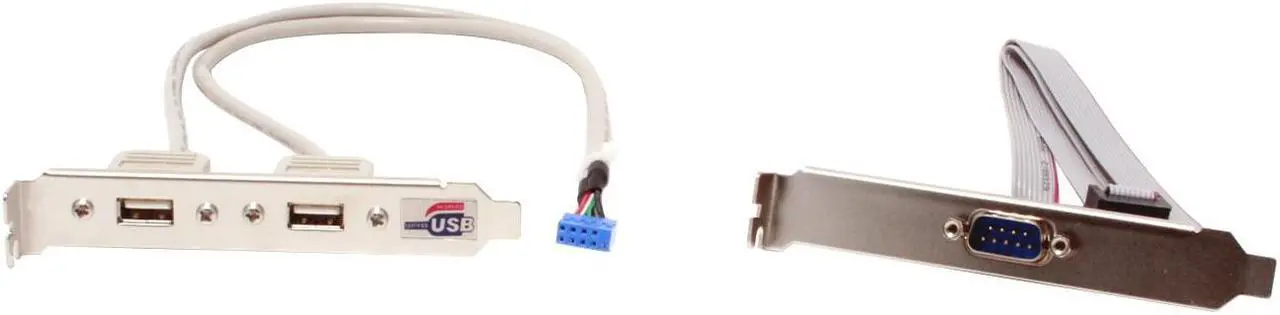

| Package Contents | S3892G3NR-RS User Manual Software Disk Rear I/O Panel Shield IDE Cable FDD Cable 4 x SATA Cable 2 x Power Cable COM Port Bracket USB Bracket 2 x CPU Clip |
|---|
| Date First Available | October 09, 2006 |
|---|
