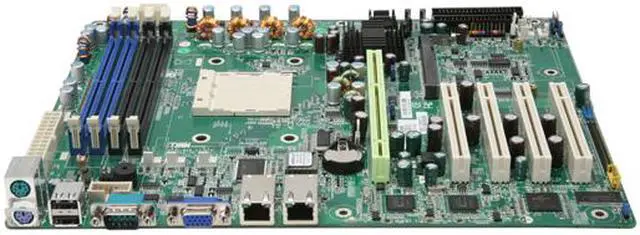

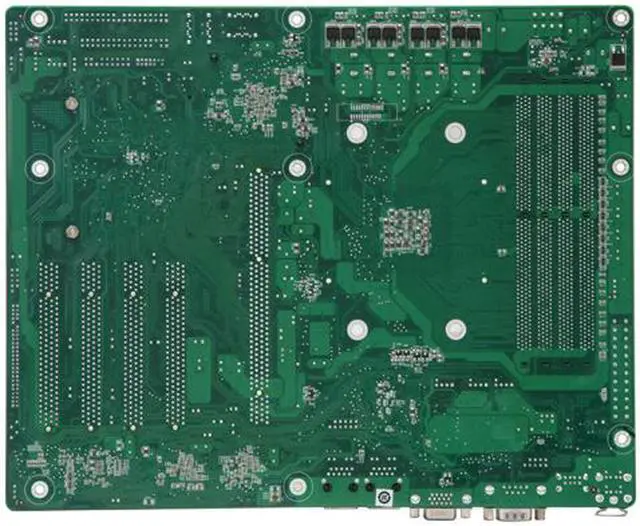

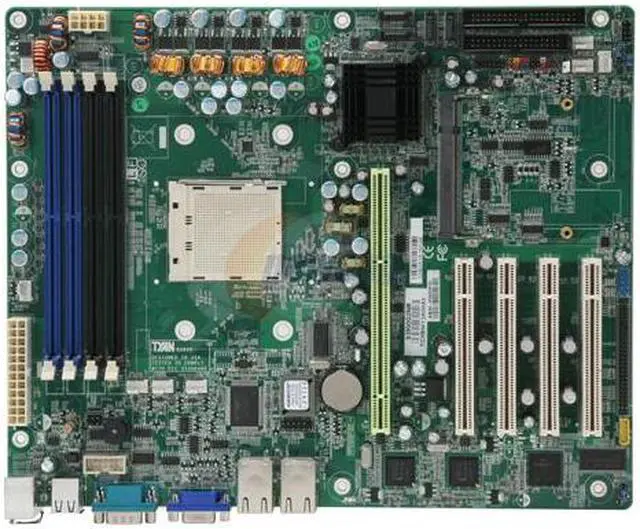

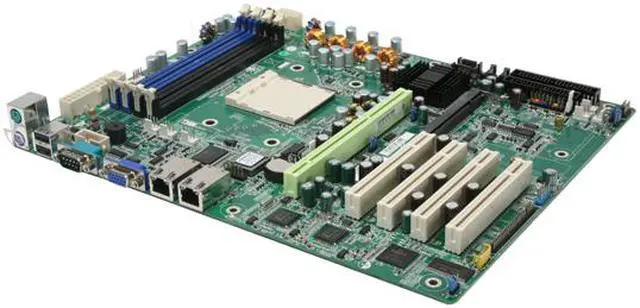

TYAN S3950G2NR Tomcat H1000S AM2 ServerWorks HT1000 ATX AMD Opteron Server Motherboard
- Socket AM2
- ServerWorks HT1000
- 4 x 240Pin
Specs
Reviews (14)
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the TYAN S3950G2NR
| Brand | TYAN |
|---|---|
| Model | S3950G2NR |
| CPU Socket Type | Socket AM2 |
|---|---|
| CPU Type | AMD Opteron |
| Supported CPU Technologies | Hyper-Threading Technology |
| North Bridge | ServerWorks HT1000 |
|---|
| Number of DDR2 Slots | 4 x 240Pin |
|---|---|
| DDR2 Standard | DDR2 667 |
| Maximum Memory Supported | 8GB |
| Channel Supported | Dual Channel |
| ECC Supported | Yes |
| PCI Slots | 4 x PCI Slots |
|---|---|
| Other Slots | 1 x Tyan TARO SO-DIMM socket |
| SATA | 4 x SATA2 ports running at 1.5 Gb/s |
|---|---|
| SATA RAID | 0/1/5/10 |
| Onboard Video Chipset | XGI Volari Z7 |
|---|
| LAN Chipset | Intel i82541PI |
|---|---|
| LAN Speed | 10/100/1000Mbps |
| Second LAN Chipset | Intel i82541PI |
| Second LAN Speed | 10/100/1000Mbps |
| Max LAN Speed | 2 x 1Gbps |
| PS/2 | 2 |
|---|---|
| COM | 1 |
| Video Ports | 1 |
| USB 1.1/2.0 | 2 x USB 2.0 |
| Onboard USB | 2 x USB 2.0 |
|---|
| Form Factor | ATX |
|---|---|
| Dimensions (W x L) | 12.0" x 9.6" |

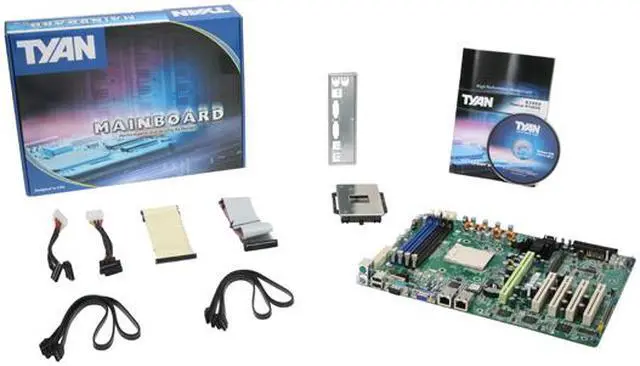

| Package Contents | S3950G2NR User Manual Software Disk Rear I/O Panel 4 x SATA Cable 2 x Power Cable IDE Cable FDD Cable |
|---|
| First Listed on Newegg | August 21, 2006 |
|---|
