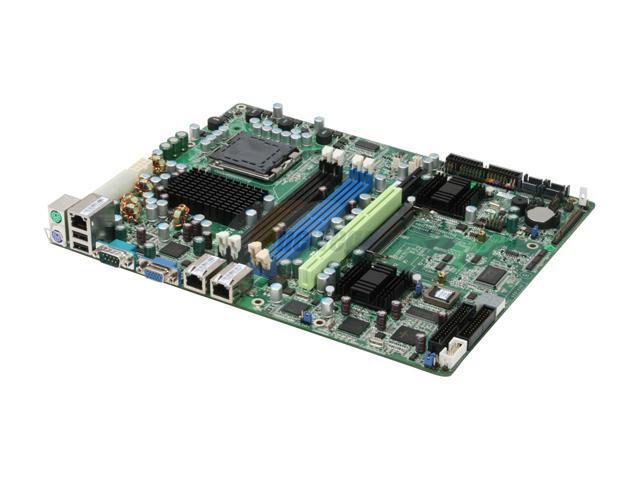

TYAN S5161G3NR-RS ATX Server Motherboard LGA 775 Intel E7230 DDR2 667
OUT OF STOCK.
- LGA 775
- Intel E7230 SMSC SCH5017 Super I/O chip PXH-V 64-bit PCI Hub
- 4 x 240Pin
Specs
Reviews
Learn more about the TYAN S5161G3NR-RS
Brand | TYAN |
---|---|
Model | S5161G3NR-RS |
CPU Socket Type | LGA 775 |
---|---|
CPU Type | Intel Pentium 4/Pentium D processor |
System Bus | 1066/800/533 MHz |
North Bridge | Intel E7230 |
---|---|
South Bridge | Intel ICH7R |
Other Chipset | SMSC SCH5017 Super I/O chip PXH-V 64-bit PCI Hub |
Number of DDR2 Slots | 4 x 240Pin |
---|---|
DDR2 Standard | DDR2 667 |
Maximum Memory Supported | 8GB |
ECC Supported | Yes |
PCI Express x4 | One PCI-X 64/133 slot in-lined with one inversed PCI Express x4 slot (routed to PCI Express x8 bus from MCH) |
---|---|
Other Slots | One Tyan TARO SO-DIMM socket |
PATA | 1 x ATA 100 2 Dev. Max |
---|---|
SATA | 4 x SATA 3.0Gb/s |
SATA RAID | RAID 0/1/5/10 capable (RAID 5/10 is only supported under Windows) |
Onboard Video Chipset | XGI XG20 |
---|
LAN Chipset | Intel 82573V |
---|---|
LAN Speed | 10/100/1000Mbps |
Second LAN Chipset | Intel 82573V |
Second LAN Speed | 10/100/1000Mbps |
Third LAN Chipset | Intel 82551QM |
Third LAN Speed | 10/100Mbps |
Max LAN Speed | Dual 10/100/1000Mbps + 10/100Mbps |
PS/2 | 2 |
---|---|
COM | 1 |
Video Ports | 1 |
USB 1.1/2.0 | 2 x USB 2.0 |
Form Factor | ATX |
---|---|
Dimensions (W x L) | 12.0" x 9.6" |
Date First Available | March 17, 2008 |
---|
Warranty & Returns
Warranty, Returns, And Additional Information
Return Policies
- Return for refund within: Non-refundable
- Return for replacement within: 30 days
- This item is covered by Newegg.com's Replacement Only Return Policy
Manufacturer Contact Info
- Manufacturer Product Page
- Manufacturer Website
- Support Phone: 1-510-651-8868
- Support Website
- View other products from TYAN
LOADING...
LOADING...
Pros: Built a iscsi SAN using this MB and Opensource Openfiler 3.2. Installed Openfiler 3.2 without any problems to a seagate SATA II 80 HD. Openfiler accessed all the onboard SATA ports & onboard Gig ethernet Nics without issuse. Would highly recommend this MB if installing a linux OS. I decided to buy the MB from previous posted Review that had successfully installed Openfiler thanks...
Cons: None so far...
Overall Review: If you want to use software ware using the onboard SATA II port work great, yet I you need better performance I would recommend purchasing a 3ware SATA II controller, which work great in OF.
