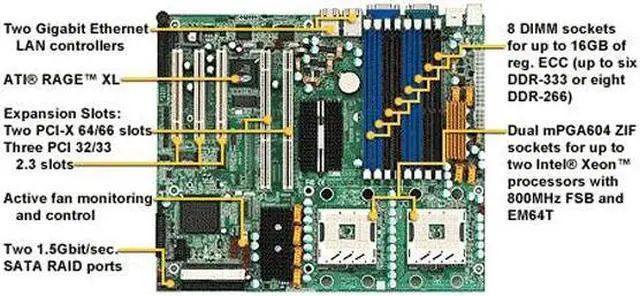

TYAN S5350G2NR-D-RS SSI CEB Server Motherboard Dual mPGA604 Intel E7320
- Dual mPGA604
- Intel E7320 SMSC DME1737 LPC I/O chip
- 8 x 184Pin
Specs
Reviews
Learn more about the TYAN S5350G2NR-D-RS
| Brand | TYAN |
|---|---|
| Model | S5350G2NR-D-RS |
| CPU Socket Type | Dual mPGA604 |
|---|---|
| CPU Type | Dual Intel Xeon |
| System Bus | 800 MHz |
| North Bridge | Intel E7320 |
|---|---|
| South Bridge | Intel 6300ESB |
| Other Chipset | SMSC DME1737 LPC I/O chip |
| Number of DDR Slots | 8 x 184Pin |
|---|---|
| DDR Standard | DDR 333 (PC 2700) |
| Maximum Memory Supported | 16GB |
| Channel Supported | Dual Channel |
| ECC Supported | Yes |
| Registered | Yes |
| PCI-X Slots (64-bit 66MHz) | 2 |
|---|---|
| PCI Slots | 3 x PCI Slots |
| SATA | 2 x SATA 1.5Gb/s |
|---|---|
| SATA RAID | 0/1 |
| Onboard Video Chipset | ATI RAGE XL |
|---|
| LAN Chipset | Broadcom BCM5721 |
|---|---|
| LAN Speed | 10/100/1000Mbps |
| Second LAN Chipset | Broadcom BCM5721 |
| Second LAN Speed | 10/100/1000Mbps |
| Max LAN Speed | 2 x 1Gbps |
| PS/2 | 2 |
|---|---|
| COM | 1 |
| Video Ports | 1 |
| USB 1.1/2.0 | 2 x USB 2.0 |
| Onboard USB | 2 x USB 2.0 |
|---|
| Form Factor | SSI CEB |
|---|---|
| Dimensions (W x L) | 12.0" x 10.2" |
| First Listed on Newegg | April 24, 2007 |
|---|
