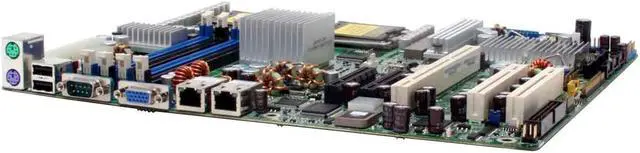

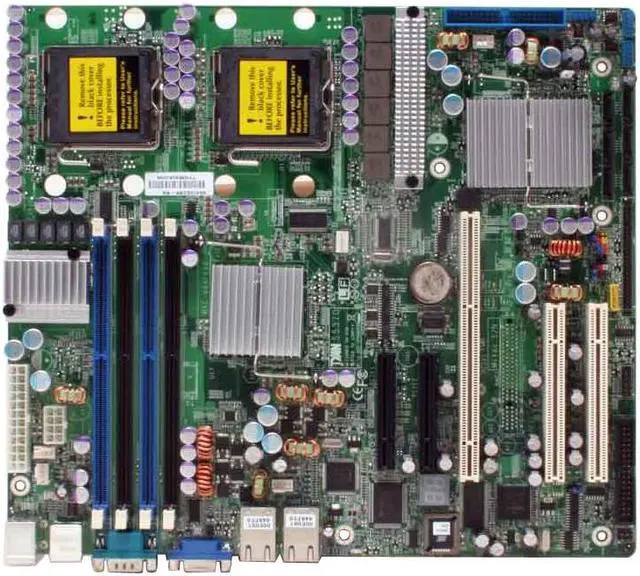

TYAN S5370G2NR-RS SSI CEB Server Motherboard Dual LGA 771 Intel 5000V DDR2 667
- Dual LGA 771
- Intel 5000V
- 4 x 240Pin
Specs
Reviews (6)
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the TYAN S5370G2NR-RS
| Brand | TYAN |
|---|---|
| Model | S5370G2NR-RS |
| CPU Socket Type | Dual LGA 771 |
|---|---|
| CPU Type | Dual Intel Xeon |
| System Bus | 1333/1066 MHz |
| North Bridge | Intel 5000V |
|---|---|
| South Bridge | Intel 6321ESB |
| Number of DDR2 Slots | 4 x 240Pin |
|---|---|
| DDR2 Standard | DDR2 667 |
| Maximum Memory Supported | 16GB |
| Channel Supported | Dual Channel |
| ECC Supported | Yes |
| Registered | FBDIMM |
| PCI Express x8 | 2 x PCI-E x8 slots (with x4 signal) |
|---|---|
| PCI-X Slots (64-bit 133MHz) | 1 |
| PCI Slots | 2 x PCI Slots |
| PATA | 1 x ATA 100 2 Dev. Max |
|---|---|
| SATA | 6 x SATA 3.0Gb/s |
| SATA RAID | RAID 0, 1, 5, 10 supported (Window OS only) |
| Onboard Video Chipset | XGI Volari Z7 |
|---|
| LAN Speed | 10/100/1000Mbps |
|---|---|
| Second LAN Speed | 10/100/1000Mbps |
| Max LAN Speed | 2 x 1Gbps |

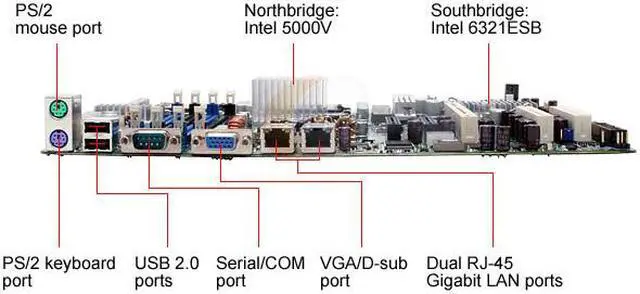

| PS/2 | 2 |
|---|---|
| COM | 1 |
| Video Ports | 1 |
| USB 1.1/2.0 | 2 x USB 2.0 |
| Onboard USB | 3 x USB internal headers |
|---|
| Features | RoHs Complianced |
|---|
| Form Factor | SSI CEB |
|---|---|
| Dimensions (W x L) | 12.0" x 10.5" |

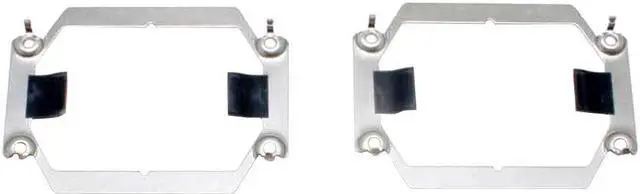

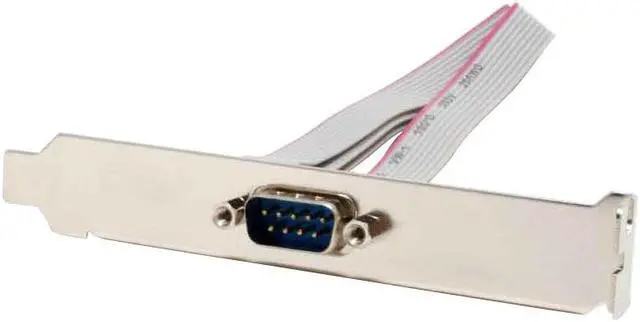

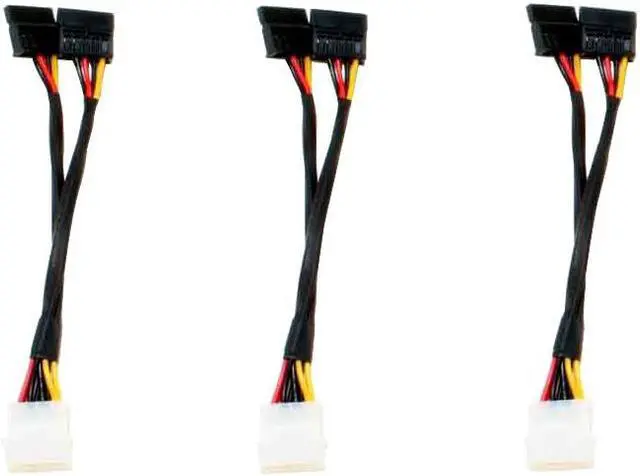

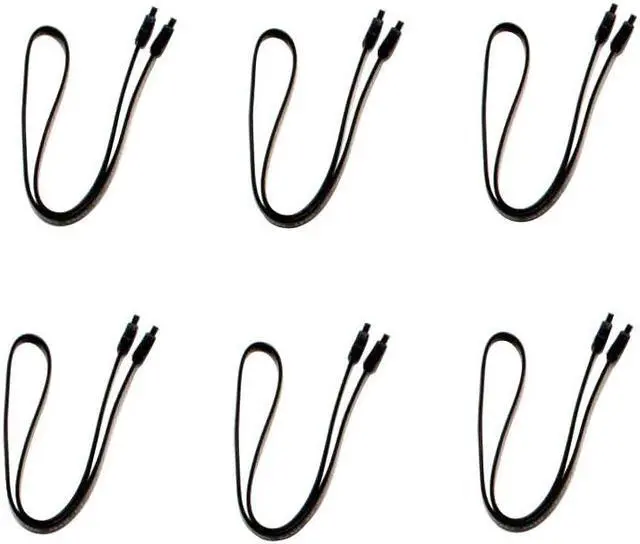

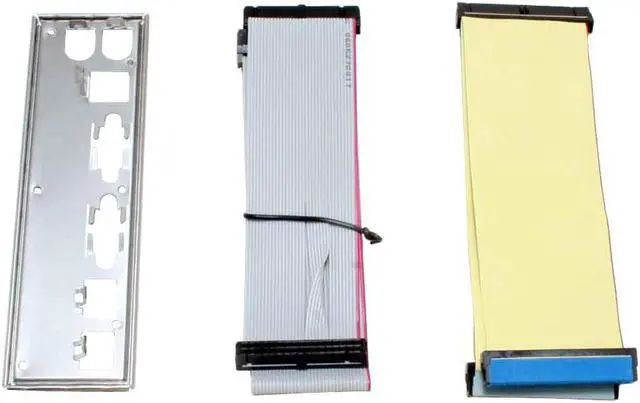

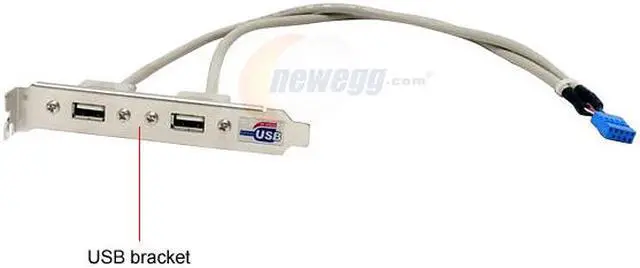

| Package Contents | S5370G2NR-RS User Manual Software Disk Rear I/O Panel Shield USB Bracket COM Port Bracket IDE Cable FDD Cable 3 x Power Cable 6 x SATA Cable 2 x CPU Clip |
|---|
| First Listed on Newegg | September 05, 2006 |
|---|
