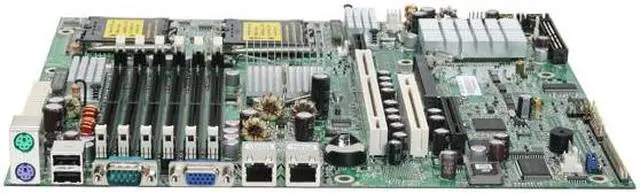

    TYAN S5372G2NR-LH Tempest i5000VS Dual LGA 771 Intel 5000V SSI CEB Dual Intel Xeon Server Motherboard

    (3) Write a Review
    • Dual LGA 771
    • Intel 5000V SMSC SCH5017 Super I/O chip
    • 6 x 240Pin
    +
    +
    Specs
    Reviews (3)
    avatar

    Any questions? Our AI beta will help you find out quickly.

    Try me now

    Learn more about the TYAN S5372G2NR-LH

    Model
    Brand TYAN
    Model S5372G2NR-LH
    Supported CPU
    CPU Socket Type Dual LGA 771
    CPU Type Dual Intel Xeon
    System Bus 1333/1066 MHz
    Chipsets
    North Bridge Intel 5000V
    Other Chipset SMSC SCH5017 Super I/O chip
    Memory
    Number of DDR2 Slots 6 x 240Pin
    DDR2 Standard DDR2 667
    Channel Supported Dual Channel
    ECC Supported Yes
    Registered FBDIMM
    Expansion Slots
    PCI Express x8 One x8 PCIe slot(with PCIe x4 bus)
    PCI-X Slots (64-bit 133MHz) One 64/133 PCI-X slot in-lined with one (1) inversed PCIe x4 slot(routed to PCIe x8 bus)
    PCI Slots 1 x PCI Slot
    Other Slots One TYAN TARO SO-SIMM socket
    Storage Devices
    PATA 1 x ATA 100 2 Dev. Max
    SATA 4 x SATA 3.0Gb/s
    SATA RAID 0/1/5/10
    Onboard Video
    Onboard Video Chipset XGI XG20
    Onboard LAN
    LAN Chipset Intel 82563EB
    LAN Speed 10/100/1000Mbps
    Second LAN Chipset Intel 82563EB
    Second LAN Speed 10/100/1000Mbps
    Max LAN Speed 2 x 1Gbps
    Rear Panel Ports
    PS/2 2
    COM 1
    Video Ports D-Sub
    USB 1.1/2.0 2 x USB 2.0
    Onboard Ports
    Onboard USB 2 x USB 2.0
    Dimensions
    Form Factor SSI CEB
    Dimensions (W x L) 12.0" x 10.5"
    Additional Information
