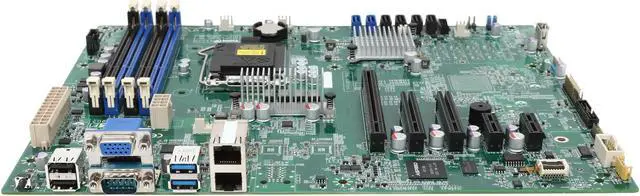

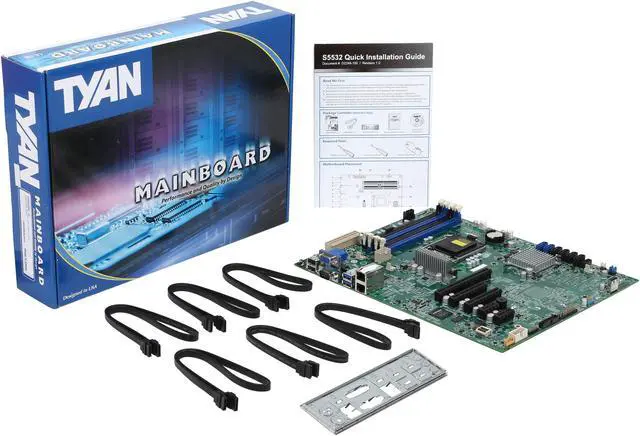

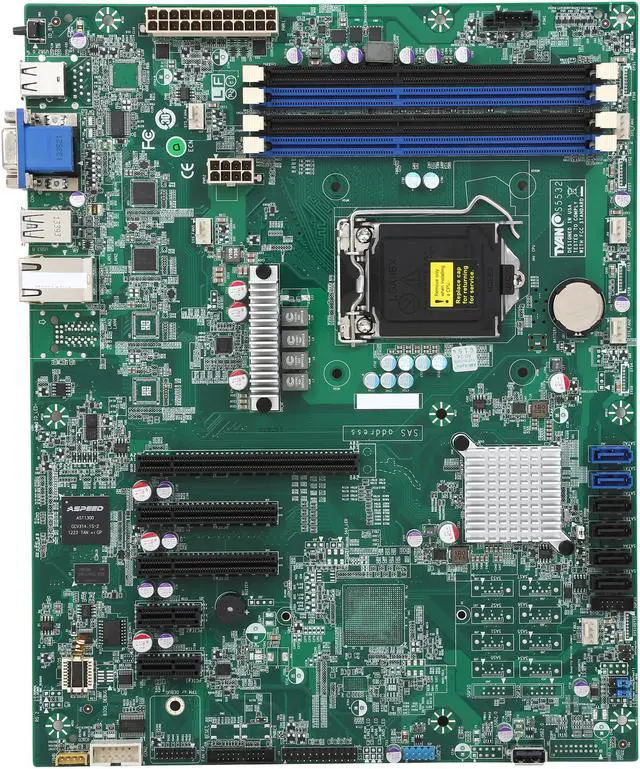

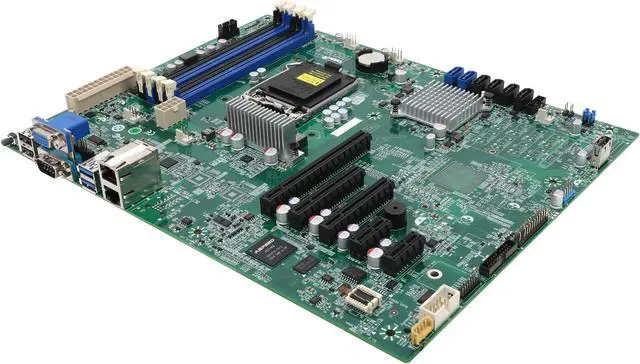

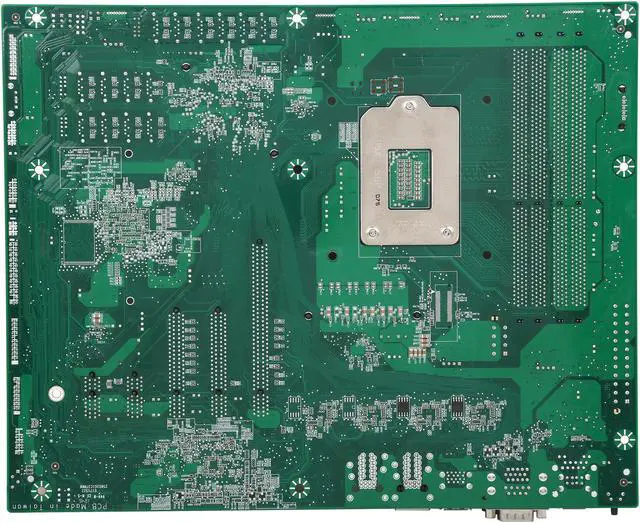

TYAN S5532G2NR-LE ATX Server Motherboard LGA 1150 Intel C222 DDR3 1600/1333/1066

OPEN BOX Product Type
  • LGA 1150
  • Intel C222
  • 4 x 240pin
The Open Box Product Disclaimer applies to this product.
Specs
avatar

Any questions? Our AI mode will help you find out quickly.

Learn more about the TYAN S5532G2NR-LE

Model
Brand TYAN
Model S5532G2NR-LE
Supported CPU
CPU Socket Type LGA 1150
CPU Type Intel Xeon E3-1200 v3 & 4th Gen. Core i3 (Max up to 95W)
Chipsets
North Bridge Intel C222
Memory
Number of DDR3 Slots 4 x 240pin
DDR3 Standard DDR3 1600/1333/1066
Maximum Memory Supported 32GB
ECC Supported Yes
Expansion Slots
PCI Express 3.0 x16 1
PCI Express x8 (1) PCI-E Gen.3 x8 slot / (1) PCI-E Gen.2 x8 slot (w/ x1 link)
PCI Express x4 (2) PCI-E Gen.2 x4 slot (w/ x1 link)
Storage Devices
SATA 2 x SATA 6.0Gb/s + 4 x SATA 3.0Gb/s
SATA RAID 0/1/5/10
Onboard Video
Onboard Video Chipset Aspeed AST1300
Onboard LAN
LAN Chipset Intel I210
LAN Speed 10/100/1000Mbps
Max LAN Speed 1Gbps
Rear Panel Ports
COM 1 x DB-9 COM Connector (at rear, COM1) + 1 x Header (COM2)
Video Ports 1 x VGA
USB 1.1/2.0 2 x USB 2.0
USB 3.0 2 x USB 3.0
Onboard Ports
Onboard USB 1 type A header, 2 via cable
Dimensions
Form Factor ATX
Dimensions (W x L) 12.0" x 9.6"
Additional Information
First Listed on Newegg December 22, 2014
