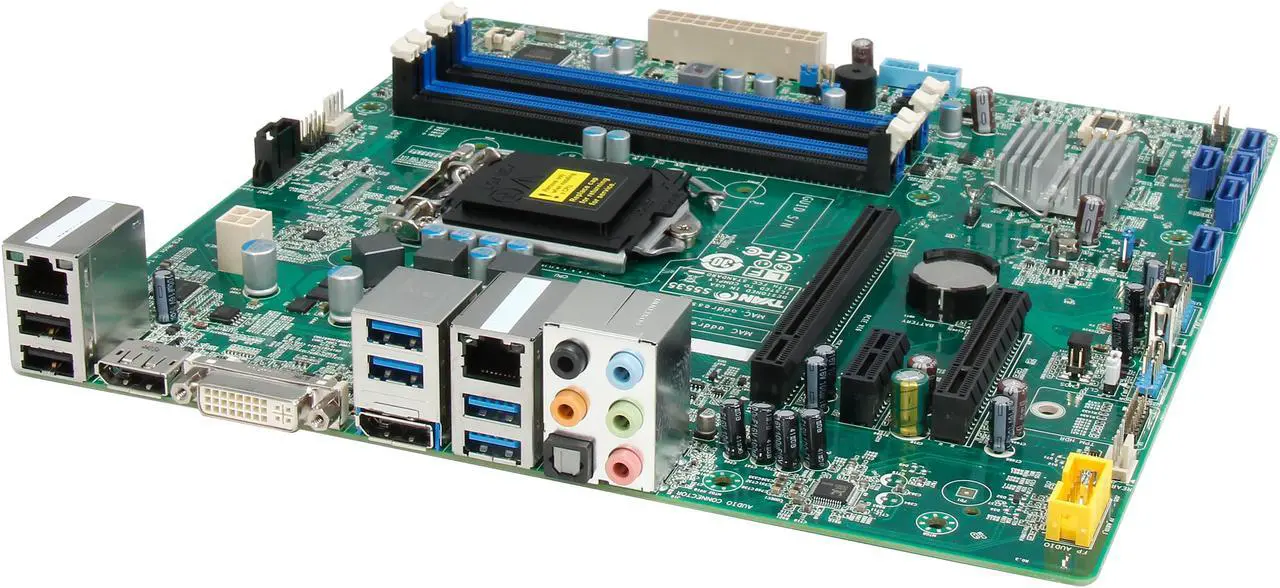

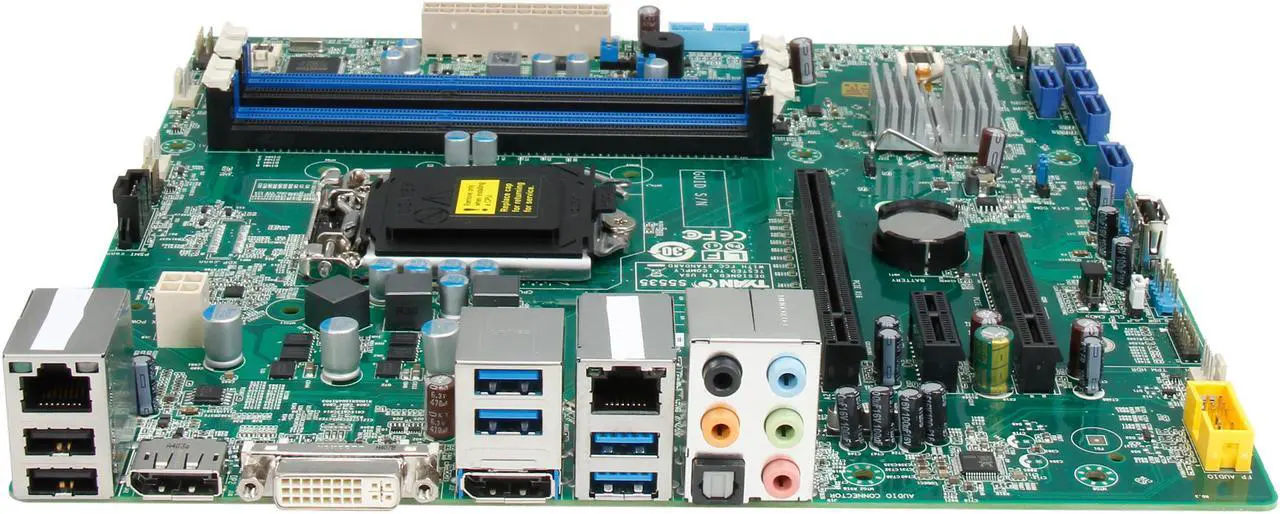

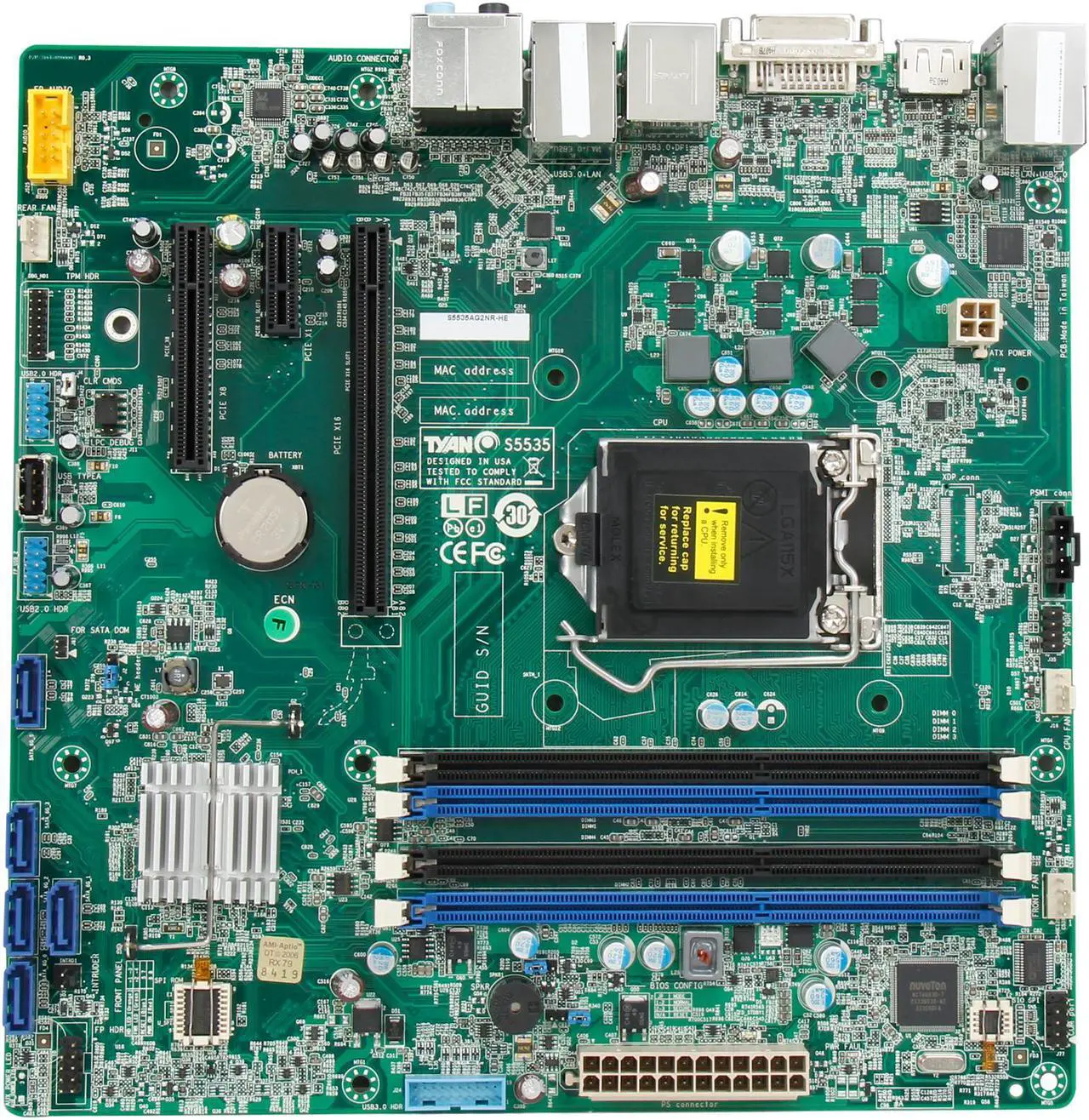

TYAN S5535AG2NR-HE Micro ATX Server Motherboard LGA 1150 Intel C226 DDR3 1600/1333/1066
OUT OF STOCK.
- LGA 1150
- Intel C226
- 4 x 240pin
Specs
Reviews
Learn more about the TYAN S5535AG2NR-HE
| Brand | TYAN |
|---|---|
| Model | S5535AG2NR-HE |
| CPU Socket Type | LGA 1150 |
|---|---|
| CPU Type | Intel Xeon E3-1200 v3 & 4th Gen. Core i3 Max up to 95W |
| North Bridge | Intel C226 |
|---|
| Number of DDR3 Slots | 4 x 240pin |
|---|---|
| DDR3 Standard | DDR3 1600/1333/1066 |
| Maximum Memory Supported | 32GB |
| Channel Supported | Dual Channel |
| PCI Express 3.0 x16 | 1 |
|---|---|
| PCI Express x8 | 1 x PCI-E Gen.2 x8 slots (w/ x4 link) |
| PCI Express x1 | (1) PCI-E Gen.2 x1 slot |
| SATA | 5 x SATA 6.0Gb/s |
|---|---|
| SATA RAID | 0/1/5/10 |
| Onboard Video Chipset | Intel Processor Graphics(pGFX) |
|---|
| Audio Chipset | Realtek ALC892-GR |
|---|
| LAN Chipset | Intel I210 |
|---|---|
| LAN Speed | 10/100/1000Mbps |
| Second LAN Chipset | Intel I217 |
| Second LAN Speed | 10/100/1000Mbps |
| Max LAN Speed | Dual 10/100/1000Mbps |
| COM | 1 x Header |
|---|---|
| Video Ports | 1 x DVI 2 x DisplayPort |
| USB 1.1/2.0 | 2 x USB 2.0 |
| USB 3.0 | 4 x USB 3.0 |
| Onboard USB | 2 x USB 3.0 ports (via cable) 4 x USB 2.0via cable, 1 x USB 2.0Type-A |
|---|
| Features | Super I/O: NCT6683D-T RJ-45: (2) GbE ports Front Panel: (1) 2 x 5 header Fan: Total (3) 4-pin headers Regulation FCC (DoC) Class A CE (DoC) Yes |
|---|
| Form Factor | Micro ATX |
|---|---|
| Dimensions (W x L) | 9.6" x 9.6" |

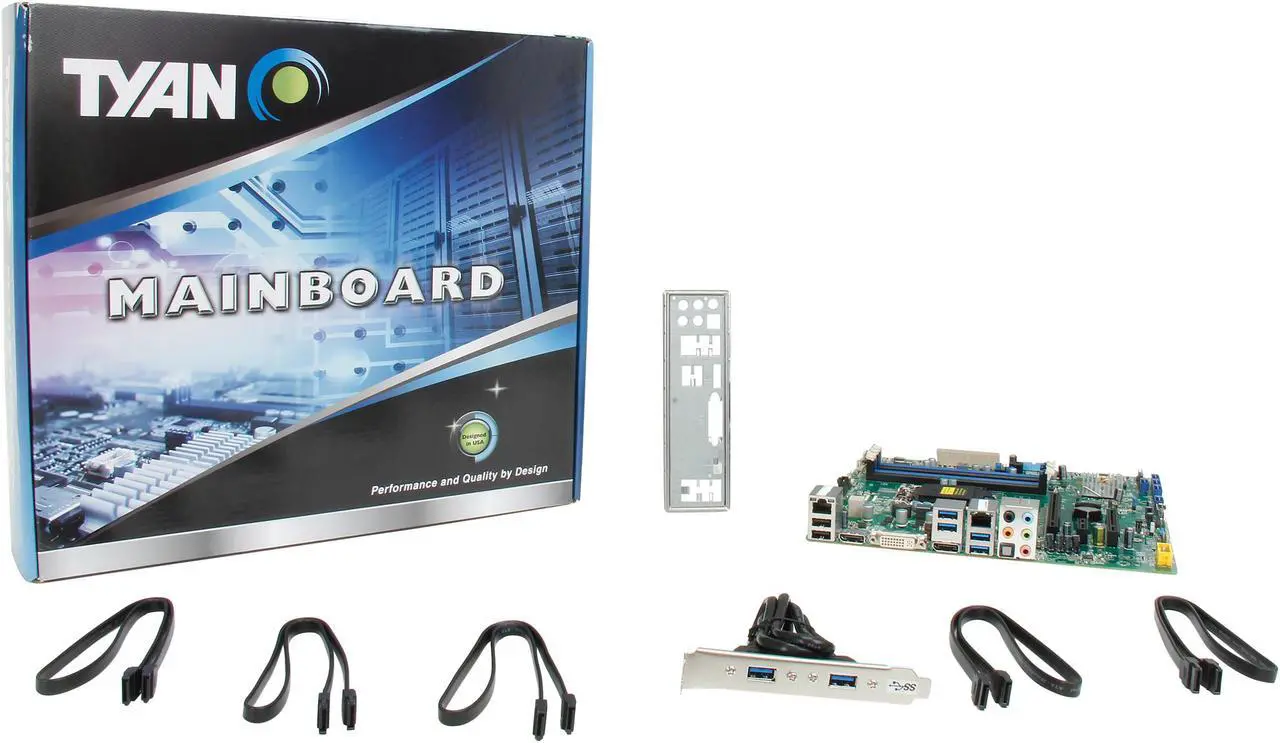

| Package Contents | Motherboard (1) S5535 Motherboard Manual (1) Quick Installation Guide Installation CD (1) TYAN installation CD Cable SATA (5) SATA signal cables USB (1) CCBL-035J, 2-port USB bracket cable |
|---|
| Date First Available | May 19, 2014 |
|---|
Warranty & Returns
Warranty, Returns, And Additional Information
Warranty
- Limited Warranty period (parts): 3 years
- Limited Warranty period (labor): 3 years
- Read full details
Return Policies
- Return for refund within: 30 days
- Return for replacement within: 30 days
- This item is covered by Newegg.com's Standard Return Policy
Manufacturer Contact Info
- Manufacturer Product Page
- Manufacturer Website
- Support Phone: 1-510-651-8868
- Support Website
- View other products from TYAN
LOADING...
LOADING...
Pros: This board has lasted over 2 years for me. It works okay as either a desktop or a server.
Cons: I've had problems with the audio from the start. The rear audio out port stopped working. I switched to the internal (front) port which eventually stopped working as well so I had to connect a USB audio card. Sometimes the system halts at the start-up and I have to re-boot it. The PCIe slot placement is not the best if you need a dual-slot graphics card plus any other card because the additional card will block the fans on the video card. When I have the additional card in place, the system over-heats and shuts down.
Overall Review: I've found that the ASRock rack C226M as a better solution. I've had no problems with it over the same period of time and the PCI slot arrangement is better. I will also be trying the ASUS P10S-M (C236) as a next generation option to see how it performs.
