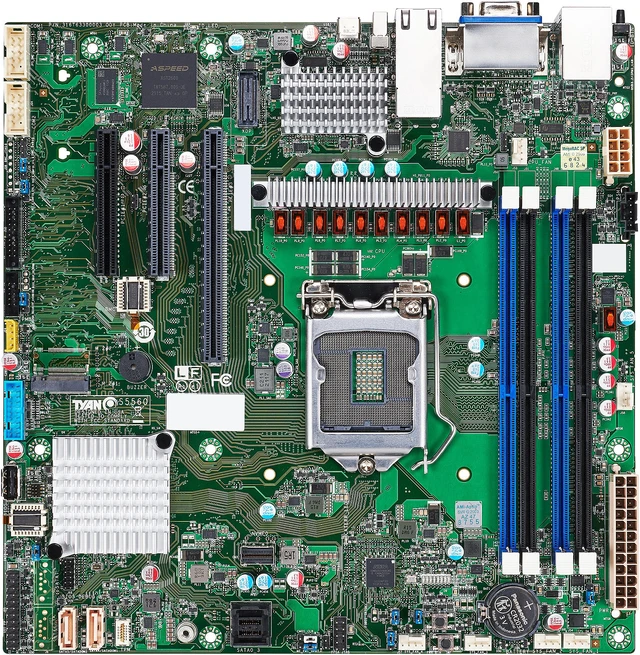

TYAN S5560GM2NRE-2T Micro ATX Server Motherboard LGA 1200 Intel C252

Be the first to review this product...
  • 9.6" x 9.6" µATX form factor
  • C252 PCH
  • 6 SATA 6G ports
  • 1 NVMe 22110/2280 M.2
  • 2 10GBase-T LAN + 1 dedicate 1000Base-T IPMI ports
  • 2 PCIe Gen.4 + 1 PCIe Gen.3 slots
  • AST2600 BMC with Redfish support
  • 1 VGA
+
+
Specs
Reviews

Any questions? Ask CelesteSM will help you find out quickly.

Try me now

Learn more about the TYAN S5560GM2NRE-2T

Model
Brand TYAN
Model S5560GM2NRE-2T
Supported CPU
CPU Socket Type LGA 1200
CPU Type Supports
Intel Xeon E-2300 11th Gen series processor
Intel Pentium series processor
Chipsets
North Bridge Intel C252
Memory
Number of DDR4 Slots 4 x 288-pin
DDR4 Standard DDR4 Unbuffered ECC UDIMM 3200
Maximum Memory Supported Up to 128GB / *Follow latest Intel DDR4 Memory POR
Channel Supported Dual Channel
ECC Supported Yes
Expansion Slots
PCI Express 4.0 x16 (1) PCIe Gen.4 x16 slot #7 (w/ x8 link) from CPU
PCI Express x8 (1) PCIe Gen.4 x8 open-end slot #6 (w/ x8 link) from CPU
(1) PCIe Gen.3 x8 open-end slot #5 (w/ x2 link) from PCH
Storage Devices
SATA 6 x SATA 6.0Gb/s
SATA RAID RAID 0/1/10/5 (Intel RSTe)
M.2 (1) 22110/2280 (by PCIe Gen.3 x4)
Onboard Video
Onboard Video Chipset Aspeed AST2600
Onboard LAN
LAN Chipset Intel X550
LAN Speed 10/100/1000Mbps
Max LAN Speed 10Gbps

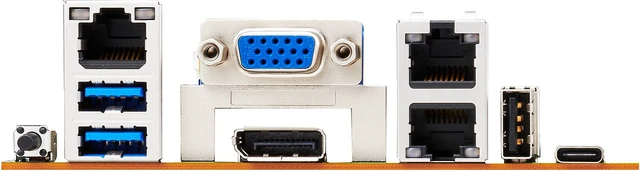

Rear Panel Ports
Back I/O Ports (1) USB2.0 port (@ rear)
(1) USB3.2 Gen.2 port (Type-C @rear)
(2) USB3.2 Gen.1 ports (via cable)
(2) USB3.2 Gen.2 ports (@rear)
(2) DB-9 COM Connector headers
(1) D-Sub 15-pin VGA port (@ rear)
(2) 10GbE ports + (1) GbE dedicated for IPMI
(1) Display port 1.2
Dimensions
Form Factor Micro ATX
Dimensions (W x L) 9.6" x 9.6"
