TYAN S5642AGM3NRE-2T SSI CEB Server Motherboard LGA 4189 Intel C621A

Be the first to review this product...
  • 12" x 10.6" SSI CEB FF
  • 8 DIMM slots w/ DDR4-3200 memory support
  • 3 PCIe Gen.4 x16 + 2 PCIe Gen.4 x8 slots
  • 1 PCIe x8 SlimSAS connector (NVMe)
  • 2 NVMe 22110 / 2280 M.2 slots
  • 2 10GBase-T LAN + 1 1000Base-T + 1 dedicate 1000Base-T IPMI ports
  • AST2500 BMC with IPMI 2.0 & Redfish support
+
+
Specs
Reviews

Learn more about the TYAN S5642AGM3NRE-2T

Model
Brand TYAN
Model S5642AGM3NRE-2T
Supported CPU
CPU Socket Type LGA 4189
CPU Type Supports 3rd Gen Intel Xeon Scalable Processor
Number of Processor Support 1
Supported CPU Technologies Max up to 270W (TDP)
Chipsets
North Bridge Intel C621A
Memory
Number of DDR4 Slots 8 x 288-pin
DDR4 Standard DDR4 ECC RDIMM /LRDIMM 3200
Maximum Memory Supported Up to 1,024GB RDIMM / 2,048GB LRDIMM / 2,048GB RDIMM 3DS/LRDIMM 3DS *Follow latest Intel DDR4 Memory POR
Channel Supported Eight Channel
ECC Supported Yes
Expansion Slots
PCI Express 4.0 x16 (1) PCIe Gen.4 x16 slot (#3 w/x8 link)
(2) PCIe Gen.4 x16 slots (#5,#6)
PCI Express x8 (1) PCIe Gen.4 x8 slot (#4 w/x4 link)
(1) PCe Gen.4 x8 slot (#2 via MUX)
Storage Devices
SATA 14 x SATA 6.0Gb/s
SATA RAID RAID 0/1/10/5 (Intel RSTe)
M.2 Connector (M.2): (2) 22110/2280 (by PCIe Gen.3 interface)
Connector (U.2): (1) SFF-8654 for (2) NVMe ports
Onboard Video
Onboard Video Chipset Aspeed AST2500
Onboard Audio
Audio Chipset Realtek ALC888S
Audio Channels 2.1 Channels
Onboard LAN
LAN Chipset Intel X550-AT2
LAN Speed 10Gbps
Second LAN Chipset Intel I210
Second LAN Speed 10/100/1000Mbps
Max LAN Speed 1Gbps

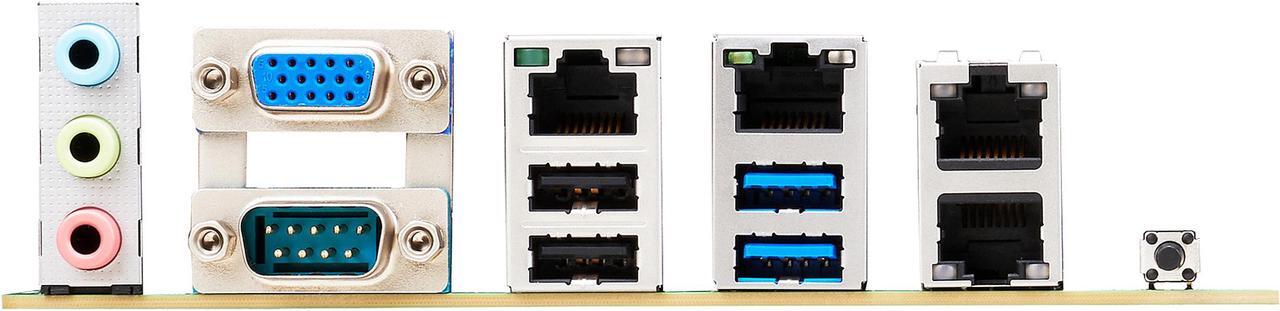

Rear Panel Ports
Back I/O Ports (2) USB2.0 ports (@ rear)
(2) USB3.0 ports (@ rear)
(2) USB3.0 ports (via cable)
(1) DB-9 COM Connector
(1) D-Sub 15-pin VGA port (@ rear)
(2) 10GbE + (1) GbE ports + (1) GbE dedicated for IPMI
(1) 2x12-pin SSI front panel header
(1) 2x5-pin header / (1) 3 holes Audio Jack connector
Dimensions
Form Factor SSI CEB
Dimensions (W x L) 12.0" x 10.5"
Additional Information
Date First Available May 27, 2022

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

  • Limited Warranty period (parts): 3 years
  • Limited Warranty period (labor): 3 years
