OUT OF STOCK

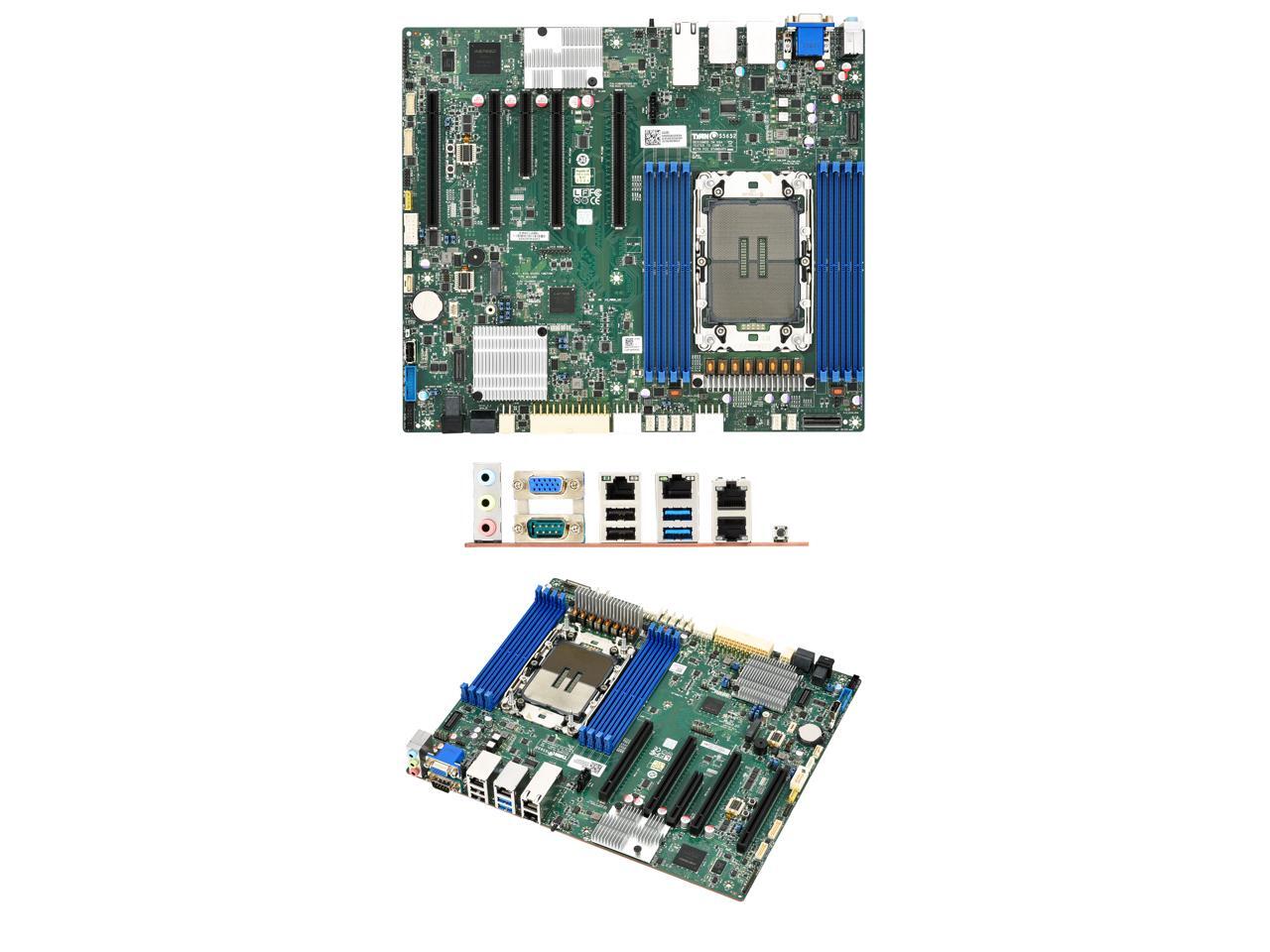

• Motherboard with Single-socket Intel Sapphire Rapids Xeon processor in an SSI-CEB form factor.
• Support for up to two double-wide GPU accelerator cards.
• Intel Sapphire Rapids-SP Processor with TDP up to 350W
• Chipset
• Intel Emmitsburg C630-Series PCH
• Memory
• (8) DDR5-4800 DIMM slots (8 memory channels)
• Supporting up to 4TB RAM (Assuming 8x512GB DIMMs)
• 512GB DIMM support is stretch goal but may not be validated until requested
• PCIe Expansion Slots
• (4) PCIe Gen 5.0 x16 slots (All lanes from the CPU socket)
• (1) PCIe Gen 3.0 x4 slot (Lanes come from the PCH)
• Network
• (2) 10GBase-T Ethernet ports (Intel X710)
• (1) 1000Base-T Ethernet port (Intel i210)
• (1) 1000Base-T Dedicated IPMI Port (Realtek PHY connected to AST2600 BMC)
• Storage
• (6) SATA 6G ports with Intel RSTe 5.0 RAID support
• (1) 2280 PCIe Gen 3.0 x4 NVMe M.2 ports (Lanes come from the PCH)
• AST2600 BMC with iKVM, IPMI, and Redfish support
• Optional SPI TPM 2.0 Module
