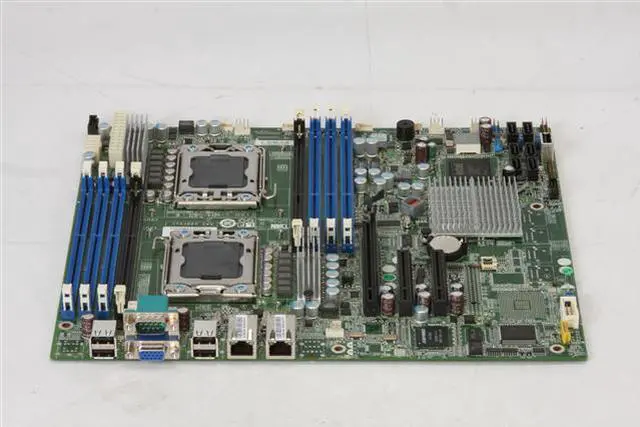

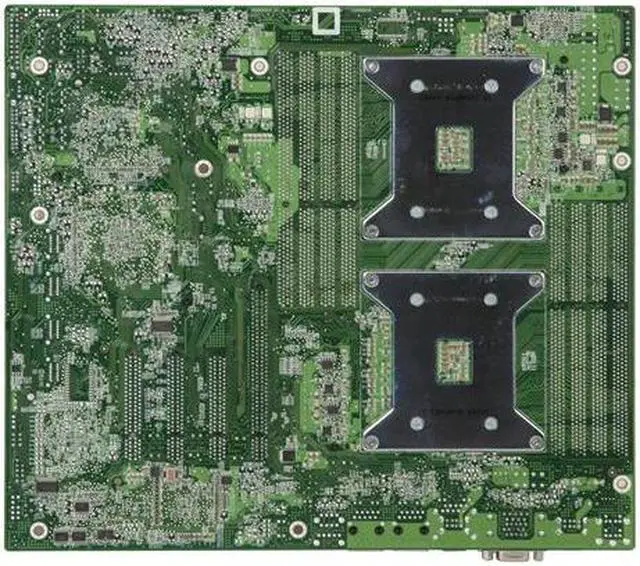

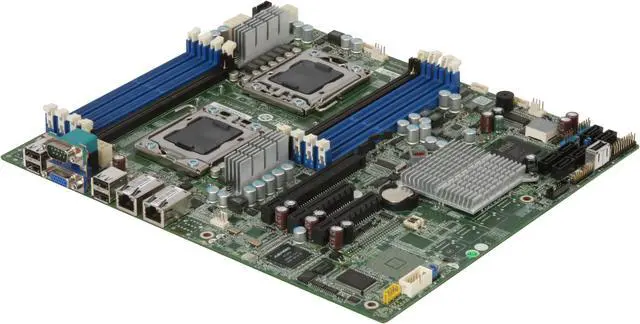

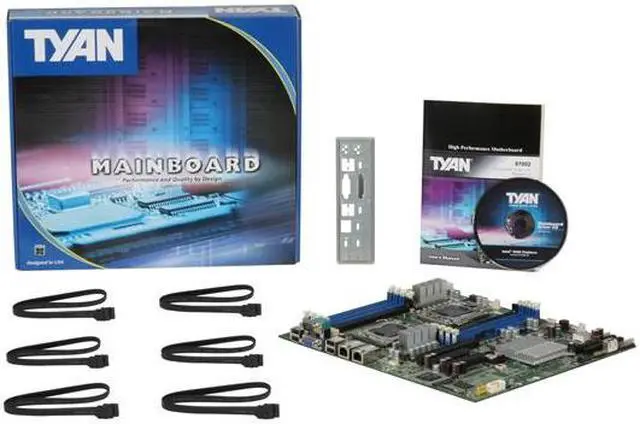

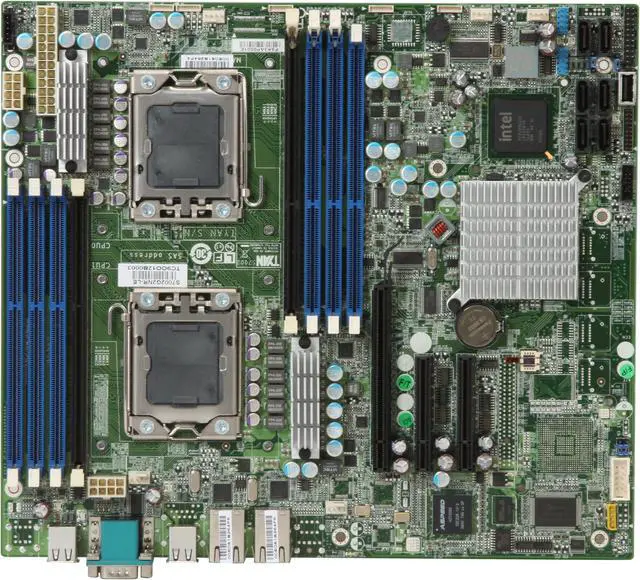

TYAN S7002G2NR-LE Dual LGA 1366 Intel 5500 Tylersburg Chipset SSI CEB Dual Intel Xeon 5500/5600 Series Server Motherboard
- Dual LGA 1366
- Intel 5500
- 8 x 240pin
Overview
Specs
Reviews (13)
Any questions? Our AI beta will help you find out quickly.
Try me now
The TYAN S7002G2NR-LE server motherboard supports up to two Dual-Core/Quad-Core Intel Xeon 5500 series processors at 4.8 GT/s, 5.86 GT/s, and 6.4 GT/s speeds via the Intel QuickPath Interconnect to handle even the most demanding applications. With 8 DIMM slots, it can support up to 64GB registered or unbuffered DDR3 800/1066/1333MHz memory to significantly improve the computing capability.
This motherboard has a full range of expansion choices: it features a PCI Express 2.0 x16 and PCI Express 2.0 x8 slots, providing substantial I/O bandwidth for current and future application needs; it protects your investment with one PCI Express x8 slot as a flexible option for server utilization.
The server motherboard has integrated 6 SATAII 300MB/s ports which have built-in RAID functions for better data protection. This really benefits small to medium sized business with the best upgrade capability and data protection.
The TYAN S7002G2NR-LE server motherboard supports up to two Dual-Core/Quad-Core Intel Xeon 5500 series processors at 4.8 GT/s, 5.86 GT/s, and 6.4 GT/s speeds via the Intel QuickPath Interconnect to handle even the most demanding applications. With 8 DIMM slots, it can support up to 64GB registered or unbuffered DDR3 800/1066/1333MHz memory to significantly improve the computing capability.
This motherboard has a full range of expansion choices: it features a PCI Express 2.0 x16 and PCI Express 2.0 x8 slots, providing substantial I/O bandwidth for current and future application needs; it protects your investment with one PCI Express x8 slot as a flexible option for server utilization.
The server motherboard has integrated 6 SATAII 300MB/s ports which have built-in RAID functions for better data protection. This really benefits small to medium sized business with the best upgrade capability and data protection.
This motherboard has a full range of expansion choices: it features a PCI Express 2.0 x16 and PCI Express 2.0 x8 slots, providing substantial I/O bandwidth for current and future application needs; it protects your investment with one PCI Express x8 slot as a flexible option for server utilization.
The server motherboard has integrated 6 SATAII 300MB/s ports which have built-in RAID functions for better data protection. This really benefits small to medium sized business with the best upgrade capability and data protection.
Supports Dual Intel Xeon 5500 ProcessorsWith dual LGA 1366 sockets, the Tyan S7002G2NR-LE server board supports up to two multi-core Intel Xeon 5500 Series processors, providing the computing platform capability necessary for your increasing computing demand.
Scalable DDR3 MemoryEight 240-pin DIMM sockets support both registered (RDIMM) and unbuffered (UDIMM) DDR3 memory at speeds of 800, 1066 and 1333MHz, ensuring ample capacity for any application.
SATA II with RAID SupportThe second generation SATA interface delivers up to 300MB/sec transfer speed, doubling that of the first generation Serial ATA. The on-board six SATA II ports with built-in RAID 0, 1, 10 and 5 support provide flexible, scalable storage and enhanced data security.
Flexible ExpansionWith one PCI Express 2.0 x16, one PCI Express 2.0 x8 plus one PCI Express x8 slot, the Tyan S7002G2NR-LE supports a wide range of add-on cards for superior expandability.
Integrated ManageabilityThe integrated Baseboard Management Controller (BMC) with IPMI 2.0 support enables out-of-band capabilities for monitoring hardware and software status regardless of the OS or power state.
Supports Dual Intel Xeon 5500 ProcessorsWith dual LGA 1366 sockets, the Tyan S7002G2NR-LE server board supports up to two multi-core Intel Xeon 5500 Series processors, providing the computing platform capability necessary for your increasing computing demand.
Scalable DDR3 MemoryEight 240-pin DIMM sockets support both registered (RDIMM) and unbuffered (UDIMM) DDR3 memory at speeds of 800, 1066 and 1333MHz, ensuring ample capacity for any application.
SATA II with RAID SupportThe second generation SATA interface delivers up to 300MB/sec transfer speed, doubling that of the first generation Serial ATA. The on-board six SATA II ports with built-in RAID 0, 1, 10 and 5 support provide flexible, scalable storage and enhanced data security.
Flexible ExpansionWith one PCI Express 2.0 x16, one PCI Express 2.0 x8 plus one PCI Express x8 slot, the Tyan S7002G2NR-LE supports a wide range of add-on cards for superior expandability.
Integrated ManageabilityThe integrated Baseboard Management Controller (BMC) with IPMI 2.0 support enables out-of-band capabilities for monitoring hardware and software status regardless of the OS or power state.Warranty & Returns
