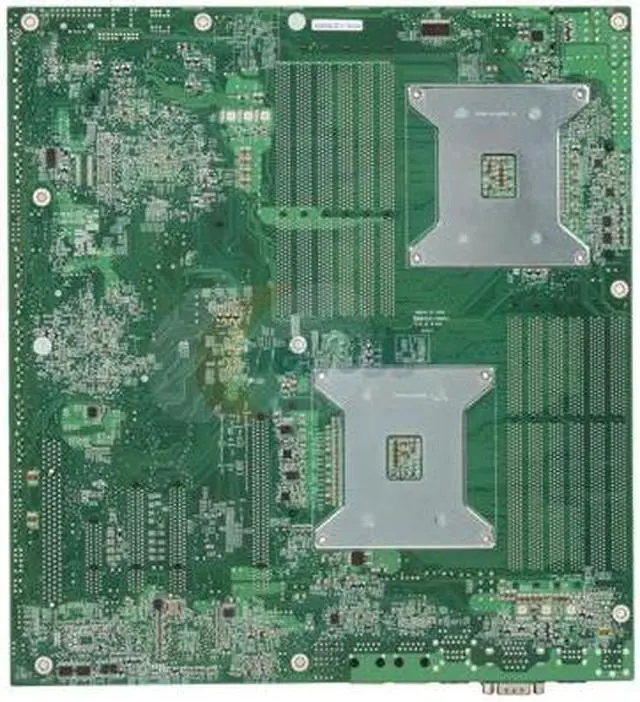

Learn more about the TYAN S7010AGM2NRF
Model| Brand | TYAN |
|---|
| Model | S7010AGM2NRF |
|---|
Supported CPU| CPU Socket Type | Dual LGA 1366 |
|---|
| CPU Type | Dual Intel Xeon 5500 Series |
|---|
| QPI | 4.8/ 5.86/ 6.4GT/s |
|---|
Chipsets| North Bridge | Intel 5520 |
|---|
| South Bridge | Intel ICH10R |
|---|
Memory| Number of DDR3 Slots | 12 x 240pin |
|---|
| DDR3 Standard | DDR3 1333 |
|---|
| Maximum Memory Supported | 96GB |
|---|
| Channel Supported | Triple Channel |
|---|
Expansion Slots| PCI Express 2.0 x16 | 1 |
|---|
| PCI Express x8 | 2 x PCI-E Gen.2 x8 |
|---|
| PCI Express x4 | 1 x PCI Express x4 |
|---|
| PCI Slots | 1 x PCI Slot |
|---|
Storage Devices| SATA | 6 x SATA 3.0Gb/s |
|---|
| SATA RAID | RAID 0/1/10/5 (Intel Matrix RAID) |
|---|
Onboard Video| Onboard Video Chipset | Aspeed AST2050 |
|---|
Onboard Audio| Audio Chipset | Realtek ALC262 |
|---|
Onboard LAN| LAN Chipset | Intel 82574L |
|---|
| LAN Speed | 10/100/1000Mbps |
|---|
| Second LAN Chipset | Intel 82574L |
|---|
| Second LAN Speed | 10/100/1000Mbps |
|---|
| Max LAN Speed | 2 x 1Gbps |
|---|
Rear Panel Ports| COM | 1 |
|---|
| Video Ports | D-Sub |
|---|
| USB 1.1/2.0 | 4 x USB 2.0 |
|---|
Dimensions| Form Factor | SSI EEB |
|---|
| Dimensions (W x L) | 12.0" x 13.0" |
|---|
Additional Information| First Listed on Newegg | April 09, 2019 |
|---|
